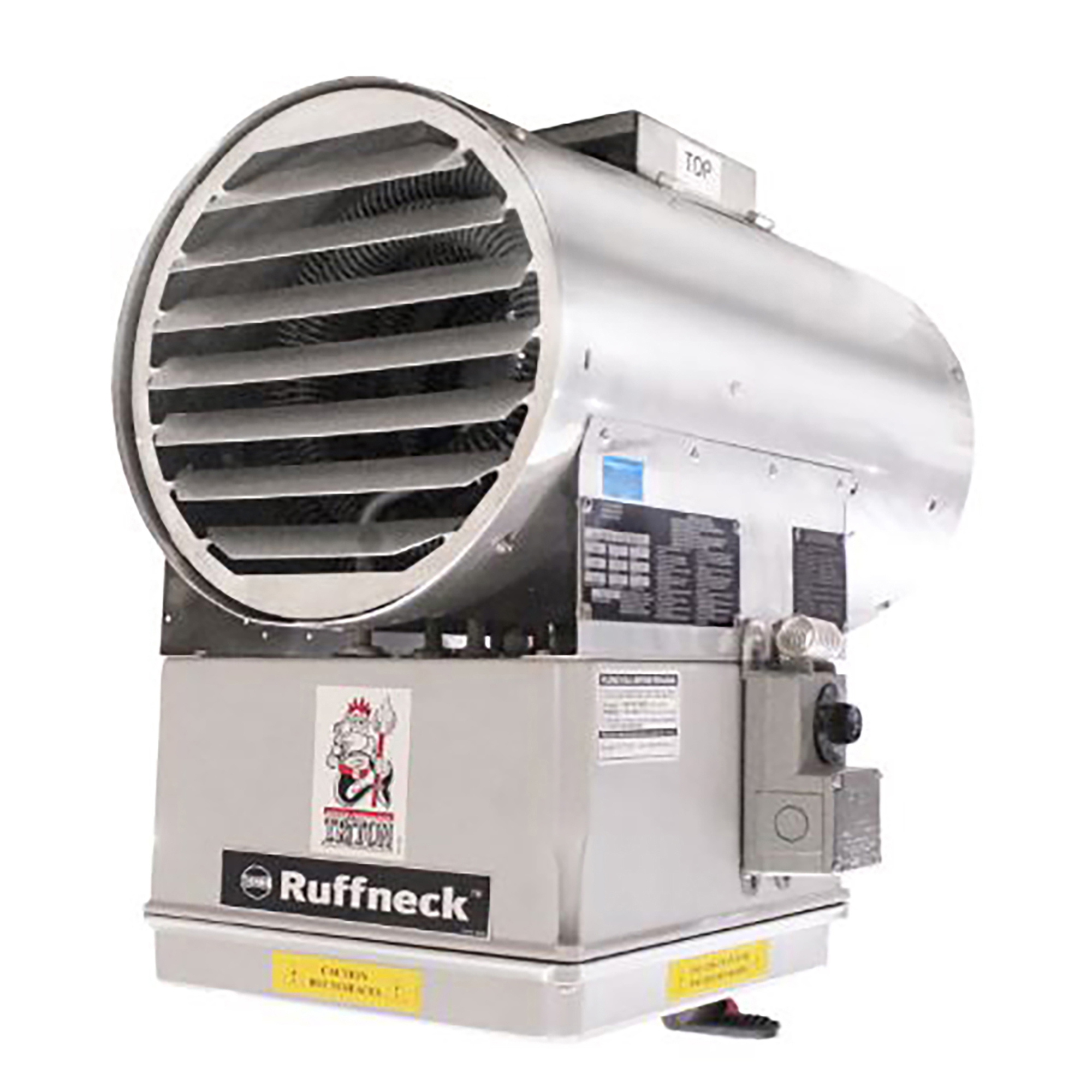

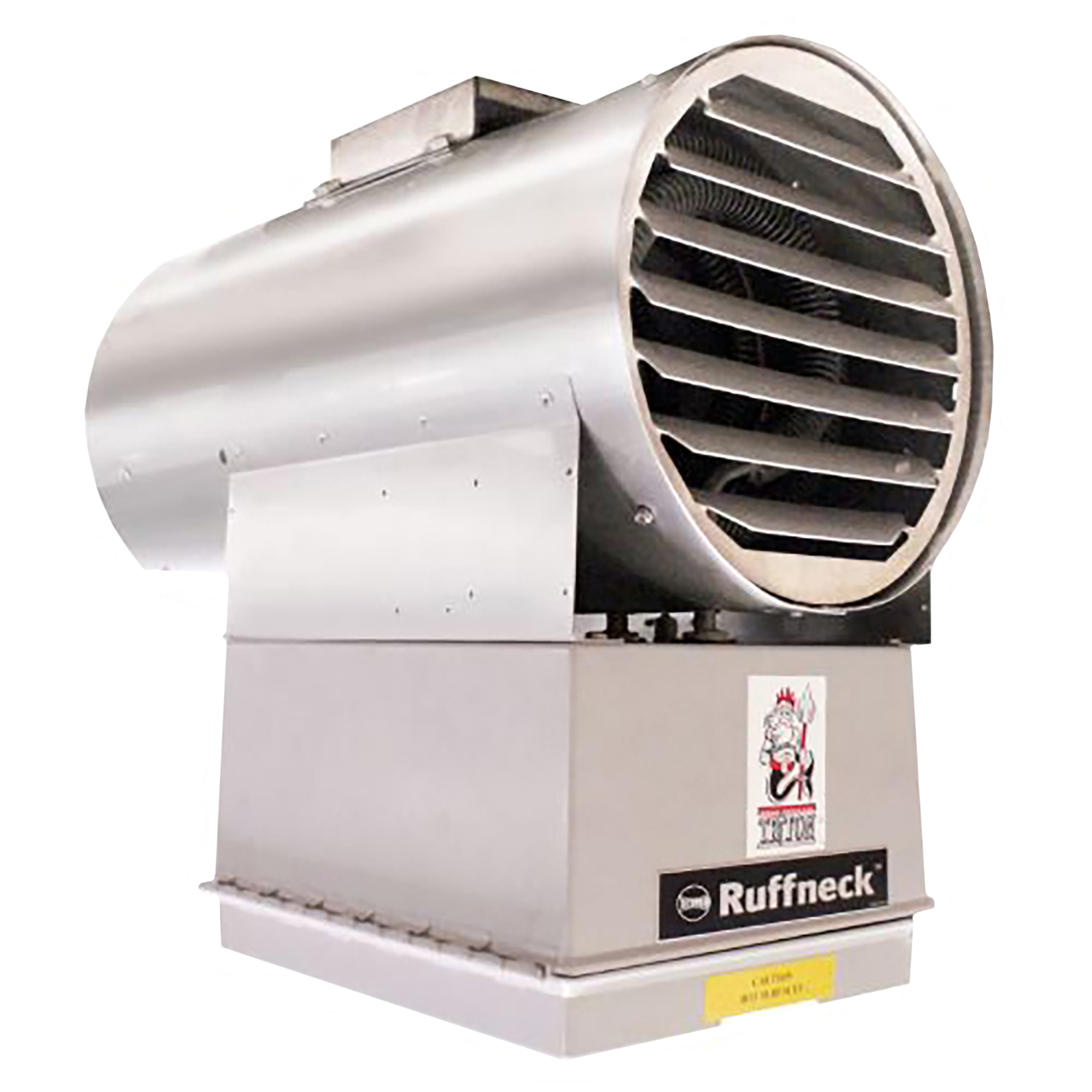

Ruffneck™ CR1 Series Triton™ Corrosion-Resistant Washdown Heater, c/w Disconnect Switch - 240V 3Ø 7.5kW

Item# 7383761
New
Ruffneck™ CR1 Series Triton™ Corrosion-Resistant Washdown Heater, c/w Disconnect Switch - 240V 3Ø 7.5kW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ruffneck™ CR1 Series Triton™ Corrosion-Resistant Washdown Heater, c/w Disconnect Switch - 240V 3Ø 7.5kW

Click or Tap image to Zoom

$6529.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ruffneck™ CR1 Triton™ Series is a new generation of NEMA 4X corrosion?resistant washdown heaters. The first UL-listed Type 4X heater with models ranging from 3 kW to 39 kW.
  • IMPORTANT: Ruffneck™ CR1 heaters are suitable for non?hazardous locations only. For washdown applications use water pressure of less than 70 psi.
  • The entire heater is NEMA Type 4X
  • Epoxy-coated fan blade
  • 16?gauge stainless?steel cabinet

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

CR1 Triton™ Corrosion-Resistant Washdown Heaters. Ruffneck™ CR1 Triton™ Series is a new generation of NEMA 4X corrosion-resistant washdown heater built to last as an extremely reliable heat source in washdown and corrosive environments. With its 16-gauge stainless steel heater cabinet, users also benefit from industrial grade-durability, while other stainless steel elements offer added corrosion protection and improved heat distribution. The thermally protected and totally enclosed 1/2 HP Motor features permanently lubricated ball bearings, and the epoxy-coated fan blade contributes to a longer operational life as well. Stainless steel temperature high-limit controls are included for increased safety and dependability. The first UL-listed Type 4X heater with models ranging from 3 kW to 39 kW. Each Ruffneck™ CR1 Triton™ industrial washdown heater comes complete with a stainless steel wall/ceiling mounting kit for highly flexible mounting options. Ruffneck™ CR1 heaters are suitable for non-hazardous locations only. For washdown applications use water pressure less than 70 psi.

What's Included

    (1) Ruffneck™ CR1 Series Triton™ Corrosion-Resistant Washdown Heater, c/w Disconnect Switch - 240V 3Ø 7.5kW

Features + Benefits

  • Ruffneck™ CR1 Triton™ Series is a new generation of NEMA 4X corrosion?resistant washdown heaters. The first UL-listed Type 4X heater with models ranging from 3 kW to 39 kW.
  • IMPORTANT: Ruffneck™ CR1 heaters are suitable for non?hazardous locations only. For washdown applications use water pressure of less than 70 psi.
  • The entire heater is NEMA Type 4X
  • Epoxy-coated fan blade
  • 16?gauge stainless?steel cabinet
  • Custom-configured stainless?steel elements
  • Optional built?in accessories
  • Stainless?steel wall/ceiling mounting kit
  • 120 V controls
  • Stainless?steel temperature high?limit
  • Increased safety and protection against water penetration
  • Added corrosion protection
  • Better resistance to corrosion for longer life
  • Improved heat distribution and corrosion protection
  • Flexibility and reduced field installation costs
  • Flexible options for mounting heater
  • Better contactor pull?in reliability
  • Increased safety and reliability

Key Specs

AttributeSpecification

item#

7383761

Brand

Ruffneck

Manufacturer's Warranty

3 year limited warranty

Ship Weight

125.0 LB

Heat Type

Forced Air

Heat Output

25,600 Btu/hour

Phase

Three-phase

Indoor Outdoor Use

Indoor

Volts

240
AttributeSpecification

Watts

7,500

Amps

21

Air Flow

700 cfm

Hardwired

No

Thermostat Included

No

Mounting Hardware Included

Yes

Housing Material

Stainless Steel

Product Weight

125.0000 lb

Dimensions L x W x H (in.)

26.0 x 14.0 x 29.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

3 year limited warranty
