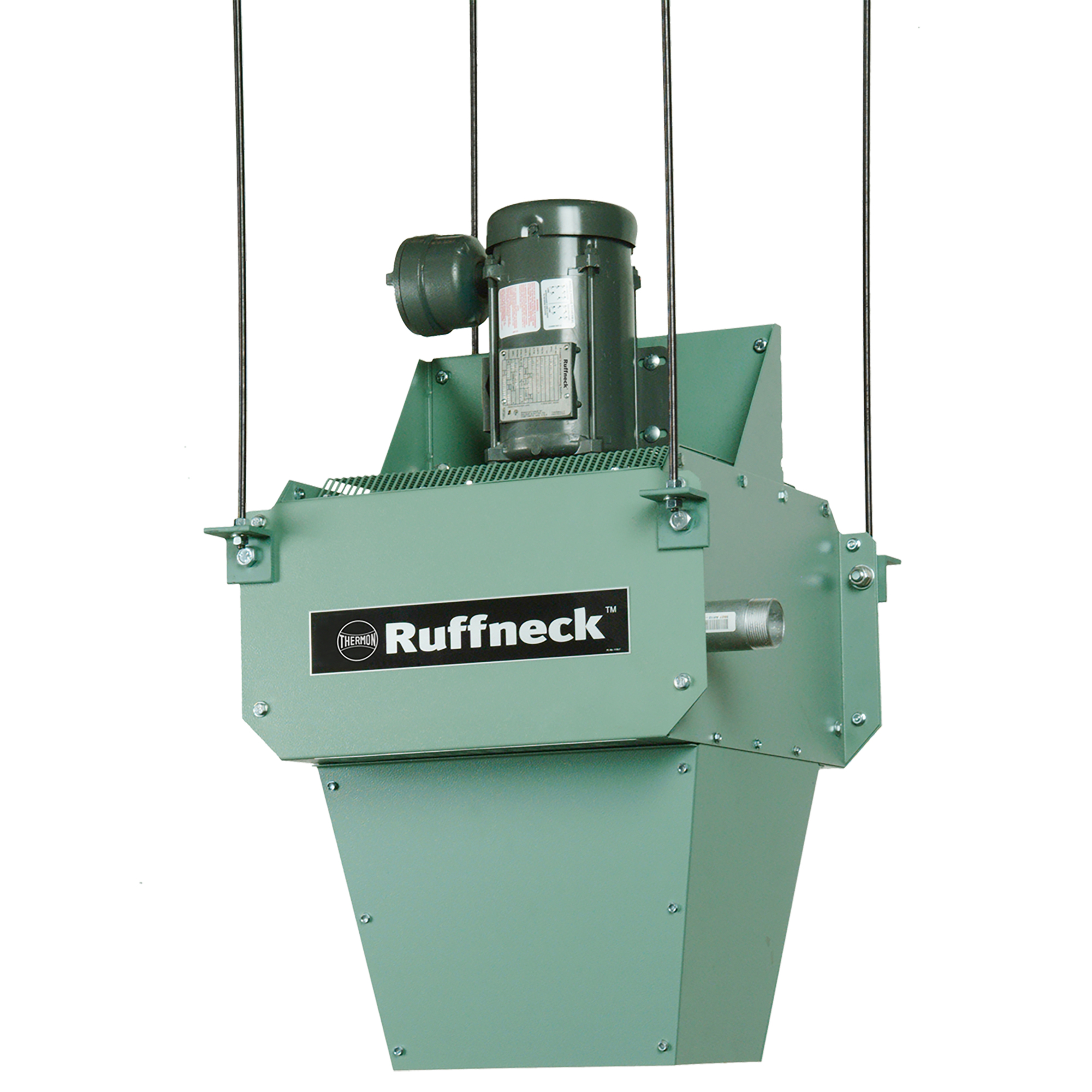

Ruffneck™ Advanced Vertical Series Heat Exchanger Unit Heater, 16” Fan, Epoxy Powder-Coated Carbon Steel Cabinet, General Purpose, 115V, Single Phase

Item# 7396204
Ruffneck™ Advanced Vertical Series Heat Exchanger Unit Heater, 16” Fan, Epoxy Powder-Coated Carbon Steel Cabinet, General Purpose, 115V, Single Phase

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ruffneck™ Advanced Vertical Series Heat Exchanger Unit Heater, 16” Fan, Epoxy Powder-Coated Carbon Steel Cabinet, General Purpose, 115V, Single Phase

Click or Tap image to Zoom

$3549.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Fan Size 16A ? 16" (406 mm)
  • Standard single fan
  • Tube Material: 5/8" Tubing, 0.65" Wall Thickness, (3) Rows, (10) Fins/Inch, Type (TW)
  • Passes: 1 Pass
  • Connections: B ? 1 1/2” (40 mm) 300# RF fl ange

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Ruffneck™ AV Series - Advanced Vertical Model. Ruffneck’s Advanced Series unit heaters are designed for rugged industrial applications meeting the most demanding service and long life requirements. While perfect for steam, circulating hot water or glycol heating systems, the Ruffneck™ Vertical Throw heaters are also suitable for a wide range of other heating fluids. In addition, they can be used for both space heating and liquid cooling applications. The Ruffneck™ Advanced Series heaters are designed for rugged industrial applications and are available in 37 models from 6,000 to 1,200,000 Btu/hr with a maximum operating pressure and temperature rating of 550 psi and 600°F (315°C) respectively, the Advanced Series is perfect for steam, circulating hot water, and glycol heating systems or liquid cooling applications that include: flash stream condensers, lube oil coolers, and pump seal coolers, etc.

What's Included

    (1) Ruffneck™ Advanced Vertical Series Heat Exchanger Unit Heater, 16” Fan, Epoxy Powder-Coated Carbon Steel Cabinet, General Purpose, 115V, Single Phase

Features + Benefits

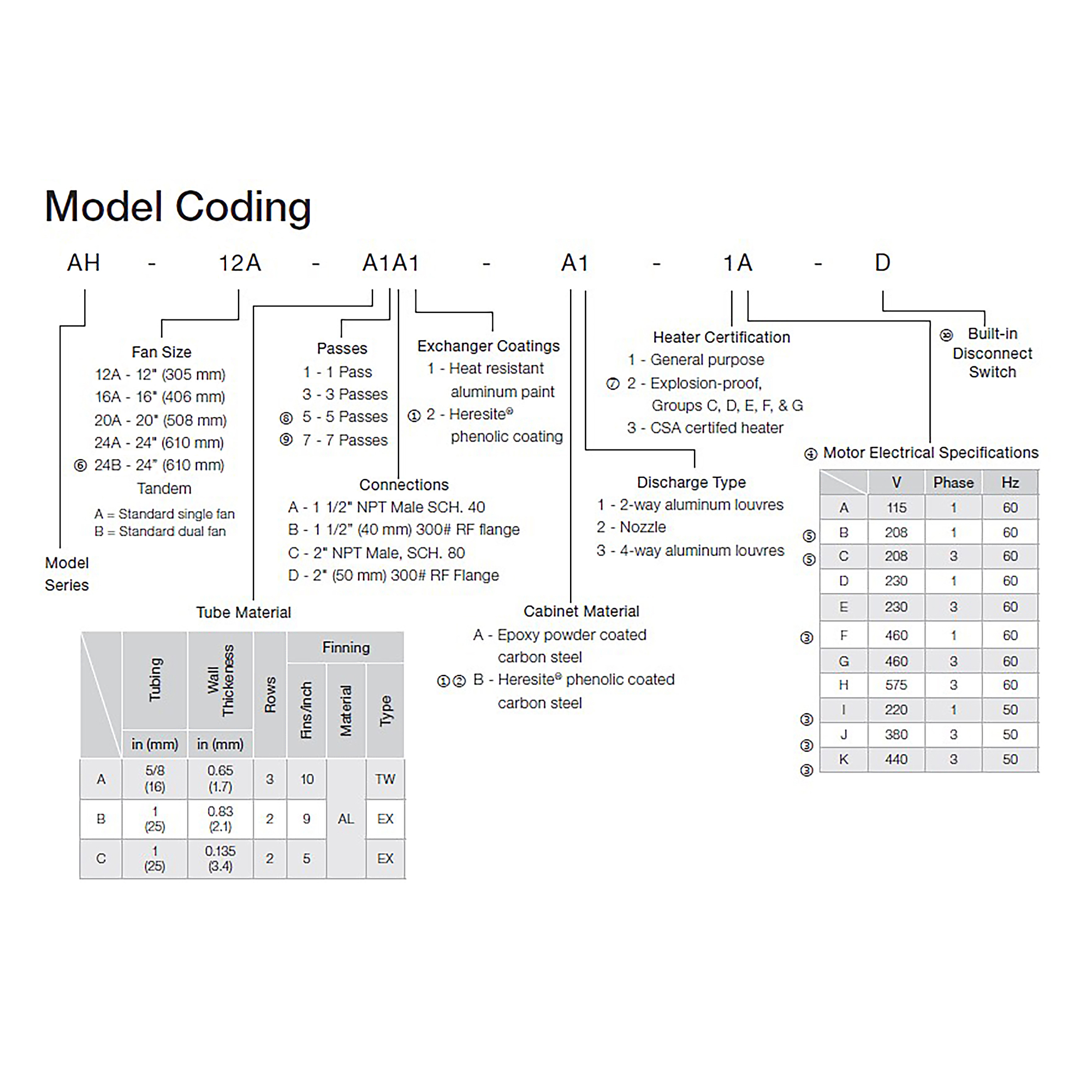

  • Fan Size 16A ? 16" (406 mm)
  • Standard single fan
  • Tube Material: 5/8" Tubing, 0.65" Wall Thickness, (3) Rows, (10) Fins/Inch, Type (TW)
  • Passes: 1 Pass
  • Connections: B ? 1 1/2” (40 mm) 300# RF fl ange
  • Exchanger Coatings: 1 ? Heat resistant aluminum paint
  • Cabinet Material: A ? Epoxy powder coated carbon steel
  • Discharge Type: 2?Way Aluminum Louvres
  • Heater Certification: 1 ? General Purpose
  • The Ruffneck™ Advanced Series heaters are designed for rugged industrial applications and are available in 37 models from 6,000 to 1,200,000 Btu/hr
  • Maximum operating pressure and temperature rating of 550 psi and 600°F (315°C) respectively
  • The Advanced Series is perfect for steam, circulating hot water, and glycol heating systems or liquid cooling applications that include: flash stream condensers, lube oil coolers, and pump seal coolers, etc.
  • Epoxy powder coated 14-gauge (0.075" / 2 mm) steel cabinet provides protection and durability. Special Heresite® coatings are available as an option.
  • Bolt-together cabinet offers ease of maintenance and cleaning of heat exchanger core without disturbing the heater mounting arrangement or electrical connections.
  • Heavy gauge, embossed, high performance fan blade offers long life and improved air flow.
  • Standard motors are UL listed and/or CSA approved industrial-duty, totally enclosed, 1725 RPM, 56 frame, 1/2 HP. Built for rugged environments, this motor is also available in explosion-proof models for hazardous locations.
  • Epoxy powder coated bolt?together motor mount provides exceptional vibration handling.
  • The Advanced Series are CRN registered heat exchangers. Maximum operating pressure of 350 psi and maximum operating temperature of 600°F (315°C) provide greater versatility. Steel headers are 3/16" (8 mm) thick to ensure ruggedness and long-lasting performance.

Key Specs

AttributeSpecification

item#

7396204

Brand

Ruffneck

Manufacturer's Warranty

3 year limited warranty

Ship Weight

210.0 LB

Heat Type

Other

Heat Output

0 Btu/hour

Phase

Single-phase

Indoor Outdoor Use

Indoor
AttributeSpecification

Volts

115

Air Flow

1,840 cfm

Hardwired

No

Thermostat Included

No

Mounting Hardware Included

No

Housing Material

Steel

Product Weight

210.0000 lb

Dimensions L x W x H (in.)

39.0 x 31.0 x 32.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
