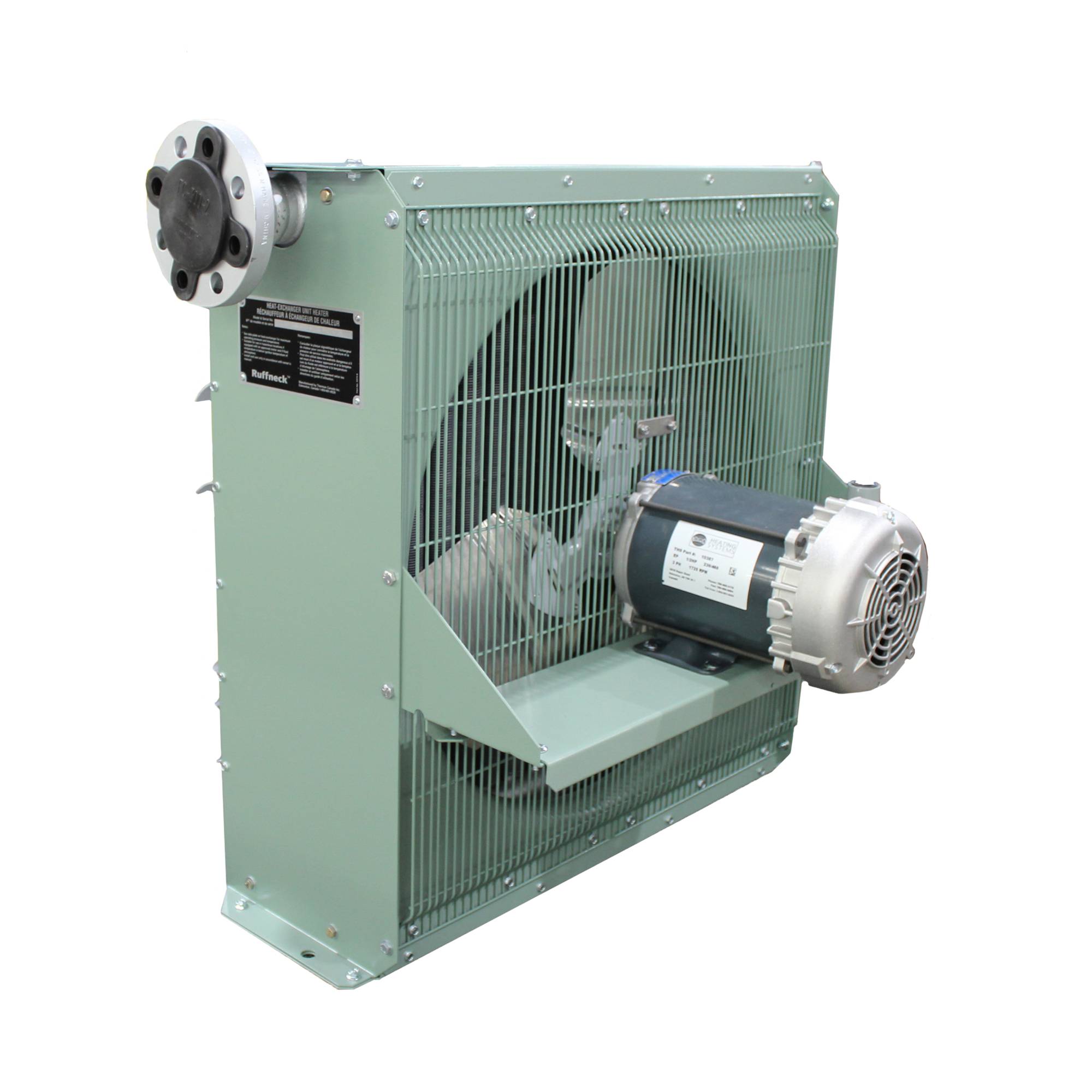

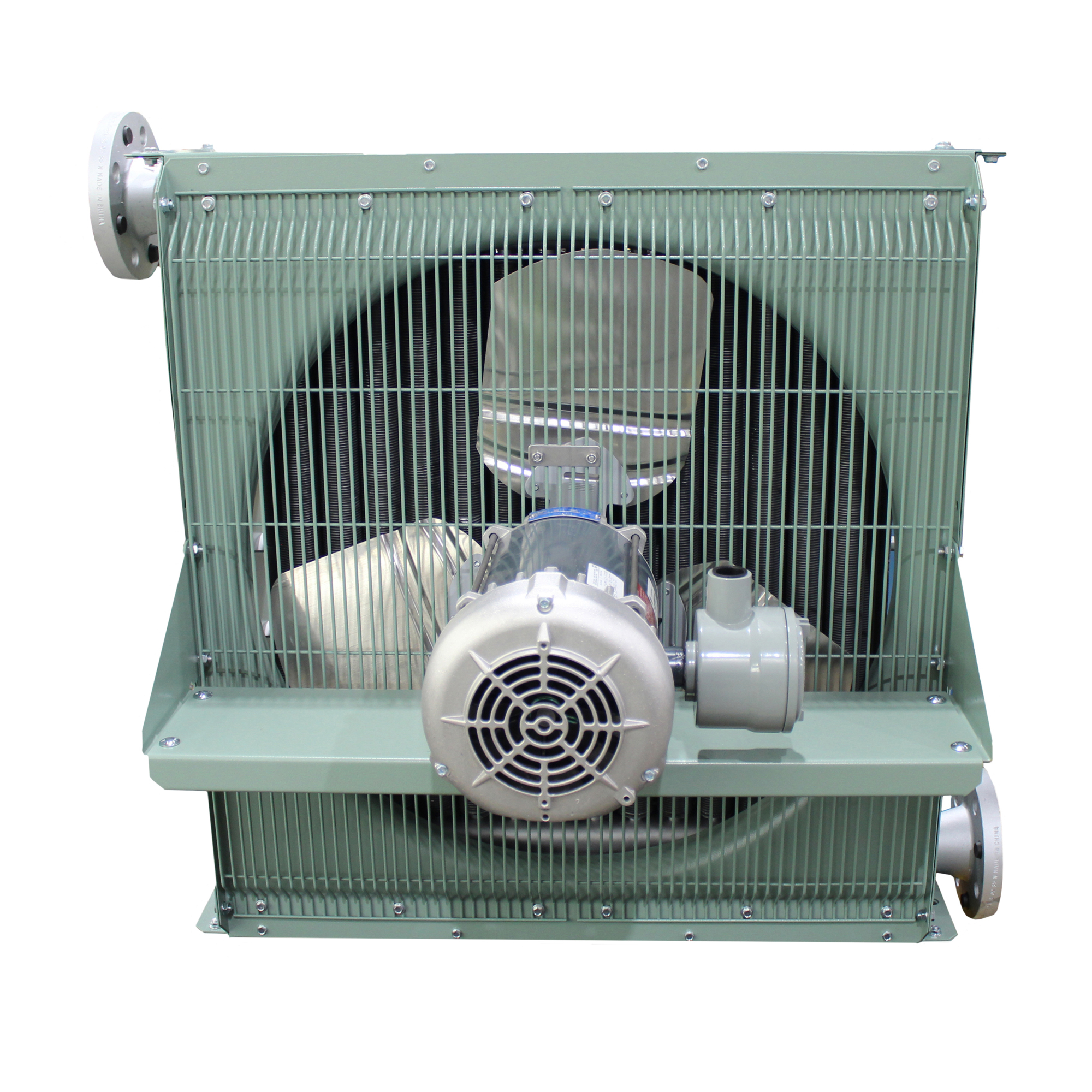

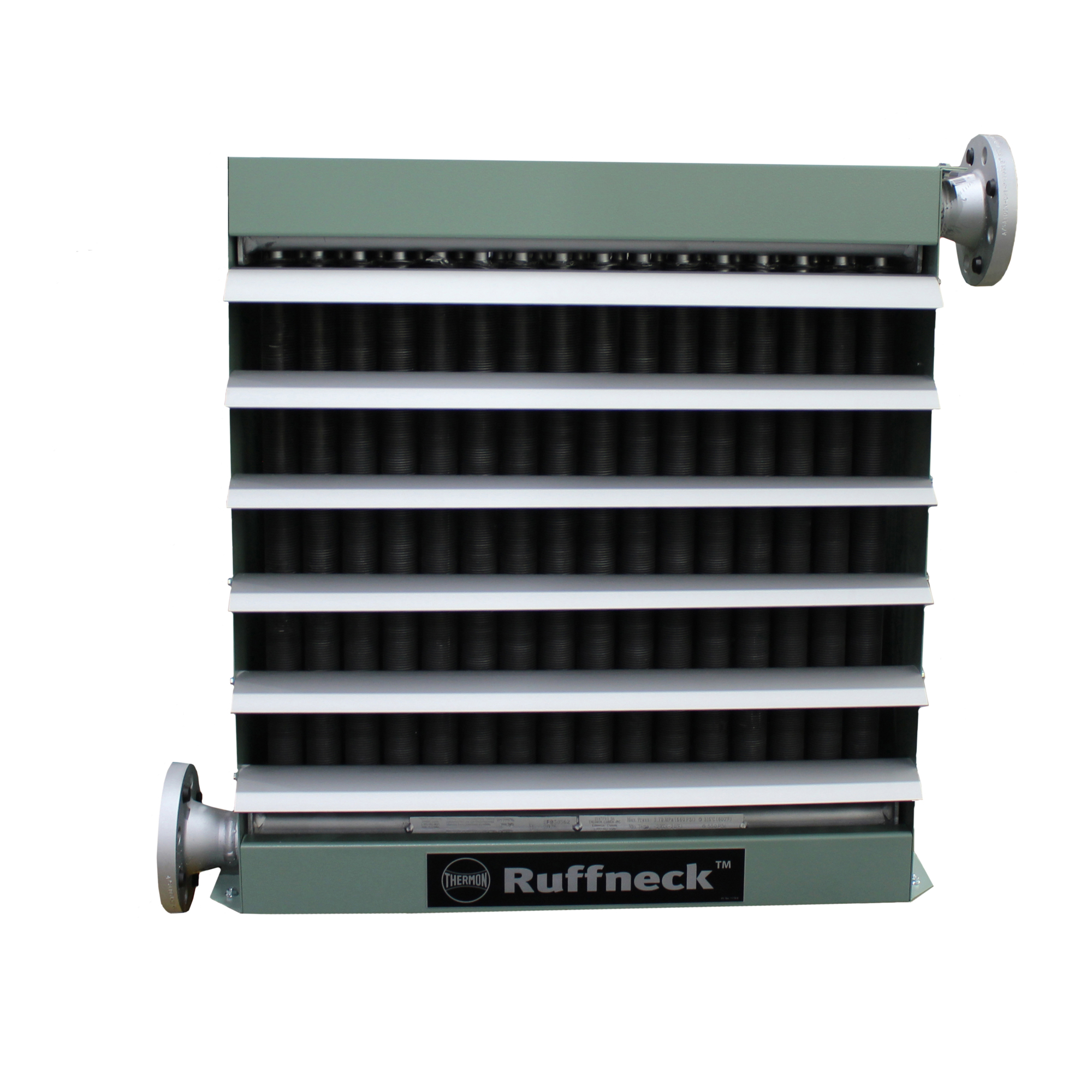

Ruffneck™ Advanced Horizontal Series Heat Exchanger Unit Heater, 24” Fan, Epoxy Powder-Coated Carbon Steel Cabinet, CSA Certified, 115V, Single Phase

Item# 7396319
Ruffneck™ Advanced Horizontal Series Heat Exchanger Unit Heater, 24” Fan, Epoxy Powder-Coated Carbon Steel Cabinet, CSA Certified, 115V, Single Phase

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ruffneck™ Advanced Horizontal Series Heat Exchanger Unit Heater, 24” Fan, Epoxy Powder-Coated Carbon Steel Cabinet, CSA Certified, 115V, Single Phase

Click or Tap image to Zoom

$5379.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Fan Size 24A ? 24" (610 mm)
  • Standard single fan
  • Tube Material: 5/8" Tubing, 0.65" Wall Thickness, (3) Rows, (10) Fins/Inch, Type (TW)
  • Passes: 1 Pass
  • Connections: B ? 1 1/2” (40 mm) 300# RF fl ange

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Ruffneck™ Advanced Series heaters are designed for rugged industrial applications and are available in 37 models from 6,000 to 1,200,000 Btu/hr with a maximum operating pressure and temperature rating of 550 psi and 600°F (315°C) respectively, the Advanced Series is perfect for steam, circulating hot water, and glycol heating systems or liquid cooling applications that include: flash stream condensers, lube oil coolers, and pump seal coolers, etc. The Ruffneck™ Advanced Horizontal unit heater exchanger can be customised for your application. The heat exchanger is comprised of extruded finned tubing in 10, 9 and 5 fins per inch for varying steam conditions and/or where atmospheric particulate may cause premature fouling of the heater core. Additionally, the AH can handle more pressure than the Ruffneck™ HP and FR series industrial heaters.

What's Included

    (1) Ruffneck™ Advanced Horizontal Series Heat Exchanger Unit Heater, 24” Fan, Epoxy Powder-Coated Carbon Steel Cabinet, CSA Certified, 115V, Single Phase

Features + Benefits

  • Fan Size 24A ? 24" (610 mm)
  • Standard single fan
  • Tube Material: 5/8" Tubing, 0.65" Wall Thickness, (3) Rows, (10) Fins/Inch, Type (TW)
  • Passes: 1 Pass
  • Connections: B ? 1 1/2” (40 mm) 300# RF fl ange
  • Exchanger Coatings: 1 ? Heat resistant aluminum paint
  • Cabinet Material: A ? Epoxy powder coated carbon steel

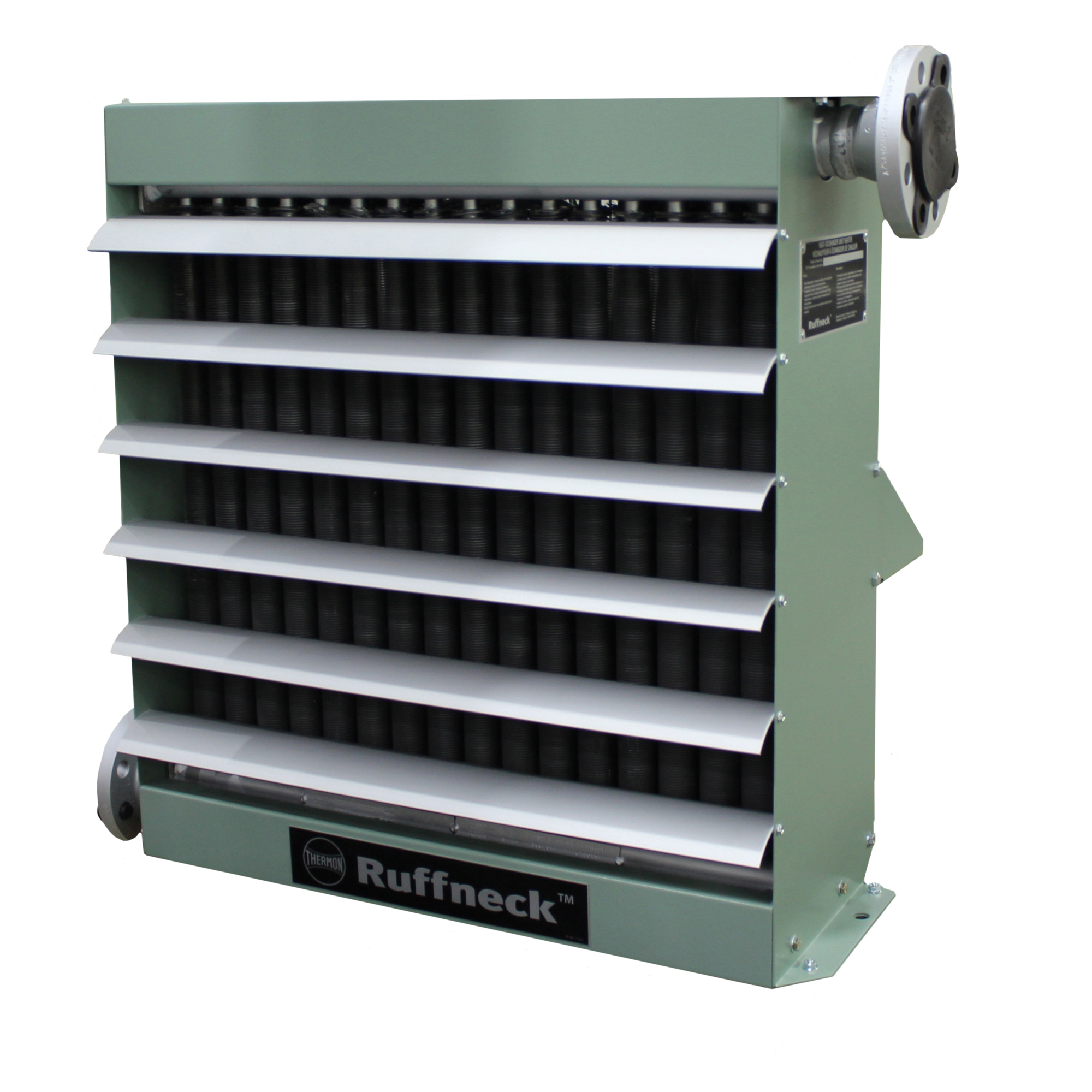

  • Discharge Type: 2?Way Aluminum Louvres
  • Heater Certification: 3 ? CSA Certifed Heater
  • The Ruffneck™ Advanced Series heaters are designed for rugged industrial applications and are available in 37 models from 6,000 to 1,200,000 Btu/hr
  • Maximum operating pressure and temperature rating of 550 psi and 600°F (315°C) respectively
  • The Advanced Series is perfect for steam, circulating hot water, and glycol heating systems or liquid cooling applications that include: flash stream condensers, lube oil coolers, and pump seal coolers, etc.
  • Epoxy powder coated 14-gauge (0.075" / 2 mm) steel cabinet provides protection and durability. Special Heresite® coatings are available as an option.
  • Bolt-together cabinet offers ease of maintenance and cleaning of heat exchanger core without disturbing the heater mounting arrangement or electrical connections.
  • Heavy gauge, embossed, high performance fan blade offers long life and improved air flow.

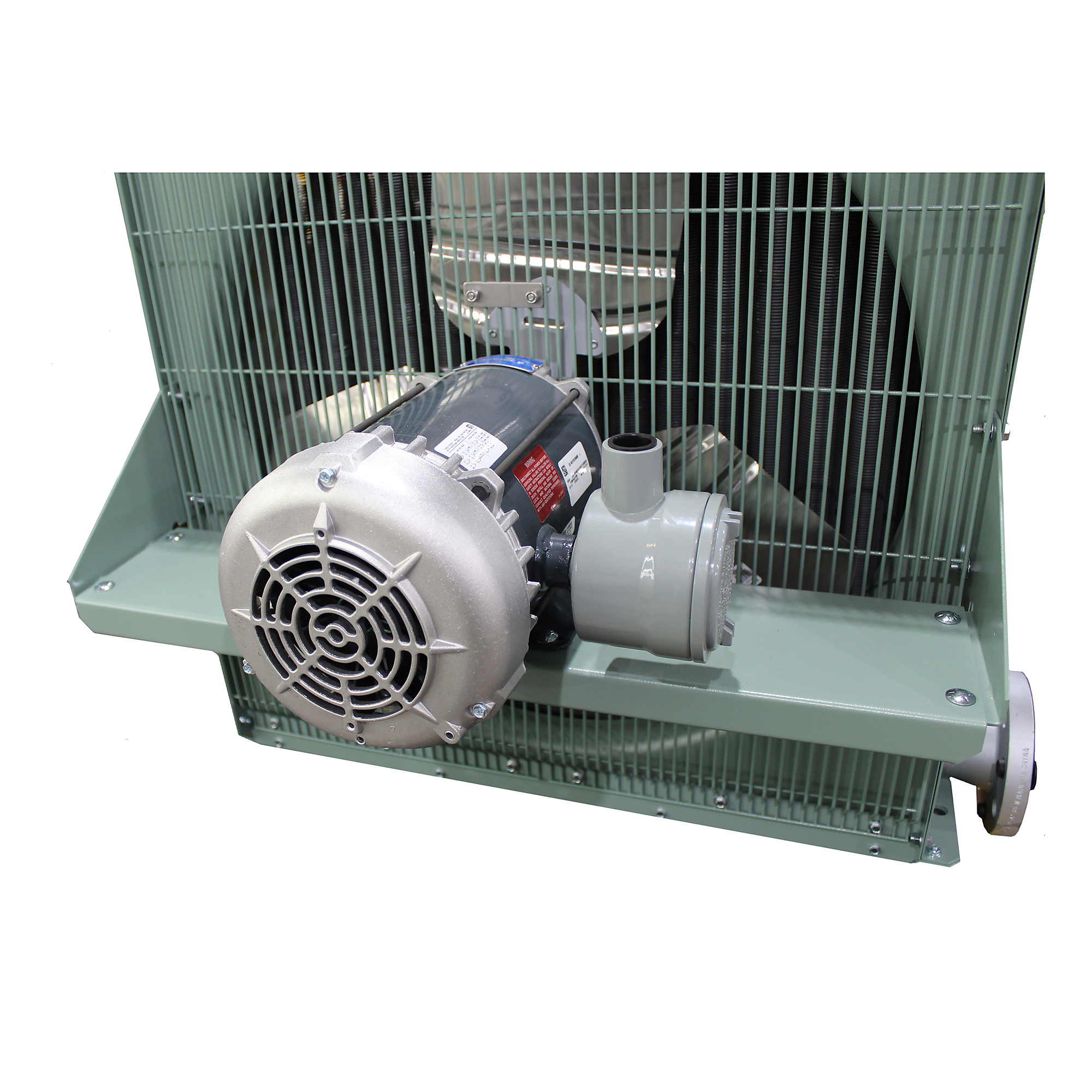

  • Standard motors are UL listed and/or CSA approved industrial-duty, totally enclosed, 1725 RPM, 56 frame, 1/2 HP. Built for rugged environments, this motor is also available in explosion-proof models for hazardous locations.
  • Epoxy powder coated bolt?together motor mount provides exceptional vibration handling.
  • The Advanced Series are CRN registered heat exchangers. Maximum operating pressure of 350 psi and maximum operating temperature of 600°F (315°C) provide greater versatility. Steel headers are 3/16" (8 mm) thick to ensure ruggedness and long-lasting performance.

Key Specs

AttributeSpecification

item#

7396319

Brand

Ruffneck

Manufacturer's Warranty

3 year limited warranty

Ship Weight

280.0 LB

Heat Type

Other

Heat Output

0 Btu/hour

Phase

Single-phase

Indoor Outdoor Use

Indoor
AttributeSpecification

Volts

115

Air Flow

1,288 cfm

Hardwired

No

Thermostat Included

No

Mounting Hardware Included

No

Housing Material

Steel

Product Weight

280.0000 lb

Dimensions L x W x H (in.)

31.0 x 41.0 x 41.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
