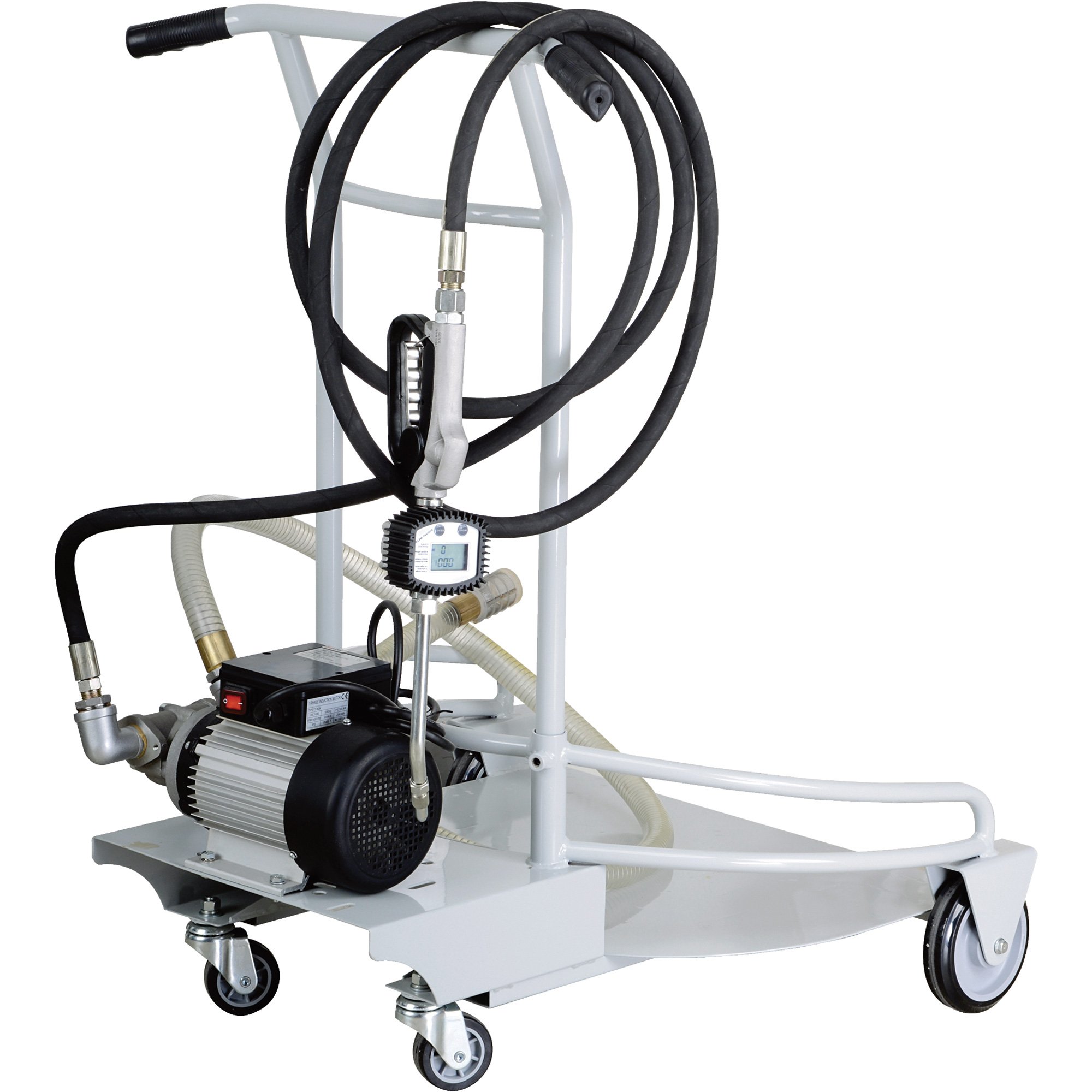

Roughneck Oil Dispensing System — 4.8 GPM, Pump, Manual Nozzle, Valve, Hose

Item# 20108
Roughneck Oil Dispensing System — 4.8 GPM, Pump, Manual Nozzle, Valve, Hose
Roughneck Oil Dispensing System — 4.8 GPM, Pump, Manual Nozzle, Valve, Hose

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Roughneck Oil Dispensing System — 4.8 GPM, Pump, Manual Nozzle, Valve, Hose

Click or Tap image to Zoom

  • IP55 protection class 115V motor
  • 175 PSI max. pressure
  • Oil viscosity up to 10,000 SUS
  • 6 1/2ft. suction hose with filter
  • Rolls on 3in. rear swivel casters and 6in. front wheels

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Roughneck® Mobile Oil Dispensing Unit with self-priming pump is ideal for pumping oils and lubricants from a drum anywhere in your shop. Die-cast aluminum pump body with integrated bypass, internal sintered steel gears and relief valve device. Sturdy cart supports a standard 55-gallon drum (up to 484 lbs.) and includes a 1/2in. x 13ft. delivery hose with digital oil control valve and manual nozzle. Drum not included. Oversize shipping charge applies.

What's Included

  • (1) Oil pump
  • (1) Oil control valve
  • (1) Delivery hose
  • (1) Suction hose
  • (1) Trolley

Downloads

Product Manual

Features + Benefits

  • IP55 protection class 115V motor
  • 175 PSI max. pressure
  • Oil viscosity up to 10,000 SUS
  • 6 1/2ft. suction hose with filter
  • Rolls on 3in. rear swivel casters and 6in. front wheels
  • Pumps 85W/140 gear oil

Key Specs

AttributeSpecification

item#

20108

Brand

Roughneck

Manufacturer's Warranty

12 months limited parts / No labor

Ship Weight

99.0 LB

GPM

4.8 GPM

Flow (GPM)

4.8

Volts

115

Nozzle Type

Manual

Max. Suction Lift

6.5 ft

Max. Total Head

200 ft

Amps

6.25

Max. Suction Lift (ft.)

6 1/2

Watts

750

Max. Total Head (ft.)

200

Inlet Port

3/4 in
AttributeSpecification

Outlet Port

3/4 in

Discharge

194 ft

Self-Priming

Yes

Hose Length

13 ft

Inlet Port (in.)

1/2

Speed

1,700 rpm

Duty Cycle

30 min

Bypass Valve

Yes

Outlet Port (in.)

1/2

Horsepower

1 HP

Discharge (ft.)

194

Dimensions L x W x H (in.)

37 x 31 x 41 1/4

Hose (in. x ft.)

1/2 x 13

Speed (RPM)

1,700

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Can the length of the delivery hose be increased?

    I need more length to reach my combine engine. Is the pump capable of dispensing the oil through a longer hose?

    1. I am planning on extending the hose on my pump to reach up to my combine engine. I cant see any problems in doing this.

      Helpful?

    2. It could but it will affect the delivery flow and would need to be the same diameter hose. This is a mobile unit so one is suppose to wheel the unit to where one wants to dispense.

      Helpful?

  2. Is this pump reversible?

    1 answer

    1. The pump is not reversible.

      Helpful?

  3. Will this pump ISO 220 gear oil?

    1 answer

    1. This Roughneck oil dispensing system is compatible with high-viscosity oils such as ISO 220 gear oil.

      Helpful?

  4. Is it possible to preset an amont of oil to be pumped? Say 10 gallons

    1 answer

    1. This Roughneck Oil Dispensing System is not equipped with preset shutoff valve.

      Helpful?

  5. Is the bypass adjustable ? Mine won't come up to speed without fully opening the gun.

    1 answer

    1. The bypass on this pump is not adjustable.

      Helpful?

  6. can this product work with antifreeze instead of oil?

    we want this system but we want to use anitfreeze instead of oi

    1 answer

    1. No, it is meant to be used with oils and lubricants only as is stated in the manual.

      Helpful?

  7. Where does the venting kit go on the pump. There is no installation instructions on where it goes.

    1 answer

    1. This oil dispensing system includes a self-ventilating pump. The vent kit is not installed at the factory so it would need to be installed. To install the #21 vent kit you would remove the #2 Overfall plug, then screw the #21 Vent kit to the position installed #2, and then place the hose end of #21 vent kit to oil container.

      Helpful?

  8. can pump and motor be purchased seperatley?

    1 answer

    1. Parts for this oil dispensing system are available through the Northern Tool Parts department. Please call 1-800-222-5381 for price and availability. The Parts department is open Monday-Friday, 7am-6pm Central time and Saturday, 8am-2pm.

      Helpful?

  9. Is there any way to turn off the digital display onthe meter. I am concerned how long the battery will last.

    1 answer

    1. No, the only way to not have the display would be to remove the battery.

      Helpful?
