The operating temperature range for this oil pump is 32° - 176°F.
Roughneck Heavy-Duty Air-Operated Oil Pump, 11.9 GPM, 3:1 Oil Pump, Up to 130 SAE Oil
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$629.99
- Provides up to 11.9 GPM flow with a 1:3 oil pump designed for high-volume transfer and long-distance applications
- Suitable for oils up to 130 SAE viscosity with 520 PSI maximum fluid pressure
- Corrosion-resistant build uses liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for extended service life
- Air motor has fewer moving parts to reduce downtime and repairs
- Large air port design increases compressed air efficiency and prevents icing for continuous operation
Prop 65 Warning: See Details
See full description
Price for all two:
$646.98
What's Included
- (1) Heavy-duty 1:3 oil pump (1) Extension tube kit
Downloads

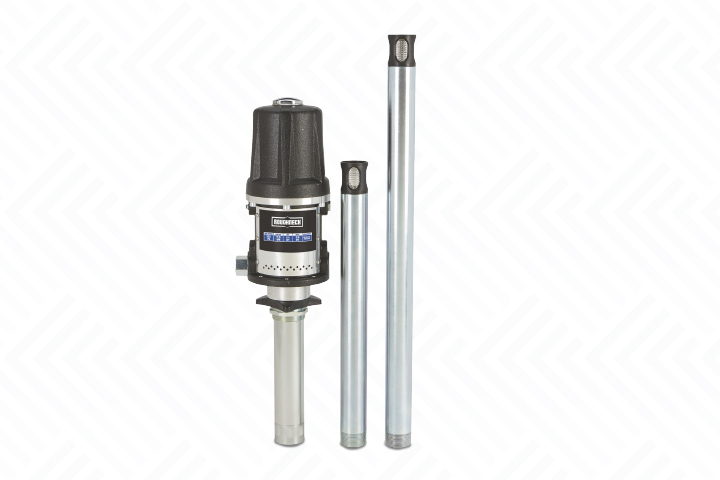

DESIGNED FOR DEMANDING CONDITIONS
The Roughneck® AIR-OPERATED OIL PUMP is engineered for facilities like TRUCK FLEET SERVICES, where large quantities of oil need to be moved efficiently over long distances

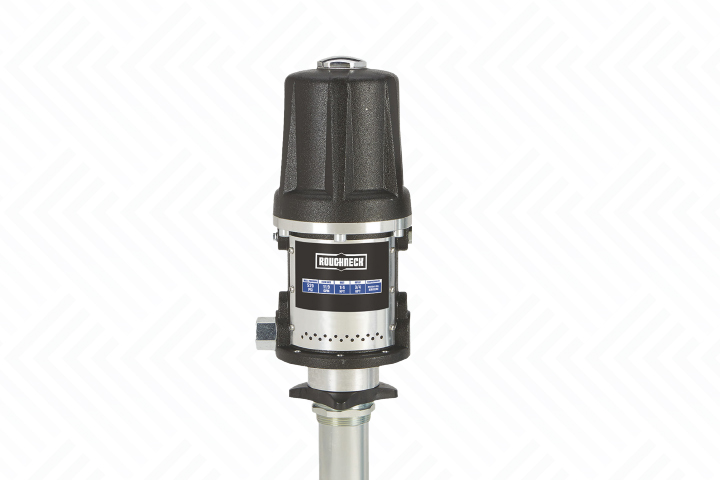

SAFETY AND DURABILITY
CORROSION-RESISTANT MATERIALS and a design that avoids ICING ensure the pump operates smoothly in various conditions without compromise to longevity
STREAMLINED OPERATION
Designed to be easy to use with a 1/4 INCH NPT-F INLET and 3/4 INCH NPT-F OUTLET, ensuring straightforward connections for quick setup and operation
Features + Benefits
- Provides up to 11.9 GPM flow with a 1:3 oil pump designed for high-volume transfer and long-distance applications
- Suitable for oils up to 130 SAE viscosity with 520 PSI maximum fluid pressure
- Corrosion-resistant build uses liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for extended service life
- Air motor has fewer moving parts to reduce downtime and repairs
- Large air port design increases compressed air efficiency and prevents icing for continuous operation

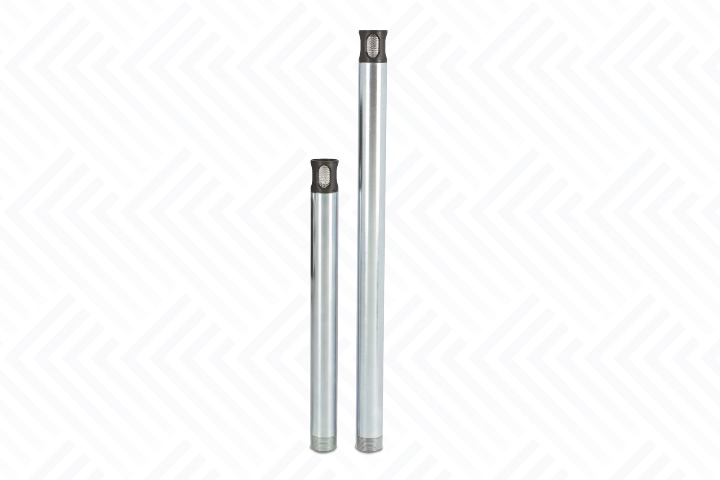

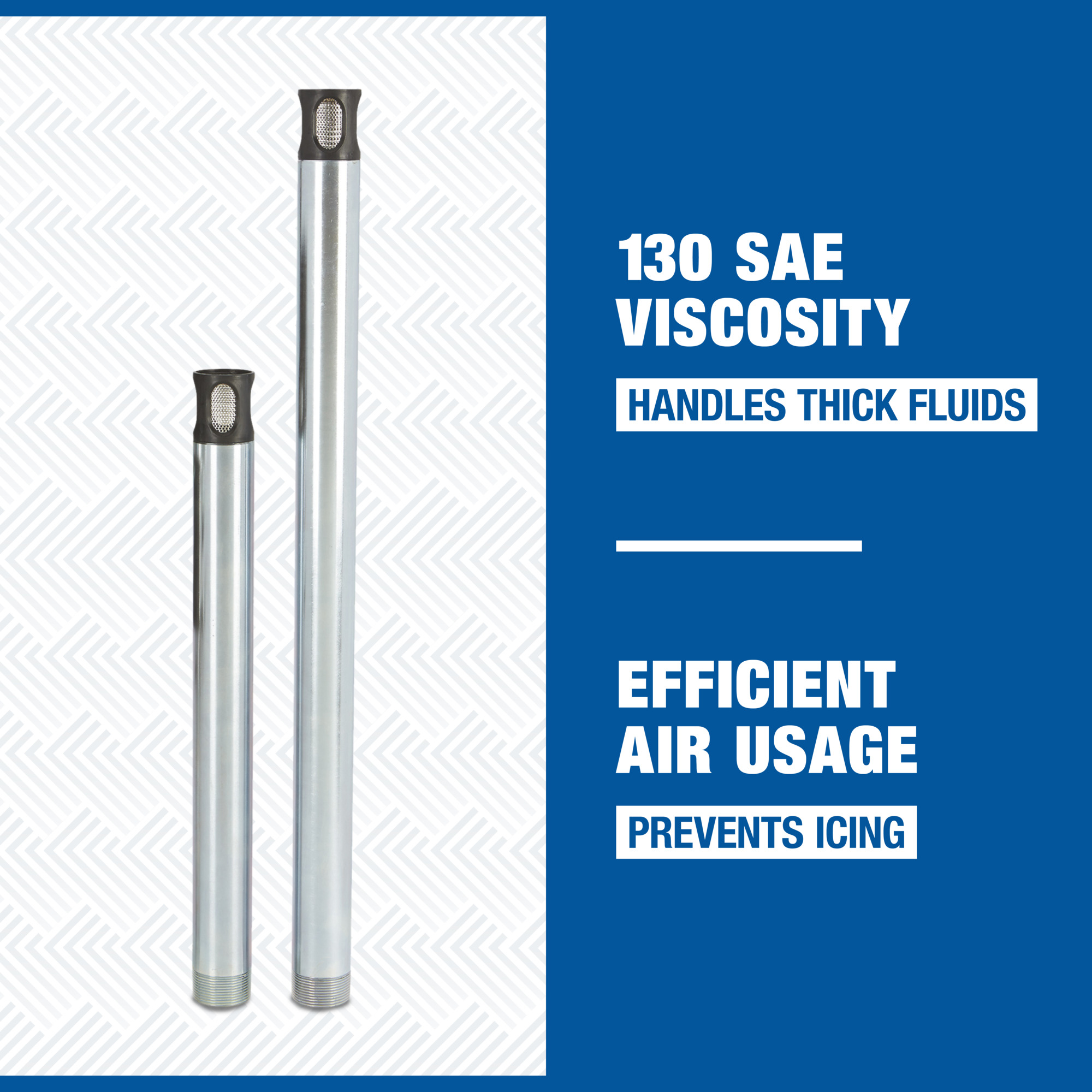

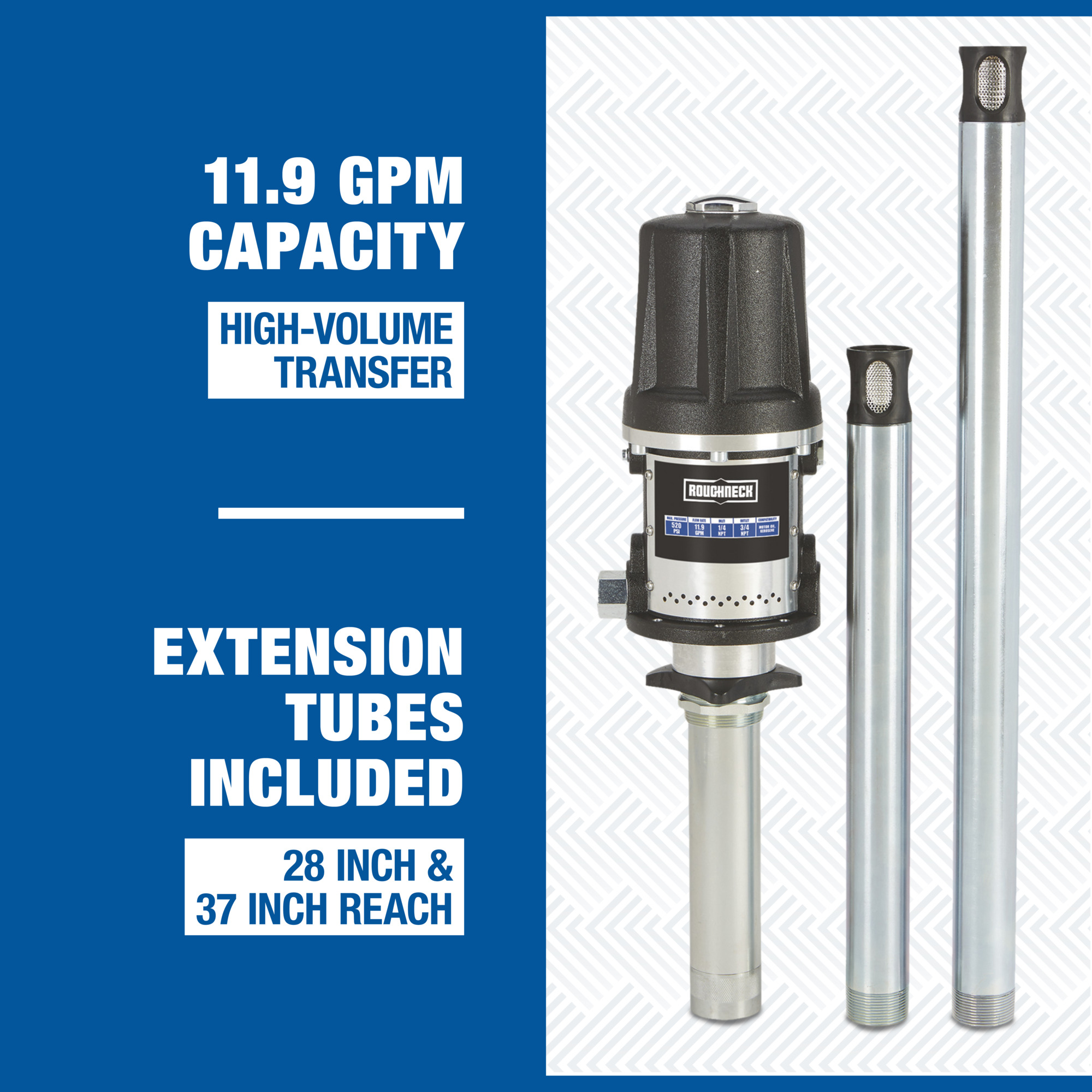

- Includes 18in. and 26.5in. extension tubes for a 28in. or 37in. maximum reach
- 1/4in. NPT-F inlet and 3/4in. NPT-F outlet
- Not for use with gasoline, diesel or waste oil
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Air Operated Oil Pumps
See All Roughneck Air Operated Oil Pumps
Currently Viewing This Product
Specifications
Specifications
Roughneck Heavy-Duty Air-Operated Oil Pump, 11.9 GPM, 3:1 Oil Pump, Up to 130 SAE Oil
ARO High-Volume Oil Control Handle with Flexible Hose and Non-Drip Tip, 600 PSI, Model# 635193
ARO 3:1, 16-Gallon, Air-Operated Pump Package, 450 PSI, Model# LP2100-1-B
Roughneck Air-Operated Oil Pump Kit with Cart and Reel, 6.5:1 Ratio, 4.7 GPM, 5–55-Gal. Drums
Flow Rate
Same
11.9 GPM
5 GPM
6 GPM
4.7 GPM
Max. Total Head
Same
25 ft
0 ft
0 ft
35 ft
Max. Suction Lift
Same
6 ft
0 ft
0 ft
10 ft
Inlet Port
Same
0.75 in
0.75 in
0.75 in
1 in
Outlet Port
Same
0.75 in
0.75 in
0.5 in
0.5 in
Max. PSI
Same
-
-
-
150
