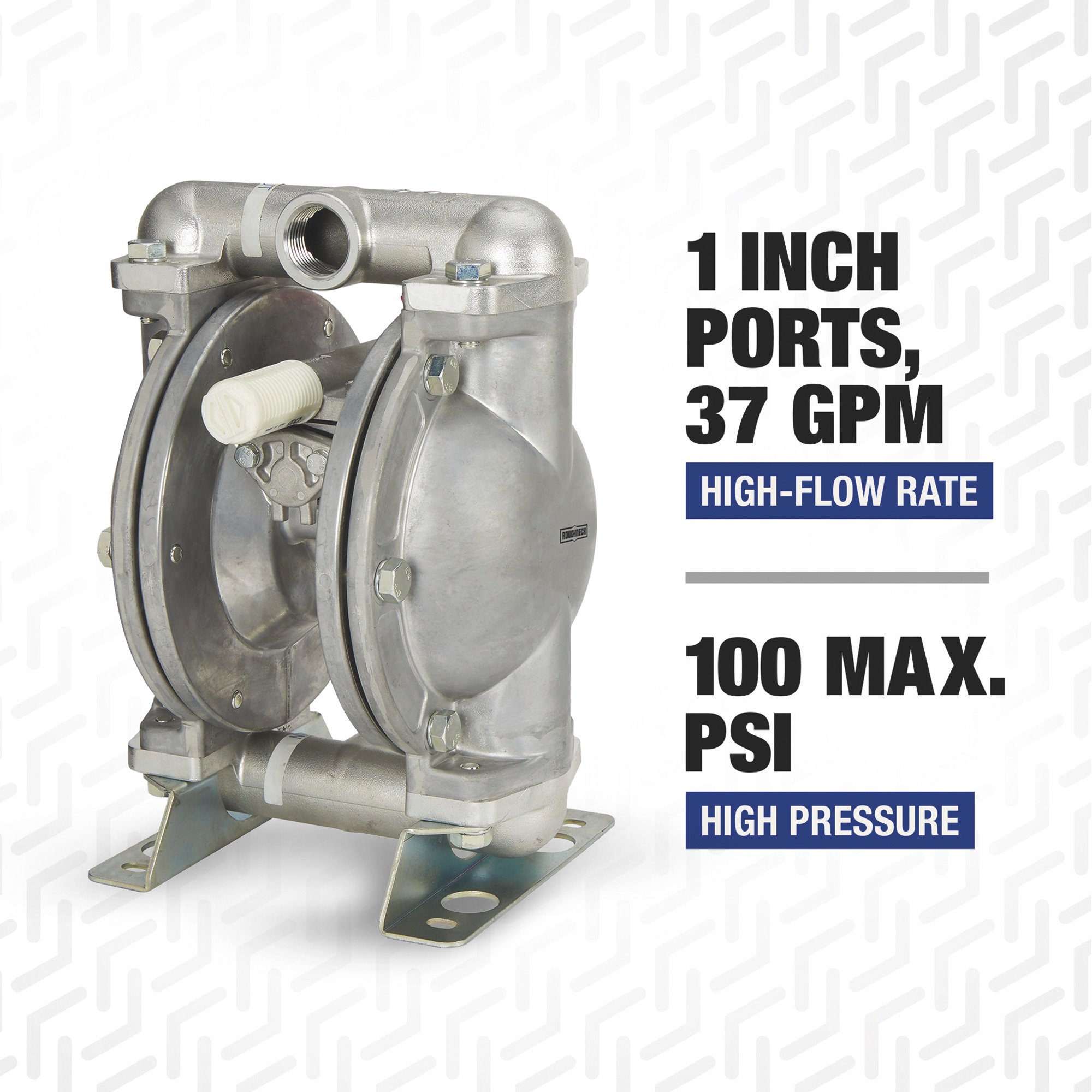

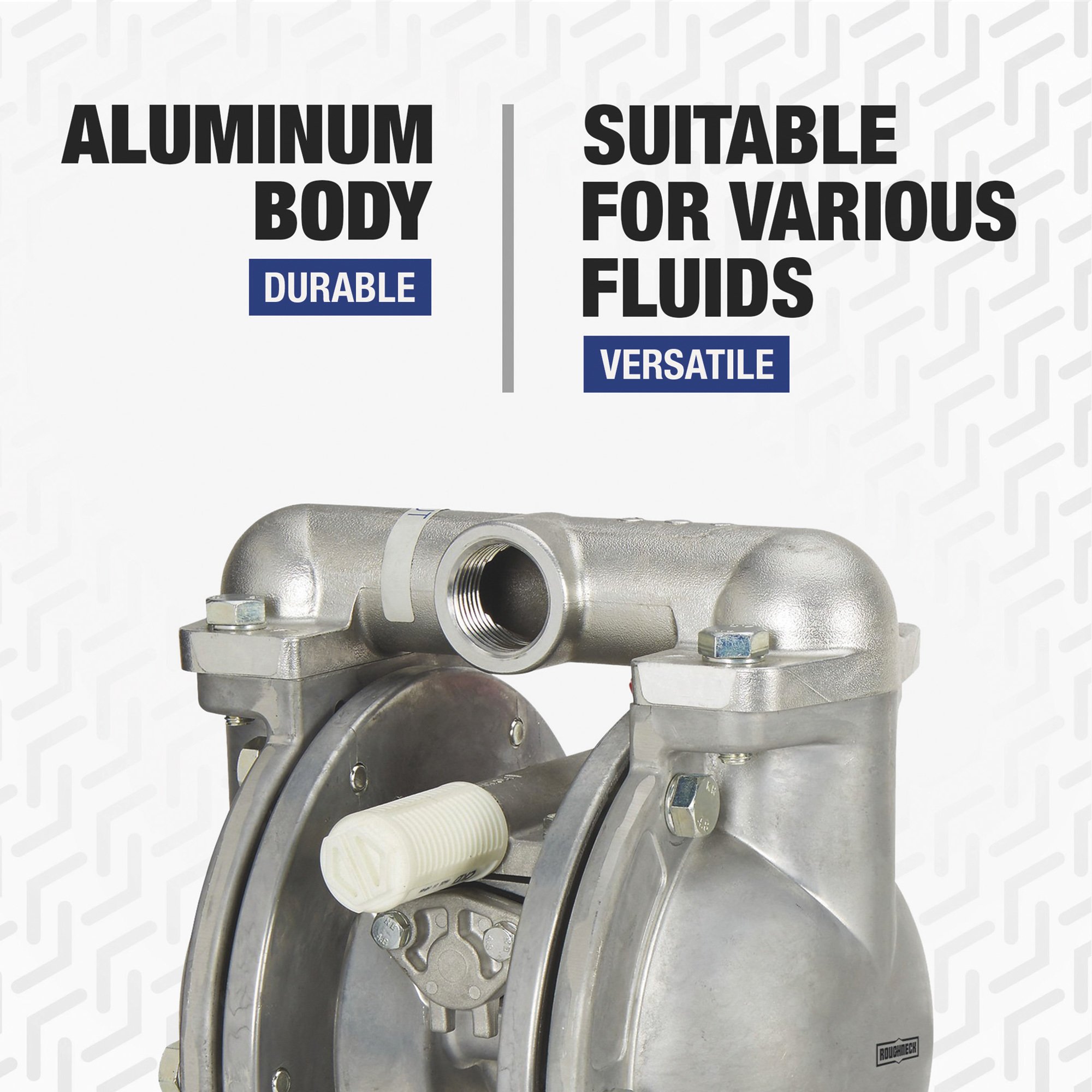

Roughneck Air-Operated Double-Diaphragm Pump, 1in. Ports, 37 GPM, Aluminum

Item# 58299
Top Seller
Roughneck Air-Operated Double-Diaphragm Pump, 1in. Ports, 37 GPM, Aluminum

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Roughneck Air-Operated Double-Diaphragm Pump, 1in. Ports, 37 GPM, Aluminum

Click or Tap image to Zoom

$699.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • 1in. inlet and outlet ports
  • Handles 1/8in. max. suspended solids
  • Aluminum die-cast ADC-12 body and NBR diaphragm and ball
  • Ideal for use with waste water, waste oil, diesel fuel, kerosene, lubricants, brake fluid, engine oil, gear oil, antifreeze and mild lubricant
  • Graphite-filled seal rings for a non-lubricated design

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Roughneck Air-Operated Double-Diaphragm Pump, 1in. Ports, 37 GPM, Aluminum
  • Fast Orange Pumice Hand Cleaner, Gallon
Price for all two:

$716.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Roughneck Air-Operated Double-Diaphragm Pump features a non-lubricated low-maintenance air distribution system for efficiency. Pump design offers stall-free, ice-free operation, easy repairs and fewer wear parts. Features graphite-filled seal rings for a non-lubricated design. 100 max. PSI. Aluminum body with NBR diaphragm is ideal for use with waste water, waste oil, diesel fuel, kerosene, lubricants, brake fluid, engine oil, gear oil, antifreeze and mild lubricants.

What's Included

    (1) Air-operated double-diaphragm pump

Features + Benefits

  • 1in. inlet and outlet ports
  • Handles 1/8in. max. suspended solids
  • Aluminum die-cast ADC-12 body and NBR diaphragm and ball
  • Ideal for use with waste water, waste oil, diesel fuel, kerosene, lubricants, brake fluid, engine oil, gear oil, antifreeze and mild lubricant
  • Graphite-filled seal rings for a non-lubricated design
  • Flow rate up to 37 GPM
  • 30–100 PSI operating pressure
  • Not for use with gasoline

Key Specs

AttributeSpecification

item#

58299

Brand

Roughneck

Manufacturer's Warranty

1 year limited warranty

Ship Weight

21.2 LB

Flow

37 GPM

Inlet Port

1 in

Outlet Port

1 in

Diaphragm Material

Hytrel

Average Air Consumption

31.7 cfm
AttributeSpecification

Operating PSI

100 PSI

Max. PSI

100

Air Inlet Size NPT

0.375 in

Max. Fluid Temp

176 °F

Pump Housing Material

Aluminum

Max. Suspended Solids

0.125 in

Product Weight

22.0000 lb

Dimensions L x W x H (in.)

13.75 x 10.625 x 8.65 in

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. can you purchase replacement Diaphragm's

    1 answer

    1. At this time, the replacement diaphragms are not available.

      Helpful?

  2. Can this pump oily water?

    1 answer

    1. This pump is suitable to use for an oil/water mix.

      Helpful?

  3. What size compressor do you need to operate this pump

    1 answer

    1. This diaphragm pump requires an air compressor which can produce 31.7 CFM and 30-100 PSI.

      Helpful?

  4. Will they be safe to pump condensate or gasoline?

    1 answer

    1. This pump is not recommended for use with condensate or gasoline.

      Helpful?

  5. Does pump have a rebuild kit? If so, what’s the rebuild part #?

    1 answer

    1. A rebuild kit is not available for this pump. The ball valve, part number GRZ58299-4 and O-ring, part number GRZ58299-6 are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  6. what hoses do you recommend to attach to this unit, for waste oil transfer? Do you recommend a suction filter setup and a air pressure regualtor?

    1 answer

    1. PVC hoses are recommended for waste oil transfer. A suction filter set-up and air pressure regulator are recommended when using this pump for waste oil. Parts to use can vary depending on the compressor and set-up.

      Helpful?

  7. Will this pump oil at 37gal a min

    1 answer

    1. This pump can be used for waste oil, engine oil and gear oil. It is rated for a flow rate up to 37 GPM (gallons per minute).

      Helpful?

  8. WHAT IS THE MAXIMUM CONSTANT RUN ON A DAILY BASIS

    1 answer

    1. The Roughneck Air-Operated Pump is rated for continuous duty.

      Helpful?

  9. Will this pump work for asphalt sealer

    1 answer

    1. This pump is not capable of working with asphalt sealant.

      Helpful?

  10. How much lift can this pump handle??

    1 answer

    1. The dry suction lift is approximately 10 feet and the wet suction lift is approximately 22 feet.

      Helpful?
