Robinair Aluminum Manifold and Hose Set — 60in. Hoses, R-134A, Color-Coded Gauges and Couplers, Model# ROB49134A

Item# 6680473
1 Pieces
Robinair Aluminum Manifold and Hose Set — 60in. Hoses, R-134A, Color-Coded Gauges and Couplers, Model# ROB49134A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Robinair Aluminum Manifold and Hose Set — 60in. Hoses, R-134A, Color-Coded Gauges and Couplers, Model# ROB49134A

Click or Tap image to Zoom

$169.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Robinair Aluminum Manifold, Gauge, Hose, and Coupler Set for servicing R-134A refrigerant systems
  • Manifold is designed so all three lower fittings are connected to each other by internal passages
  • Separate passages from the low-side and high-side fittings to their respective gauges give pressure and vacuum readings whether the handwheels are open or closed
  • Handwheels and gauges are color-coded, with the blue compound gauge on the low-side (left), and the red pressure gauge on the high-side (right)

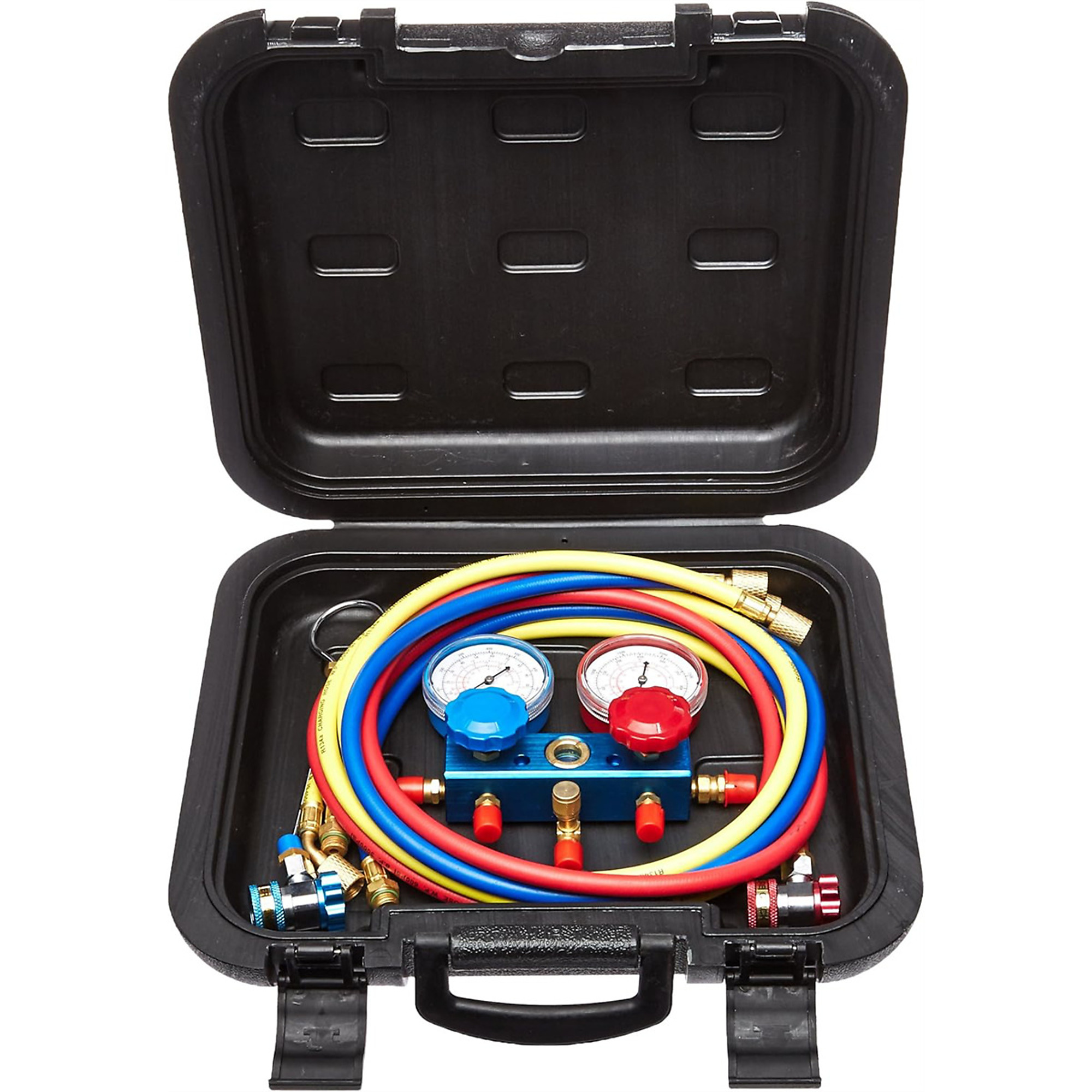

  • Kit includes: blue anodized aluminum manifold, brass fittings, color coded gauges, 60 inch (5 foot) long hoses, color coded 90 degree manual couplers, and a blow molded case

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Robinair Aluminum Manifold, Gauge, Hose, and Coupler Set for servicing R-134A refrigerant systems; Manifold is designed so all three lower fittings are connected to each other by internal passages; Separate passages from the low-side and high-side fittings to their respective gauges give pressure and vacuum readings whether the handwheels are open or closed; Handwheels and gauges are color-coded, with the blue compound gauge on the low-side (left), and the red pressure gauge on the high-side (right); Kit includes: blue anodized aluminum manifold, brass fittings, color coded gauges, 60in. (5ft.) long hoses, color coded 90 degree manual couplers, and a blow molded case

What's Included

    (1) Unit

Features + Benefits

  • Robinair Aluminum Manifold, Gauge, Hose, and Coupler Set for servicing R-134A refrigerant systems
  • Manifold is designed so all three lower fittings are connected to each other by internal passages
  • Separate passages from the low-side and high-side fittings to their respective gauges give pressure and vacuum readings whether the handwheels are open or closed
  • Handwheels and gauges are color-coded, with the blue compound gauge on the low-side (left), and the red pressure gauge on the high-side (right)
  • Kit includes: blue anodized aluminum manifold, brass fittings, color coded gauges, 60 inch (5 foot) long hoses, color coded 90 degree manual couplers, and a blow molded case

Key Specs

AttributeSpecification

item#

6680473

Brand

Robinair

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.75 LB
AttributeSpecification

Pieces (qty.)

1

Product Type

Manifold

Product Weight

6.7500 lb

Dimensions L x W x H (in.)

15.0 x 13.0 x 3.0 in
