RMS Fully Modulating Boiler with Outdoor Reset Radiant Made Simple Pre-Plumbed Panels, 37,532 BTU, 11 kW, Model# RMS-11-AA

Item# 77512
"RMS Fully Modulating Boiler with Outdoor Reset Radiant Made Simple Pre-Plumbed Panels, 37,532 BTU, 11 kW, Model# RMS-11-AA"
Top Seller
RMS Fully Modulating Boiler with Outdoor Reset Radiant Made Simple Pre-Plumbed Panels, 37,532 BTU, 11 kW, Model# RMS-11-AA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

RMS Fully Modulating Boiler with Outdoor Reset Radiant Made Simple Pre-Plumbed Panels, 37,532 BTU, 11 kW, Model# RMS-11-AA

Click or Tap image to Zoom

$3600.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Compact and lightweight design
  • Full modulation for precise BTU demand output
  • Thermolec TMB electric boiler assembly
  • Aquastat control - adjustable supply water temperature range up to 190°F
  • Outdoor reset control

See full description

Complete Your Solution

  • RMS Fully Modulating Boiler with Outdoor Reset Radiant Made Simple Pre-Plumbed Panels, 37,532 BTU, 11 kW, Model# RMS-11-AA
  • Radiant Made Simple Radiant Floor Tubing Kit, Model# 300 Loop Kit
Price for all two:

$3834.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

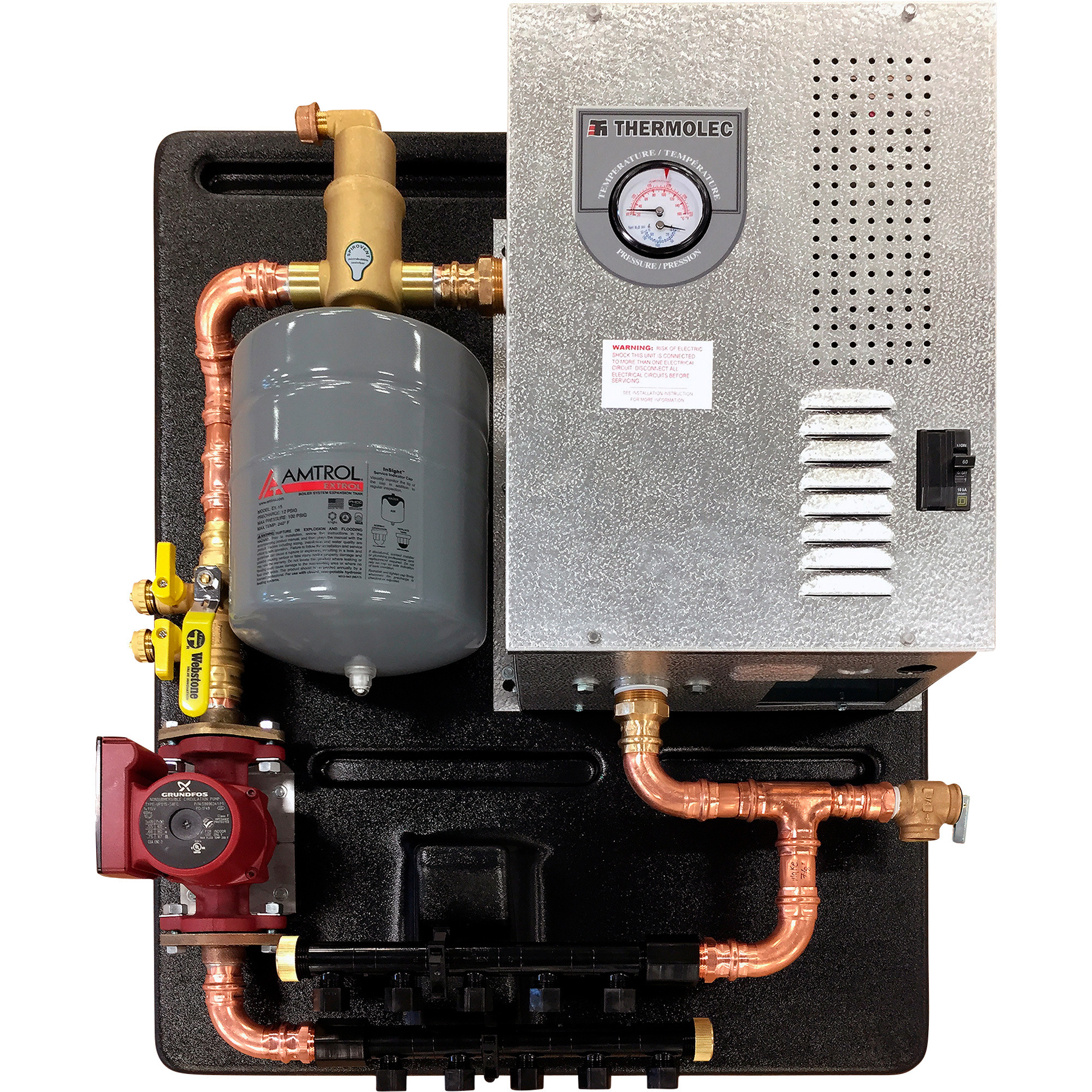

Fully Modulating Boiler with Outdoor Reset Radiant Made Simple (RMS) Pre-Plumbed Panels are professionally engineered, manufactured and pressure-tested. Each panel comes complete with boiler, expansion tank, air scoop, pressure relief valve, 5 port manifold, 3-speed pump and easy-to-follow instructions. Panels are designed around the reliable Thermolec TMB electric boiler with H Stamp. Choose from 4 boiler sizes and a variety of manifold options. All components are securely attached to a rugged ABS plastic panel, ready to be mounted and connected to your hydronic heating system. Panel size comes in a compact design, measuring 25in.W x 33in.H x 10in.D. RMS Pre-Plumbed Panels are an excellent value and problem-solver. They will enhance the appearance of your installation while decreasing the labor and expense required to complete your radiant project.

What's Included

    (1) Radiant floor heat electric boiler panel

Features + Benefits

  • Compact and lightweight design
  • Full modulation for precise BTU demand output
  • Thermolec TMB electric boiler assembly
  • Aquastat control - adjustable supply water temperature range up to 190°F
  • Outdoor reset control
  • 30 PSI pressure relief valve
  • Circuit breaker (control switch)
  • No venting required

Key Specs

AttributeSpecification

item#

77512

Brand

Radiant Made Simple

Manufacturer's Warranty

2 year limited warranty

Ship Weight

80.0 LB

Product Type

Boiler

Amps

45.8
AttributeSpecification

Hardwired

Yes

Thermal Cutoff Safety Device

Yes

Remote Included

No

Thermostat Included

Yes

Product Weight

73 lb

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. What does outdoor reset mean I need this for snow melting in an exterior concrete entryway. will it work

    1 answer

    1. Outdoor reset means the boiler uses an outdoor temperature sensor to automatically adjust its water temperature, providing warmer water when it is colder outside and cooler water when it is warmer.

      Helpful?

  2. how to adjust the temperature cause my panel only stay at 120 degrees

    1 answer

    1. This item includes a thermostat to adjust the temperature.

      Helpful?

  3. The boiler states high temp of 190, what is the low temp for the boiler?

    1 answer

    1. The minimum setting would be 118 degrees F.

      Helpful?

  4. What material is the manifold made of?

    1 answer

    1. The manifold is made of PEX plastic and resin.

      Helpful?

  5. Which Thermostat is included with this model. Is that a wall thermostat to call for heat or an internal thermostat?

    1 answer

    1. This unit offers a 2 wire room wall thermostat.

      Helpful?

  6. How does this compare to a standard electric on demand water heater, what are the GPM thank!!

    1 answer

    1. This is a purpose designed unit for HydroniceRadiant heating. A domestic water heater is not designed for this type of use. This is designed to heat a space of 1200 to 1500 square feet with a heat loss not more than 25 BTU per square foot when using 4-5 loops of 1/2" x 300' Pex tubing per loop. It does not offer a GPM rating.

      Helpful?

  7. Where is this product manufactured? Are all metal parts made in the US? Are there any plastic parts in the unit?

    1 answer

    1. The boiler panel is made in the USA. The majority of the unit is metal with the exception of a few smaller parts such as the switch shut off valve.

      Helpful?

  8. How many square feet of flooring can this boiler heat?

    1 answer

    1. The boiler would heat approximately 1200 square feet.

      Helpful?

  9. Can this boiler be used in underfloor joist radiant floor applications?

    1 answer

    1. The boiler panel could be used in an underfloor joist radiant floor application, depending on how many loops. This system would have 5 loops.

      Helpful?

  10. How serviceable are these units? if a pipe leaks or the boiler or pump breaks down, can they be replaced or does the entire unit have to be replaced?

    1 answer

    1. If the pump needs to be replaced, it is very easy to remove it and replace it. The pipes are pressure tested at the factory and are sealed, the pipes would not leak if properly installed and the unit exercised. You would need to turn the pump on to exercise the unit during off season months periodically for about 15 minutes.

      Helpful?
