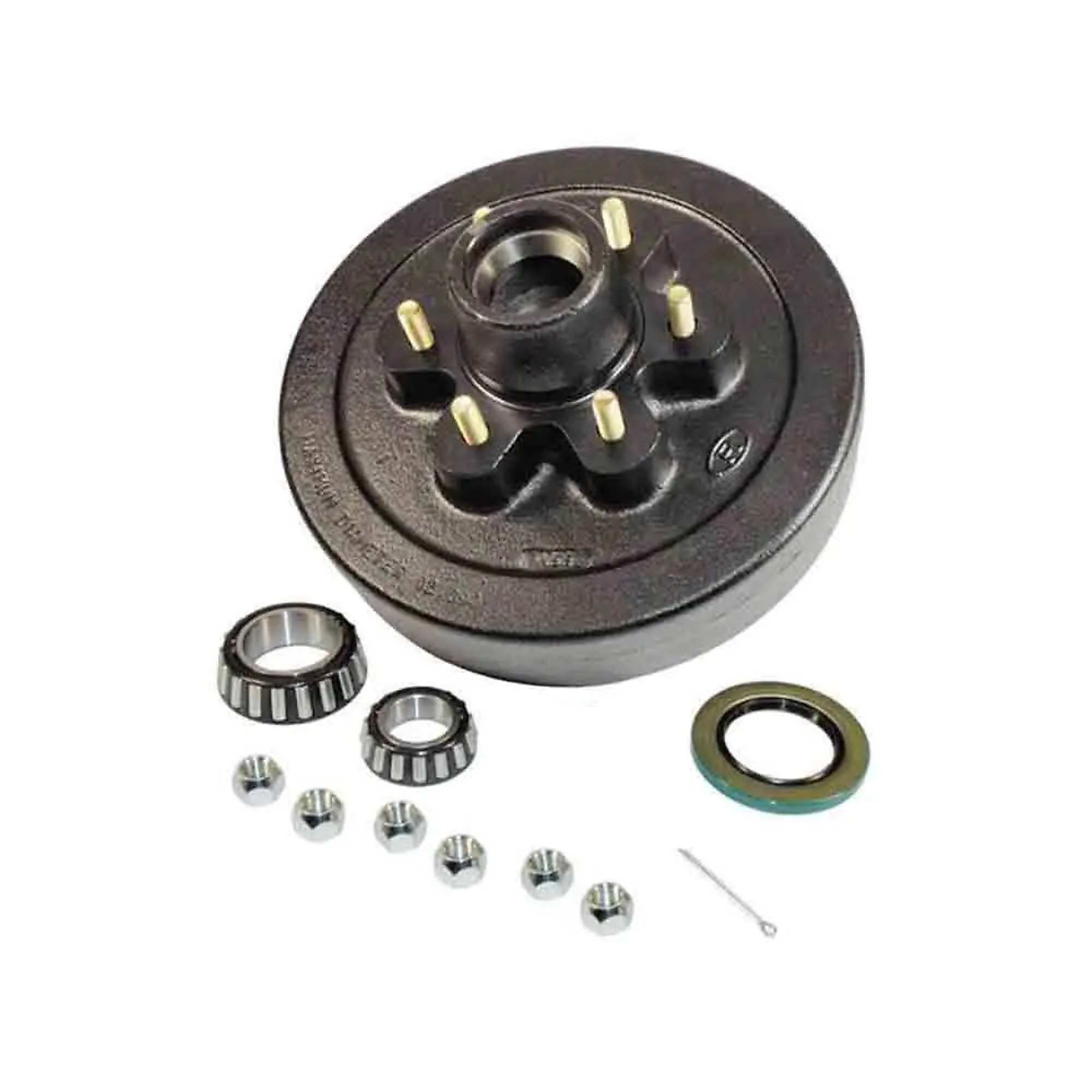

Rigid Hitch, 12-Inch Hub And Drum Assembly, 6-Bolt on 5.5 inch Circle, Works with 1-3/4 To 1-1/4 Tapered Spindles for 5K to 6K Axle, Used with 12 x 2 electric or hydraulic brakes, 3K Capacity per Hubdrum, EZ-Lube, Model# HD-12

Item# 6909320
Rigid Hitch, 12-Inch Hub And Drum Assembly, 6-Bolt on 5.5 inch Circle, Works with 1-3/4 To 1-1/4 Tapered Spindles for 5K to 6K Axle, Used with 12 x 2 electric or hydraulic brakes, 3K Capacity per Hubdrum, EZ-Lube, Model# HD-12

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, 12-Inch Hub And Drum Assembly, 6-Bolt on 5.5 inch Circle, Works with 1-3/4 To 1-1/4 Tapered Spindles for 5K to 6K Axle, Used with 12 x 2 electric or hydraulic brakes, 3K Capacity per Hubdrum, EZ-Lube, Model# HD-12

Click or Tap image to Zoom

$111.12

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Includes pressed in bearing races with a pilot diameter is 3.63", flange diameter is 7.5". Lugs are 1/2"-20.
  • 2-1/2" deep inside for use with 12" x 2" electric or hydraulic brakes.

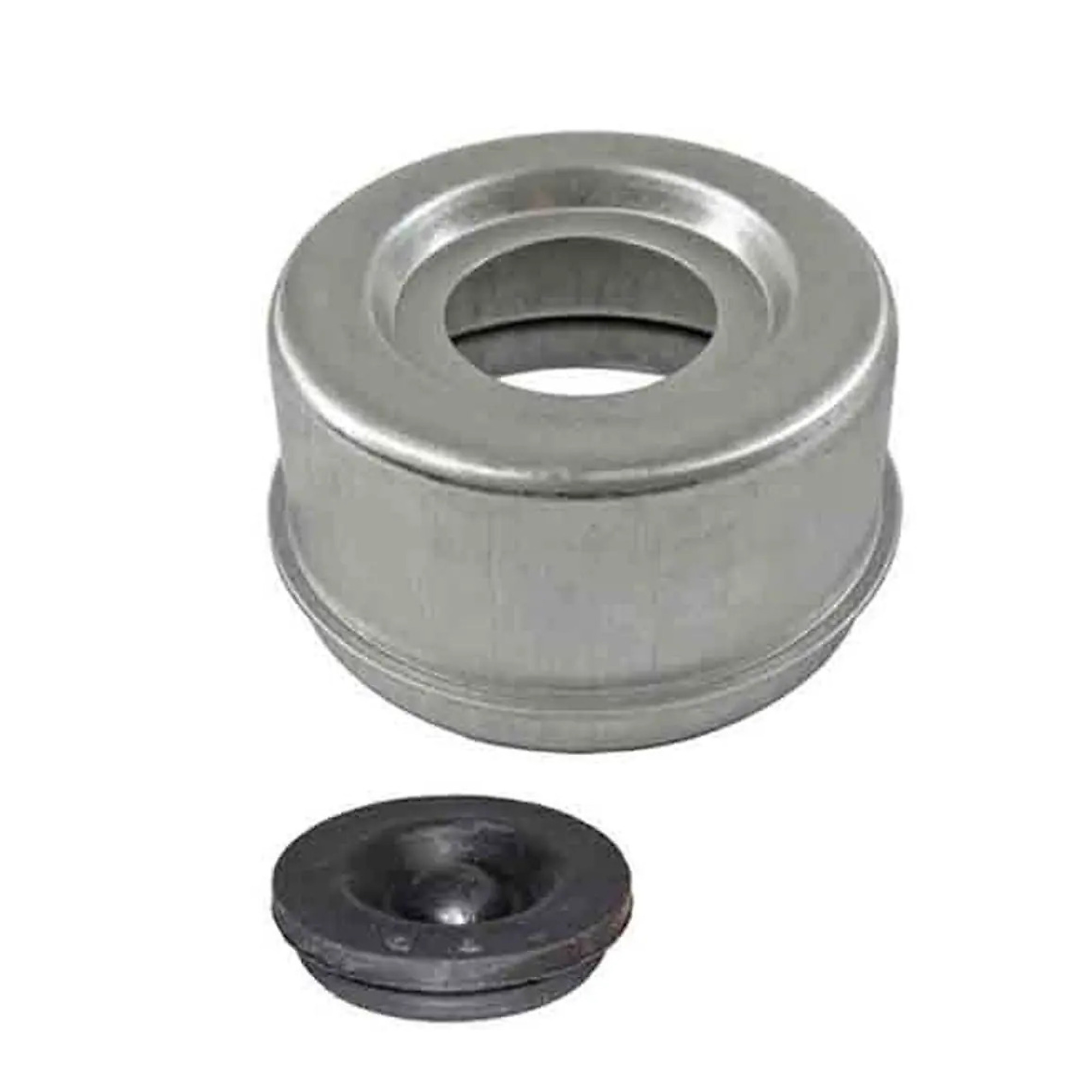

  • Hub assembly includes: L-25580 Inner Bearing, L-15123 Outer Bearing, SL-213 Grease Seal, SCP-100 Cotter Pin, EZ-Lube Dust Cap with Plug, (6) STN-506 Lug Nuts
  • NOTE: This kit does not include the castle nut. You must use your existing nut for installation.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

12in. Hub and Drum has 6 on 5-1/2in. bolt circle for 1-3/4in. To 1-1/4in. tapered spindle for a 5,200 lbs. to 6,000 lbs. axle 3,000 lbs. capacity hub.

What's Included

    (1) Trailer Hub Kit

Features + Benefits

  • Includes pressed in bearing races with a pilot diameter is 3.63", flange diameter is 7.5". Lugs are 1/2"-20.
  • 2-1/2" deep inside for use with 12" x 2" electric or hydraulic brakes.
  • Hub assembly includes: L-25580 Inner Bearing, L-15123 Outer Bearing, SL-213 Grease Seal, SCP-100 Cotter Pin, EZ-Lube Dust Cap with Plug, (6) STN-506 Lug Nuts
  • NOTE: This kit does not include the castle nut. You must use your existing nut for installation.

Key Specs

AttributeSpecification

item#

6909320

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

34.0 LB

Studs (qty.)

6

Bolt Circle Pattern

5.5 in
AttributeSpecification

Weight Capacity Each

3,000 lb

Seal Size ID

2.13 in

Single-Lip

No

Double-Lip

Yes

Product Weight

34.0000 lb

Dimensions L x W x H (in.)

17.0 x 14.0 x 12.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
