Rigid Hitch, 10-Inch Hub and Drum Assembly, 5-Bolt on 4.5 Inch Bolt Circle, Works with 1-3/8 To 1-1/16 Tapered Spindles for a 3,500lb Axle, Used with 10 x 2 electric or hydraulic brakes, 1750lb Capacity per Hub, Model# HD-1000-

Item# 6909282
Rigid Hitch, 10-Inch Hub and Drum Assembly, 5-Bolt on 4.5 Inch Bolt Circle, Works with 1-3/8 To 1-1/16 Tapered Spindles for a 3,500lb Axle, Used with 10 x 2 electric or hydraulic brakes, 1750lb Capacity per Hub, Model# HD-1000-

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rigid Hitch, 10-Inch Hub and Drum Assembly, 5-Bolt on 4.5 Inch Bolt Circle, Works with 1-3/8 To 1-1/16 Tapered Spindles for a 3,500lb Axle, Used with 10 x 2 electric or hydraulic brakes, 1750lb Capacity per Hub, Model# HD-1000-

Click or Tap image to Zoom

$76.94

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

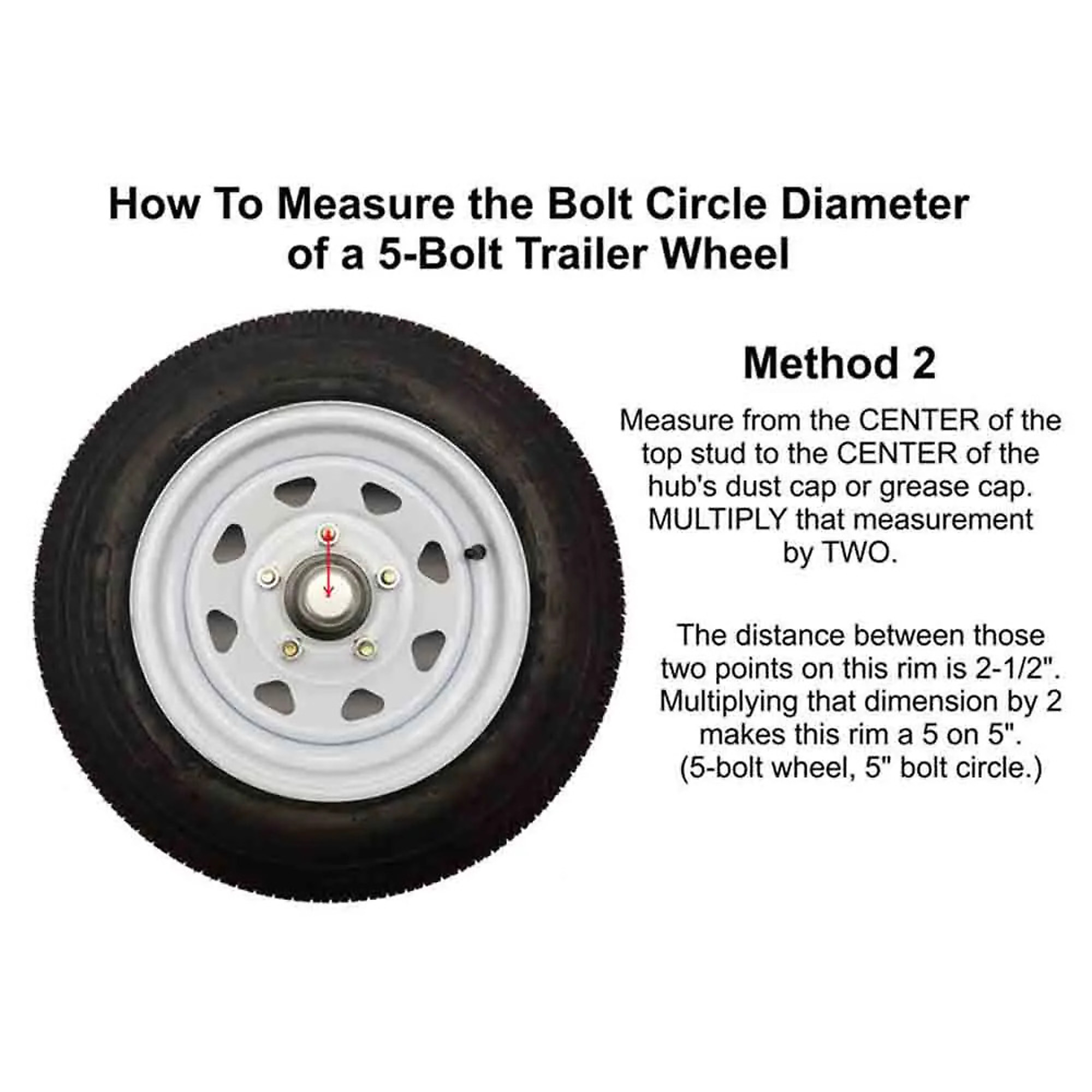

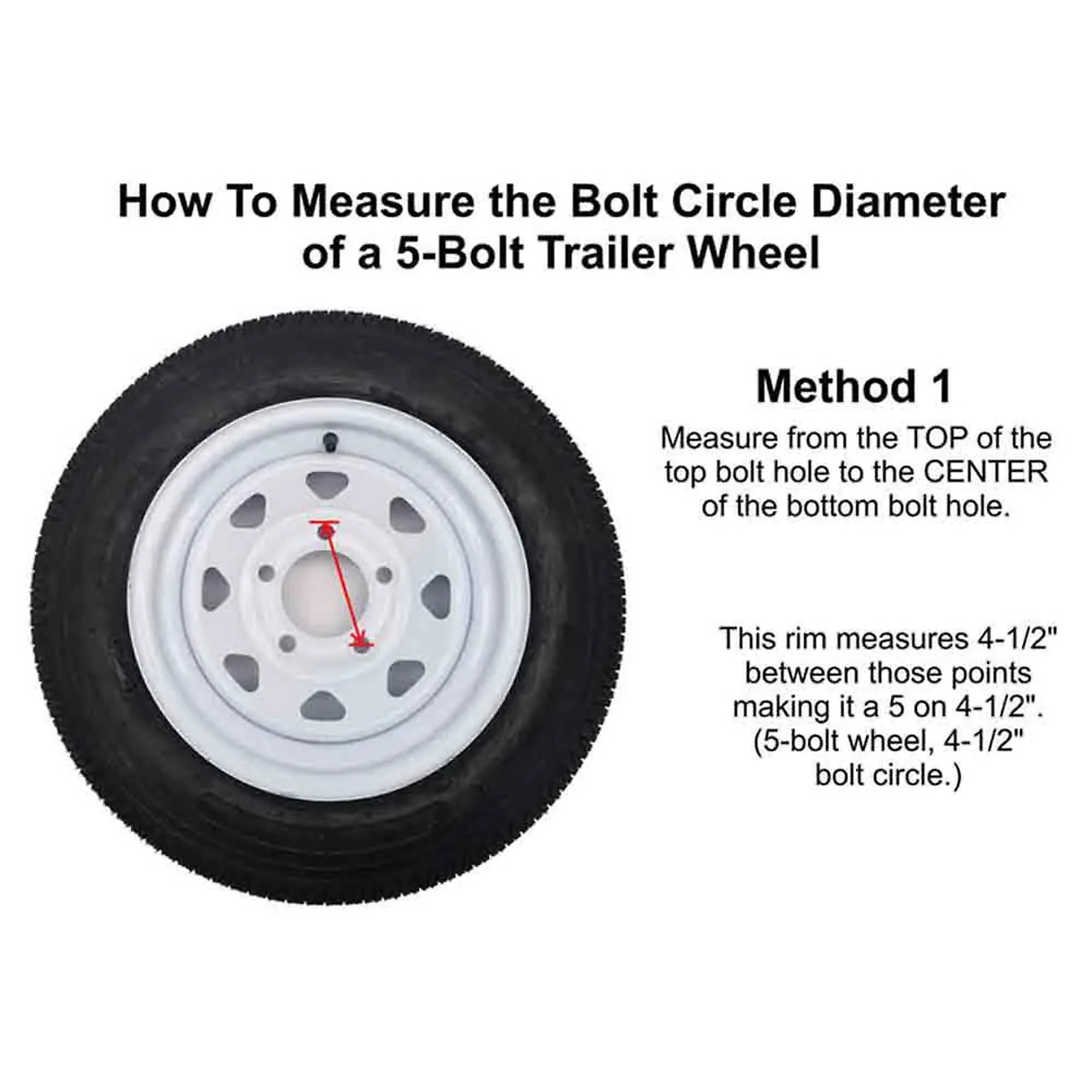

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 4-1/2" bolt circle hub is correct. * * *
  • Fits 3,500 lb. axles. Rated at 1,750 lbs per hub-drum
  • 5-bolt on 4-1/2" bolt circle with 1/2"-20 studs

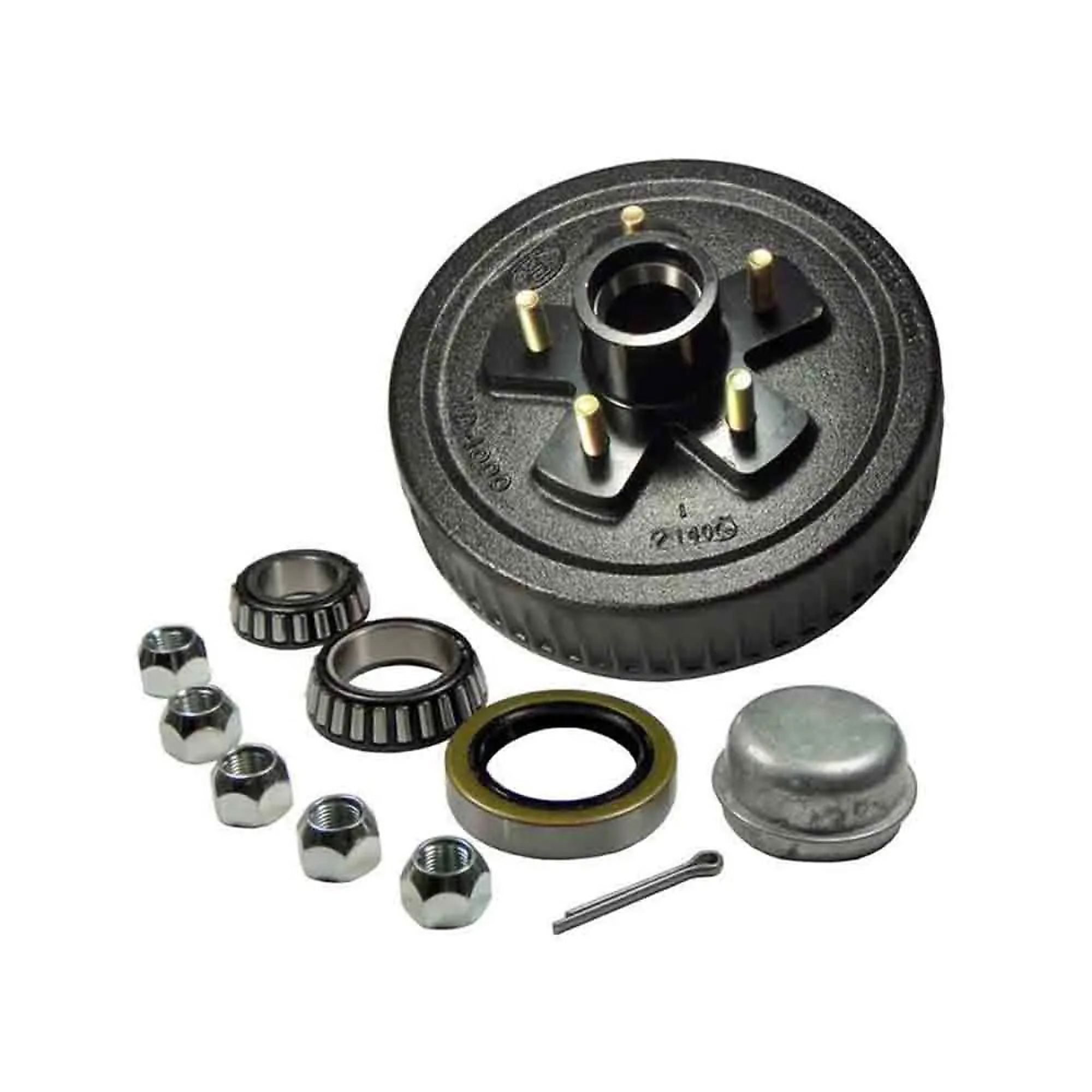

  • Complete assembly with bearings, seal, dust cap, cotter pin and lug nuts
  • 10" hub-drum assembly has 5-bolt pattern on 4-1/2" circle. 2½" deep inside for use with 10" x 2¼" electric or hydraulic brakes.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Rigid Hitch 10-Inch Hub and Drum Assembly is designed for reliable performance and durability, making it ideal for heavy-duty applications. This assembly features a 5-bolt pattern on a 4.5-inch bolt circle, compatible with 1-3/8 inch to 1-1/16 inch tapered spindles, and is suitable for use with a 3,500 lb axle. Each hub has a capacity of 1,750 lbs, ensuring robust support for your trailer needs. It is compatible with 10 x 2 inch electric or hydraulic brakes, providing versatile braking options. Engineered for strength and reliability, this hub and drum assembly is perfect for maintaining the safety and efficiency of your trailer.

What's Included

    (1) Trailer Hub Kit

Features + Benefits

  • * * * Please measure your existing bolt pattern using attached instructions to ensure this 5 on 4-1/2" bolt circle hub is correct. * * *
  • Fits 3,500 lb. axles. Rated at 1,750 lbs per hub-drum
  • 5-bolt on 4-1/2" bolt circle with 1/2"-20 studs
  • Complete assembly with bearings, seal, dust cap, cotter pin and lug nuts
  • 10" hub-drum assembly has 5-bolt pattern on 4-1/2" circle. 2½" deep inside for use with 10" x 2¼" electric or hydraulic brakes.

Key Specs

AttributeSpecification

item#

6909282

Brand

Rigid Hitch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

24.0 LB

Studs (qty.)

5

Bolt Circle Pattern

4.5 in
AttributeSpecification

Weight Capacity Each

1,750 lb

Seal Size ID

1.72 in

Single-Lip

No

Double-Lip

Yes

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

16.0 x 15.0 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
