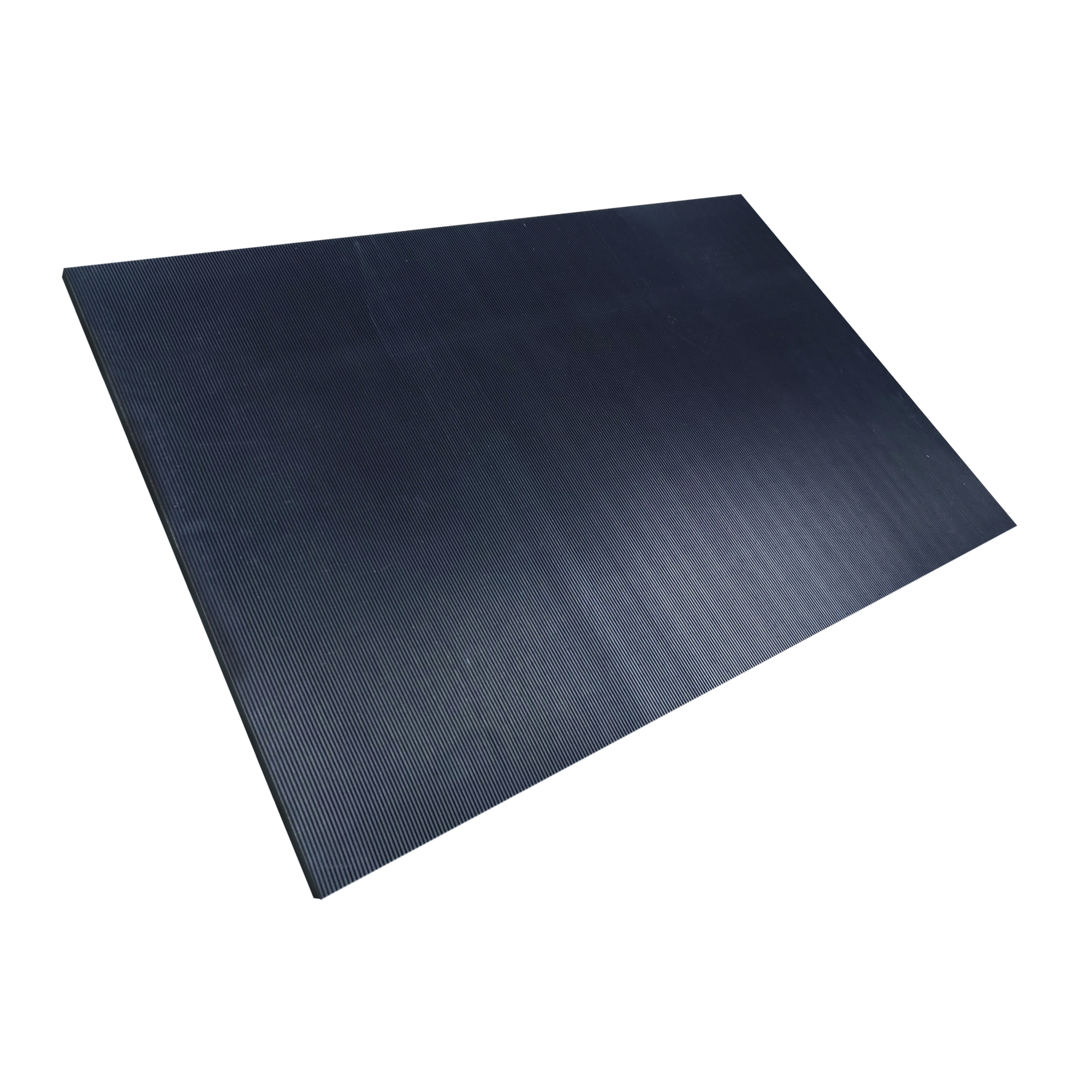

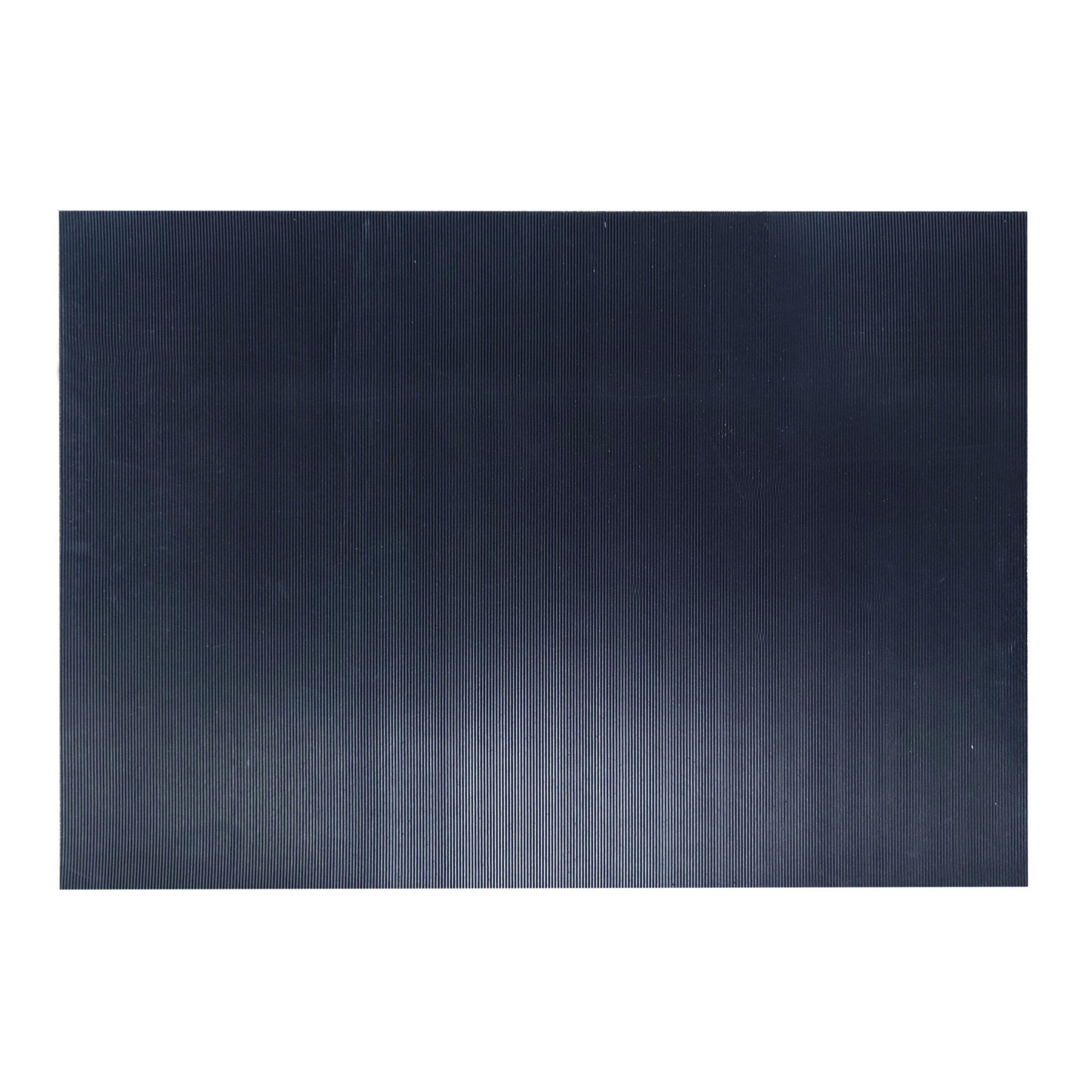

Rhino Mats Rhino Switchboard Mat — Class 4, 3ft. x 30ft. x 1/2in., Non-Conductive, Insulating, Black, Corrugated Surface, Model# SB636CX30

Item# 6636683
1 Included
Rhino Mats Rhino Switchboard Mat — Class 4, 3ft. x 30ft. x 1/2in., Non-Conductive, Insulating, Black, Corrugated Surface, Model# SB636CX30

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rhino Mats Rhino Switchboard Mat — Class 4, 3ft. x 30ft. x 1/2in., Non-Conductive, Insulating, Black, Corrugated Surface, Model# SB636CX30

Click or Tap image to Zoom

$1439.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

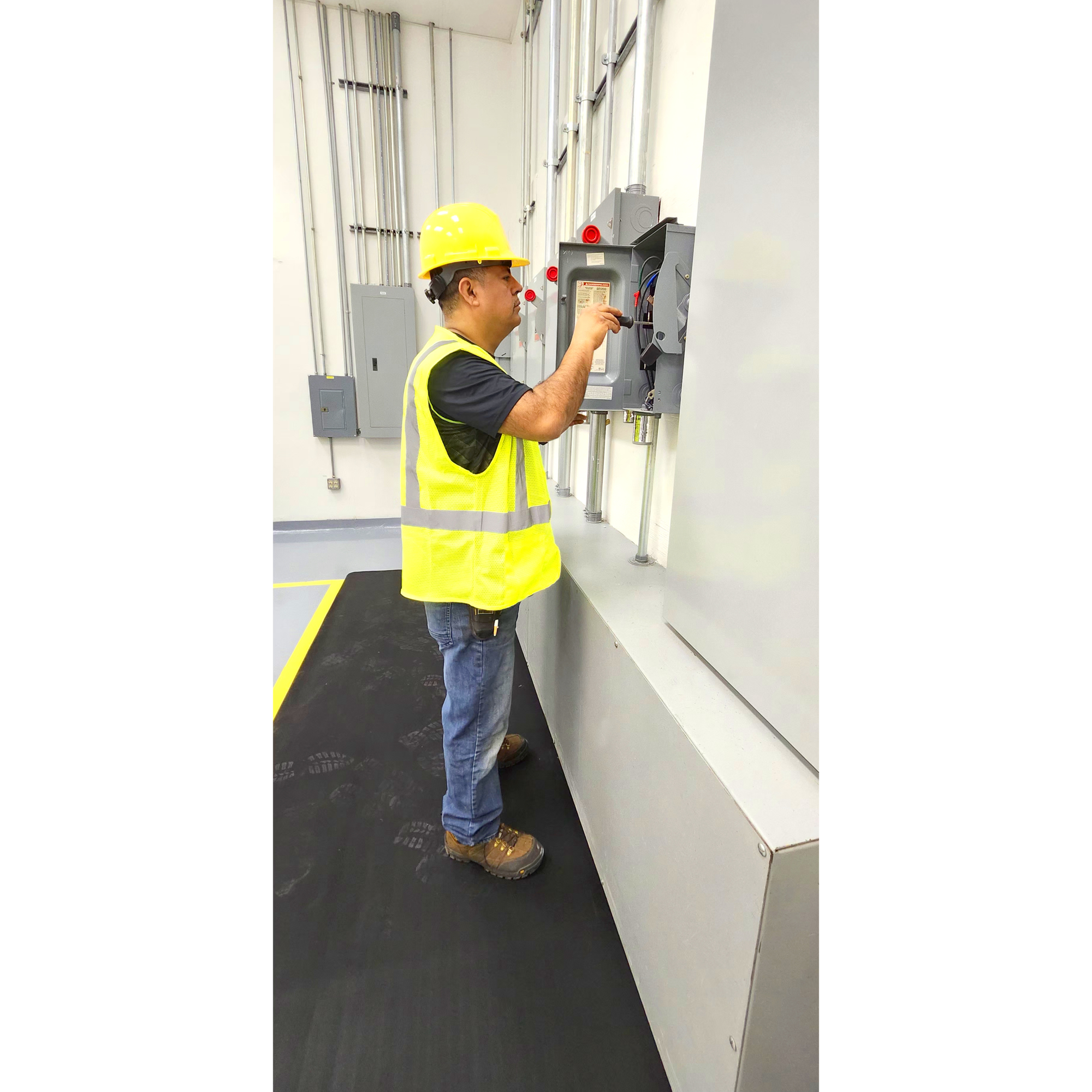

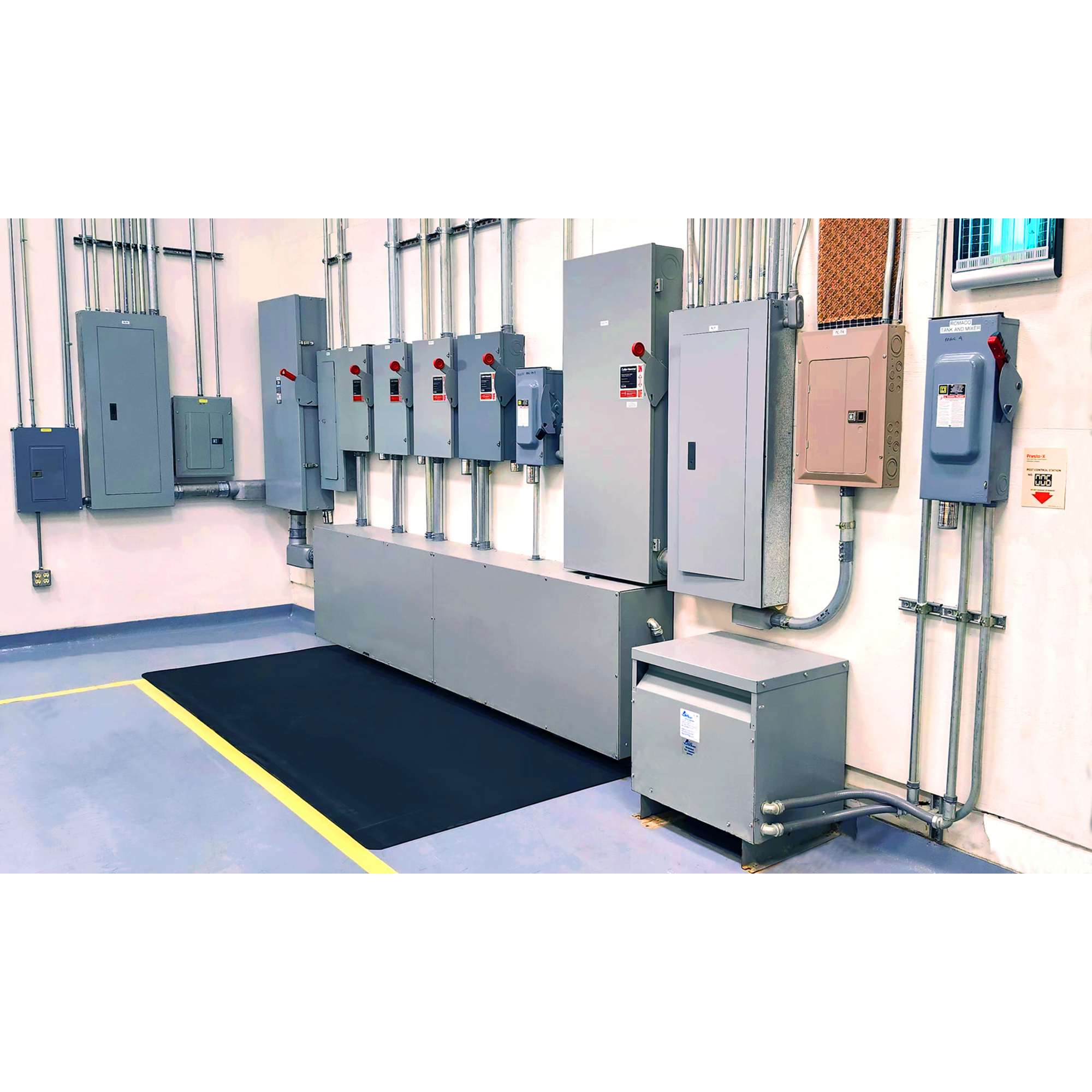

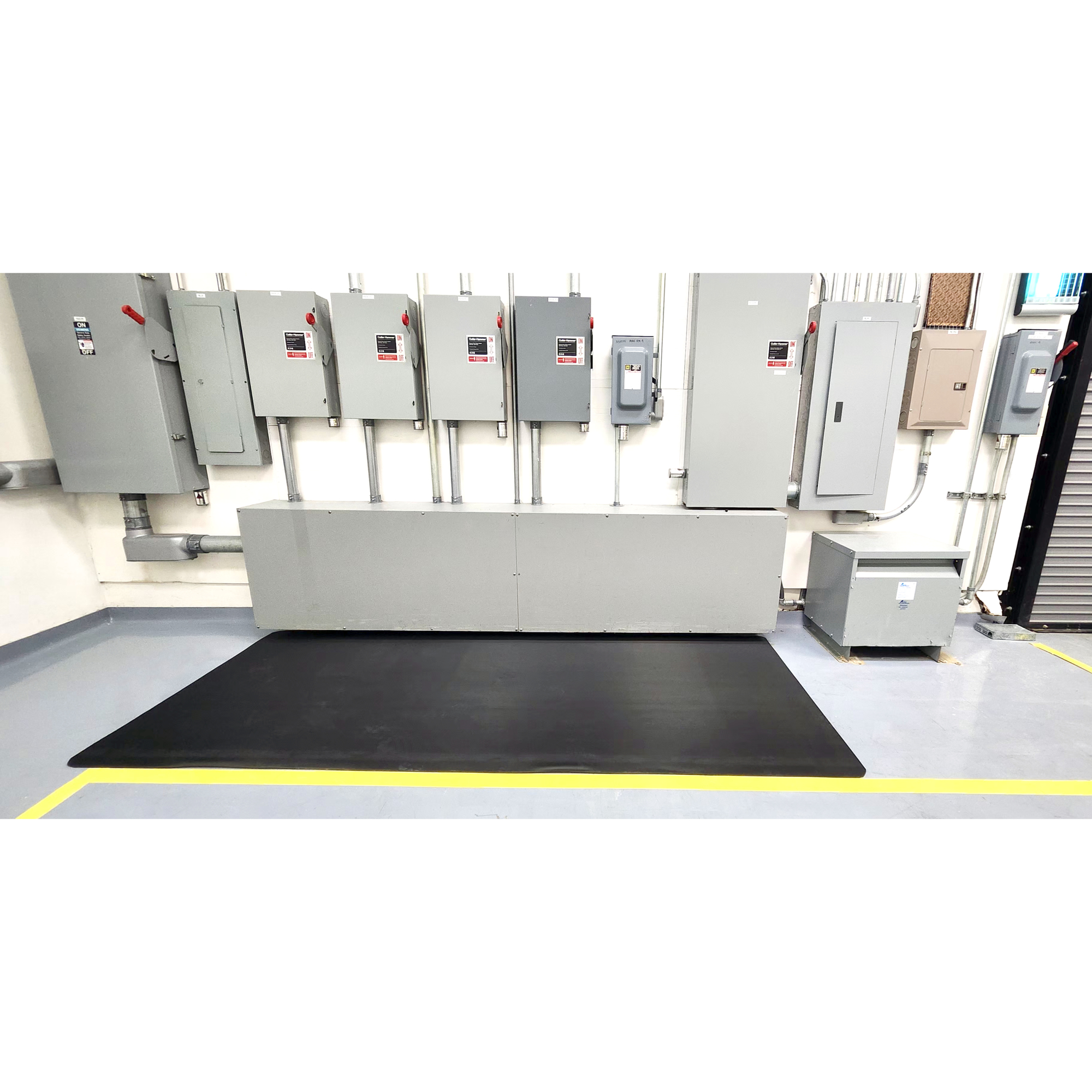

  • [ Helping Good People Do Good Things ] It is ideal for use in and around substations, transformers, switches, electrical panels, engine rooms, and generators. When it comes to lessening the threat of an electrocution hazard, Rhino non-conductive switchboard mats get the job done.
  • [ Quality You Can Count On ] Tested to ASTM D178/ANSI J6.7. Certification imprinted on the back. Available with a corrugated or Diamond Surface pattern.
  • [ Delivering on-time results and reliability ] The brand of choice in the oil industry and mass transit, and available at Electrical and Safety Supply Houses worldwide.
  • Class 1 matting is 3/16” thick and tested to o Dielectric test voltage 20,000 VAC o Proof tested over the entire surface at 10,000 VAC o Recommended maximum use voltage 7,500 VAC

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Rhino Mats Rhino Switchboard Mat is a high-quality, non-conductive insulating mat designed to provide safety and protection in electrical environments. Measuring 3ft. x 6ft. x 3/8in., this Class 3 mat meets ASTM D178 standards, ensuring reliable performance and durability. Its corrugated surface enhances traction and reduces the risk of slips and falls, making it ideal for use in areas where electrical insulation is critical. The black color adds a professional appearance while the robust construction ensures long-lasting use. This mat is an essential safety solution for protecting workers from electrical hazards, providing peace of mind in demanding work environments.

What's Included

    (1) Mat

Features + Benefits

  • [ Helping Good People Do Good Things ] It is ideal for use in and around substations, transformers, switches, electrical panels, engine rooms, and generators. When it comes to lessening the threat of an electrocution hazard, Rhino non-conductive switchboard mats get the job done.
  • [ Quality You Can Count On ] Tested to ASTM D178/ANSI J6.7. Certification imprinted on the back. Available with a corrugated or Diamond Surface pattern.
  • [ Delivering on-time results and reliability ] The brand of choice in the oil industry and mass transit, and available at Electrical and Safety Supply Houses worldwide.
  • Class 1 matting is 3/16” thick and tested to o Dielectric test voltage 20,000 VAC o Proof tested over the entire surface at 10,000 VAC o Recommended maximum use voltage 7,500 VAC
  • Class 2 matting is 1/4” thick and is tested to o Dielectric test voltage 30,000 VAC o Proof tested over the entire surface at 20,000 VAC o Recommended maximum use voltage 17,000 VAC
  • Class 3 matting is 3/8” thick and tested to o Dielectric test voltage 40,000 VAC o Proof tested over the entire surface at 30,000 VAC o Recommended maximum use voltage 26,500 VAC
  • Class 4 matting is 1/2” thick and tested to o Dielectric test voltage 50,000 VAC o Proof tested over the entire surface at 40,000 VAC o Recommended maximum use voltage 36,500 VAC
  • Class 1, 2, and 3 are available in 25-yard rolls or custom cut to specified lengths, while Class 4 matting is sold in 10-yard rolls only. The corrugated surface is available on all gauges, and a Diamond surface pattern is available on Class 2 Color Black.

Key Specs

AttributeSpecification

item#

6636683

Brand

Rhino Mats

Manufacturer's Warranty

No limited warranty

Ship Weight

426.0 LB

Width

3 in

Length

30 in

Thickness

1/2 in

Color Family

Black

Adhesive Backing

No
AttributeSpecification

Included (qty.)

1

Indoor-Outdoor Use

Indoor and Outdoor

Chemical Resistant

Yes

Surface Material

Rubber

Backing Material

Rubber

Surface Pattern

Corrugated

Product Weight

426.0000 lb

Dimensions L x W x H (in.)

48.0 x 42.0 x 40.0 in

Reviews

Questions & Answers

7958 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

No limited warranty
