Rhino Mats Rhino Switchboard Mat — 3ft. x 10ft. x 1/2in., Class 4, Non-Conductive, Insulating, Corrugated Surface, Black, Model# SB636CX10

Item# 6637061
1 Included
Rhino Mats Rhino Switchboard Mat — 3ft. x 10ft. x 1/2in., Class 4, Non-Conductive, Insulating, Corrugated Surface, Black, Model# SB636CX10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Rhino Mats Rhino Switchboard Mat — 3ft. x 10ft. x 1/2in., Class 4, Non-Conductive, Insulating, Corrugated Surface, Black, Model# SB636CX10

Click or Tap image to Zoom

$479.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

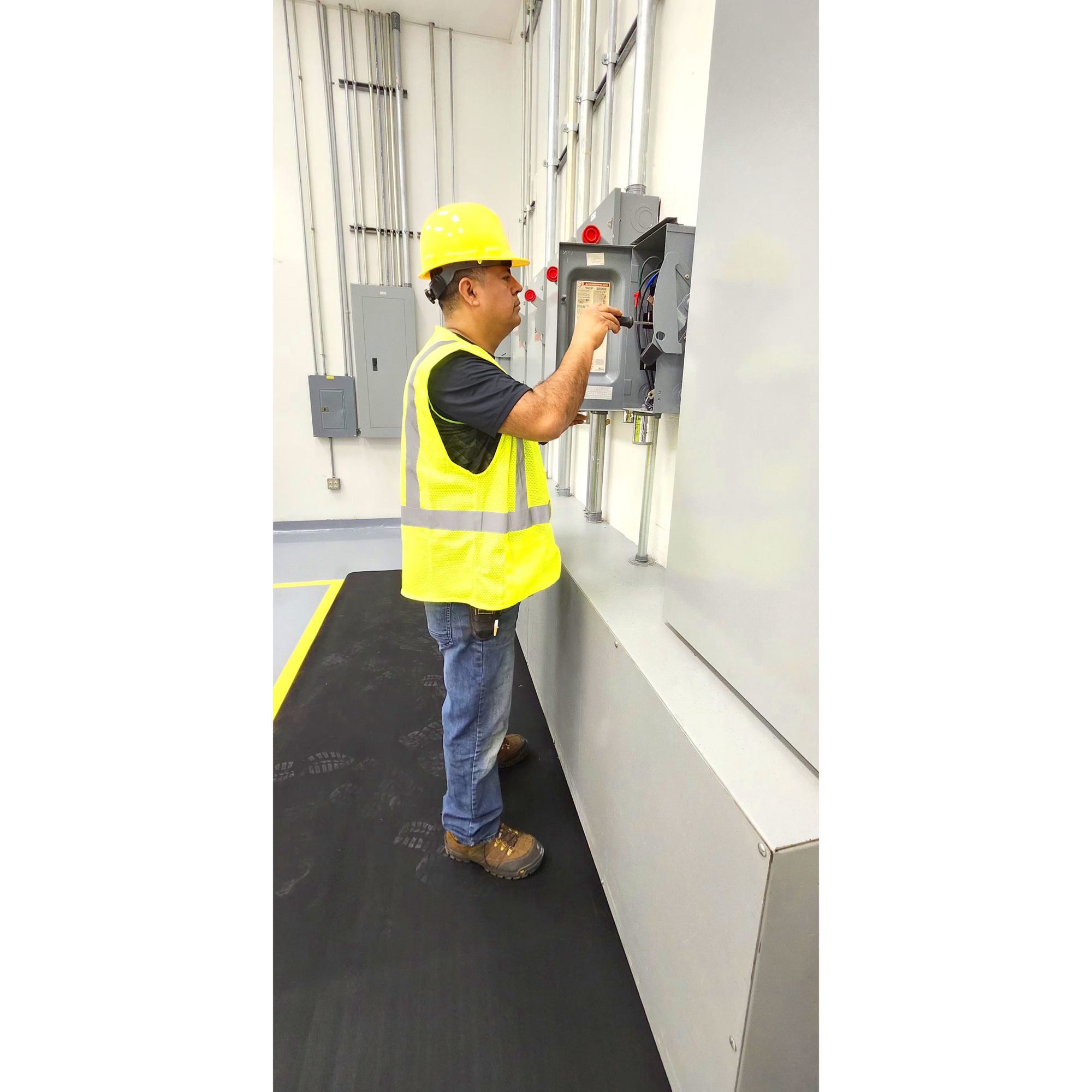

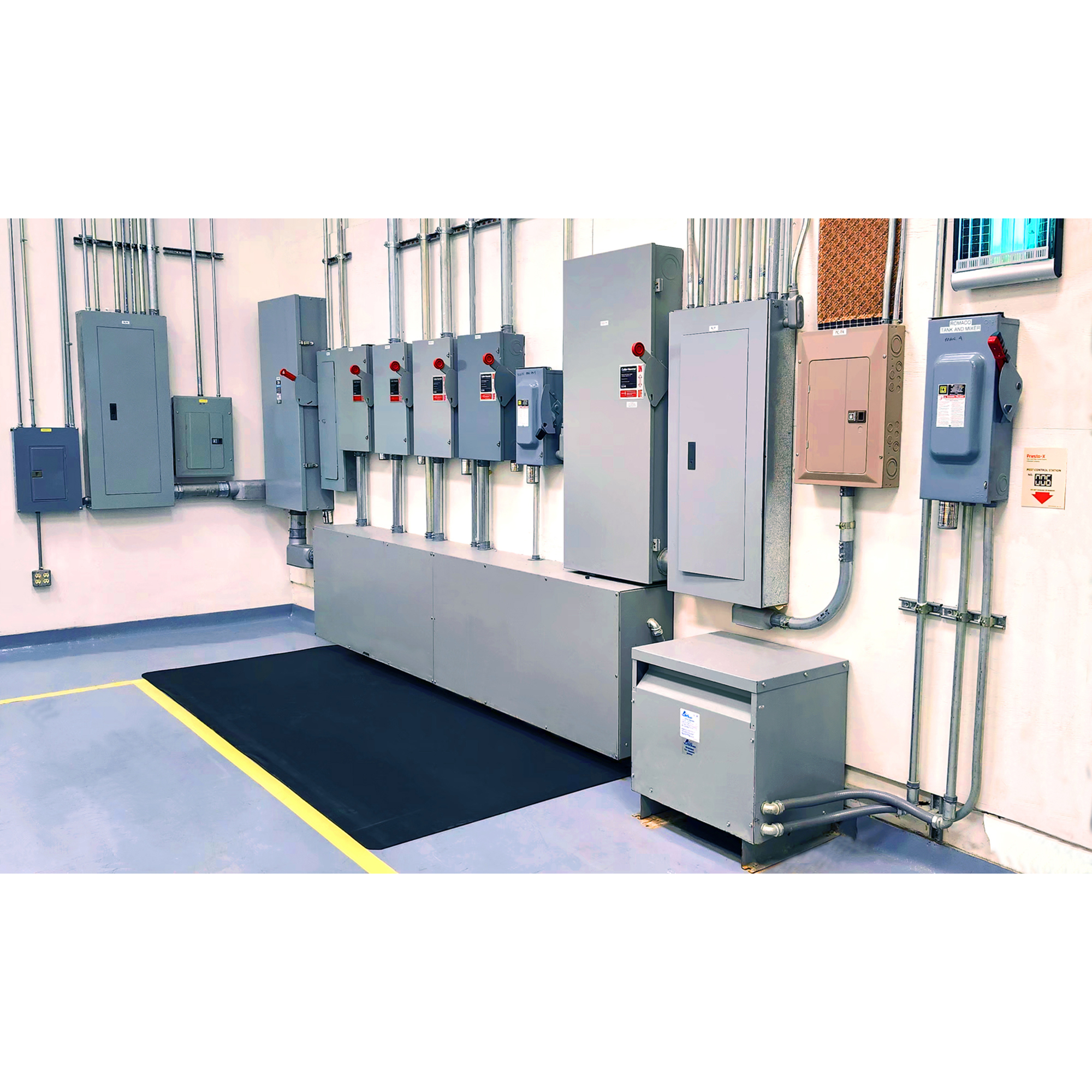

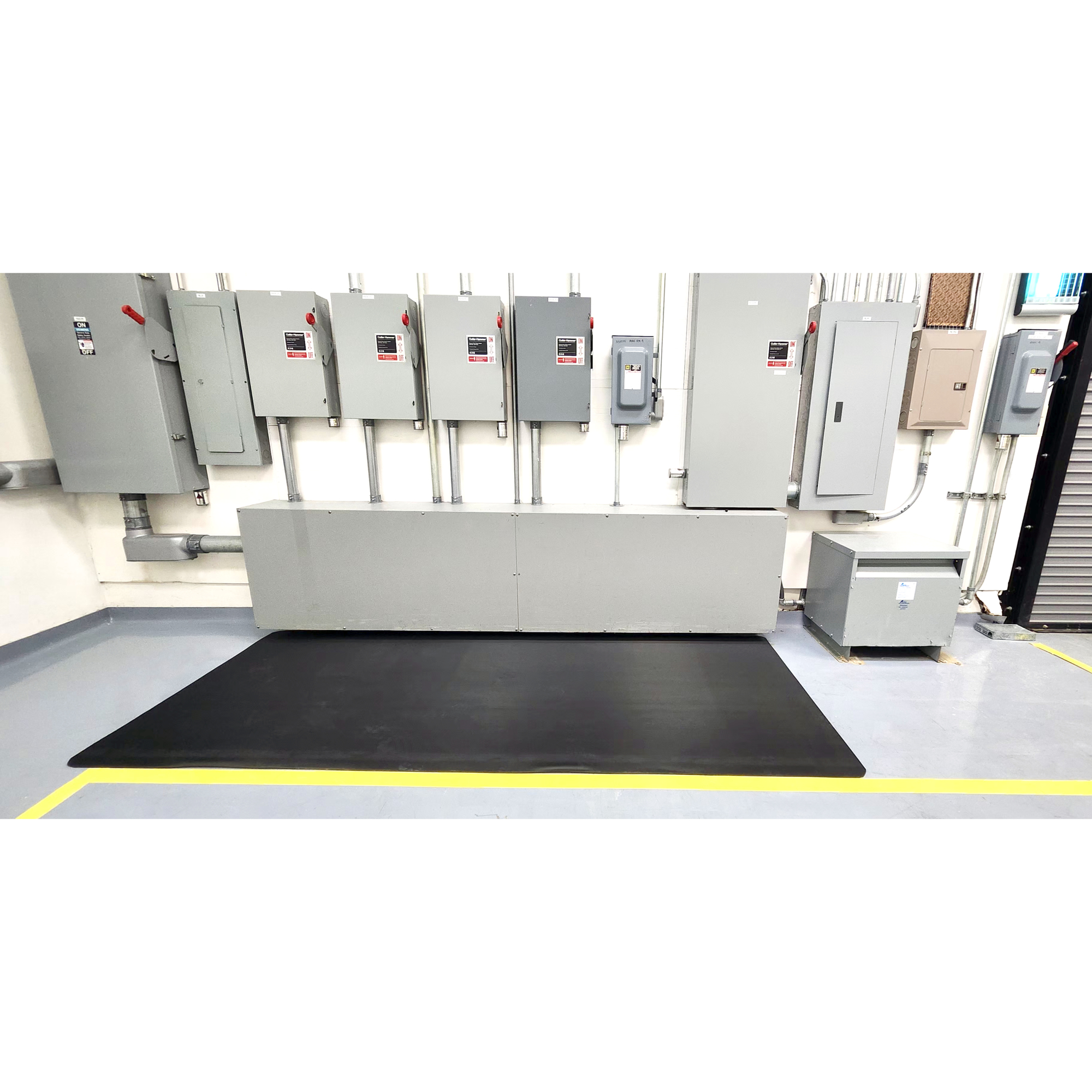

  • [ Helping Good People Do Good Things ] It is ideal for use in and around substations, transformers, switches, electrical panels, engine rooms, and generators. When it comes to lessening the threat of an electrocution hazard, Rhino non-conductive switchboard mats get the job done.
  • [ Quality You Can Count On ] Tested to ASTM D178/ANSI J6.7. Certification imprinted on the back. Available with a corrugated or Diamond Surface pattern.
  • [ Delivering on-time results and reliability ] The brand of choice in the oil industry and mass transit, and available at Electrical and Safety Supply Houses worldwide.
  • Class 1 matting is 3/16” thick and tested to o Dielectric test voltage 20,000 VAC o Proof tested over the entire surface at 10,000 VAC o Recommended maximum use voltage 7,500 VAC

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Non-Conductive, Insulating Switchboard Mat, Class 4, 3’x10’x1/2in. Thick, ASTM D178, Color; Black, Corrugated Surface

What's Included

    (1) Mat

Features + Benefits

  • [ Helping Good People Do Good Things ] It is ideal for use in and around substations, transformers, switches, electrical panels, engine rooms, and generators. When it comes to lessening the threat of an electrocution hazard, Rhino non-conductive switchboard mats get the job done.
  • [ Quality You Can Count On ] Tested to ASTM D178/ANSI J6.7. Certification imprinted on the back. Available with a corrugated or Diamond Surface pattern.
  • [ Delivering on-time results and reliability ] The brand of choice in the oil industry and mass transit, and available at Electrical and Safety Supply Houses worldwide.
  • Class 1 matting is 3/16” thick and tested to o Dielectric test voltage 20,000 VAC o Proof tested over the entire surface at 10,000 VAC o Recommended maximum use voltage 7,500 VAC
  • Class 2 matting is 1/4” thick and is tested to o Dielectric test voltage 30,000 VAC o Proof tested over the entire surface at 20,000 VAC o Recommended maximum use voltage 17,000 VAC
  • Class 3 matting is 3/8” thick and tested to o Dielectric test voltage 40,000 VAC o Proof tested over the entire surface at 30,000 VAC o Recommended maximum use voltage 26,500 VAC
  • Class 4 matting is 1/2” thick and tested to o Dielectric test voltage 50,000 VAC o Proof tested over the entire surface at 40,000 VAC o Recommended maximum use voltage 36,500 VAC
  • Class 1, 2, and 3 are available in 25-yard rolls or custom cut to specified lengths, while Class 4 matting is sold in 10-yard rolls only. The corrugated surface is available on all gauges, and a Diamond surface pattern is available on Class 2 Color Black.

Key Specs

AttributeSpecification

item#

6637061

Brand

Rhino Mats

Manufacturer's Warranty

No limited warranty

Ship Weight

116.0 LB

Width

3 in

Length

10 in

Thickness

1/2 in

Color Family

Black

Adhesive Backing

No
AttributeSpecification

Included (qty.)

1

Indoor-Outdoor Use

Indoor and Outdoor

Chemical Resistant

Yes

Surface Material

Rubber

Backing Material

Rubber

Surface Pattern

Corrugated

Product Weight

116.0000 lb

Dimensions L x W x H (in.)

36.0 x 11.0 x 11.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

No limited warranty
