Product Summary

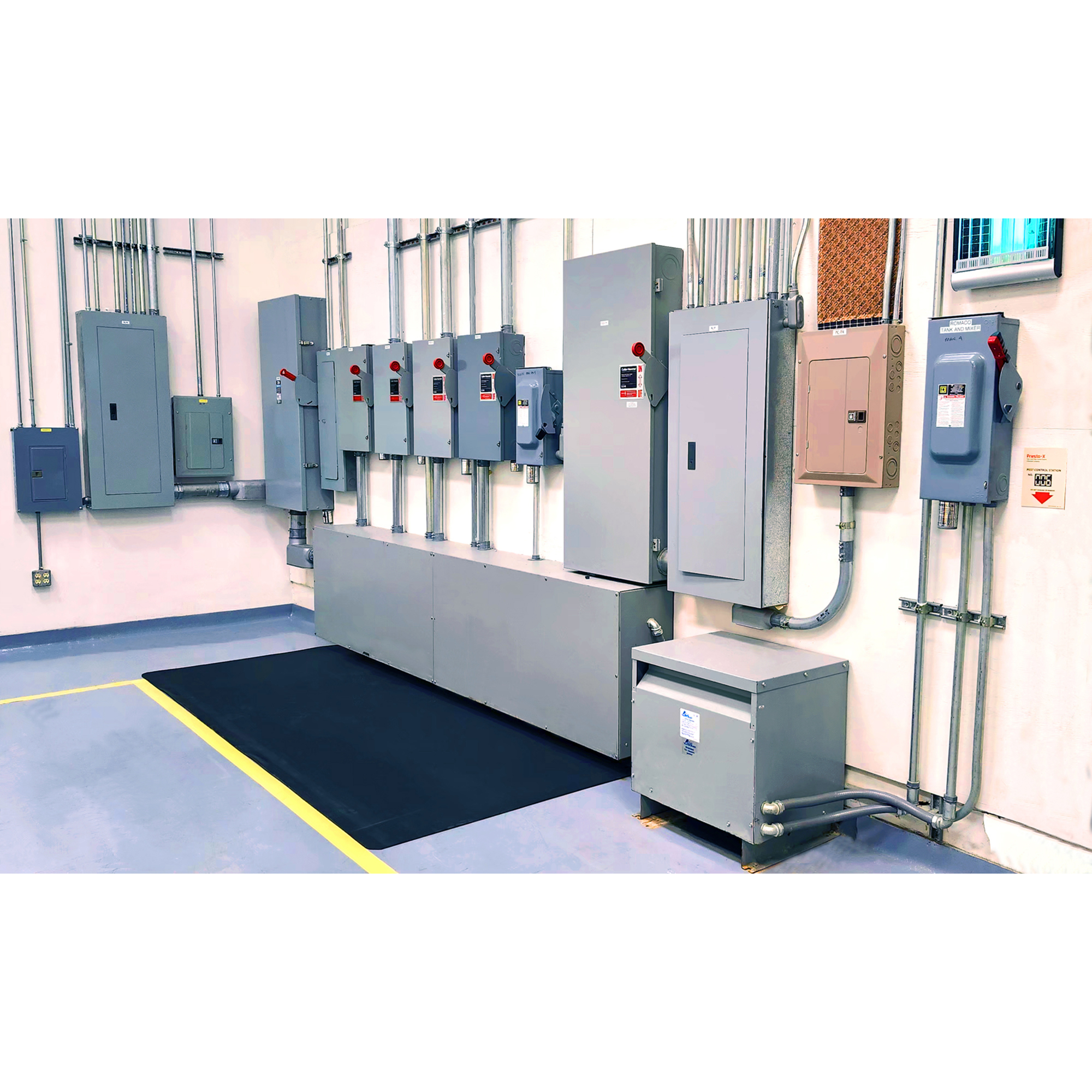

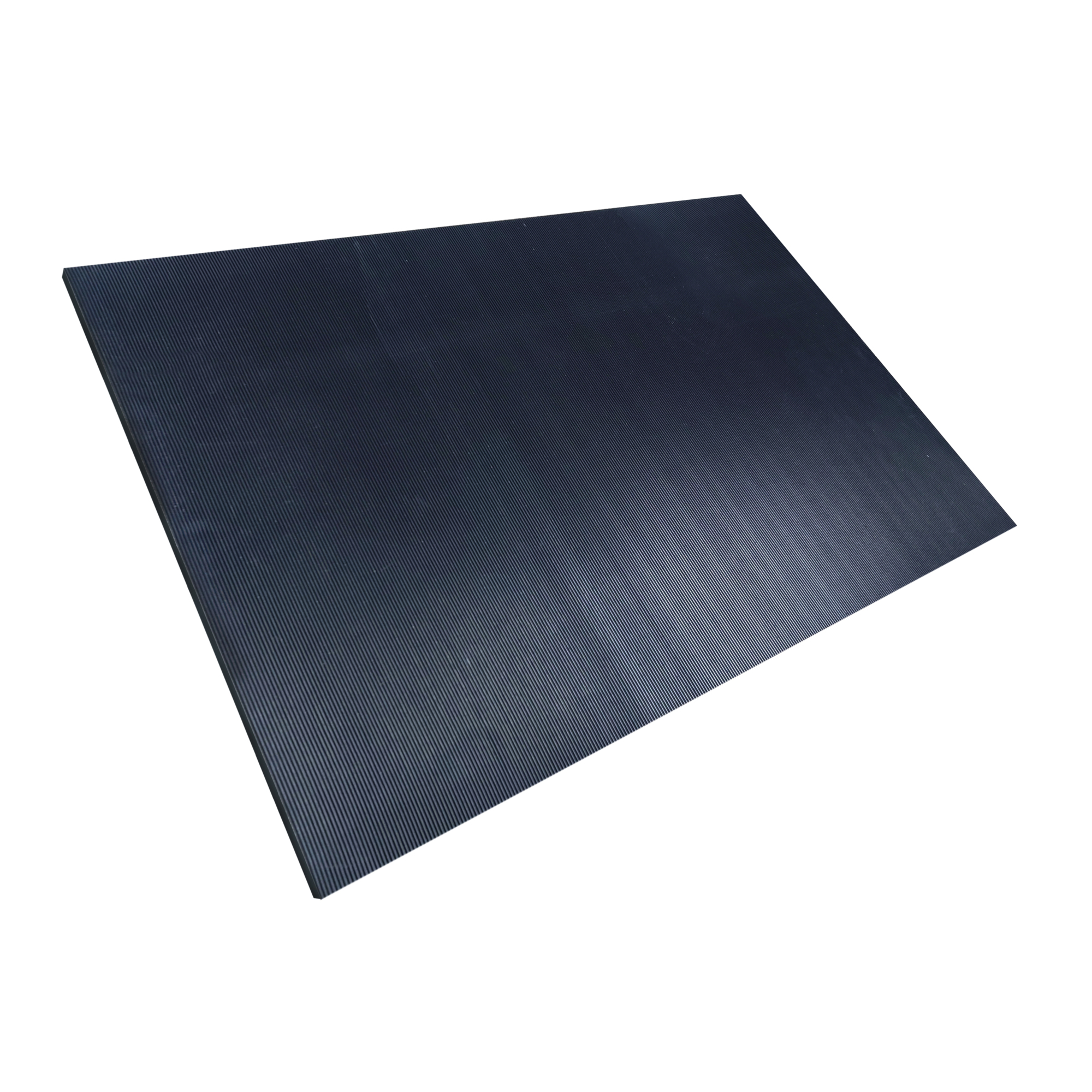

The Rhino Mats Rhino Switchboard Mat is a Class 2, non-conductive, insulating mat designed for superior safety and performance in electrical environments. Measuring 4ft. x 12ft. with a 1/4in. thickness, this mat meets ASTM D178 standards, ensuring it provides reliable protection against electrical hazards. Its black diamond surface not only enhances durability but also offers excellent traction, reducing the risk of slips and falls. Ideal for use in areas where electrical insulation is critical, such as switchboards and control panels, this mat is engineered to withstand rigorous use while maintaining its insulating properties. The Rhino Switchboard Mat is an essential safety solution for professionals working with high voltage equipment, providing peace of mind and compliance with industry safety standards.

What's Included

    (1) Mat

Features + Benefits

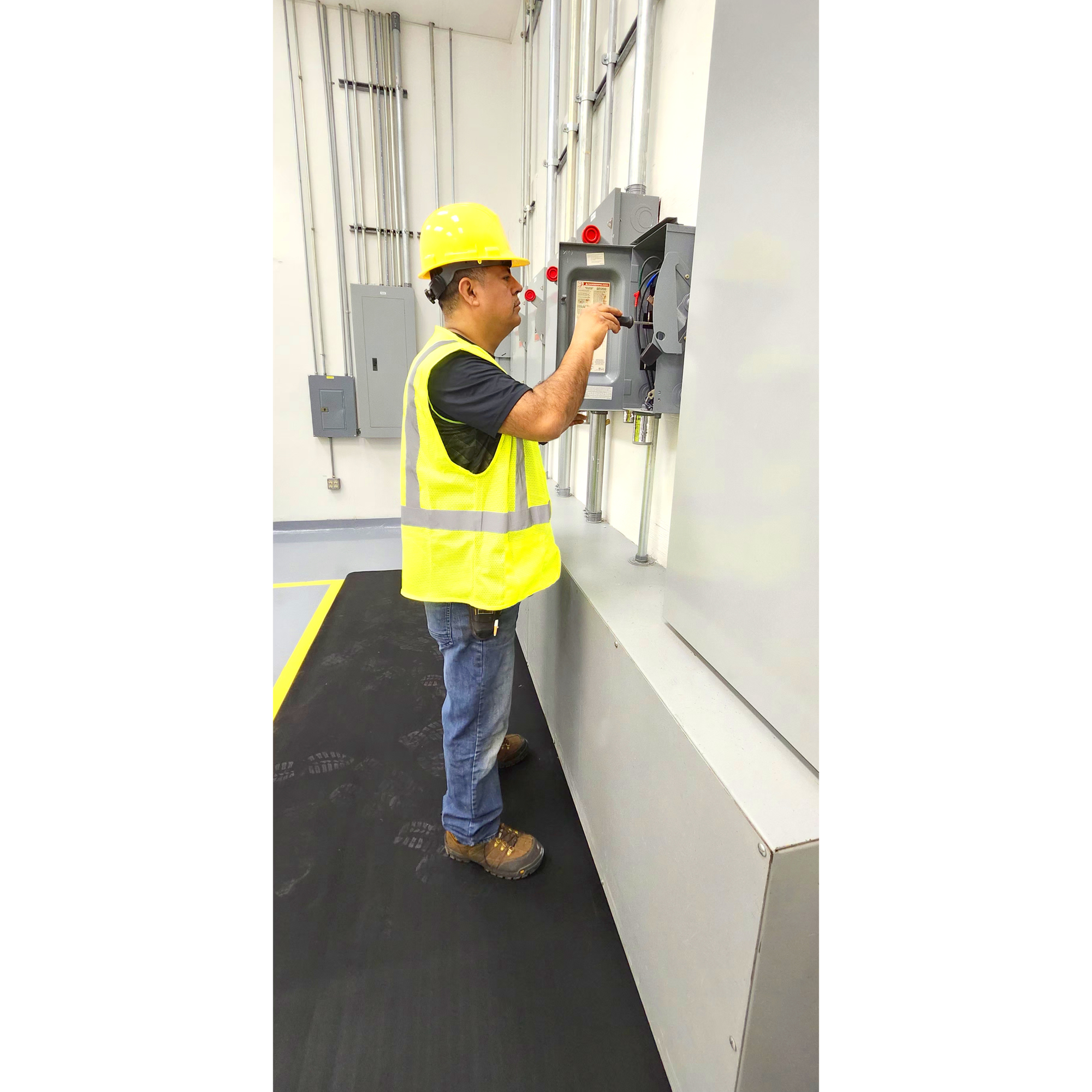

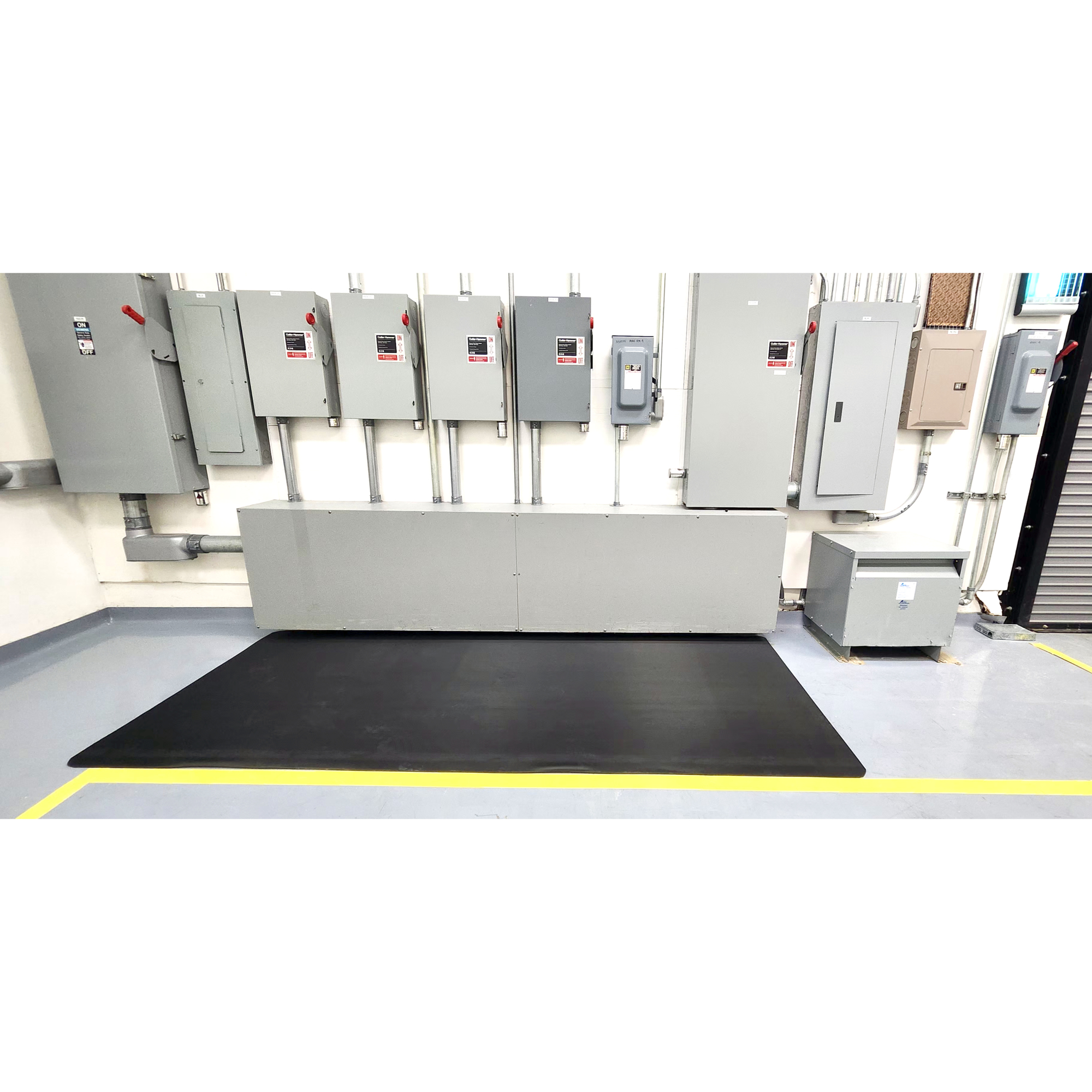

  • [ Helping Good People Do Good Things ] It is ideal for use in and around substations, transformers, switches, electrical panels, engine rooms, and generators. When it comes to lessening the threat of an electrocution hazard, Rhino non-conductive switchboard mats get the job done.
  • [ Quality You Can Count On ] Tested to ASTM D178/ANSI J6.7. Certification imprinted on the back. Available with a corrugated or Diamond Surface pattern.
  • [ Delivering on-time results and reliability ] The brand of choice in the oil industry and mass transit, and available at Electrical and Safety Supply Houses worldwide.
  • Class 1 matting is 3/16” thick and tested to o Dielectric test voltage 20,000 VAC o Proof tested over the entire surface at 10,000 VAC o Recommended maximum use voltage 7,500 VAC
  • Class 2 matting is 1/4” thick and is tested to o Dielectric test voltage 30,000 VAC o Proof tested over the entire surface at 20,000 VAC o Recommended maximum use voltage 17,000 VAC
  • Class 3 matting is 3/8” thick and tested to o Dielectric test voltage 40,000 VAC o Proof tested over the entire surface at 30,000 VAC o Recommended maximum use voltage 26,500 VAC
  • Class 4 matting is 1/2” thick and tested to o Dielectric test voltage 50,000 VAC o Proof tested over the entire surface at 40,000 VAC o Recommended maximum use voltage 36,500 VAC
  • Class 1, 2, and 3 are available in 25-yard rolls or custom cut to specified lengths, while Class 4 matting is sold in 10-yard rolls only. The corrugated surface is available on all gauges, and a Diamond surface pattern is available on Class 2 Color Black.

Key Specs

AttributeSpecification

item#

6633992

Brand

Rhino Mats

Manufacturer's Warranty

No limited warranty

Ship Weight

46.5 LB

Width

4 in

Length

6 in

Thickness

1/4 in

Color Family

Black

Adhesive Backing

No
AttributeSpecification

Included (qty.)

1

Indoor-Outdoor Use

Indoor and Outdoor

Chemical Resistant

Yes

Surface Material

Rubber

Backing Material

Rubber

Surface Pattern

Corrugated

Product Weight

46.5000 lb

Dimensions L x W x H (in.)

48.0 x 6.0 x 6.0 in

Warranty

Manufacturer's Warranty

No limited warranty
