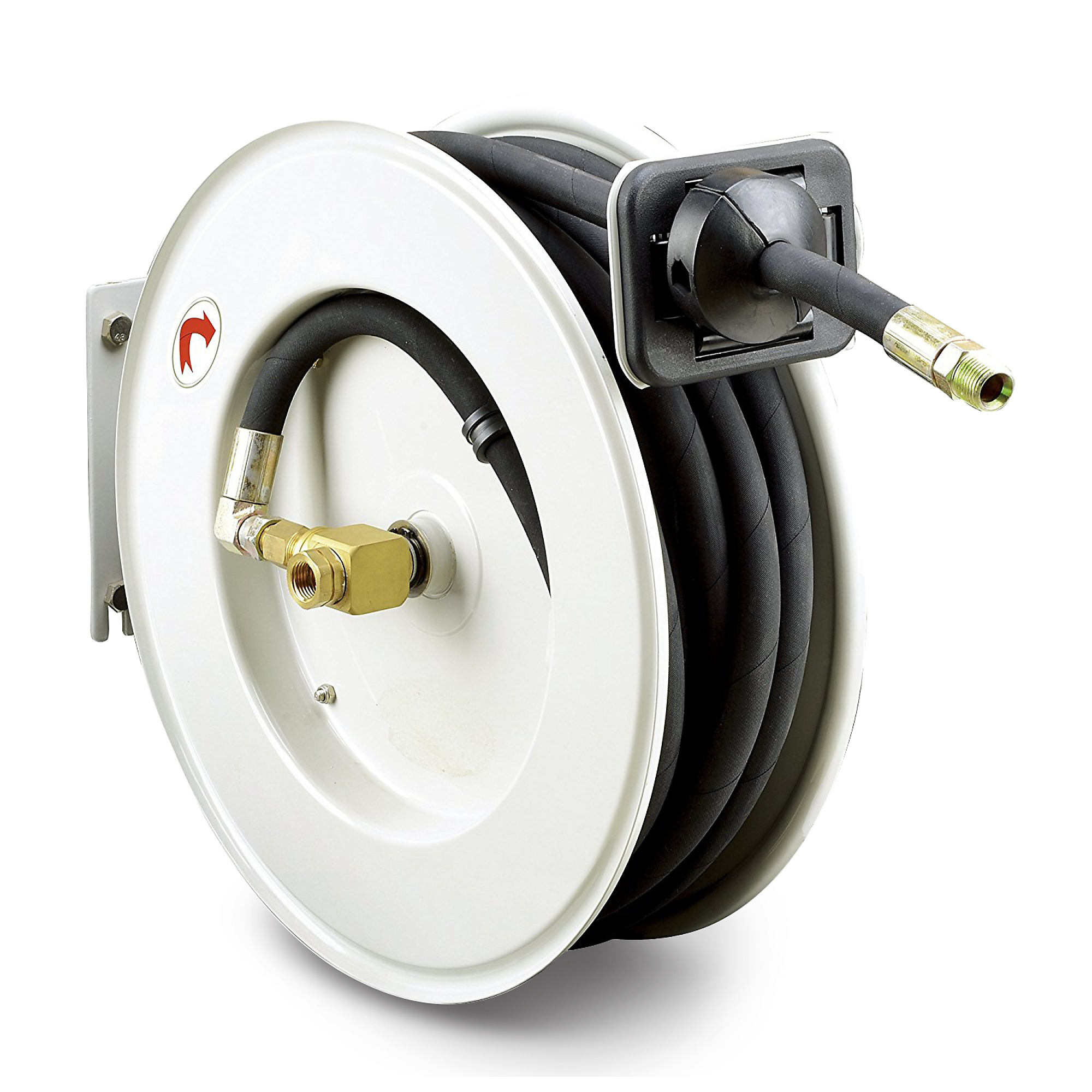

ReelWorks Retractable Oil Hose Reel — 1/2in. x 50ft., 2320 PSI, Heavy-Duty Steel, Model# TRI-M850154

Item# 6692853
ReelWorks Retractable Oil Hose Reel — 1/2in. x 50ft., 2320 PSI, Heavy-Duty Steel, Model# TRI-M850154

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ReelWorks Retractable Oil Hose Reel — 1/2in. x 50ft., 2320 PSI, Heavy-Duty Steel, Model# TRI-M850154

Click or Tap image to Zoom

$359.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

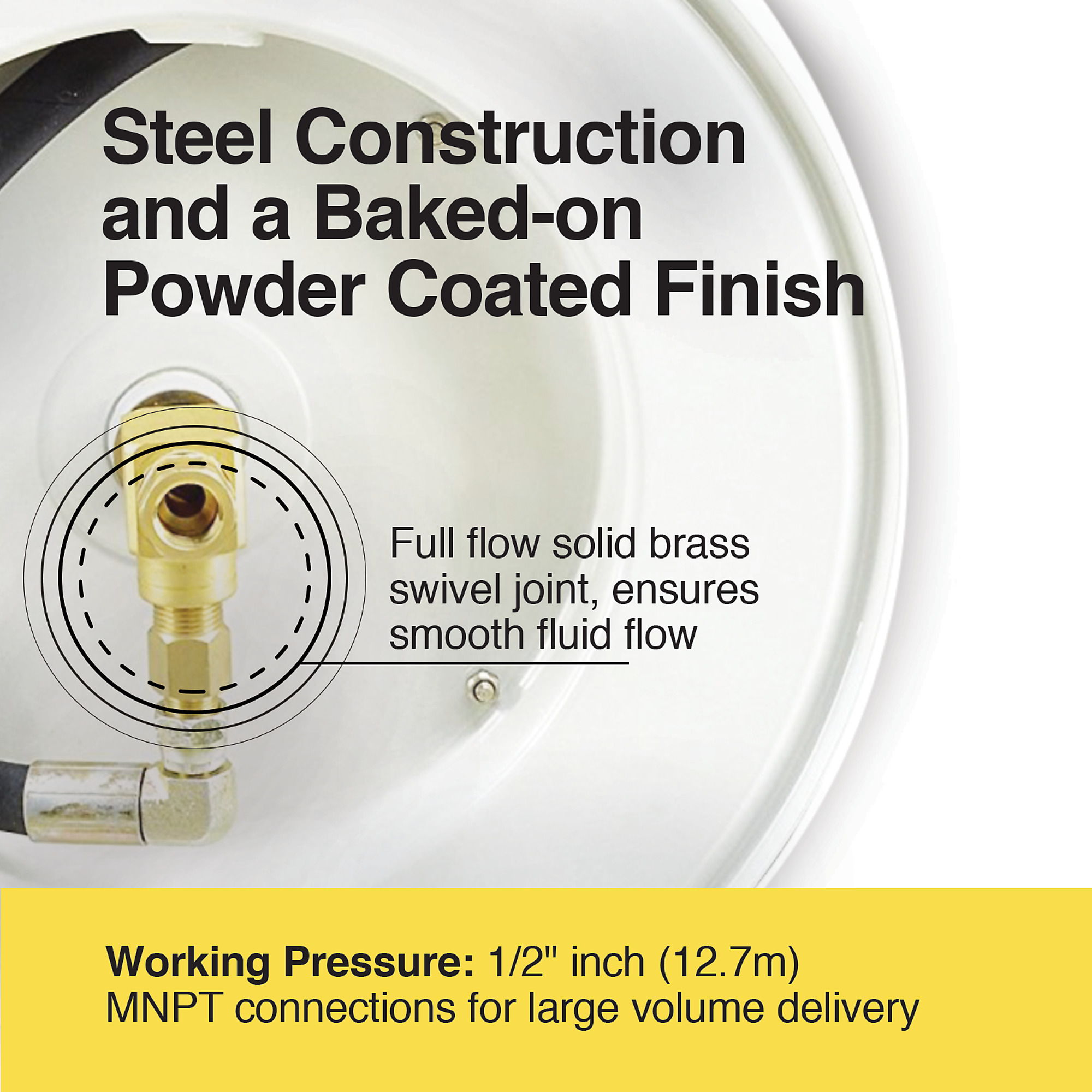

  • REEL SPECS - This Reelworks Oil Hose Reel is crafted of heavy duty gauge industrial steel, heat treated w/ powder coating resisting against corrosion; Reinforced flanged edges, stamped steel guide arm and L-base all light weight and strong, ensuring optimal support; The Premium Commercial SAE100R1AT Oil Hose is made of Nitrile, Neoprene and single high-tensile steel wire braid and has a working pressure of 2320PSI/160BAR w/ 1/2" inch (12.7m) MNPT connections for large volume delivery.

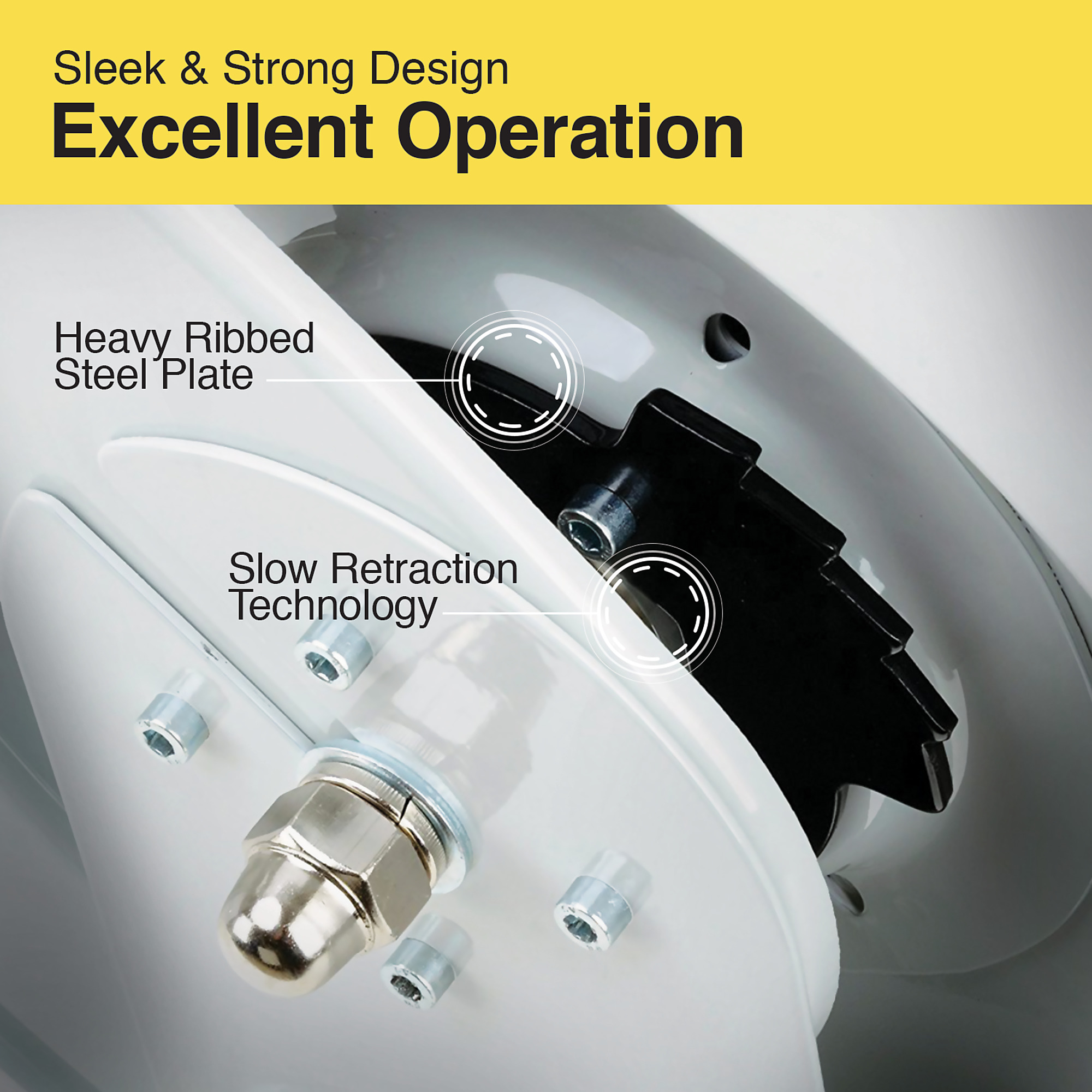

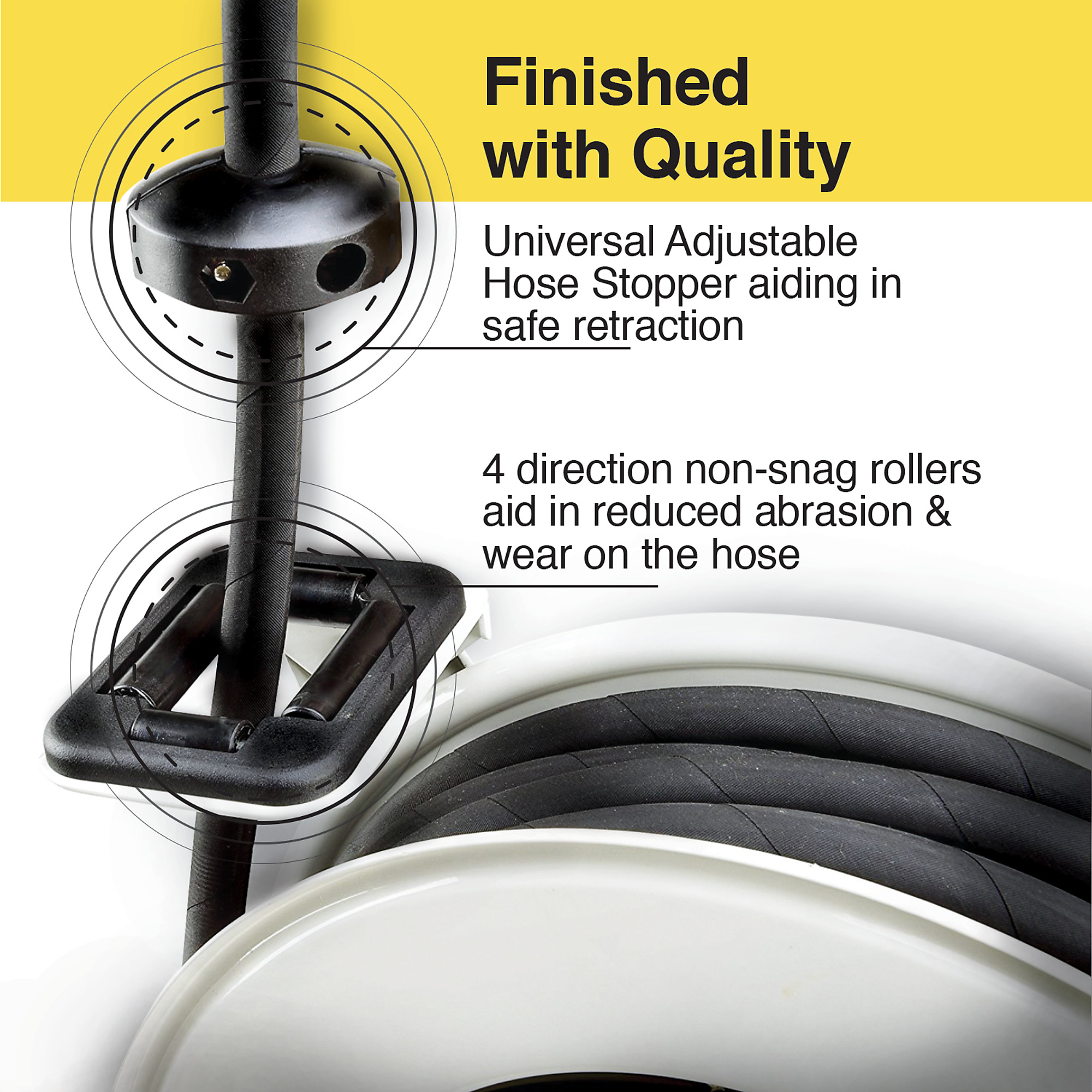

  • PRODUCT INTEGRITY - Utilizing double adjustment enclosed multi-position release ratchet spring, locking the hose at any desired length; Ball bearing swivel joint inlet connection protecting against leaks; reducing swivel spool and body friction, an Adjustable Hose Stopper and Non-Snag Rollers; Premium SAE100R1AT Hose is Resistant to: Oils, acids, puncture resistance, abrasion, weather and works in the toughest conditions of -40°F to 212°F (-40°C to 100°C), for the best advantage.
  • SAFETY and PROPER USE - Our Reels are cull quality tested; ReelWorks Reels are best suited for indoor/outdoor use, night or day, DIY or industrial applications allowing for extension to be up out of the way keeping the home/workplace safe; Includes bolts fitting the 1/2” inch (12.7mm) holes to mount, (lead-in hose not included); Oil Hose Reels are suitable for Petroleum and Water based hydraulic fluids (NOT AIR).

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

ReelWorks Oil Hose Reel Retractable 1/2in. Inch x 50ft. Foot Long Premium Commercial SAE100R1AT Hose Max 2320 Psi Spring Driven Steel Construction Heavy Duty Industrial Single Arm and L-Shape Base, TRI-M850154. This Reelworks Oil Hose Reel is crafted of heavy duty gauge industrial steel, heat treated w/powder coating resisting against corrosion. Reinforced flanged edges, stamped steel guide arm L-base all light weight strong, ensuring optimal support. The Premium Commercial SAE.100R1AT Oil Hose is made of Nitrile, Neoprene single high-tensile steel wire braid has a working pressure of 2320PSI/160BAR w/ 1/2in. (12.7m) MNPT connections for large volume delivery. Utilizing double adjustment enclosed multi-position release ratchet spring, locking the hose at any desired length. Ball bearing swivel joint inlet connection protecting against leaks reducing swivel spool body friction, an Adjustable Hose Stopper Non-Snag Rollers. Premium SAE.100R1AT Hose is Resistant to: Oils, acids, puncture resistance, abrasion, weather works in the toughest conditions of -40°F to 212°F (-40°C to 100°C), for the best advantage to suit your needs. Our Reels are OSHA, RoHS, ISO: 9001, 14001, CNAS, SQC, IAF, MSHA, Listed approved certified, including cull quality tested. Reelworks Reels are best suited for indoor/outdoor use, night or day, DIY or industrial applications allowing for extension to be up out of the way keeping the home/workplace safe. Includes bolts fitting the 1/2” (12.7mm) holes to mount, (lead-in hose not included). Oil Hose Reels are suitable for Petroleum Water based hydraulic fluids (NOT AIR).

What's Included

    (1) Retractable Oil Hose Reel

Features + Benefits

  • REEL SPECS - This Reelworks Oil Hose Reel is crafted of heavy duty gauge industrial steel, heat treated w/ powder coating resisting against corrosion; Reinforced flanged edges, stamped steel guide arm and L-base all light weight and strong, ensuring optimal support; The Premium Commercial SAE100R1AT Oil Hose is made of Nitrile, Neoprene and single high-tensile steel wire braid and has a working pressure of 2320PSI/160BAR w/ 1/2" inch (12.7m) MNPT connections for large volume delivery.
  • PRODUCT INTEGRITY - Utilizing double adjustment enclosed multi-position release ratchet spring, locking the hose at any desired length; Ball bearing swivel joint inlet connection protecting against leaks; reducing swivel spool and body friction, an Adjustable Hose Stopper and Non-Snag Rollers; Premium SAE100R1AT Hose is Resistant to: Oils, acids, puncture resistance, abrasion, weather and works in the toughest conditions of -40°F to 212°F (-40°C to 100°C), for the best advantage.
  • SAFETY and PROPER USE - Our Reels are cull quality tested; ReelWorks Reels are best suited for indoor/outdoor use, night or day, DIY or industrial applications allowing for extension to be up out of the way keeping the home/workplace safe; Includes bolts fitting the 1/2” inch (12.7mm) holes to mount, (lead-in hose not included); Oil Hose Reels are suitable for Petroleum and Water based hydraulic fluids (NOT AIR).

Key Specs

AttributeSpecification

item#

6692853

Brand

ReelWorks

Manufacturer's Warranty

1 year limited warranty

Ship Weight

53.0 LB

Fitting Size

1/2 in

Max. PSI

2,320

Hose Length

600 in
AttributeSpecification

Material

Rubber

Product Type

Other

Swivel

No

Storage Case Included

No

Length

600 in

Product Weight

57.0000 lb

Dimensions L x W x H (in.)

17.5 x 5.5 x 20.2 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
