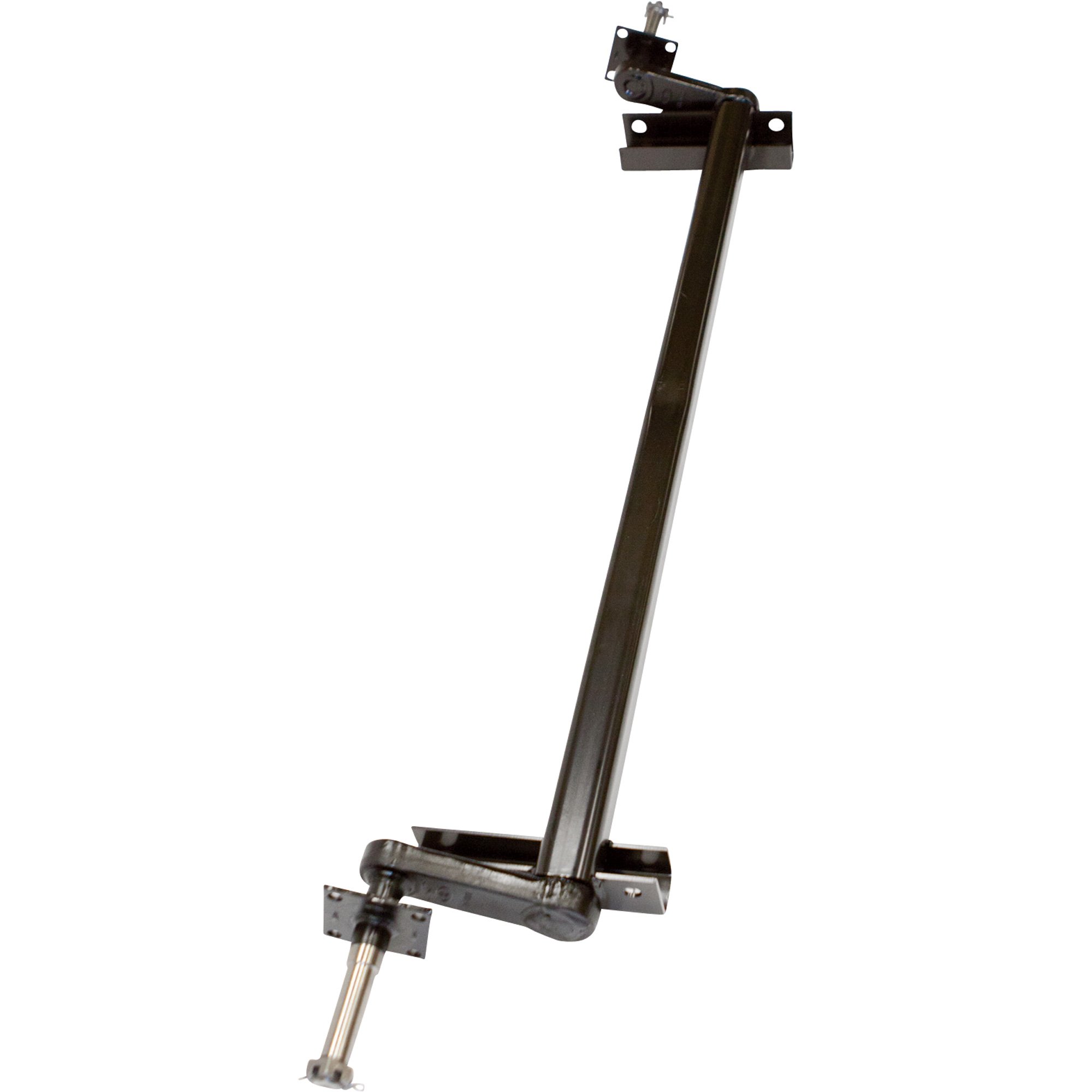

Reliable Rubber Torsion Trailer Axle — 3500-Lb. Capacity, 30° Below Start Angle

Item# 129288
Reliable Rubber Torsion Trailer Axle — 3500-Lb. Capacity, 30° Below Start Angle

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Reliable Rubber Torsion Trailer Axle — 3500-Lb. Capacity, 30° Below Start Angle

Click or Tap image to Zoom

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Rubber-cushioned inside steel bar absorbs road shock and provides torque action that improves load handling, reduces shock transfer and trailer sway! 1-pc. forged spindle/arm. Eliminates springs, shackles and U-bolts. Designed to maintain accurate toe and camber. Each rubber torsion trailer axle comes cambered.

Key Specs

AttributeSpecification

item#

129288

Brand

Reliable

Manufacturer's Warranty

12 months limited parts / No labor

Ship Weight

77.0 LB
AttributeSpecification

Axle Tube Type

Square

Cambered

Yes

Hubs Included

No

Brakes Included

No

Reviews

Questions & Answers

Questions

1–10 of 12 Questions
Sort by:

  1. what is the diffedrance in 30degre and 10degre

    1 answer

    1. The degree is measured from where the spindle starts in comparison to the torsion axle, the 30 degree would be 30 degrees below the start angle and the 10 degrees would be 10 degrees below the start angle.

      Helpful?

  2. Can I get this axle in galvanized?

    1 answer

    1. At Northern we do not offer this axle in galvanized.

      Helpful?

  3. What is the distance between the mounting flanges? How wide are the mounting flanges?

    1 answer

    1. On this axle its 51 3/8" between the mounting flanges and the mounting flanges are 2 1/2" wide.

      Helpful?

  4. How does this axle mount to the trailer frame

    1 answer

    1. The axle can be bolted or welded on the trailer frame.

      Helpful?

  5. mounting bolts center to center and hub face measurement?

    What's the measurement center on center for the mounting brackets? What's the hub face to hub face measurement?

    1 answer

    1. The mounting brackets measure 53.75" center on center. Hub face to hub face measures 69".

      Helpful?

  6. Which hub fits this axle?

    1 answer

    1. The axle has tapered spindles. It uses a 1 3/8" inner bearing and 1 1/16" outer bearing. A few options are attached.

      Helpful?

  7. Will a 7" x1 1/4" hub/drum fit this axle?

    1 answer

    1. The drum kit recommended for this axle is linked below:

      Helpful?

  8. What size is the spindle nut?

    1 answer

    1. The spindle nut on the torsion axle is 13/16"-20.

      Helpful?

  9. Where are these axles manufactured?

    1 answer

    1. These axles are manufactured in the USA.

      Helpful?

  10. What is the bolt pattern specs?

    distance between the two bolt holes on each side.

    1 answer

    1. The distance between the centers of the two bolt holes on each side of the Reliable Torsion Axle is 9.13 inches. The distance between the centers of the 2 frame mount brackets are 56 inches.

      Helpful?

Warranty

Manufacturer's Warranty

12 months limited parts / No labor
