RDS Aluminum Transfer Fuel Tank, 150 Gallons, Rectangular, Smooth, Model# 73216

Item# 349046
RDS Aluminum Transfer Fuel Tank, 150 Gallons, Rectangular, Smooth, Model# 73216

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

RDS Aluminum Transfer Fuel Tank, 150 Gallons, Rectangular, Smooth, Model# 73216

Click or Tap image to Zoom

$1799.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Baffled design prevents sloshing
  • Sight gauge for convenient fuel level reading
  • 6in. inspection clean-out port
  • Includes mounting tabs, lifting tabs (empty only), locking fill cap rollover vent, 3/8in. drain and 2in. coupling that works with a standard transfer pump

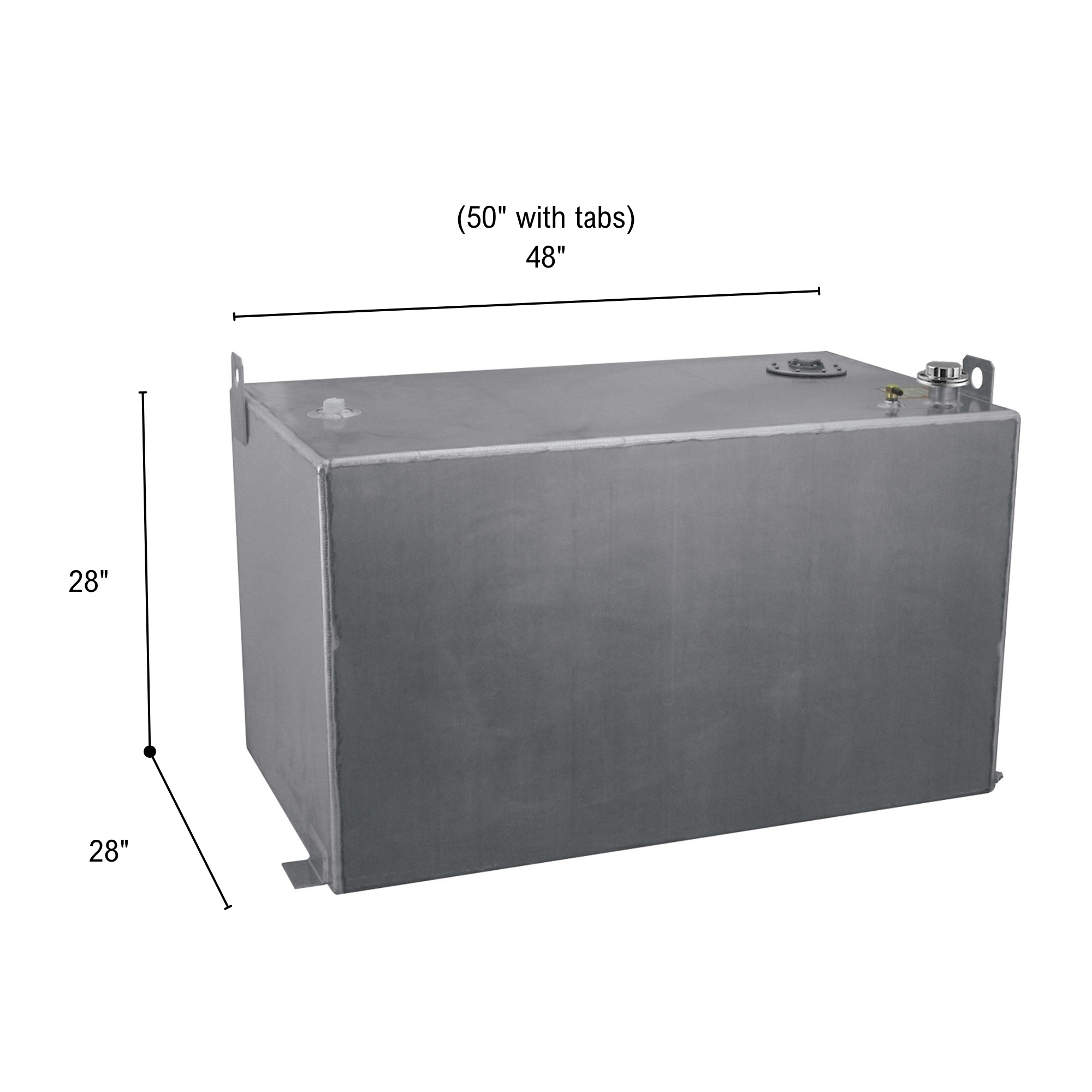

  • Tank Dimensions: 48"L x 28"W x 28"H

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This RDS Manufacturing heavy-duty aluminum tank is rugged and rustproof, featuring heavy-gauge .190 aluminum construction and is suitable for diesel. Not for use with gasoline. Tank is not DOT-approved; user is responsible for complying with all local, state and federal requirements pertaining to the loading and discharging of tank contents. Note: This smooth mil finished tank will have some scratch marks, which is normal and unavoidable with this finish type.

What's Included

    (1) Fuel tank

Features + Benefits

  • Baffled design prevents sloshing
  • Sight gauge for convenient fuel level reading
  • 6in. inspection clean-out port
  • Includes mounting tabs, lifting tabs (empty only), locking fill cap rollover vent, 3/8in. drain and 2in. coupling that works with a standard transfer pump
  • Tank Dimensions: 48"L x 28"W x 28"H
  • Add 2-1/2" measurement from top of tank to top of fuel fill
  • Mill finish is designed for industrial purposes more than cosmetics. It will show scratches, but will still function as designed.

Key Specs

AttributeSpecification

item#

349046

Brand

RDS

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

208.0 LB

Capacity

150 Gal

Shape

Rectangle

Material

Aluminum
AttributeSpecification

Finish

Aluminum Mill

Inlet Port

1-7/8 in

Outlet Port

2 in

Mounting Hardware Included

Yes

DOT Approved

No

Compatible With

Diesel

Product Weight

158 lb

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. How thick is the material?

    1 answer

    1. The fuel tank is manufactured with 3/16" aluminum 5052.

      Helpful?

  2. Is this gasoline approved

    1 answer

    1. This transfer fuel tank is not approved for gasoline use.

      Helpful?

  3. Is filler neck a screw cap and what size is the tread ? Would like to put a filler line on.

    1 answer

    1. Yes, it is a screw cap. As far as the threads, they are a custom thread size that fit our RDS caps. It’s not a standard size.

      Helpful?

  4. is the 3/8 drain plug on the filler neck side of the tank? will be using it to gravity feed fuel for my truck as well

    1 answer

    1. The tank can be used as an auxiliary tank. The drain will be located on the same side as the filler neck.

      Helpful?

  5. What type of fuel level guage does this tank have?

    1 answer

    1. This tank is equipped with a sight gauge to monitor the fuel level.

      Helpful?

  6. Is there a front or back or can the fill hole be placed behind the driver or passenger?

    1 answer

    1. The fuel neck side can be mounted on either the driver or passenger side of the vehicle.

      Helpful?

  7. Need to know dimensions of fuel tank?

    1 answer

    1. The dimensions of this tank are 48"Long X 28"Wide X 28"High.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
