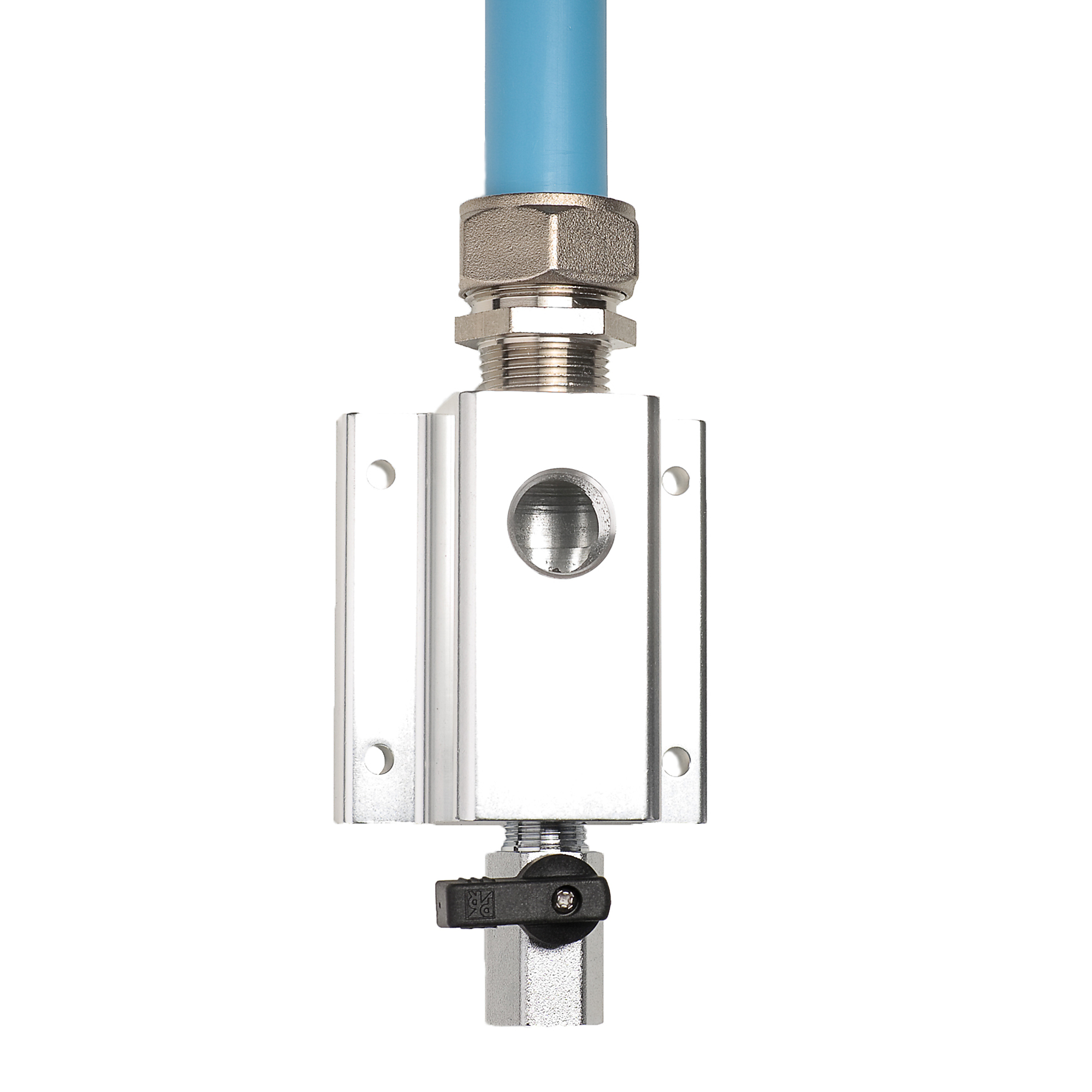

RapidAir MaxLine 3/4in. Compressed Air Outlet Kit, Model# M7510

Item# 20924
"RapidAir MaxLine 3/4in. Compressed Air Outlet Kit, Model# M7510"
Top Seller4 Pieces
RapidAir MaxLine 3/4in. Compressed Air Outlet Kit, Model# M7510

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

RapidAir MaxLine 3/4in. Compressed Air Outlet Kit, Model# M7510

Click or Tap image to Zoom

$62.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • 3/4" Tubing Inlet
  • 1/2" Female NPT Outlet

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Versatile design allows user to configure outlet for wall or ceiling mount. Made of anodized aluminum for corrosion protection. Also ported on the back side for rear entry of tubing. 1/2in. female NPT outlet port. Moisture drain. Includes outlet block, 1/2in. NPT pipe plug, 3/4in. tubing fitting and hand valve. Quick coupler not included.

What's Included

    (1) Aluminum outlet block (1) 1/2in. NPT brass pipe plug (1) 3/4in. MaxLine straight fitting (1) Hand valve

Downloads

Product Manual

Features + Benefits

  • 3/4" Tubing Inlet
  • 1/2" Female NPT Outlet

Key Specs

AttributeSpecification

item#

20924

Brand

RapidAir

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.05 LB
AttributeSpecification

Coupler Size

3/4 in

Max. PSI

200

Pieces (qty.)

4

Reviews

Questions & Answers

20 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Does this come with a plug for the outlet port as stated in the spec or like the photo with a quick disconnect coupler?

    1. The kit comes with a plug, but not for the outlet port. The plug is to plug the extra inlet opening, as you can choose to supply air from the top of the unit as shown in the picture or from the back of the unit if your air lines are running inside your walls. You will need to buy a quick coupler for the outlet or another plug if you wish to plug that opening.

      Helpful?

    2. It comes with the plug as there is an opening on both the front and back for custom configurations. The plug will be needed to fill one of the openings. The coupler is an optional accessory and will have to be purchased in addition to the outlet.

      Helpful?

    3. Each outlet comes with 1 plug for the alum. body. You will have to supply your own quick disconnect.

      Helpful?

    4. It comes with all the fittings you'll need except the couplers.

      Helpful?

    5. This unit does come with a 1/2 NPT pipe plug for the outlet port.

      Helpful?

  2. What size of air coupler is needed for the front?

    i want to get to 1/4 npt chuck, do you have quick coupler available?

    1. Yea, the outlet has a 1/2 inch NPT opening. RapidAir produces a Milton "M" or industry standard 1/4 inch coupler with 1/2 inch NPT threads to fit the outlet.

      Helpful?

    2. You can buy adaptor fittings at your local hardware store. I use brass fittings, 1/2" not male to 1/4" not female. I think I paid a buck or two per fitting.

      Helpful?

    3. A ½” female pipe thread air coupler is needed for the front of this air outlet kit. It is possible to get a 1/2" to 1/4" pipe bushing to reduce the size down allowing you to use a 1/4" NPT chuck. The pipe bushing and 1/4" NPT chuck can be found at local hardware stores as Northern Tool does not sell these accessories.

      Helpful?

  3. How many are in a package?

    it says 4 but thats how many parts that are in box as well

    1. There is one outlet block per kit. Each kit has four parts. The Block, Inlet adapter, plug and manual valve.

      Helpful?

    2. When you order this product you will receive one air outlet kit that consists of four pieces.

      Helpful?

  4. Are all the ports 1/2" thread with a 1/2x 3/4 adapter to the line? or is the inlet port 3/4" thread?

    1 answer

    1. The kit includes 3/4 inch tubing. The outlet port is 1/2 inch Female NPT.

      Helpful?

  5. Do the screw holes on this line up with the screw holes on an double gang electrical box for inside wall mounting?

    I was thinking I could use a plastic electrical box to mount this to the wall when the tubing is run behind the drywall. If the holes do not line up what do people do to mount this to the drywall securely?

    1 answer

    1. The mounting hole spacing is 2.25 inches L by 1.75 inches W, this spacing does not match a double gang box, and should be mounted to solid surface or wall stud whenever possible.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
