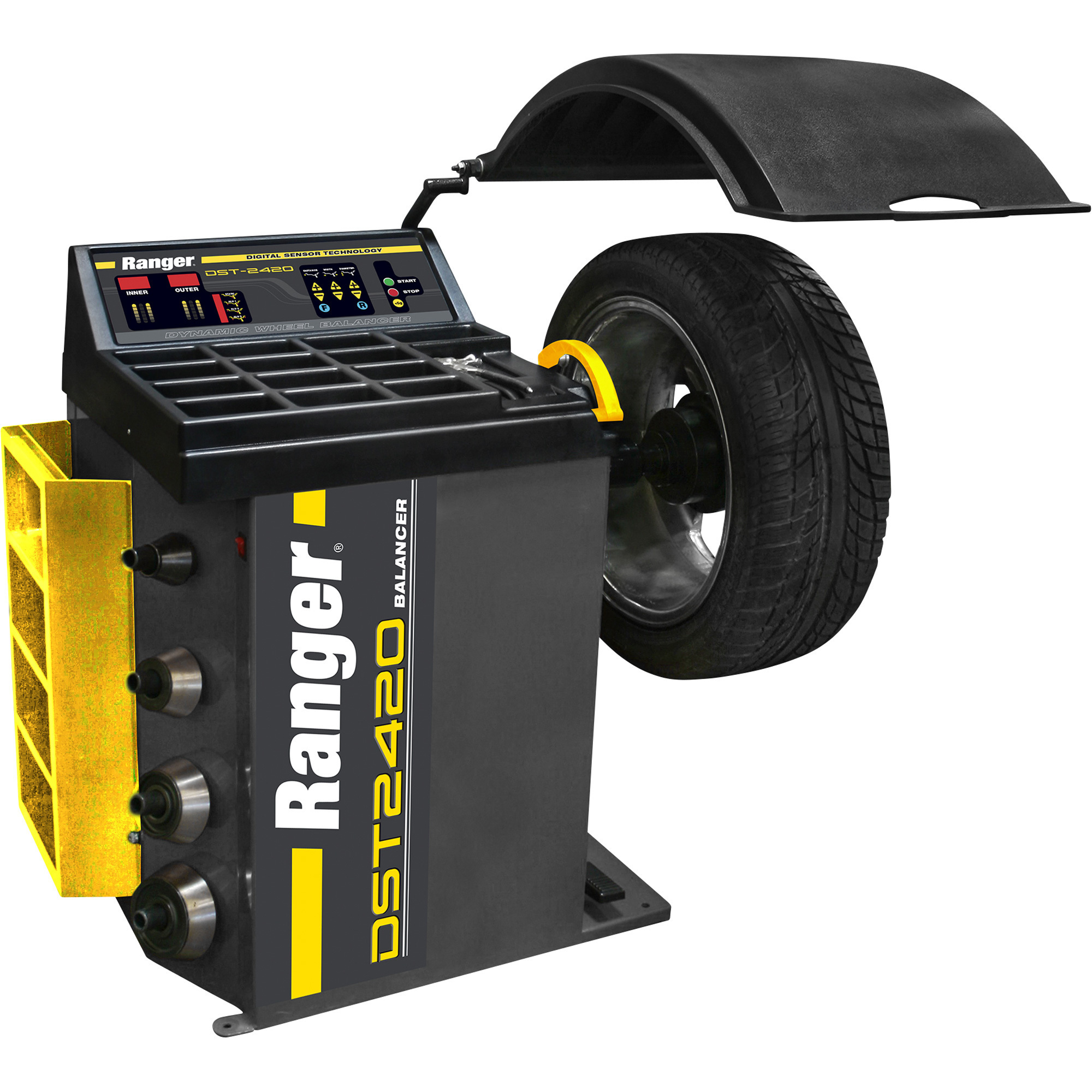

Ranger Products Wheel Balancing Machine, Model# DST-2420

Item# 144668
"Ranger Products Wheel Balancing Machine, Model# DST-2420"
Top Seller
Ranger Products Wheel Balancing Machine, Model# DST-2420

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ranger Products Wheel Balancing Machine, Model# DST-2420

Click or Tap image to Zoom

$3295.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Top-Positioning Weight Locator: Standard
  • 70 Decibels
  • Wheel Balancer / 40 mm Shaft / 30" Maximum Wheel Diameter Capacity
  • Self-calibration function
  • Automatic braking

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The highly accurate DST-2420 dynamic wheel balancer ensures an accurate result within hundredths of an ounce, so you can give your clients vibration-free wheel balance every time. We keep your business "rolling." Extreme Accuracy, Speed Reliability in a Wheel Balancer The Ranger DST-2420 wheel balancer handles wheels up to a 30” diameter. It is a highly accurate and dependable no?frills balancer that features our proprietary Digital Sensor Technology for critical reliability and repeatability. From one-bay shops to high-volume garages, the DST-2420 is built with a gritty toughness that puts out perfectly balanced wheels day after day, around the clock. Like all of our DST Series wheel balancers, it’s a zero tolerance performer that features our proven Direct-Axis drive system, accurate to within hundredths of an ounce, ensuring wheels are balanced vibration-free. Planning on balancing truck and SUV tires? We highly recommend purchasing the Truck Cone Kit (5150032)

What's Included

    (1) Wheel balancing machine

Downloads

Product Manual

Features + Benefits

  • Top-Positioning Weight Locator: Standard
  • 70 Decibels
  • Wheel Balancer / 40 mm Shaft / 30" Maximum Wheel Diameter Capacity
  • Self-calibration function
  • Automatic braking
  • Dynamic, Static, and Performance Alloy settings

Key Specs

AttributeSpecification

item#

144668

Brand

Ranger Products

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

257.0 LB

Common Usage

Wheel balancer

Phase

Single-phase

Max. Rim Width

24 in

Tire Diameter

47 in

Accuracy

1 g

Balancing Modes

Dynamic and Static

Balancing Speed

180 rpm

Cycle Time

9 sec.
AttributeSpecification

Cycle Time (sec.)

6–9 seconds (avg.)

Drive Type

Belt

Display Type

LED

Auto On/Off

Yes

Max. Working Temperature

82 °F

Min. Working Temperature

32 °F

Working Temperature

0°C/32°F–50°C/82°F

Centering Cones (qty.)

4

Brake Type

Automatic

Motor

110/220v and 50/60 Hz

Wheel Width (in.)

1 1/2–18

Weight (lbs.)

145 (max)

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. do i need any extra cones to do. 225-75-16 dually tires

    tires are for 2010-2019 ford and chevy e4500.

    1 answer

    1. For larger truck tires you would need to purchase the truck cone kit, part number 5150555, from the manufacturer directly.

      Helpful?

  2. Does this machine have a plug or is it hard wired

    1 answer

    1. This machine does not come with a plug. It can be hard-wired or you can install a plug. It has a dual voltage motor and can be run on either 110 or 220 volts. You will need to position the switch located on the back of the machine to the desired voltage setting before installing the required plug or hard-wiring.

      Helpful?

  3. Heavy duty tires

    Will this balance a 24.5" commercial truck tire.

    1 answer

    1. This wheel balancer will accommodate a maximum tire diameter of 47" and will accept rim diameters of 10 to 24".

      Helpful?

  4. what is the shaft size on DST*2420 balancer

    1 answer

    1. The shaft is 36mm in diameter and 24 inches long.

      Helpful?

  5. will it balance motorcycle wheels?

    1 answer

    1. Yes, the Ranger Products Wheel Balancer will balance motorcycle tires.

      Helpful?

  6. Model# DST-1200

    In the link to the "product manual", there is a section called "standard accessories" where it shows a different number of cones and a quick-release hub nut.....does this mean that these items are indeed included with the purchase of this machine?

    1 answer

    1. They are included with the balancer.

      Helpful?

  7. with the included adaptors can this be used on a sprinter dual wheel rim?

    Are there any other mounting coans available to allow for use on a sprinter or izuzu npr light trucks

    1 answer

    1. These are not made to be used on the dual wheel rims. There are no adapters available to allow them to be used on the dual wheels.

      Helpful?
