Ranger, Laser-Spot Sonar 3D Wheel Balancer W/Flange Plate, Phase Single-phase, Max. Rim Width 20 in, Tire Diameter 31.5 in, Model# LS45DS

Item# 6579560
Ranger, Laser-Spot Sonar 3D Wheel Balancer W/Flange Plate, Phase Single-phase, Max. Rim Width 20 in, Tire Diameter 31.5 in, Model# LS45DS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ranger, Laser-Spot Sonar 3D Wheel Balancer W/Flange Plate, Phase Single-phase, Max. Rim Width 20 in, Tire Diameter 31.5 in, Model# LS45DS

Click or Tap image to Zoom

$6095.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Dynamic, static, aluminum, HID (hidden) balancing
  • Multi-user save function holds presets to increase productivity
  • Ergonomic control board and easy to read LED display
  • Open-sided hood design allows for a broader coverage of tire shapes and sizes
  • Automatic rolling wheel parameter setting feature saves time, minimizes errors

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

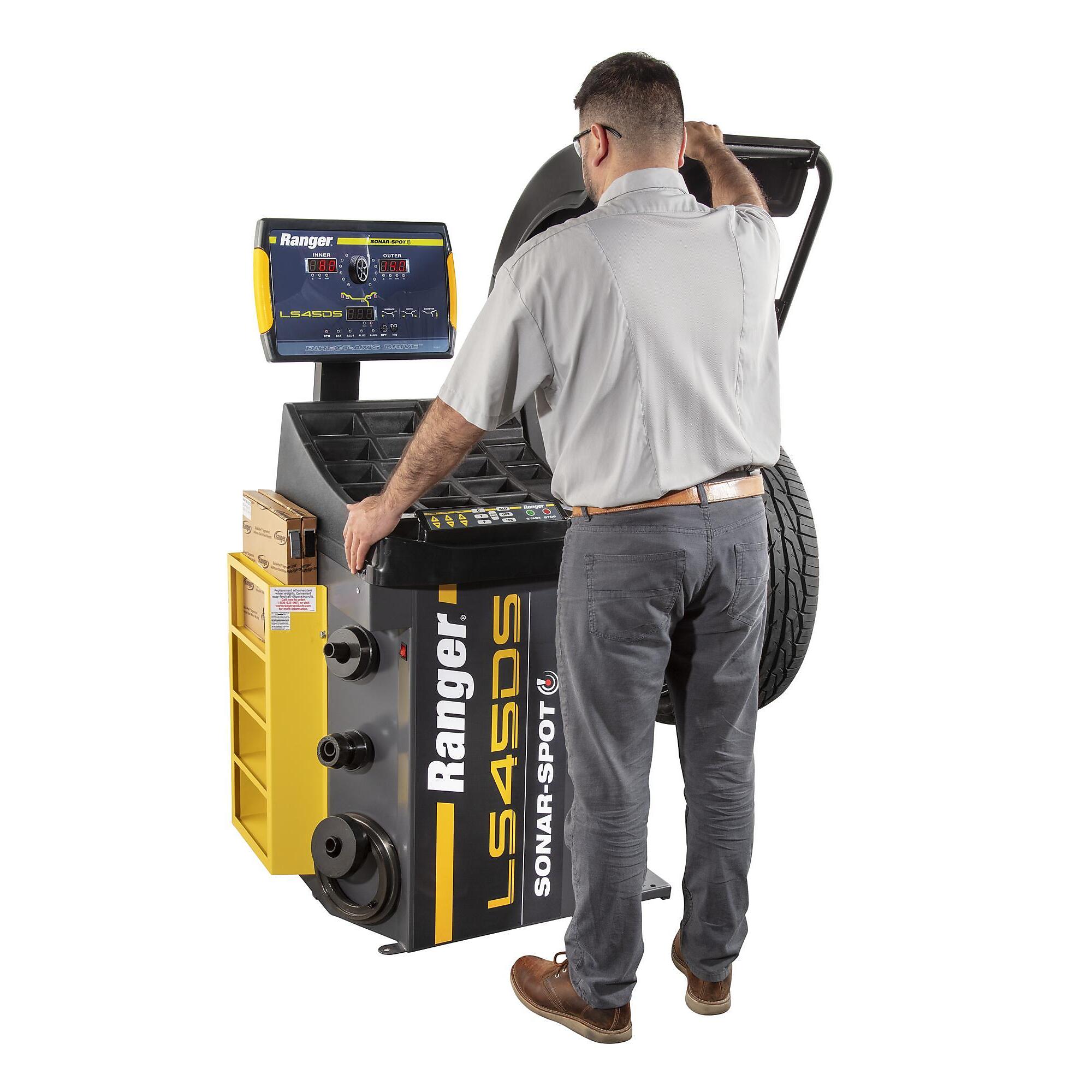

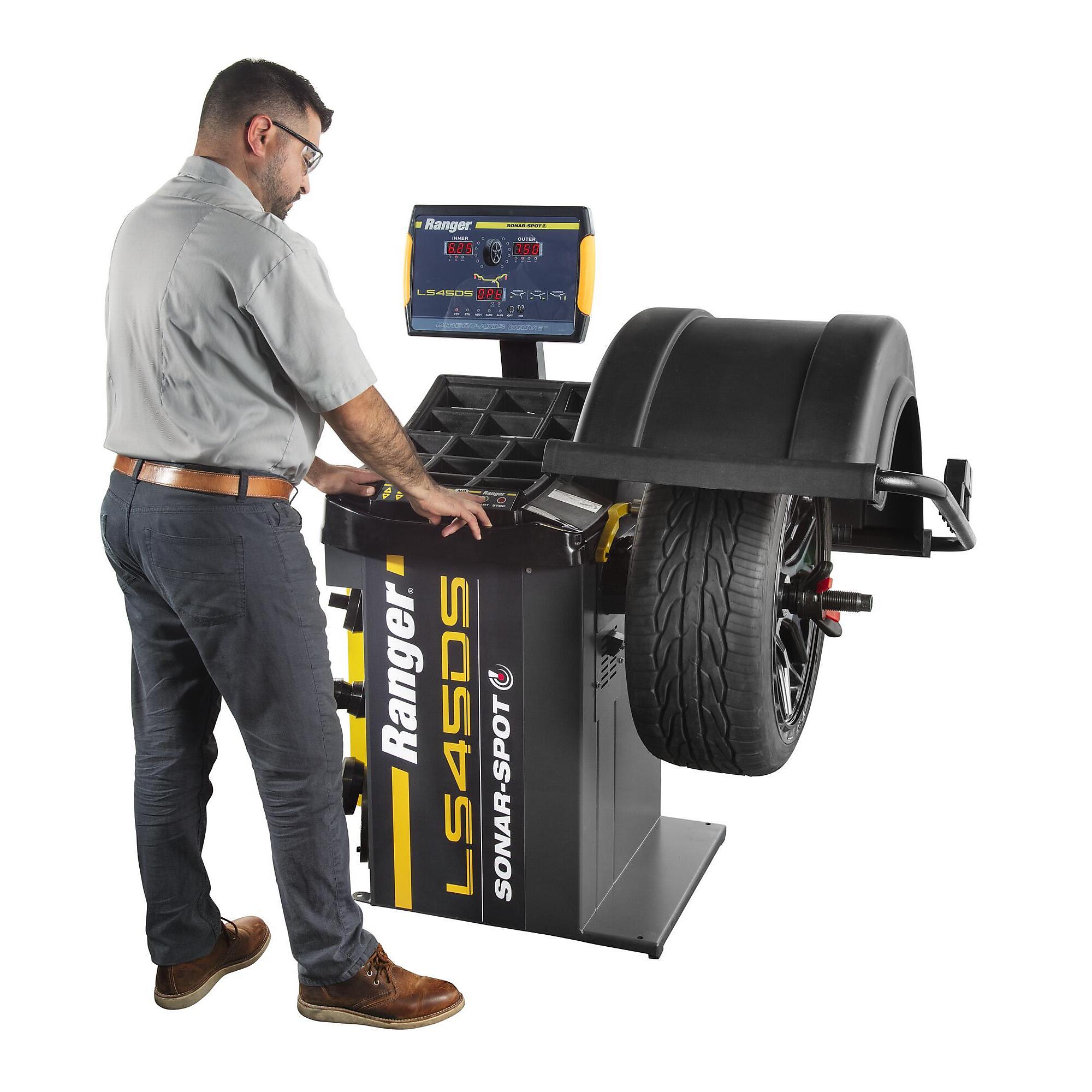

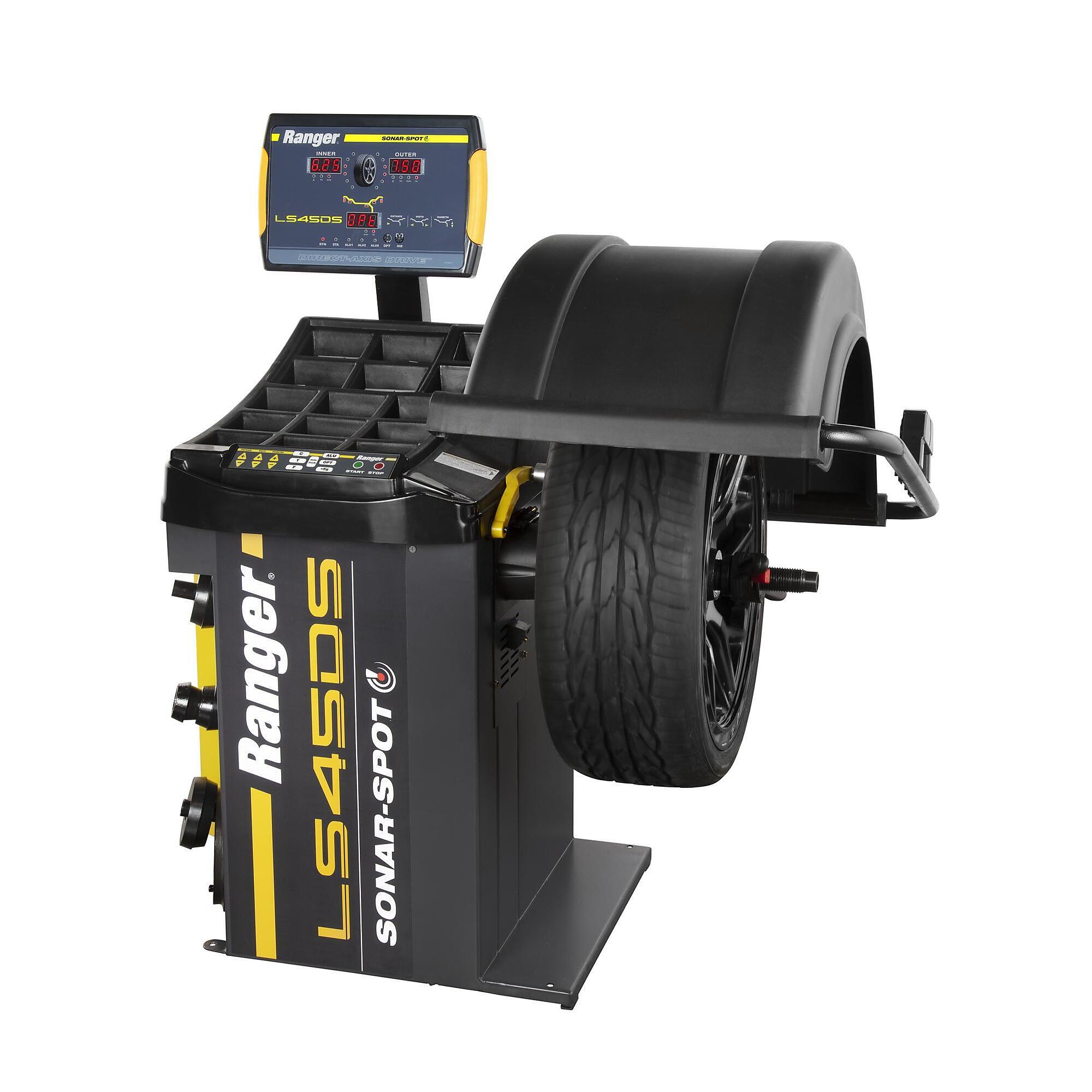

The Ranger LS45DS Sonar Wheel Balancer is the ultimate tool for high-volume and specialty automotive shops, designed to maximize speed, precision, and efficiency. Equipped with advanced sonar technology, it automatically detects wheel width, taking the guesswork out of weight placement. Ranger’s Laser-Spot™ Technology delivers pinpoint accuracy, ensuring flawless placement of both stick-on and clip weights, while intuitively guiding technicians to the correct position every time. This smart system reduces errors and comebacks, boosting productivity and reinforcing customer trust with every job. Versatility is at the core of the LS45DS, offering dynamic, static, ALU (aluminum alloy), and HID (Hidden) Balancing Modes for any wheel type. Whether balancing steel or aluminum wheels, or even custom designs where hidden weights are preferred, the LS45DS delivers flawless results. Dynamic balancing ensures precision across both wheel planes, while static and ALU modes accommodate older models and aesthetic needs. HID balancing, specifically for high-end wheels, conceals weights behind spokes, maintaining a clean, polished look. With the LS45DS, shops can tackle any balancing job with confidence and efficiency.

What's Included

    (1) 1 Wheel Balancer

Downloads

Product Manual

Features + Benefits

  • Dynamic, static, aluminum, HID (hidden) balancing
  • Multi-user save function holds presets to increase productivity
  • Ergonomic control board and easy to read LED display
  • Open-sided hood design allows for a broader coverage of tire shapes and sizes
  • Automatic rolling wheel parameter setting feature saves time, minimizes errors

Key Specs

AttributeSpecification

item#

6579560

Brand

Ranger

Manufacturer's Warranty

2 year limited warranty

Ship Weight

402.0 LB

Phase

Single-phase

Max. Rim Width

20 in

Tire Diameter

31.5 in

Accuracy

1 g

Balancing Modes

1 dynamic /1 static /3 aluminum alloy /1 hidden

Balancing Speed

180 rpm
AttributeSpecification

Drive Type

Belt

Display Type

LED

Auto On/Off

Yes

Brake Type

Automatic

Wheel Diameter

24 in

Wheel Width

20 in

Motor

208-240V 50/60HZ 1PH

Product Weight

352.0000 lb

Dimensions L x W x H (in.)

47.0 x 52.0 x 52.5 in

Reviews

Questions & Answers

Questions

  1. how do you install the adaptor for the dually 1 ton tires

    1 answer

    1. Installation Steps:
      Prepare the Wheel Balancer: Ensure the balancer is turned off and the wheel guard is up for clear access to the shaft.

      Select the Proper Cone: Identify the correct centering cone from your dually adapter kit (which often includes larger cones or flange plates) that best fits the center bore of the inner dually wheel.

      Mount the Dually Adapter/Inner Wheel Assembly:
      Lift the inner dually wheel onto the shaft and slide it back against the shaft's faceplate. For dually setups, you often mount a special adapter plate first, which acts as the new "faceplate" for the dually wheel assembly.

      Slide the appropriate centering cone onto the shaft and into the center bore of the wheel/adapter. Secure it firmly against the faceplate.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
