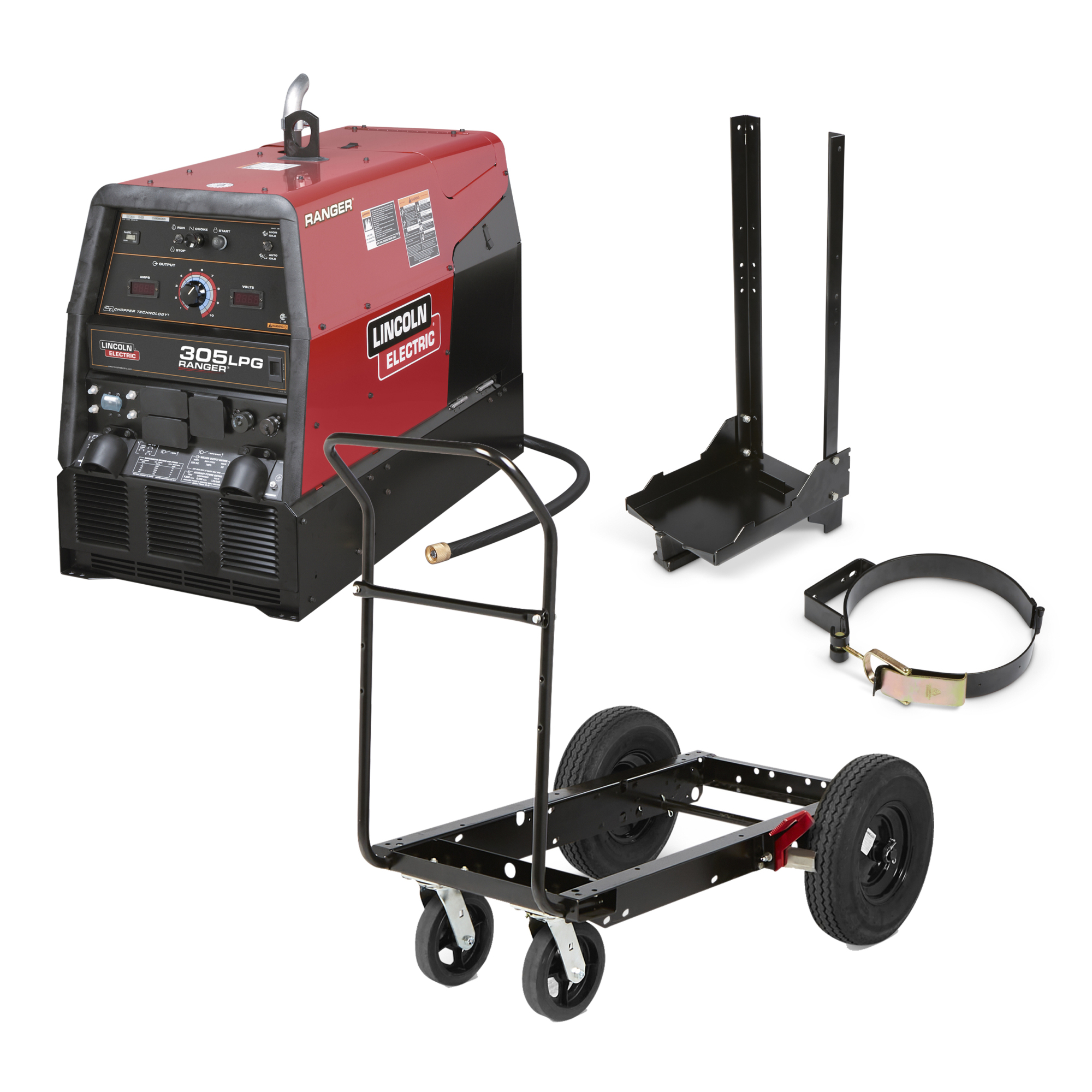

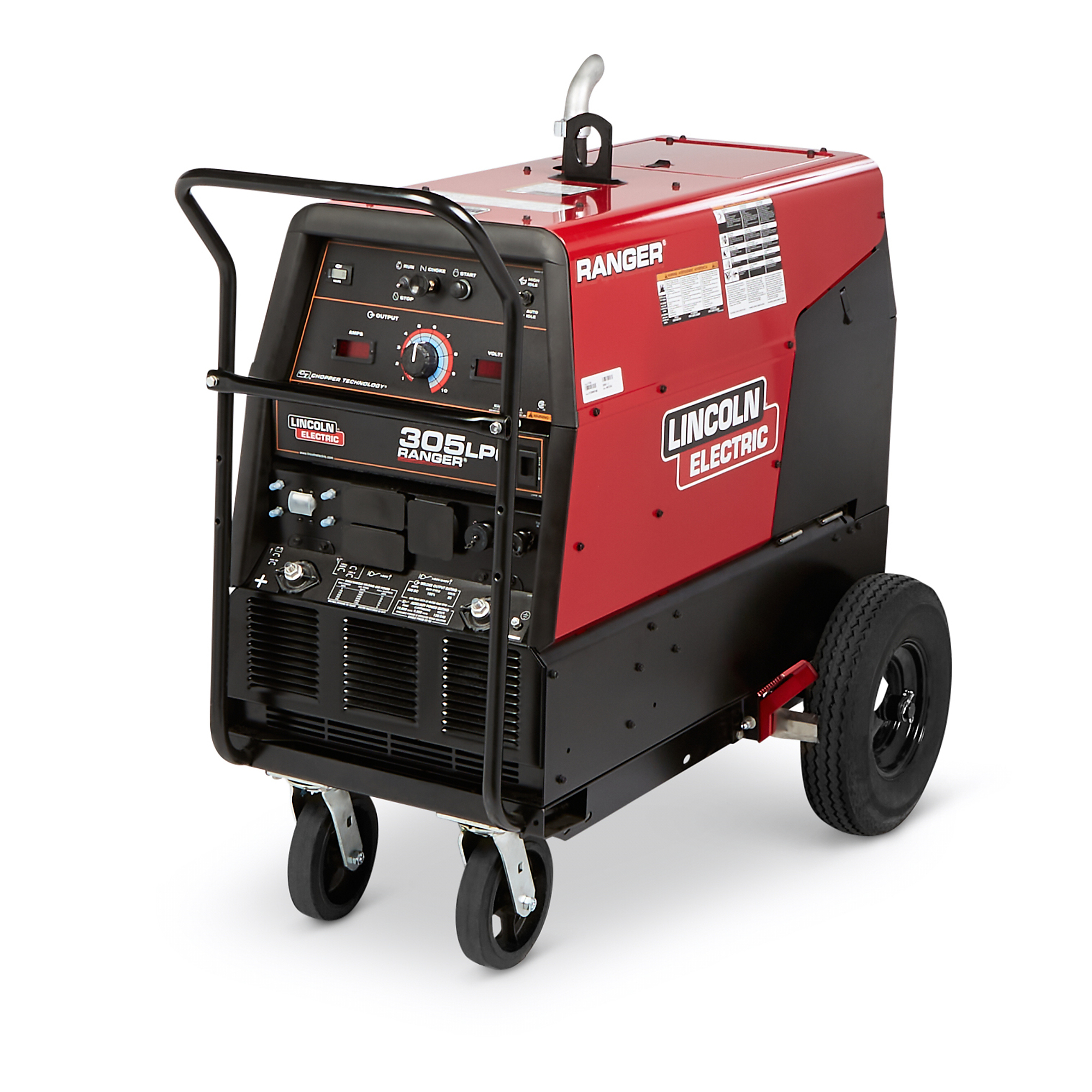

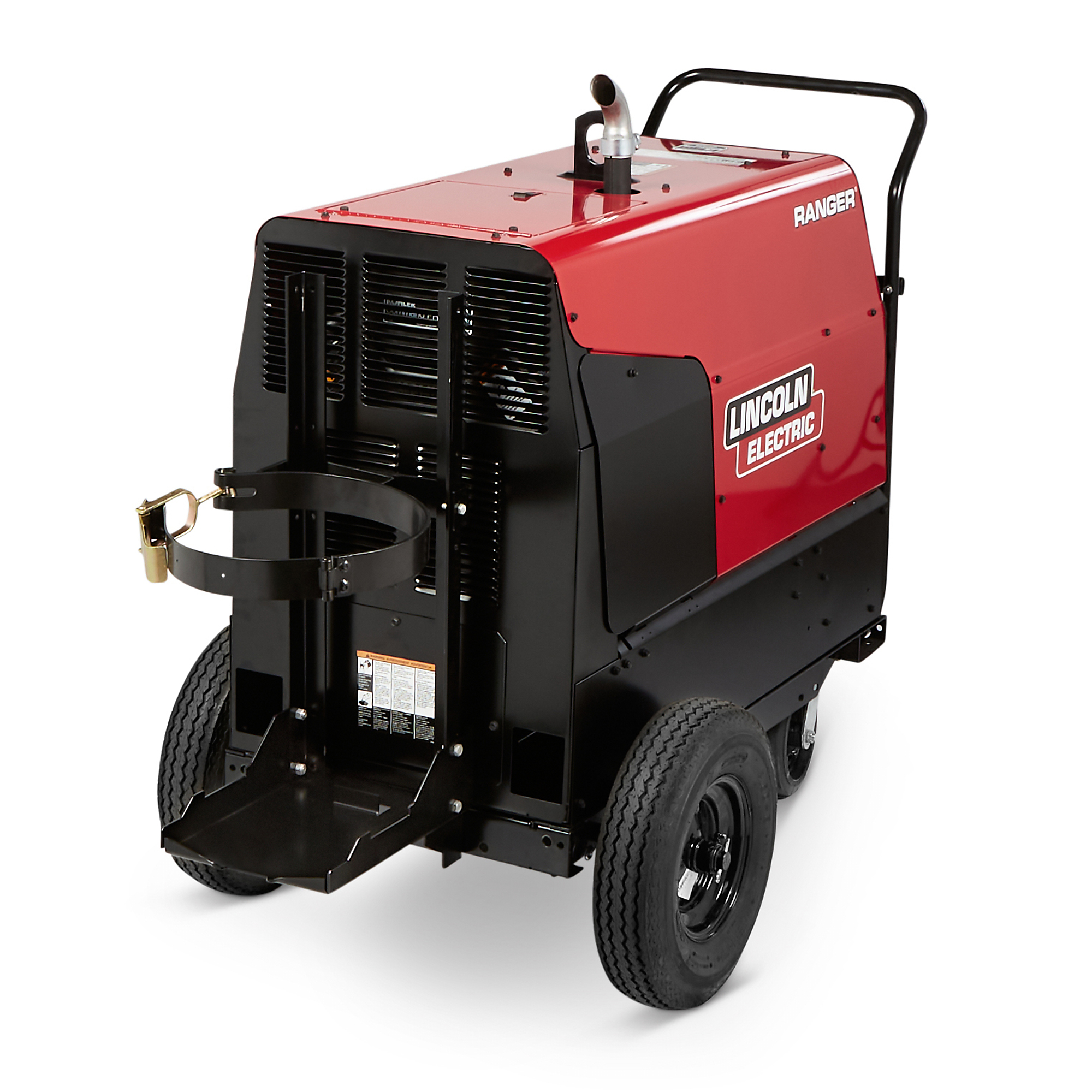

Lincoln Electric Ranger 305 LPG Engine Driven Welder — 25 HP Kohler LPG Engine, 10,000 Watt AC Generator, Multi-Process Welding, Model# K3430-2

Item# 7017091
Lincoln Electric Ranger 305 LPG Engine Driven Welder — 25 HP Kohler LPG Engine, 10,000 Watt AC Generator, Multi-Process Welding, Model# K3430-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Ranger 305 LPG Engine Driven Welder — 25 HP Kohler LPG Engine, 10,000 Watt AC Generator, Multi-Process Welding, Model# K3430-2

Click or Tap image to Zoom

$12,999.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Multi-Process Welding
  • Digital Weld Meters
  • Superior Arc Performance
  • 10,000 Watts Peak Single-Phase AC Generator Power
  • 25 HP Kohler LPG Engine

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Choose the Ranger 305 LPG for those environments where gasoline and diesel emissions are not acceptable. Includes a liquid propane gas supply hose with coupler for easy connection to the liquid draw outlet of an LP-gas cylinder. The 10,000-watt peak single-phase AC generator powers motor starting, tools and inverter welders for extended range and process capability. Top-of-the-line Kohler® overhead valve (OHV) 25 HP Command® LPG engine Digital weld meters monitor actual welding output Built-in “hot” start for easier starts and restrikes Multi-Process Welding · Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas). · It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding. · CV wire welding with up to 5/64in. (2.0 mm) diameter electrodes. Digital Weld Meters · Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output. Superior Arc Performance · Lincoln Electric Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance. 10,000 Watts Peak Single-Phase AC Generator Power · 10,000 watts peak for motor starting. · 9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also can be used for lights, a grinder or other power tools. · AC generator voltage is constant at 120V or 240V at any weld dial setting. Rugged Reliability · Welding and AC Generator Outputs rated at 104ºF (40ºC). 25 HP Kohler® LPG Engine · LPG (Liquid Propane Gas) engine has plenty of horsepower.

What's Included

    (1) LPG Tank Holder | K1745-2 (1) Factory Undercarriage (Pneumatic) | K1770-2 (1) Ranger® 305 LPG Engine Driven Welder (Kohler®) | K2937-1

Downloads

Product Manual

Features + Benefits

  • Multi-Process Welding
  • Digital Weld Meters
  • Superior Arc Performance
  • 10,000 Watts Peak Single-Phase AC Generator Power
  • 25 HP Kohler LPG Engine

Key Specs

AttributeSpecification

item#

7017091

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

771.0 LB

Max. Amps

300

Power Type

DC

Multi-process

Yes

Duty Cycle

300A/ 25V/ 100%

Fuel Type

Gasoline

Fuel Capacity

12 Gal

Engine Type

4 Cycle

Engine Displacement

44 cc

Electric Start

Yes

Welding Power Output Type

DC
AttributeSpecification

Hour Meter Included

Yes

Receptacles Included

Yes

120V Receptacles Included

3

240V Receptacles Included

1

GFCI Protection

No

Lifting Hook

No

Welding Cables Included

No

Generator Output (Continuous Watts)

9,000

Generator Output (Surge Watts)

10,000

Weldable Materials

Steel

Min. Amps

20

Cart Included

Yes

Product Weight

604.0000 lb

Dimensions L x W x H (in.)

42.3 x 21.5 x 30.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
