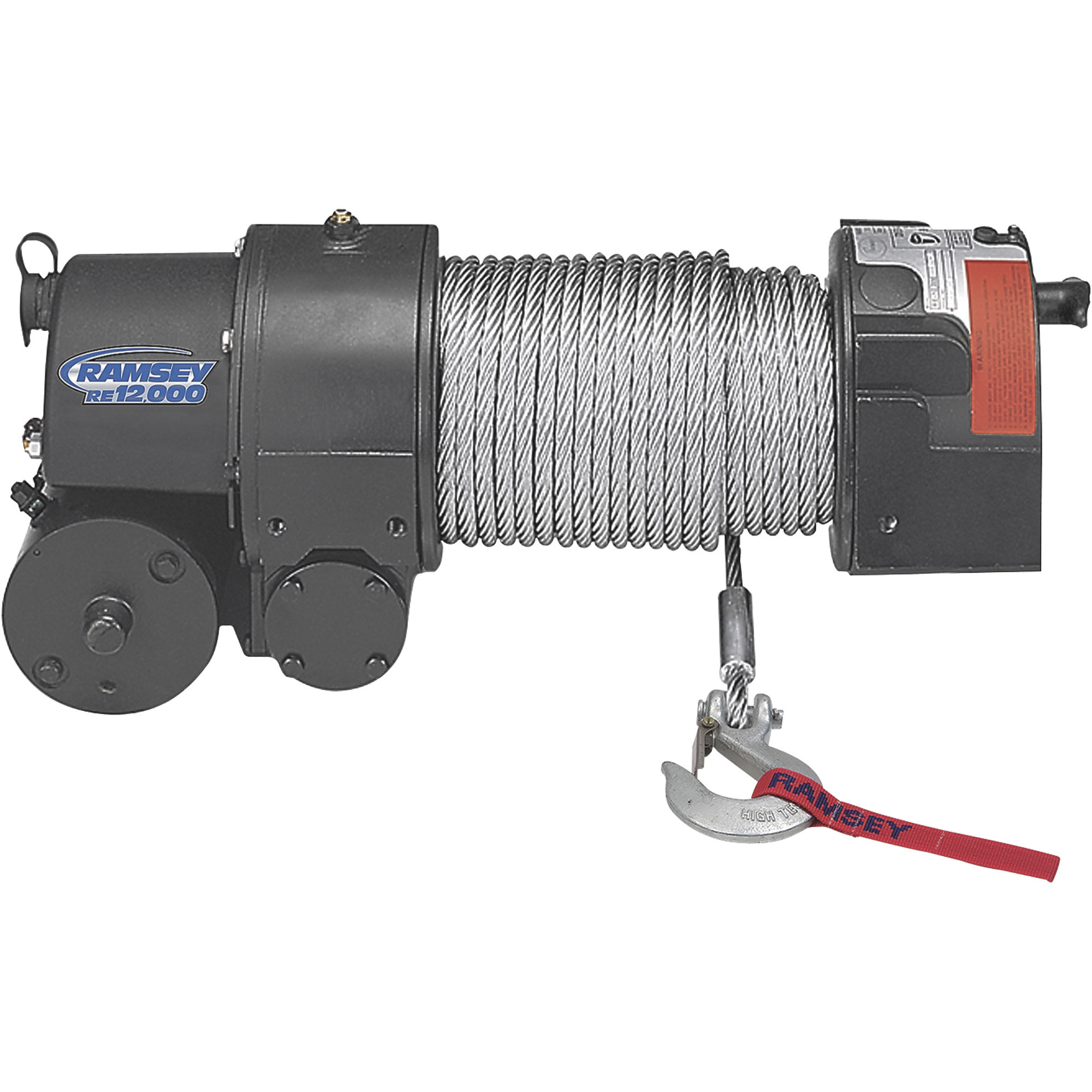

Ramsey Extra Heavy-Duty Front Mount 12 Volt DC Powered Electric Truck Winch, 12,000-Lb. Capacity, Galvanized Aircraft Cable, Model# RE12000

Item# 14415
"Ramsey Extra Heavy-Duty Front Mount 12 Volt DC Powered Electric Truck Winch, 12,000-Lb. Capacity, Galvanized Aircraft Cable, Model# RE12000"
Ramsey Extra Heavy-Duty Front Mount 12 Volt DC Powered Electric Truck Winch, 12,000-Lb. Capacity, Galvanized Aircraft Cable, Model# RE12000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ramsey Extra Heavy-Duty Front Mount 12 Volt DC Powered Electric Truck Winch, 12,000-Lb. Capacity, Galvanized Aircraft Cable, Model# RE12000

Click or Tap image to Zoom

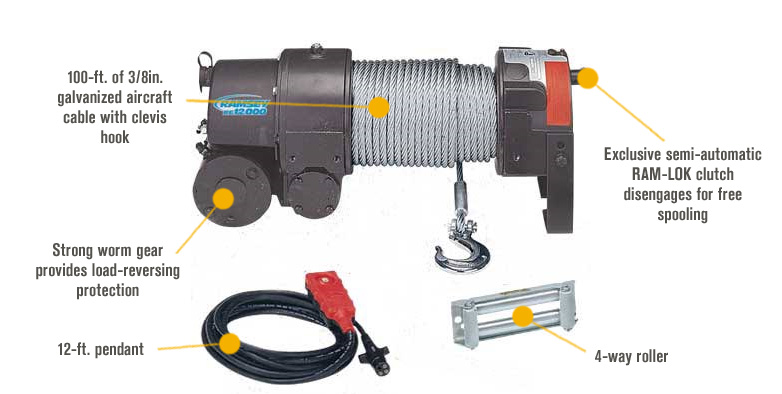

  • Powerful 12,000lb. pulling capacity
  • 12V DC, 4.8 HP series-wound motor
  • 100ft.L x 3/8in. dia. aircraft cable with replaceable clevis hook and safety latch 3.3 FPM full load drawing/380 Amps
  • 16 FPM no load drawing/80 Amps
  • 12ft. wire pendant remote (not shown)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

DC powered winch has Ramseys exclusive semi-automatic RAM-LOK clutch for free spooling. Worm and gear drive Weather-shield solenoids. 4.8 HP series wound motor. Line pull, 2 FPM at 12,000lbs. For full-size, and 1-ton pickups. Model RE12000.

What's Included

    (1) Winch

Downloads

Product Manual

Features + Benefits

  • Powerful 12,000lb. pulling capacity
  • 12V DC, 4.8 HP series-wound motor
  • 100ft.L x 3/8in. dia. aircraft cable with replaceable clevis hook and safety latch 3.3 FPM full load drawing/380 Amps
  • 16 FPM no load drawing/80 Amps
  • 12ft. wire pendant remote (not shown)
  • Semiautomatic RAM-LOK disengages for free spooling
  • Strong worm gear provides load reversing protection
  • Weather-resistant solenoid assembly
  • Roller fairlead (not shown)
  • 6ft., 2-gauge battery cables with connectors
  • Gear ratio: 470:1

Key Specs

AttributeSpecification

item#

14415

Brand

Ramsey Winch

Ship Weight

137.0 LB

Horsepower

4.8 HP

Capacity (Line Pull)

12,000 lb

Gear Type

Worm

Line Speed

16 ft./min.
AttributeSpecification

Gear Ratio

470:1

Rope Length

100 ft

Rope Diameter

3/8 in

Rope Material

Galvanized Steel

Remote

Yes

Remote Cord Length

12 ft

Fairlead Type

Roller

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Worm vs planetary any advantages/disadvantages?

    1. The Ramsey worm-drive winch is built to operate for frequent heavy duty winching. This is an old design, as bullet-proof as they get, and very dependable for everyday use if necessary. You will find Ramsey worm-drive winches on most tow rigs that see 24/7 use. The planetary drive costs much less, maybe faster, and probably is your best buy for isolated, infrequent winching; like getting a vehicle out of a ditch once a month. I can't think of any design disadvantage to worm-drive, only the added cost.

      Helpful?

    2. Worm gear winches offer better pulling power and longer duty cycles, the worm gear winches will not turn backwards eliminating backspooling or accidentally releasing under load, this design is also significantly easier on the winch motor. The planetary gear design offers a good combination of pulling power & speed, the gears rotate around a central gear which transfers power to an outer ring, this allows the winch to pull in the load very quickly although with the planetary gear design the motors tend to overheat faster resulting in a shorter duty cycle.

      Helpful?

  2. Where is the winch manufactured

    1 answer

    1. This winch is manufactured in the United States.

      Helpful?

  3. What are the dimensions (height, width, depth) of this winch?

    1 answer

    1. The dimensions for this winch are 22.75" L x 10.75" W x 10.25" H.

      Helpful?

  4. Does the remote an fair lead come with the winch ???

    1 answer

    1. The winch will include a 12 foot pendant remote and 4 way roller fairlead.

      Helpful?

  5. What is the duty cycle of the winch?

    1 answer

    1. The Ramsey Front Mount 12 Volt Winch can be used for a maximum of 2 minutes full load run time and then allowed to cool for 30-45 minutes.

      Helpful?

  6. DOES THE ROLLER FAIRLEAD HAVE GREASE FITTINGS?

    1 answer

    1. The roller fairlead does not have grease fittings.

      Helpful?

  7. Additional items necessary for install? ie mount, wire feed

    1 answer

    1. A mounting kit would be required for the winch. You would contact the manufacturer for the proper mounting kit for your vehicle.

      Helpful?

  8. are repair parts available

    replacement cables,motors or other parts

    1 answer

    1. Replacement parts for this winch (including cables and motors) are available by calling our parts team at 1-800-222-5381 and selecting option 3.

      Helpful?
