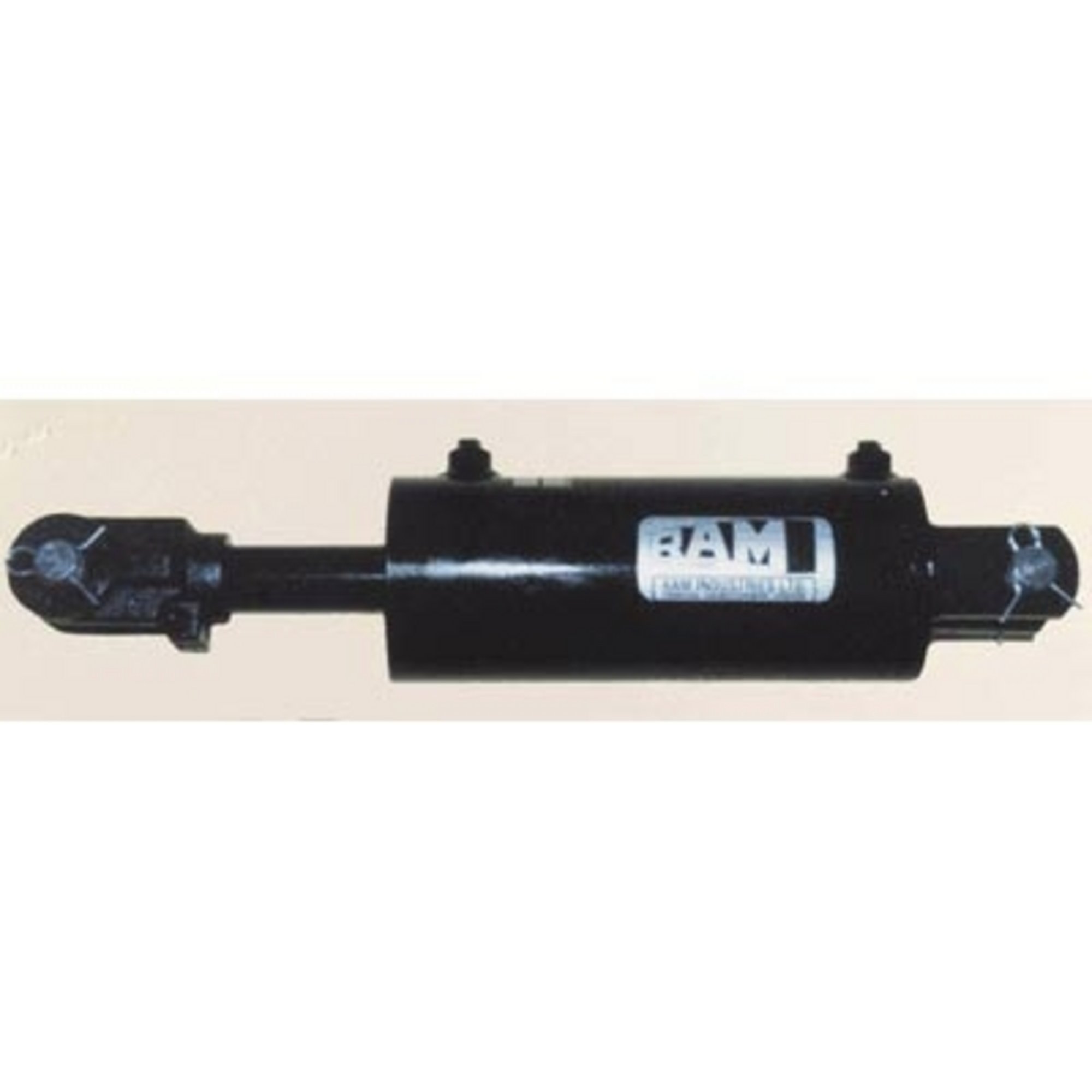

Ram Cylinder 3x24
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Bore: 3 in.
- Stroke: 24 in.
- Closed Pin Center Distance: 34.25 in.
- Shaft: 1.25 in.
- Pin Holes: 1 in.
See full description
See All Cross Tube Welded Cylinders
See All 1 Shot N Gone Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
Specifications
Ram Cylinder 3x24
WEN WT-2008 Cross Tube Hydraulic Cylinder with 2-inch Bore and 8-inch Stroke
WEN WT-2508 Cross Tube Hydraulic Cylinder with 2.5-inch Bore and 8-inch Stroke
WEN WT-1510 Cross Tube Hydraulic Cylinder with 1.5-inch Bore and 10-inch Stroke
Max. PSI
Same
-
4,500
4,500
4,500
Bore Diameter
Same
-
2 in
2.5 in
1.5 in
Stroke Length
Same
-
8 in
8 in
10 in
Retracted Length
Same
-
16 in
16 in
18 in
Extended Length
Same
-
24 in
24 in
28 in
Port Size
Same
-
0.563 in
0.75 in
0.438 in
Product Weight
Same
-
13.0000 lb
17.9000 lb
10.1000 lb
Dimensions L x W x H (in.)
Same
-
17.5 x 3.15 x 2.75 in
17.5 x 3.7 x 3.25 in
19.25 x 2.55 x 2.25 in
