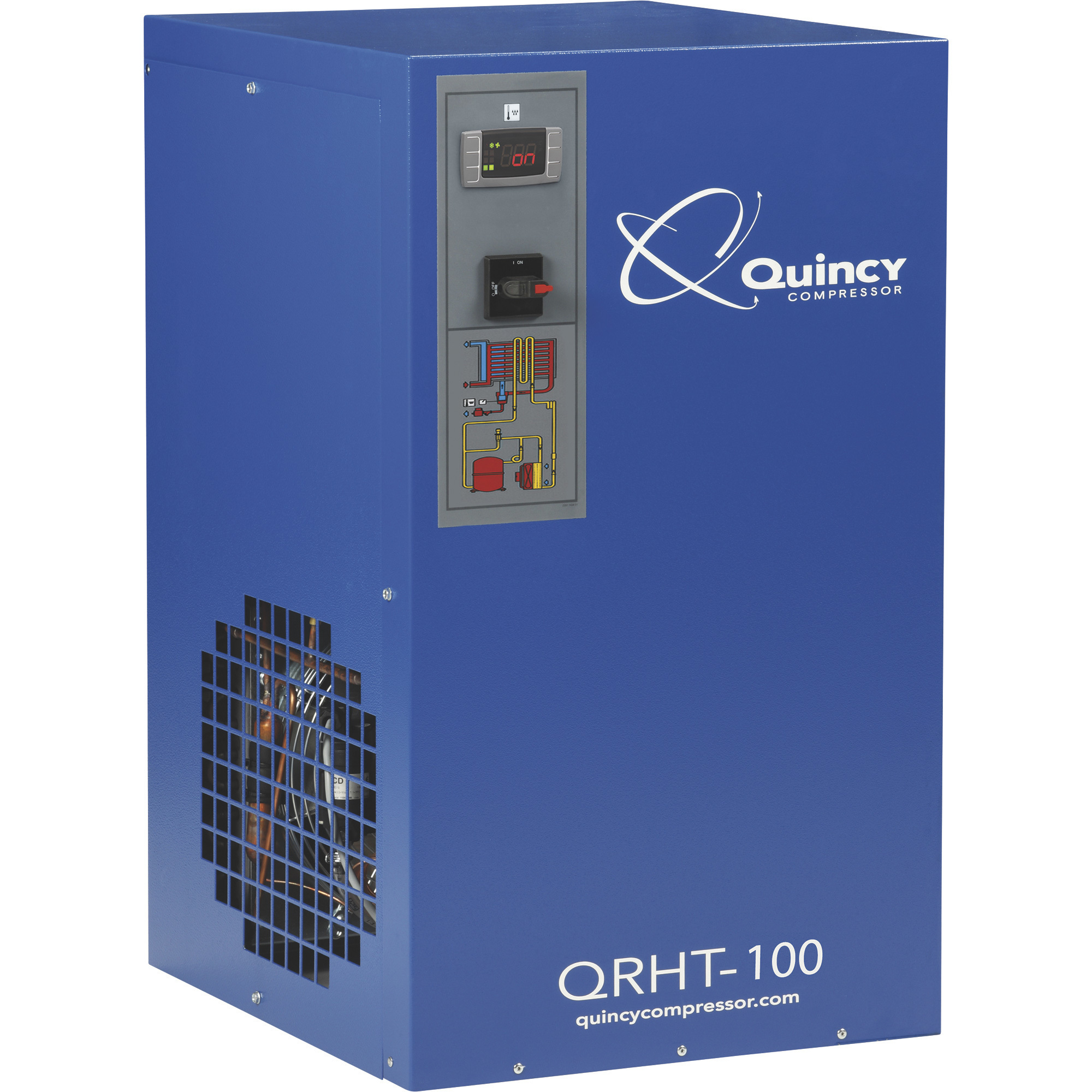

Quincy Refrigerated Air Dryer, High Temperature, Non-Cycling, 100 CFM, Model# QRHT-100

Item# 325022
"Quincy Refrigerated Air Dryer, High Temperature, Non-Cycling, 100 CFM, Model# QRHT-100"
Quincy Refrigerated Air Dryer, High Temperature, Non-Cycling, 100 CFM, Model# QRHT-100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Refrigerated Air Dryer, High Temperature, Non-Cycling, 100 CFM, Model# QRHT-100

Click or Tap image to Zoom

$6297.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • 100 CFM
  • 3/4in. NPT
  • 175 max PSIG
  • User-friendly control panel
  • On/off switch

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy Refrigerated Air Dryers purify compressed air by chilling it to between +39° and +50°F. This causes entrained moisture to condense. Condensed moisture carries airborne dirt and oil to the separator where it is removed from the air stream by an automatic drain. High-Temperature Non-Cycling -- Capable of accepting 180°F inlet temperature. These units integrate five different components that perform five different functions to eliminate water, oil and dirt from air systems, preventing damage to pneumatic tools and cylinders.

What's Included

    (1) Quincy Refrigerated Air Dryer -- High Temperature, Non-Cycling

Features + Benefits

  • 100 CFM
  • 3/4in. NPT
  • 175 max PSIG
  • User-friendly control panel
  • On/off switch
  • Power ON light
  • High Temp light
  • Refrigeration suction pressure gauge
  • Drain test button
  • Drain adjustment knobs
  • Electronic auto drain

Key Specs

AttributeSpecification

item#

325022

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

231.0 LB

Max. Flow Rate

100 cfm

Volts

115

Air Inlet Size

3/4 in

Max. Temperature

180 °F
AttributeSpecification

Dew Point

38 °F

Watts

1,633

Filter Type

Coalescing

Adjustable

Yes

Environmentally Friendly

Yes

Product Weight

lb

Dimensions L x W x H (in.)

28.0 x 18.0 x 40.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
