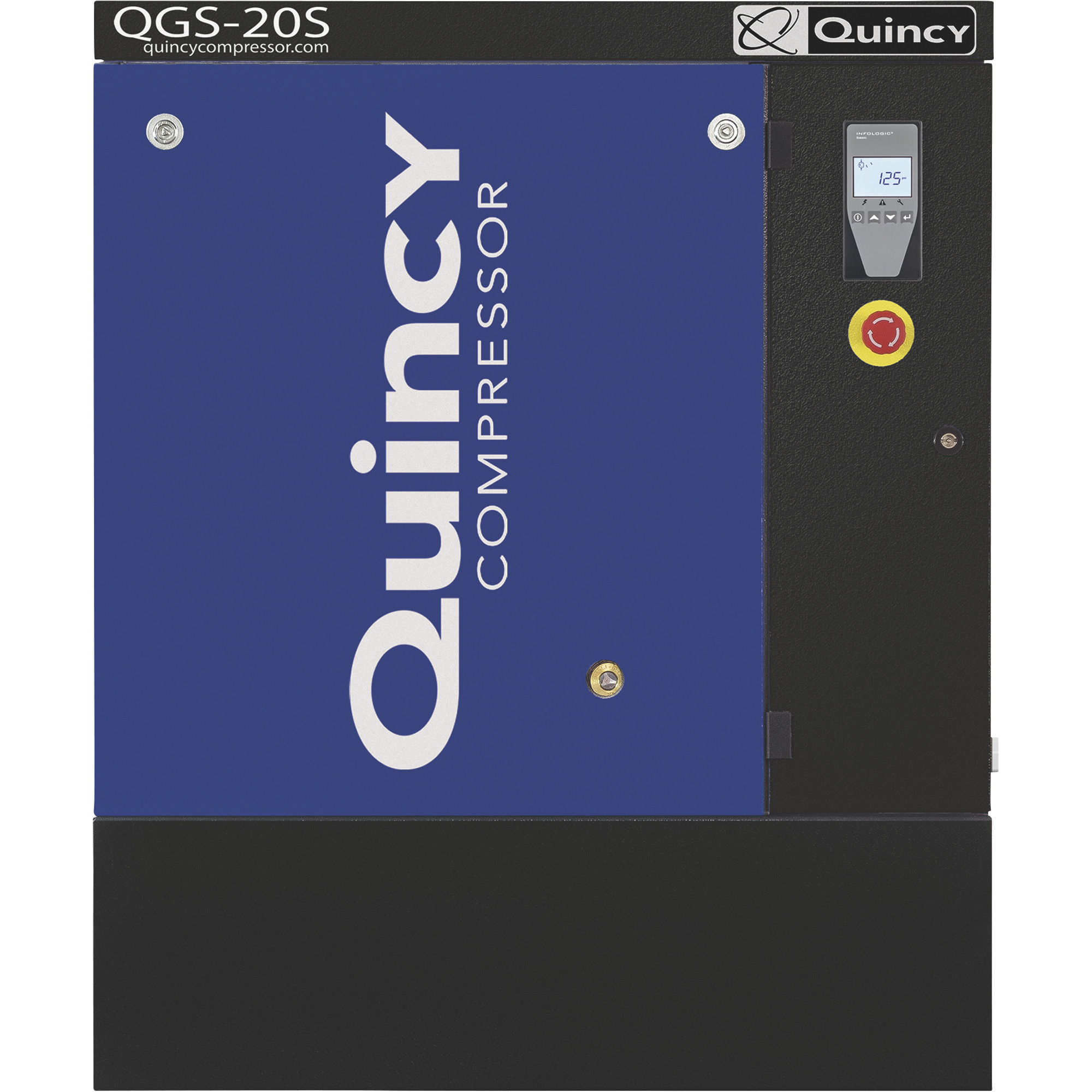

Quincy QGS Rotary Screw Air Compressor, Floor Mounted, 230V 3-Phase, 20 HP, 60.8 CFM, Model# 4152021944

Item# 60426
Quincy QGS Rotary Screw Air Compressor, Floor Mounted, 230V 3-Phase, 20 HP, 60.8 CFM, Model# 4152021944

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy QGS Rotary Screw Air Compressor, Floor Mounted, 230V 3-Phase, 20 HP, 60.8 CFM, Model# 4152021944

Click or Tap image to Zoom

$11,598.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 60.8 CFM @ 125 PSI
  • Floor mount (no tank), no dryer
  • Continuous 100% duty cycle operation
  • High-efficiency intake filter
  • TEFC electric tri-voltage motor (208V, 230V, 460V)

See full description

Complete Your Solution

  • Quincy QGS Rotary Screw Air Compressor, Floor Mounted, 230V 3-Phase, 20 HP, 60.8 CFM, Model# 4152021944
  • Quincy Compressor 8,000 Hour Maintenance Kit, For Quincy QGS20 and QGS25 Rotary Screw Compressors, Model# 6229038100
Price for all two:

$12,627.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Quincy QGS Rotary Screw Compressor is a hard-working rotary screw air compressor. Rotary screw compressors are the ideal choice for heavy industrial applications requiring high volumes of compressed air. A rotary screw air compressor is a positive displacement compression system that includes a pair of matching helical screws. An oil-flooded rotary screw compressor includes a lubricant that fills the gap between the rotors, which creates an air-tight hydraulic seal and transfers mechanical energy between the two rotors. The air moves through the threads as the screws rotate, and the meshing screws force the air through the compressor. Reduce your energy bill with a 7% to 10% increase in efficiency.

What's Included

    (1) Quincy QGS 20 S rotary screw air compressor

Features + Benefits

  • 60.8 CFM @ 125 PSI
  • Floor mount (no tank), no dryer
  • Continuous 100% duty cycle operation
  • High-efficiency intake filter
  • TEFC electric tri-voltage motor (208V, 230V, 460V)
  • Oil-injected twin screw airend
  • Standard quiet enclosure
  • Factory-filled 8000-hour premium synthetic fluid
  • Further sound reduction for even quieter operation at 63dB
  • Full electronic controls with InfoLogic2 software enable more flexibility and easier operation
  • 125 PSI
  • Pressure change kit available up to 175 PSI (contact your sales representative for more information)

Key Specs

AttributeSpecification

item#

60426

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

440.0 LB

Horsepower

20 HP

Air Tank Size

120 Gal

Volts

230
AttributeSpecification

Max. PSI

125

Amps

49

Motor Phase

3

Air Outlet Size

3/4 in. NPT

Drain Type

Manual

Product Weight

685.0000 lb

Dimensions L x W x H (in.)

33.7 x 26.6 x 38.6 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. can a reserve tank be added to this unit

    1 answer

    1. An additional tank can be plumbed in at the time of installation.

      Helpful?

  2. does this compressor require a tank?

    1 answer

    1. The compressor would not require a tank.

      Helpful?
