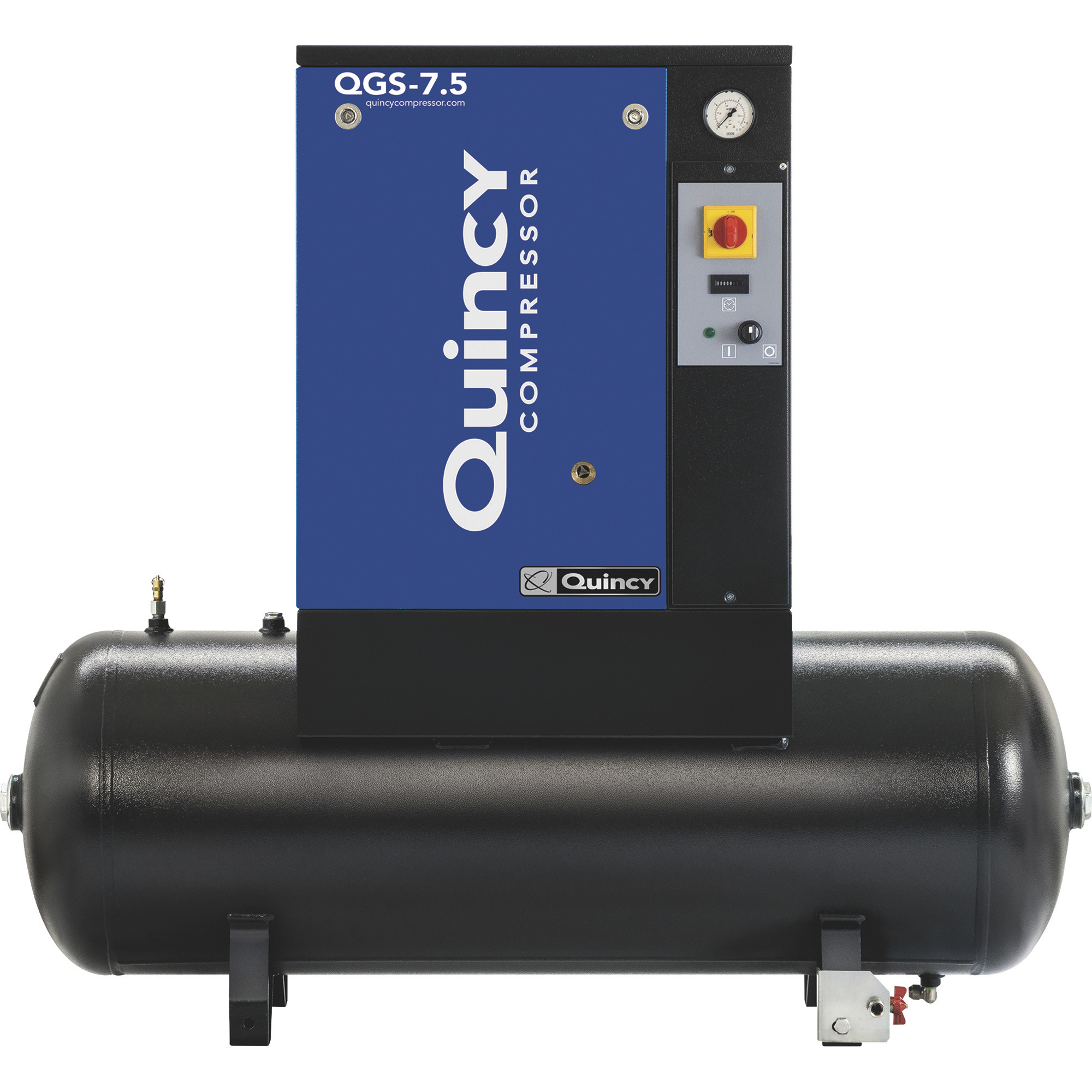

Quincy QGS Rotary Screw Air Compressor, 7.5 HP, Tri-Voltage: 200-208V, 230V, 460V, 3-Phase, 60-Gallon Horizontal, Model# 4152051916

Item# 78198
Quincy QGS Rotary Screw Air Compressor, 7.5 HP, Tri-Voltage: 200-208V, 230V, 460V, 3-Phase, 60-Gallon Horizontal, Model# 4152051916

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy QGS Rotary Screw Air Compressor, 7.5 HP, Tri-Voltage: 200-208V, 230V, 460V, 3-Phase, 60-Gallon Horizontal, Model# 4152051916

Click or Tap image to Zoom

$8244.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Tri-voltage 3-phase 7.5 HP electric motor: 200-208, 230, 460V
  • V-belt drive
  • Oil-injected twin screw pump
  • Standard quiet enclosure
  • ASME certified 60-gallon receiver tank

See full description

Complete Your Solution

  • Quincy QGS Rotary Screw Air Compressor, 7.5 HP, Tri-Voltage: 200-208V, 230V, 460V, 3-Phase, 60-Gallon Horizontal, Model# 4152051916
  • Klutch Air Compressor Filter–Regulator–Lubricator Combo, 1/2in., 106 CFM
Price for all two:

$8373.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Quincy QGS 7.5 HP Rotary Screw Air Compressor is designed for small to medium-sized applications ranging from paint booths and component assembly to long-running industrial installations. Packed with premium standard features, this turnkey unit is the perfect solution for small footprint, quiet operations that require clean, dry compressed air. Standard units are stocked at 150 PSI. Compressor comes equipped with a TEFC electric motor, V-belt drive, oil-injected twin screw pump, standard quiet enclosure, 8000-hr. premium synthetic fluid, ASME certified receiver tank and more.

What's Included

    (1) 5 HP, 3 phase tri-voltage rotary screw compressor mounted on a 60-gallon horizontal ASME tank

Features + Benefits

  • Tri-voltage 3-phase 7.5 HP electric motor: 200-208, 230, 460V
  • V-belt drive
  • Oil-injected twin screw pump
  • Standard quiet enclosure
  • ASME certified 60-gallon receiver tank
  • 8000-hr. premium synthetic fluid
  • Start/Stop controls
  • TEFC drive motor
  • Wye-Delta starting

Key Specs

AttributeSpecification

item#

78198

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

468.0 LB

Horsepower

7.5 HP

Air Tank Size

60 Gal
AttributeSpecification

Volts

460

Max. PSI

150

Air Outlet Size

1/2 in. NPT

Tank Orientation

Horizontal

Product Weight

468.0000 lb

Dimensions L x W x H (in.)

56.0 x 22.0 x 49.4 in
