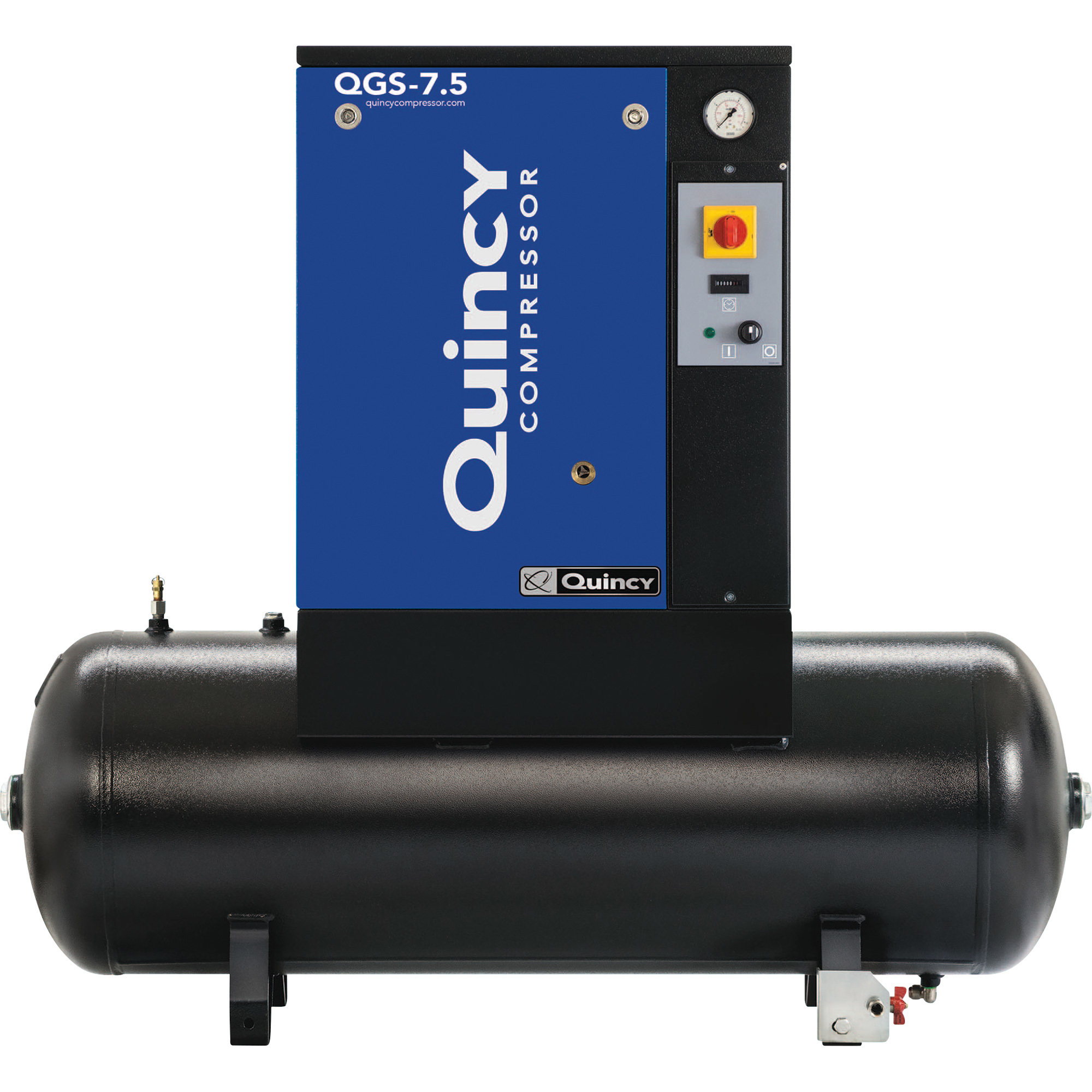

Quincy QGS Rotary Screw Air Compressor, 230 Volt, Single Phase, 7.5 HP, 21.2 CFM, 60 Gallon, Model# 4152051928

Item# 25355
Quincy QGS Rotary Screw Air Compressor, 230 Volt, Single Phase, 7.5 HP, 21.2 CFM, 60 Gallon, Model# 4152051928

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy QGS Rotary Screw Air Compressor, 230 Volt, Single Phase, 7.5 HP, 21.2 CFM, 60 Gallon, Model# 4152051928

Click or Tap image to Zoom

$8244.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • High-efficiency intake filter
  • TEFC electric motor (IP 55 wash down)
  • Long life V-belt drive
  • 1/2in. NPT discharge air connector
  • Factory-filled 8,000-hour premium synthetic fluid

See full description

Complete Your Solution

  • Quincy QGS Rotary Screw Air Compressor, 230 Volt, Single Phase, 7.5 HP, 21.2 CFM, 60 Gallon, Model# 4152051928
  • Quincy Compressor 2,000 Hour Maintenance Kit, For Quincy QGS5 and QGS7.5 Rotary Screw Compressors, Model# 2200902300
  • Quincy Compressor 4,000 Hour Maintenance Kit, For Quincy QGS5 and QGS7.5 Rotary Screw Compressors, Model# 2200902301
  • Quincy Compressor 8,000 Hour Maintenance Kit, For Quincy QGS5 and QGS7.5 Rotary Screw Compressors, Model# 2200902302
Price for all four:

$9423.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Quincy QGS offers superior compressed air performance in a compact, modern and quiet design. This extremely quiet rotary screw compressor features a continuous 100% duty cycle and operates without the high vibration and sound levels produced by typical reciprocating compressors. A small footprint and lower noise levels offer increased installation flexibility, making the QGS ideal for most applications. Comes equipped with a TEFC electric motor, V-belt drive, oil-injected twin screw pump, standard quiet enclosure, 8000-hr. premium synthetic fluid, ASME certified receiver tank and more. Compressor is also available with optional integrated refrigerated air dryer; contact a Northern sales representative to order. Not for sale in CA, OR and WA.

What's Included

    (1) 7.5 HP, 230V, 1-phase oil-injected twin screw compressor, mounted on 60-gallon horizontal ASME tank

Features + Benefits

  • High-efficiency intake filter
  • TEFC electric motor (IP 55 wash down)
  • Long life V-belt drive
  • 1/2in. NPT discharge air connector
  • Factory-filled 8,000-hour premium synthetic fluid
  • 64 dBA for reduced sound fatigue in work area installations
  • Designed for 100% duty cycle
  • No transfer of vibration
  • Low oil carryover protects tools
  • ASME certified tank
  • Simple, efficient start/stop control
  • UL and cUL control panel compliant
  • Fuse protected circuits
  • Low sound canopy
  • Less than 13 sq. ft. space required
  • Turnkey solution: power in/air out
  • Clean appearance with few connections
  • 1-year limited warranty on complete compressor package
  • 5-year limited warranty on major components: airend, motor, separator reservoir and cooler/heat exchanger

Key Specs

AttributeSpecification

item#

25355

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

468.0 LB

Horsepower

7.5 HP

Air Tank Size

60 Gal
AttributeSpecification

Volts

230

Max. PSI

150

Air Outlet Size

1/2 in. NPT

Tank Orientation

Horizontal

Product Weight

lb

Dimensions L x W x H (in.)

56.0 x 22.0 x 49.4 in
