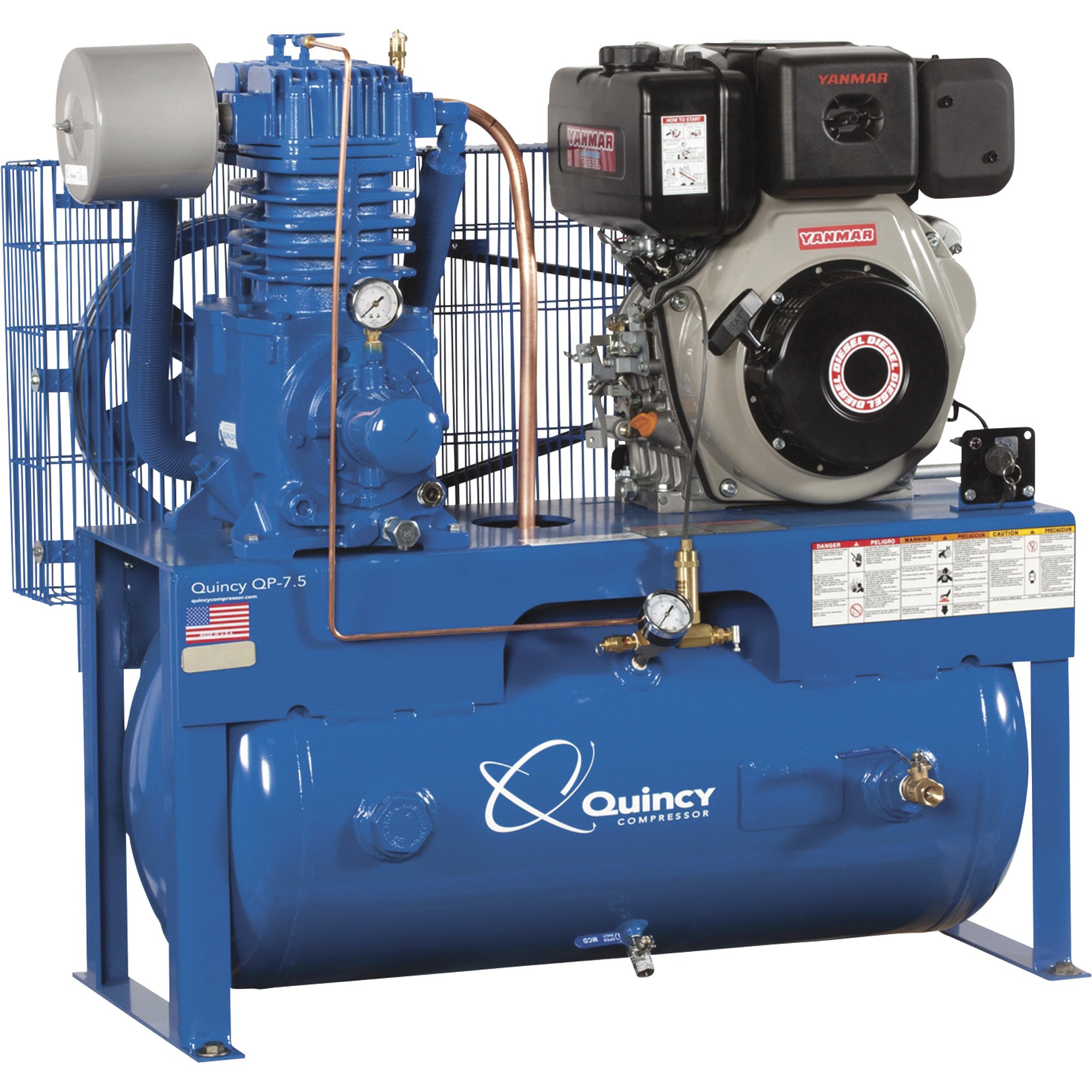

Quincy Pressure Lubricated Reciprocating Air Compressor — 7.5 HP Pump, 10 HP Yanmar Diesel Engine, 30-Gallon Horizontal, Model# D307Y30HCD

Item# 27816
Quincy Pressure Lubricated Reciprocating Air Compressor — 7.5 HP Pump, 10 HP Yanmar Diesel Engine, 30-Gallon Horizontal, Model# D307Y30HCD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Pressure Lubricated Reciprocating Air Compressor — 7.5 HP Pump, 10 HP Yanmar Diesel Engine, 30-Gallon Horizontal, Model# D307Y30HCD

Click or Tap image to Zoom

  • 7.5 HP two stage QP pump, driven by 10 HP Yanmar diesel engine, mounted on a 30 gallon horizontal ASME tank
  • QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
  • High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Quincy QP heavy-duty pressure lubricated reciprocating air compressors are designed for tougher applications where traditional splash lubricated compressors just are not enough. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. QP pump delivers up to 15% longer life than splash lubricated pumps. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 60,000-hour pump life rating. One-year limited warranty without warranty kit purchase. Purchase a warranty kit (Item# 43106) and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included). Not for sale in CA, OR and WA.

What's Included

  • (1) Compressor with 7.5 HP 2-stage QP pump, driven by 10 HP Yanmar diesel engine on 30-gallon ASME horizontal tank

Downloads

Product Manual

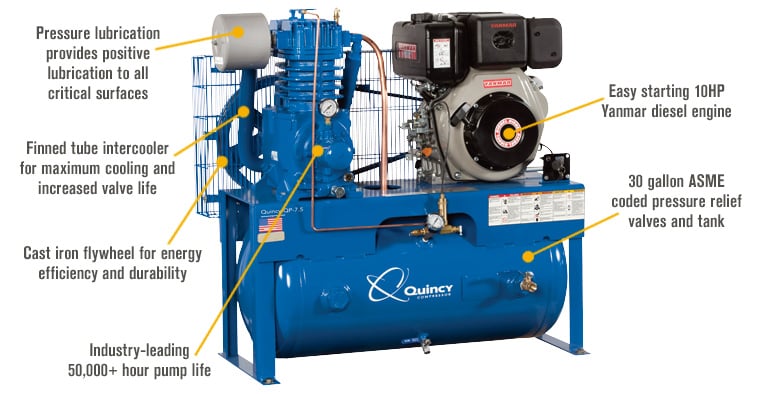

Features + Benefits

  • 7.5 HP two stage QP pump, driven by 10 HP Yanmar diesel engine, mounted on a 30 gallon horizontal ASME tank
  • QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
  • High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life
  • Continuous 100% duty cycle operation
  • 175 max. PSI
  • Equipped with a powerful 10 HP Yanmar diesel engine
  • Pressure-lubricated QP 2-stage cast iron pump
  • Belt drive
  • ASME certified 30-gallon tank with manual tank drain

Key Specs

AttributeSpecification

item#

27816

Brand

Quincy Compressor

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

550.0 LB

Horsepower

10 HP

Air Tank Size

30 Gal

Engine Brand

Yanmar

Max. PSI

175

Stage

2

Duty Cycle

Belt

Fuel Capacity

1.72 Gal

Working Pressure

135-175 PSI

Engine Displacement

23.7 cc
AttributeSpecification

Engine Start Type

Electric

Pump Life

50,000+ hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

22

Low Oil Shutdown

No

Lubrication System

Pressure

After Cooler Included

No

Drain Type

Manual

Tank Orientation

Horizontal

Dimensions L x W x H (in.)

42 x 21 x 40 in

Reviews

Questions & Answers

Questions

  1. Is the engine Tier 4 final?

    Has Yanmar evaluated the use of JP-8 in this engine?

    1 answer

    1. The engine is not Tier 4.

      Helpful?
