Quincy Compressor QT Air Compressor — 15 HP, 120-Gal. Tank, 2-Stage, 460V 3-Phase, Model# 2020040896

Item# 5775454
Quincy Compressor QT Air Compressor — 15 HP, 120-Gal. Tank, 2-Stage, 460V 3-Phase, Model# 2020040896

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor QT Air Compressor — 15 HP, 120-Gal. Tank, 2-Stage, 460V 3-Phase, Model# 2020040896

Click or Tap image to Zoom

$9591.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • Heavy-duty industrial motor
  •  Industrial-duty general-purpose mounted and wired magnetic starter
  •  Less than 5 PPM oil carry-over (blow-by) rating

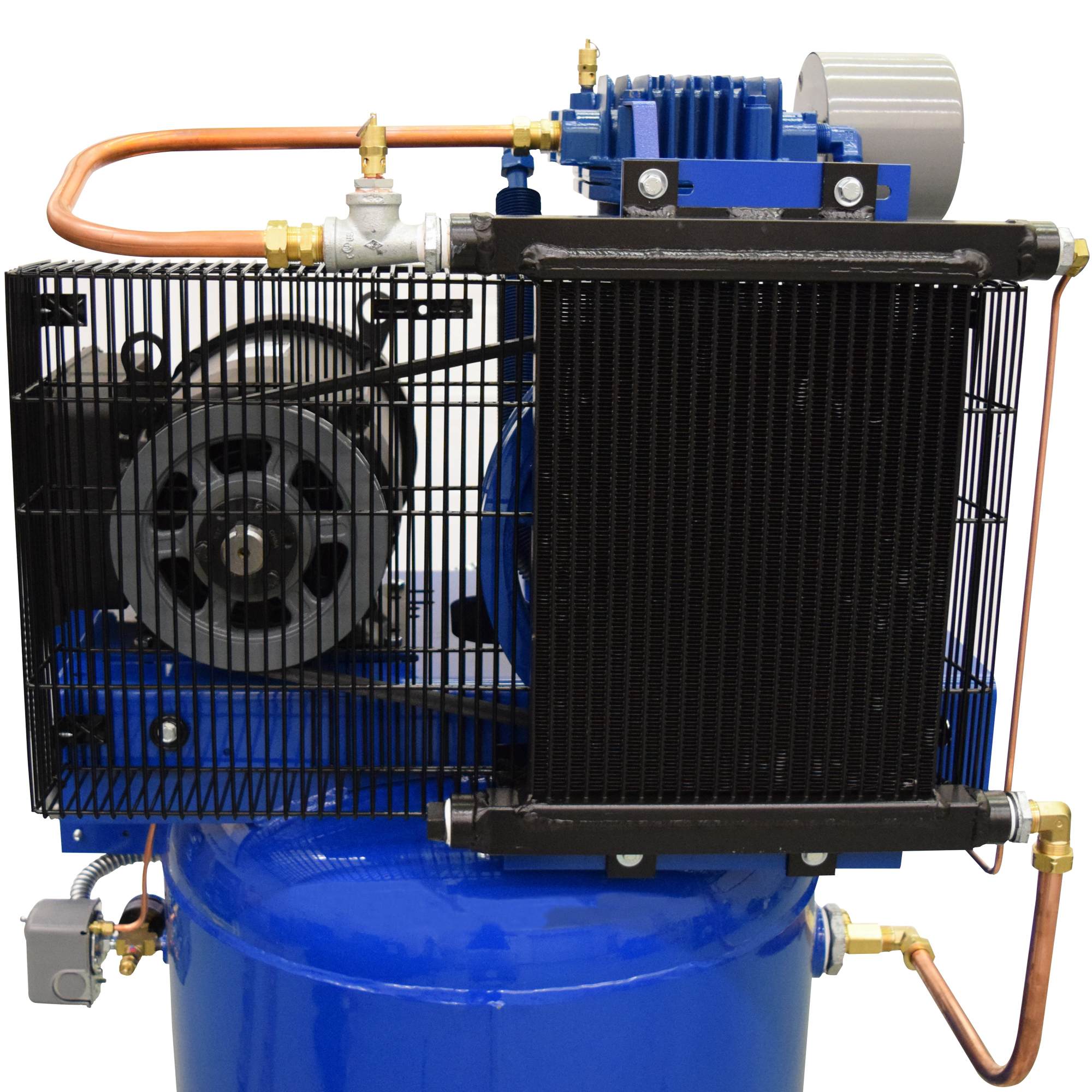

  •  Finned tube intercooler for maximum cooling and increased valve life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QT reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. MAX configuration features automatic tank drain, low oil shutdown and heavy-duty aftercooler included. One-year limited warranty without extended warranty kit purchase. Purchase an extended warranty kit (Item# 43091) at the same time (on the same receipt) as your Quincy 120-gallon air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (parts and labor). U.S.A.

What's Included

    (1) Quincy QT 15-HP 120 Gallon Two-Stage Air Compressor (460V-3-Phase) Horizontal MAX

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • Heavy-duty industrial motor
  •  Industrial-duty general-purpose mounted and wired magnetic starter
  •  Less than 5 PPM oil carry-over (blow-by) rating
  •  Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  •  100% duty cycle
  •  Splash lubrication
  • Low oil shutdown
  • Heavy-duty aftercooler
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • Additional charge for liftgate shipping option
  • One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit same time (same receipt) as your Quincy air compressor and it will double the warranty to 2 years and triple the pump warranty to 3 years (parts and labor).

Key Specs

AttributeSpecification

item#

5775454

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1035.0 LB

Horsepower

15 HP

Air Tank Size

120 Gal

Volts

460

CFM at 90 PSI

54.1

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Amps

21

Duty Cycle

100 %

Motor RPM

932

Working Pressure

135-175 PSI
AttributeSpecification

Motor Phase

3

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

1 in. NPT

CFM at Max. PSI

51

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

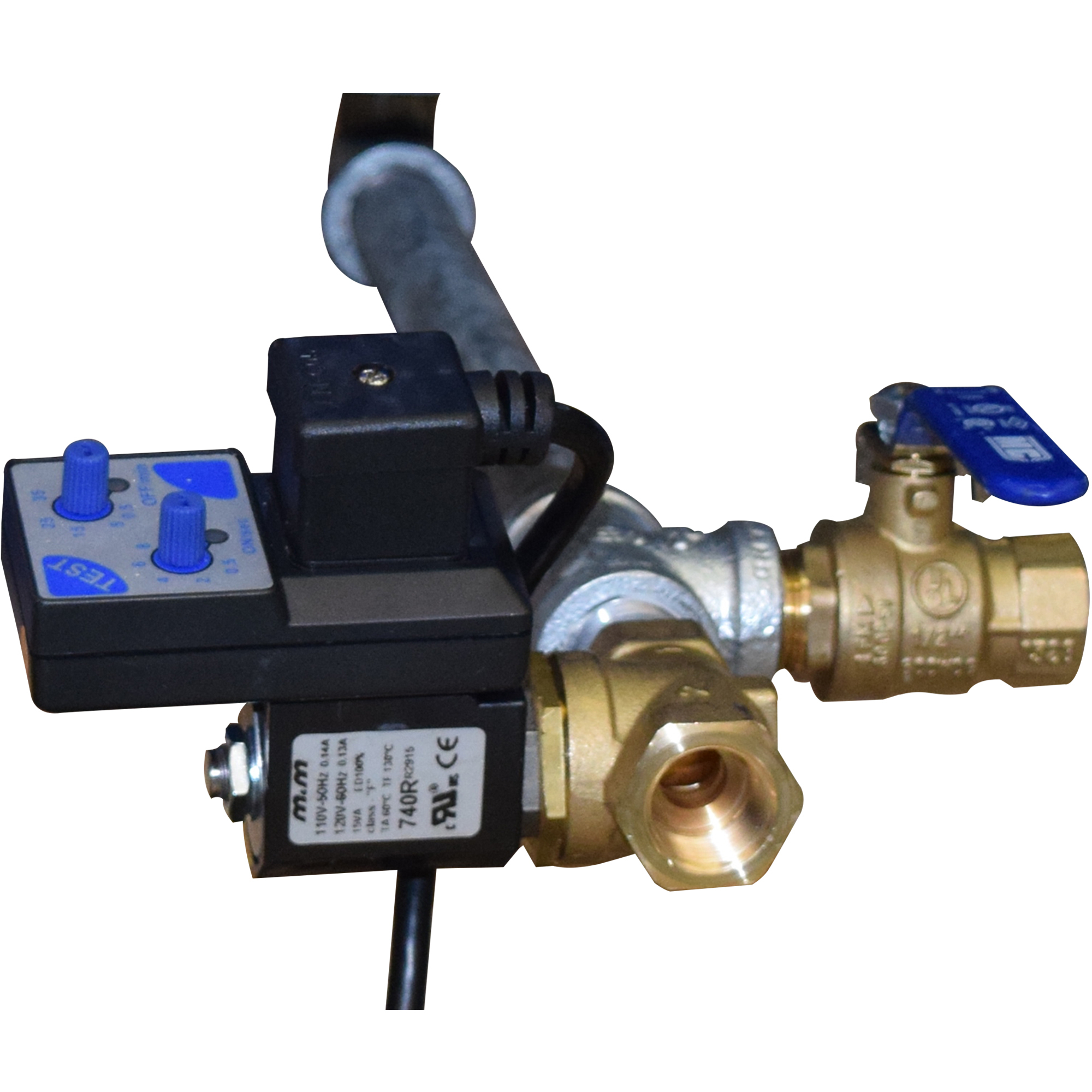

Electronic Drain Valve

Yes

After Cooler Included

Yes

Drain Type

Automatic

Tank Orientation

Horizontal

Product Weight

995.0000 lb

Dimensions L x W x H (in.)

71.0 x 30.0 x 55.0 in
