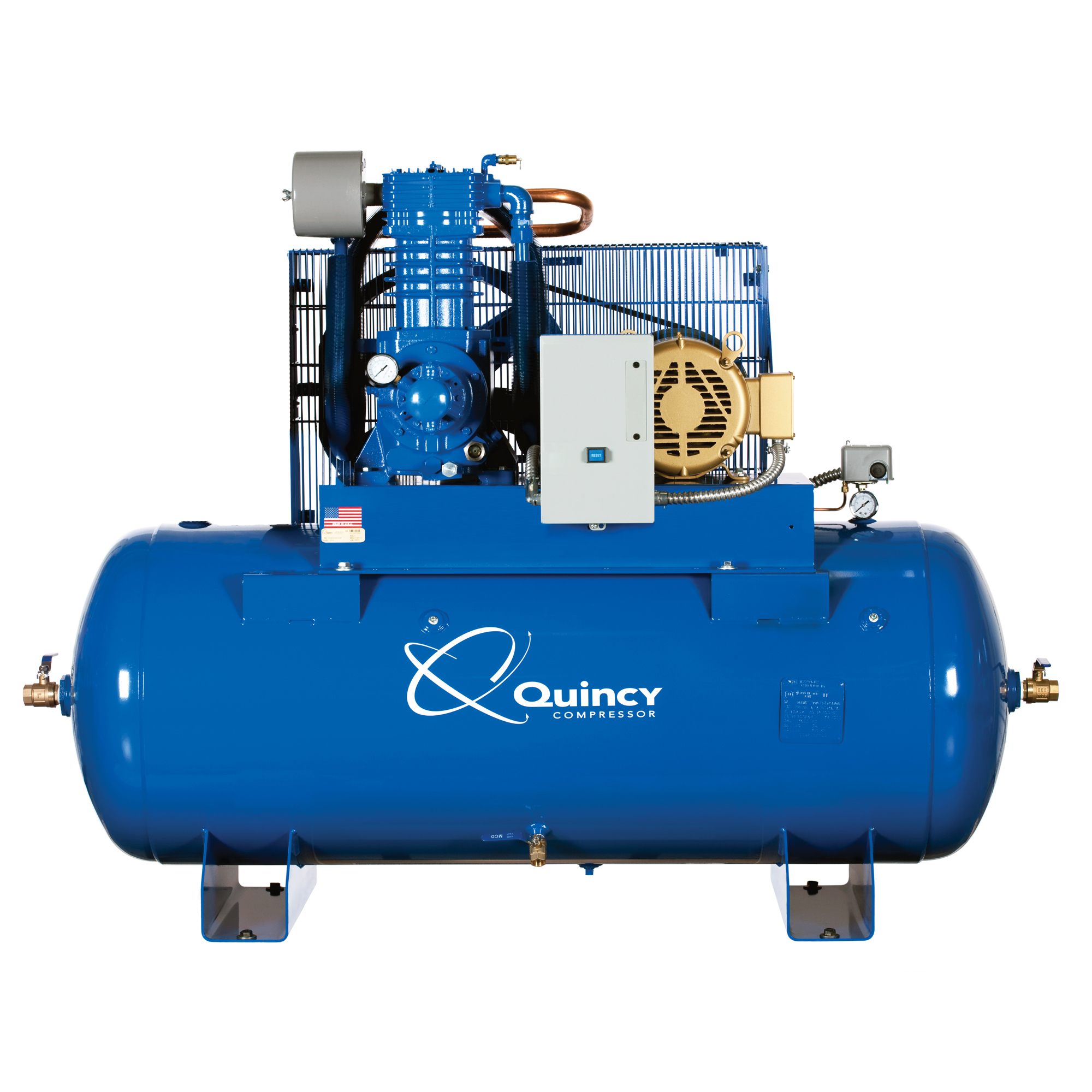

Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gal. Tank, Two-Stage, 230V, 1-Phase, Model# 2020040825

Item# 5778372
Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gal. Tank, Two-Stage, 230V, 1-Phase, Model# 2020040825

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gal. Tank, Two-Stage, 230V, 1-Phase, Model# 2020040825

Click or Tap image to Zoom

$5519.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • ODP Motor
  • Motor Overload Protection
  • Automatic Tank Drain
  • Automatic Start/Stop 5 to 7.5 hp

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QT reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast an industry-leading 50,000-hour pump life rating. MAX configuration features automatic tank drain, low oil shutdown and heavy-duty aftercooler included. Purchase an extended warranty kit at the same time (on the same receipt) as your Quincy 80-gallon air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included). Made in U.S.A.

What's Included

    (1) Quincy QT 7.5-HP 80 Gallon Two-Stage Air Compressor (230V-1-Phase) Horizontal MAX

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • ODP Motor
  • Motor Overload Protection
  • Automatic Tank Drain
  • Automatic Start/Stop 5 to 7.5 hp
  • Dual Control on 10-15 hp
  • Low Oil Level Shutdown
  • Air Cooled Aftercooler
  • Isolator pads on horizontals

Key Specs

AttributeSpecification

item#

5778372

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

750.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

24.4

Motor Phase

1

Stage

2

Tank Orientation

Horizontal

Horsepower

7.5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

40

Duty Cycle

100 %
AttributeSpecification

Motor RPM

896

Working Pressure

135-175 PSI

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

23.6

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Drain Type

Automatic

Product Weight

720.0000 lb

Dimensions L x W x H (in.)

67.0 x 30.0 x 49.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
