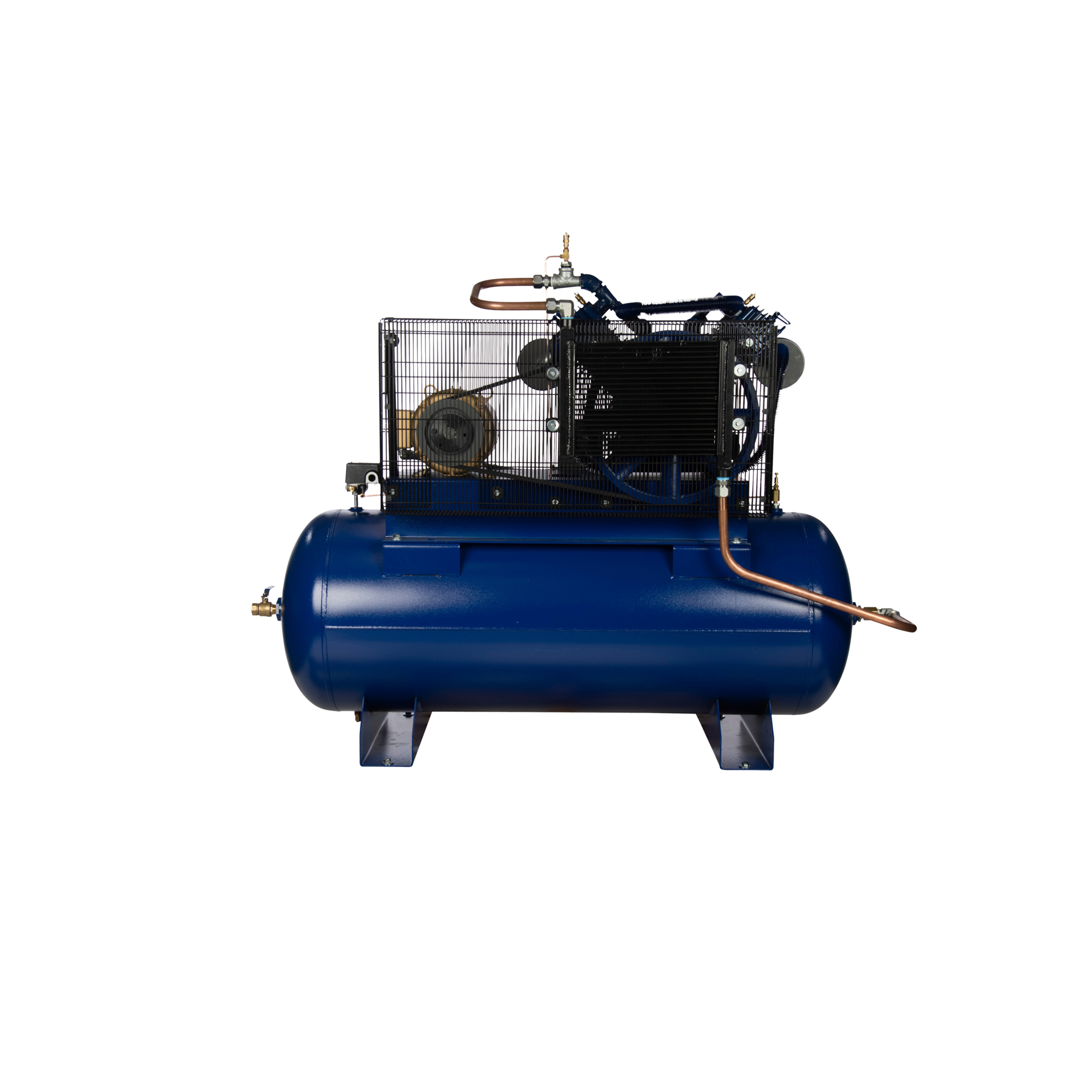

Quincy Compressor, QT 15hp 120G 2Stg Air Compressor 230V 3ph H PRO, Horsepower 15 HP, Air Tank Size 120 Gal, Volts 230 Model# 4153DS12HCA23

Item# 5745802
Quincy Compressor, QT 15hp 120G 2Stg Air Compressor 230V 3ph H PRO, Horsepower 15 HP, Air Tank Size 120 Gal, Volts 230 Model# 4153DS12HCA23

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, QT 15hp 120G 2Stg Air Compressor 230V 3ph H PRO, Horsepower 15 HP, Air Tank Size 120 Gal, Volts 230 Model# 4153DS12HCA23

Click or Tap image to Zoom

$7999.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy-duty industrial motor
  • Industrial-duty general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 145-175 working PSI
  • Pump RPM: 932

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. One-year limited warranty without extended warranty kit purchase. Purchase an extended warranty kit (Item# 43091) at the same time (on the same receipt) as your Quincy 120-gallon air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (parts and labor). U.S.A

What's Included

    (1) Quincy QT-2, 15-HP 120 Gallon Two-Stage Air Compressor (230V-3-Phase) Horizontal PRO, Model # 4153DS12HCA23

Features + Benefits

  • Heavy-duty industrial motor
  • Industrial-duty general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 145-175 working PSI
  • Pump RPM: 932
  • 4-cylinder pump design
  • Heavy-duty, easy-to-reach, manual ball valve
  • 2-stage belt drive pump with solid cast iron cylinder
  • Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • 100% duty cycle
  • Splash lubrication
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • Additional charge for liftgate shipping option
  • Made in U.S.A

Key Specs

AttributeSpecification

item#

5745802

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1045.0 LB

Air Tank Size

120 Gal

Volts

230

CFM at 90 PSI

54.4

Motor Phase

3

Stage

2

Tank Orientation

Horizontal

Horsepower

15 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

42

Duty Cycle

100 %

Motor RPM

932
AttributeSpecification

Working Pressure

135-175 PSI

Engine Start Type

Electric

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

1 in. NPT

CFM at Max. PSI

51

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Manual

Product Weight

995.0000 lb

Dimensions L x W x H (in.)

72.0 x 28.0 x 54.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
