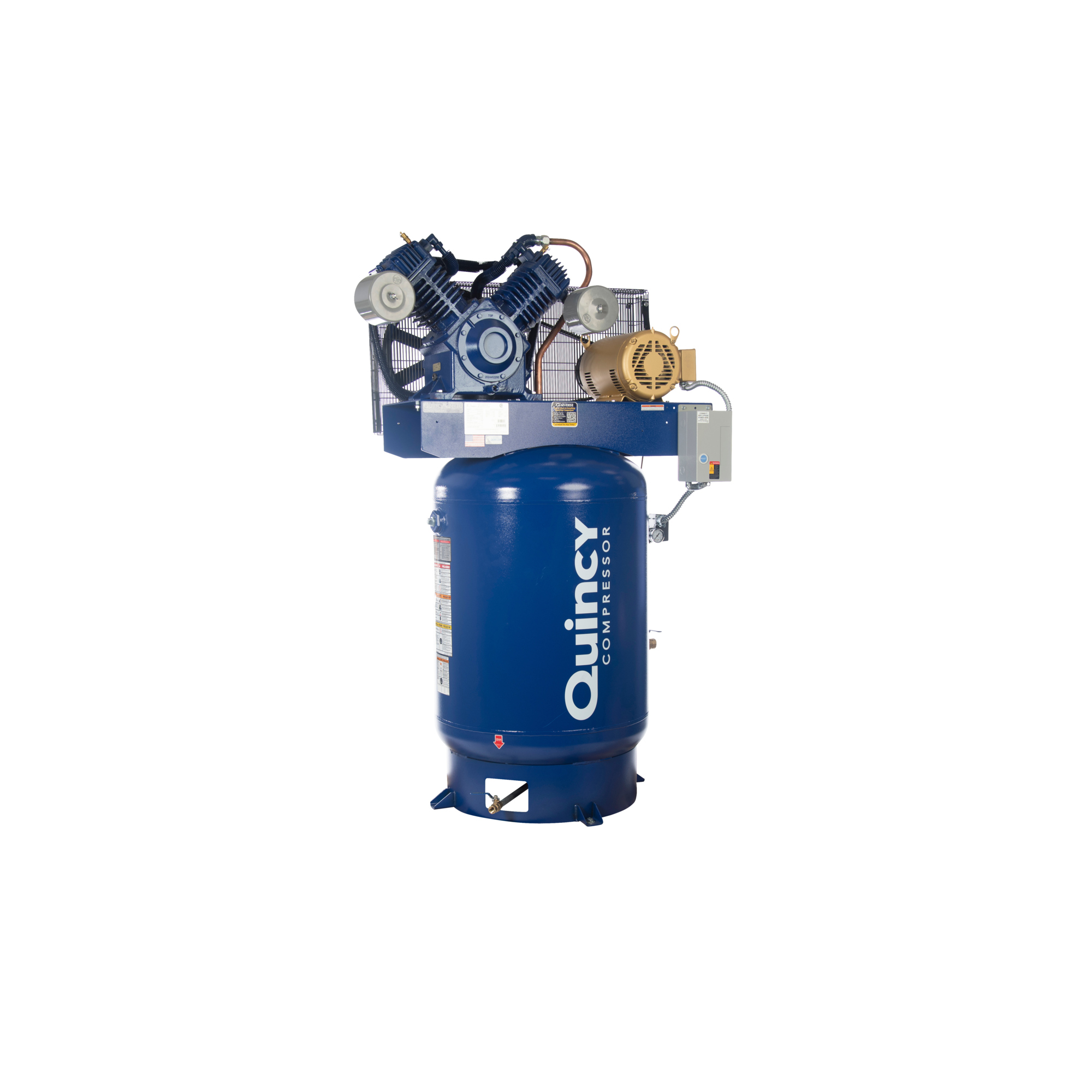

Quincy Compressor, 2 Stage Air Compressor, 10 Horsepower, 120 Gallon, 200 Volts, Model# 4103DS12VCB20

Item# 5745749
Quincy Compressor, 2 Stage Air Compressor, 10 Horsepower, 120 Gallon, 200 Volts, Model# 4103DS12VCB20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, 2 Stage Air Compressor, 10 Horsepower, 120 Gallon, 200 Volts, Model# 4103DS12VCB20

Click or Tap image to Zoom

$6199.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy-duty industrial motor
  • Industrial-duty general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 145-175 working PSI
  • Pump RPM: 682

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. Quincy delivers performance you demand and reliability you trust. Purchase an extended warranty kit (Item# 43,090) at the same time (on the same receipt) as your Quincy 120-gallon air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included). U.S.A.

What's Included

    (1) Quincy QT-2, 10-HP 120 Gallon Two-Stage Air Compressor (200V-3-Phase) Vertical PRO, Model # 4103DS12VCB20

Features + Benefits

  • Heavy-duty industrial motor
  • Industrial-duty general-purpose mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 145-175 working PSI
  • Pump RPM: 682
  • 4-cylinder pump design
  • Heavy-duty, easy-to-reach, manual ball valve
  • 2-stage belt drive pump with solid cast iron cylinder
  • Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • 100% duty cycle
  • Splash lubrication
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • Additional charge for liftgate shipping option
  • Made in U.S.A
  • One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit same time (same receipt) as your Quincy air compressor and it will double the warranty to 2 years and triple the pump warranty to 3 years (parts and labor).

Key Specs

AttributeSpecification

item#

5745749

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1025.0 LB

Air Tank Size

120 Gal

Volts

200

CFM at 90 PSI

36

Motor Phase

3

Stage

2

Tank Orientation

Vertical

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

32.2

Duty Cycle

100 %

Motor RPM

682
AttributeSpecification

Working Pressure

135-175 PSI

Engine Start Type

Electric

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

1 in. NPT

CFM at Max. PSI

35

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

6 min

Drain Type

Manual

Product Weight

979.0000 lb

Dimensions L x W x H (in.)

72.0 x 27.0 x 55.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
