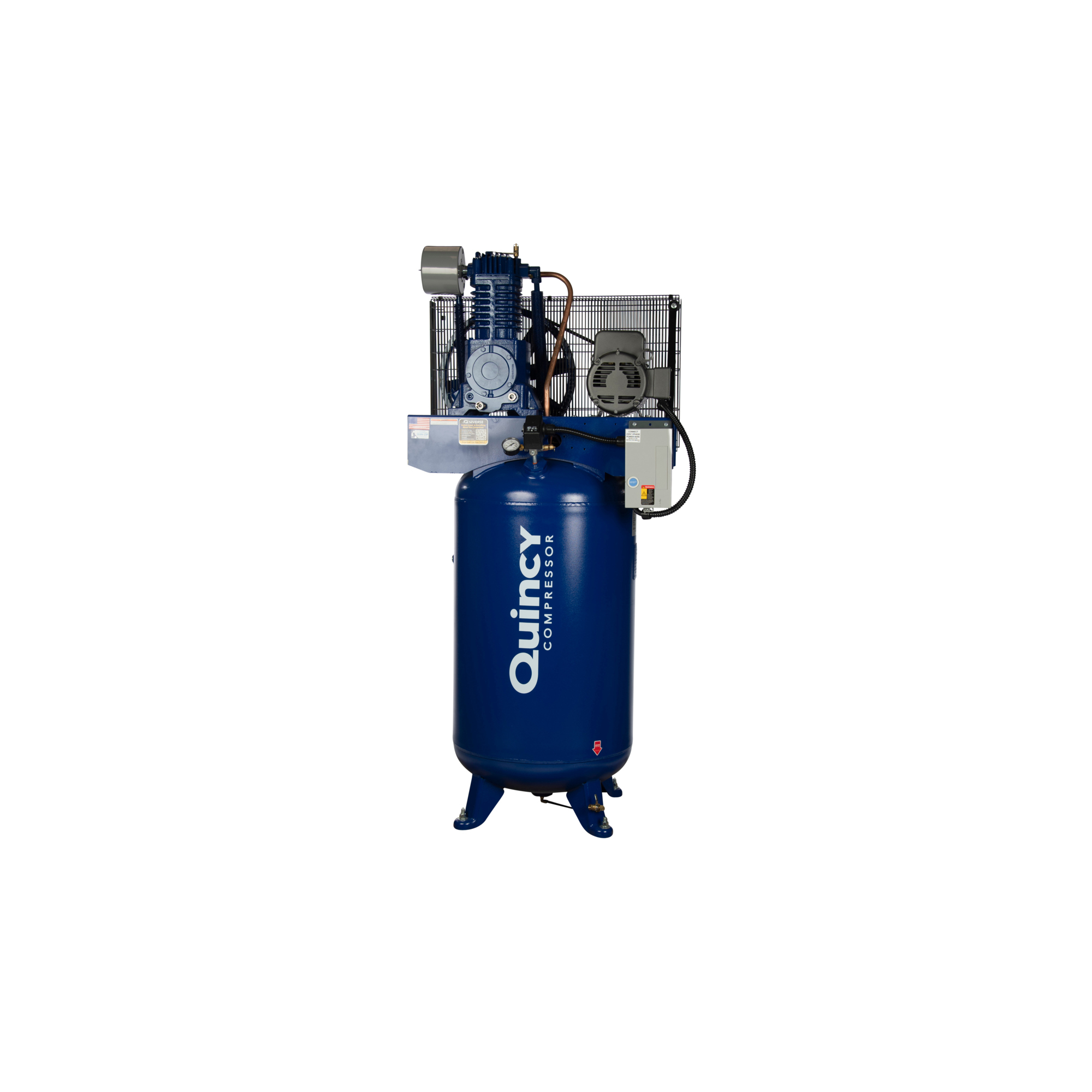

Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gal. Tank, 200V, 3-Phase, 2-Stage, Model# 2020040715

Item# 5745731
Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gal. Tank, 200V, 3-Phase, 2-Stage, Model# 2020040715

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gal. Tank, 200V, 3-Phase, 2-Stage, Model# 2020040715

Click or Tap image to Zoom

$3655.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • Industrial-duty USA made motor
  • Mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 working PSI

See full description

Complete Your Solution

  • Quincy Compressor QT Air Compressor — 7.5 HP, 80-Gal. Tank, 200V, 3-Phase, 2-Stage, Model# 2020040715
  • Quincy Extended Support and Maintenance Kit for Quincy QT-5 and QT-7.5 Air Compressors, Model# EWK-3

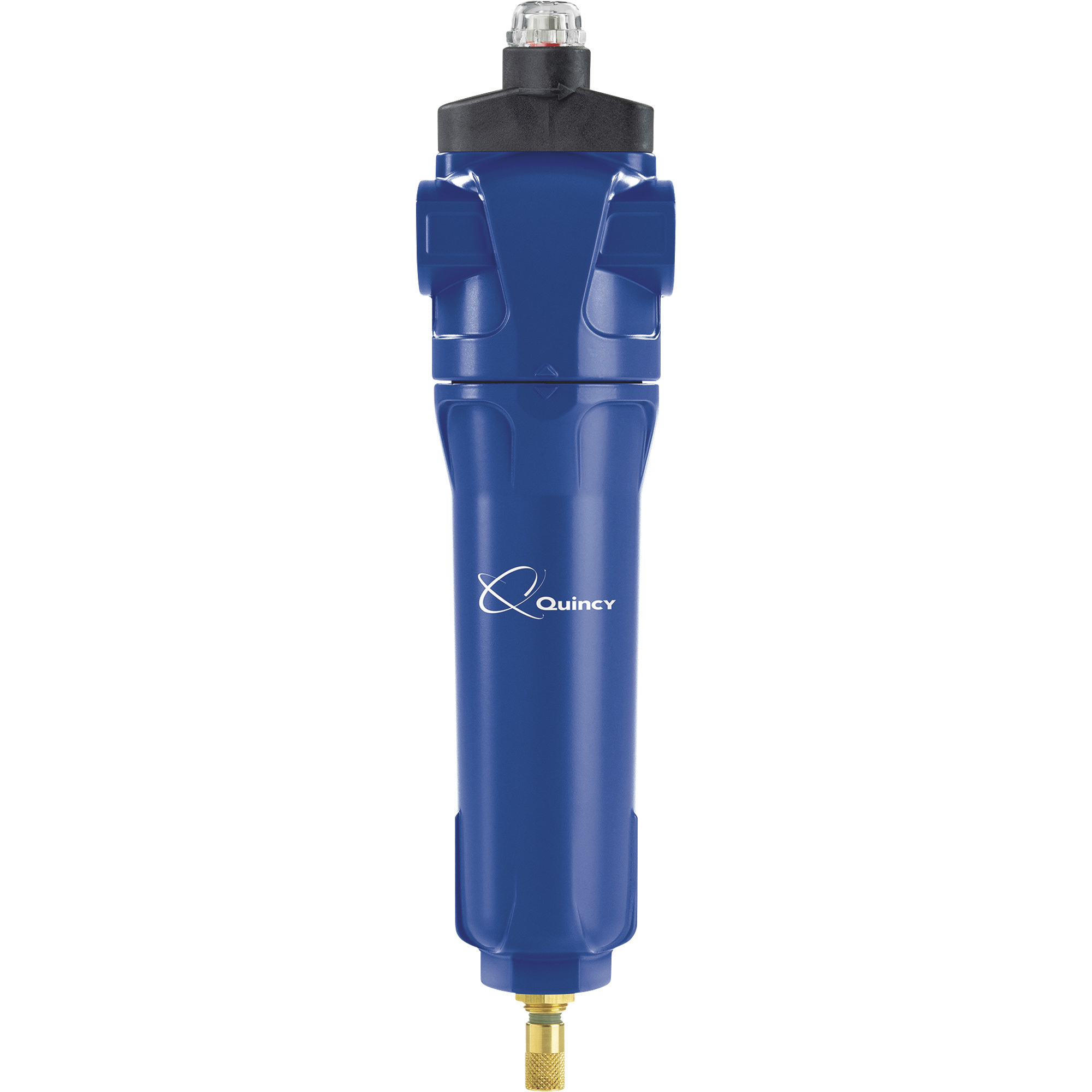

  • Quincy Compressor Coalescing Air Filter — 25 CFM, Model# 8102856708
Price for all three:

$4225.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Quincy reciprocating air compressors are designed to be a compressor for life. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower than the average air compressor. They run at a slower RPM, run cooler and cost less to operate. Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. Vertical reciprocating air compressor produces 22.6 CFM 175 PSI. 2-stage belt drive pump with solid cast iron cylinder, finned tube intercooler, aluminum head and extra-capacity oil reservoir. 100% duty cycle. One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit (Item# 42637) at the same time (on the same receipt) as your Quincy 80-gallon air compressor and it will double the package warranty to 2 years and triple the pump warranty to 3 years (parts and labor on-site). Made in U.S.A.

What's Included

    (1) Quincy QT-1 7.5-HP 80 Gallon Two-Stage Air Compressor (200V-3-Phase) Vertical PRO, Model # 473DS80VCB20

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • Industrial-duty USA made motor
  • Mounted and wired magnetic starter
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 working PSI
  • Pump RPM: 896
  • 2-cylinder pump design
  • Heavy-duty, easy-to-reach, manual ball valve
  • 2-stage belt drive pump with solid cast iron cylinder
  • Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • 100% duty cycle
  • Splash lubrication
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and tanks
  • Additional charge for liftgate shipping option
  • Made in U.S.A
  • One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit same time (same receipt) as your Quincy air compressor and it will double the warranty to 2 years and triple the pump warranty to 3 years (parts and labor).

Key Specs

AttributeSpecification

item#

5745731

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

643.0 LB

Horsepower

7.5 HP

Air Tank Size

80 Gal

Volts

200

CFM at 90 PSI

23.6

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Amps

40

Duty Cycle

100 %

Motor RPM

1,725

Working Pressure

135-175 PSI

Engine Start Type

Electric
AttributeSpecification

Motor Phase

3

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

22.6

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

593.0000 lb

Dimensions L x W x H (in.)

35.0 x 28.0 x 77.0 in

Reviews

Questions & Answers

Questions

  1. Recommended breaker size?

    1 answer

    1. The compressor will require an 80 amp breaker.
