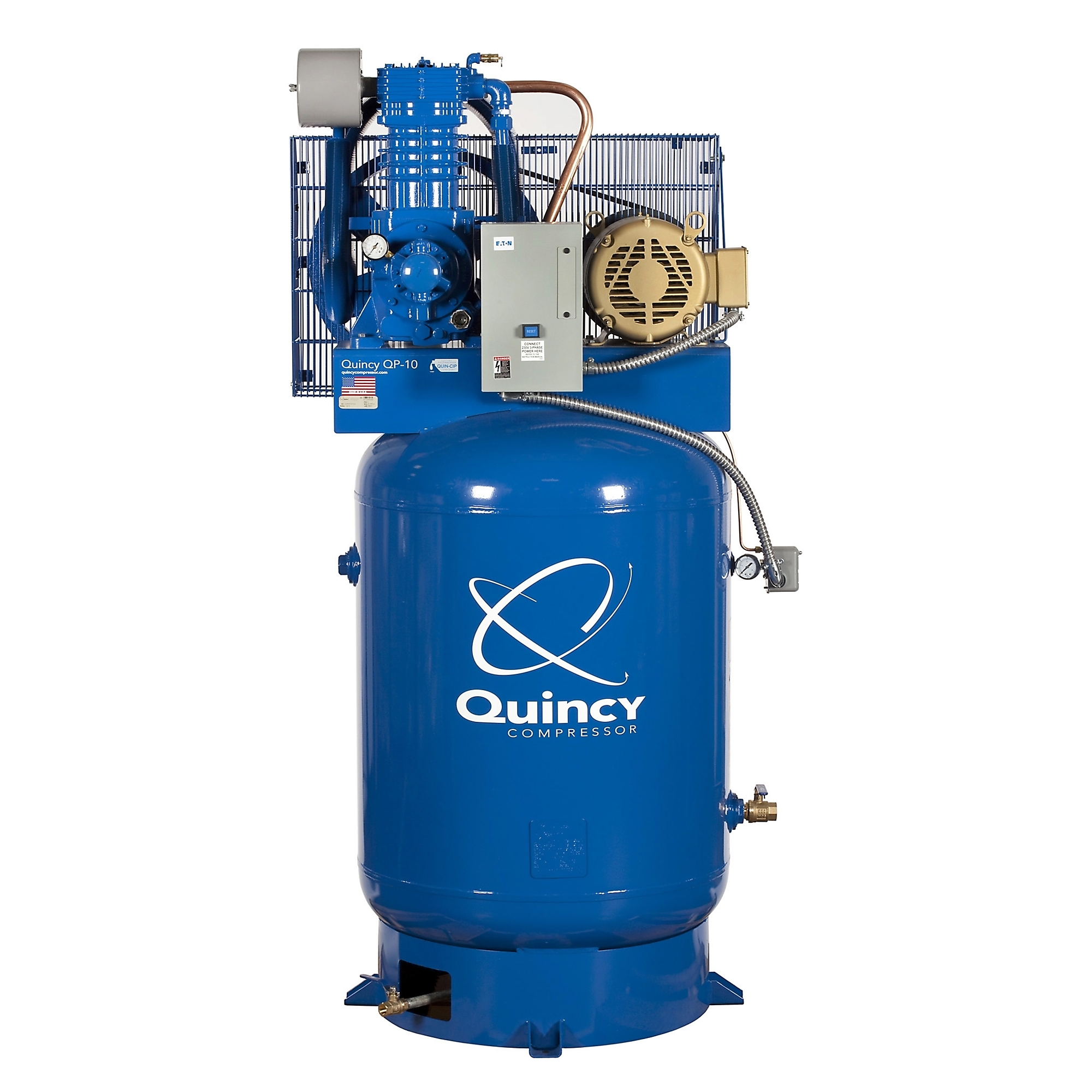

Quincy Compressor, QP 10H 120G 2Stg Air Compressor 230V 3ph V PRO, Horsepower 10 HP, Air Tank Size 120 Gal, Volts 230 Model# 5103DS12VCA23

Item# 5775446
Quincy Compressor, QP 10H 120G 2Stg Air Compressor 230V 3ph V PRO, Horsepower 10 HP, Air Tank Size 120 Gal, Volts 230 Model# 5103DS12VCA23

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, QP 10H 120G 2Stg Air Compressor 230V 3ph V PRO, Horsepower 10 HP, Air Tank Size 120 Gal, Volts 230 Model# 5103DS12VCA23

Click or Tap image to Zoom

$7499.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
  • High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QP heavy-duty pressure lubricated reciprocating air compressors are designed for tougher applications where traditional splash lubricated compressors just are not enough. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. QP pump delivers up to 15% longer life than splash lubricated pumps. Heavy-duty compressors are engineered for industrial applications and boast an industry-leading 60,000-hour pump life rating. One-year limited parts and labor on-site warranty. Purchase a warranty kit (Item# 43107) at the same time and on the same receipt as this compressor and register within 10 days, and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included). Extend the warranty to a 4th and 5th year on the pump and package warranty to 3 years with purchase of extended plus warranty kit (Item# 44809). U.S.A.

What's Included

    (1) Quincy QP 10-HP 120 Gallon Two-Stage Air Compressor (230V-3-Phase) Vertical PRO

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
  • High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life
  • Continuous 100% duty cycle operation
  • Equipped with a powerful 10 HP electric motor with magnetic starter
  • Pressure-lubricated QP 2-stage cast iron pump
  • Belt drive
  • ASME certified 120-gallon tank with manual tank drain
  • One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit same time (same receipt) as your Quincy air compressor and it will double the warranty to 2 years and triple the pump warranty to 3 years (parts and labor).

Key Specs

AttributeSpecification

item#

5775446

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

960.0 LB

Air Tank Size

120 Gal

Volts

230

CFM at 90 PSI

37

Motor Phase

3

Stage

2

Tank Orientation

Vertical

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

28
AttributeSpecification

Duty Cycle

100 %

Motor RPM

682

Working Pressure

135-175 PSI

Pump Life

60,000 hr

Pump Material

Cast Iron

Air Outlet Size

1 in. NPT

CFM at Max. PSI

36

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Drain Type

Manual

Product Weight

900.0000 lb

Dimensions L x W x H (in.)

49.0 x 34.0 x 78.0 in
