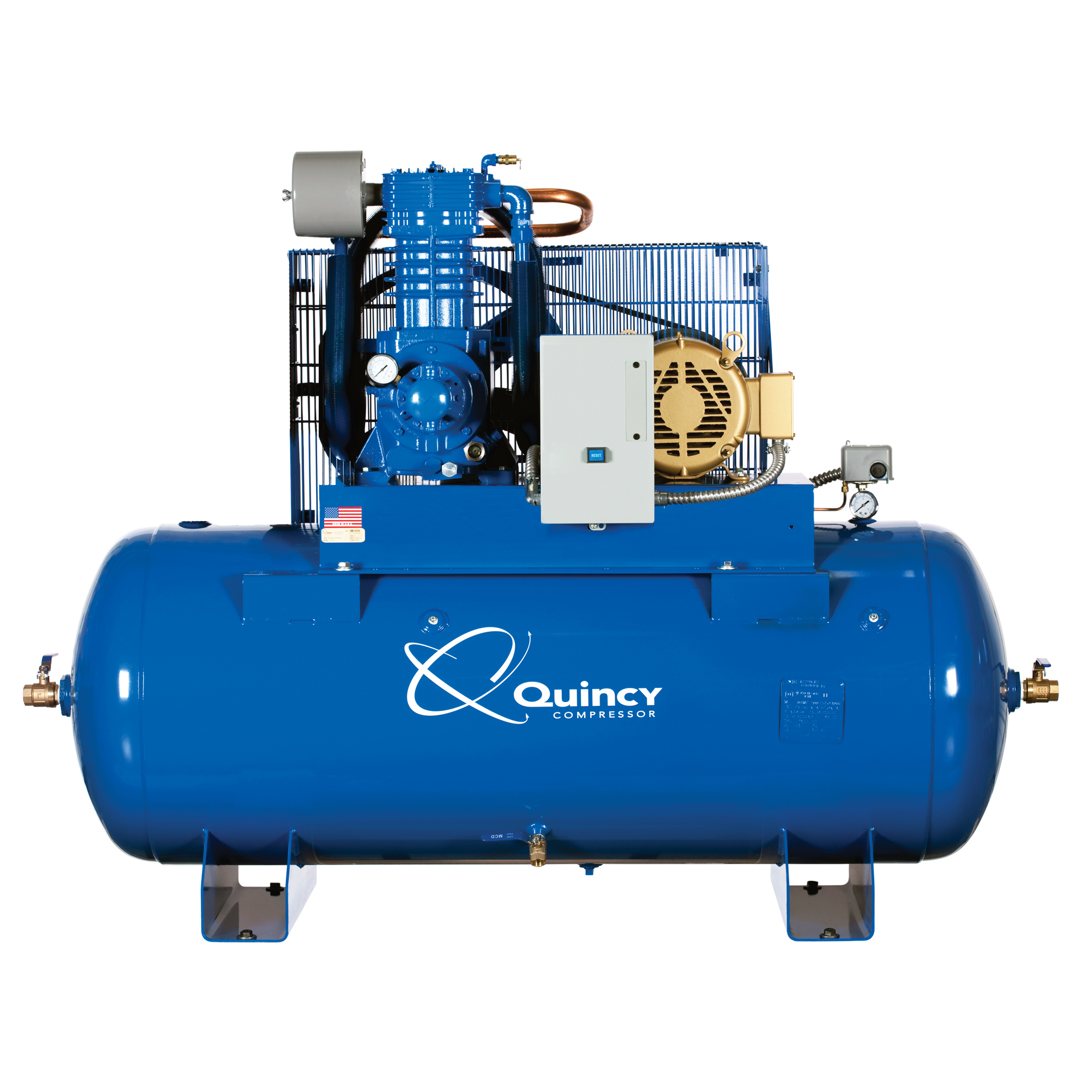

Quincy Compressor, QP 7.5H 80G 2Stg Air Compressor 230V 1ph H PRO, Horsepower 7.5 HP, Air Tank Size 80 Gal, Volts 230 Model# 571CS80HCA

Item# 5778428
Quincy Compressor, QP 7.5H 80G 2Stg Air Compressor 230V 1ph H PRO, Horsepower 7.5 HP, Air Tank Size 80 Gal, Volts 230 Model# 571CS80HCA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, QP 7.5H 80G 2Stg Air Compressor 230V 1ph H PRO, Horsepower 7.5 HP, Air Tank Size 80 Gal, Volts 230 Model# 571CS80HCA

Click or Tap image to Zoom

$5200.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • Full pressure lubricated system provides positive pressure lubrication to all critical surfaces of the pump
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life
  • Continuous 100% duty cycle operation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QP heavy-duty pressure lubricated reciprocating compressor is designed for tougher applications where traditional splash lubricated compressors just are not enough. The cast iron full pressure lubricated system provides positive pressure to all critical surfaces including the crankshaft, bearings, connecting rods and wrist pins, delivering up to 15% longer life. High-quality Gerotor oil pump and spin-on oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability. Compressor comes standard with a 1-year warranty, but has an option of extending the warranty with purchase and use of Item #43106 Extended warranty kit. Double your Quincy QP 7.5 HP, 80-gallon pressure lubricated air compressor's one-year warranty to 2 years "bumper-to-bumper" and triple the pump warranty to 3 years (on-site parts and labor) by purchasing this Extended Support and Maintenance Kit at the same time (on the same receipt) as your Quincy QP 7.5 HP, 80-gallon air compressor. Register the purchase online within 10 days of receipt and follow the owners manual maintenance schedule to get the extended warranty coverage. Kit includes 9 quarts QuinCip D synthetic fluid, one polyester washable air filter element, three oil filters and 10 maintenance stickers. To extend your compressor warranty out to 5 years (on-site parts and labor), purchase the Extended Warranty Kit Plus (Item# 44810) during the first three years of ownership (must have also purchased the Extended Warranty Kit (Item# 43106) with compressor. Made in U.S.A.

What's Included

    (1) Quincy QP 7.5-HP 80 Gallon Two-Stage Air Compressor (230V-1-Phase) Horizontal PRO

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • Full pressure lubricated system provides positive pressure lubrication to all critical surfaces of the pump
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life
  • Continuous 100% duty cycle operation
  • Equipped with a powerful 7.5 HP electric motor with magnetic starter
  • 2-stage cast iron pump
  • Belt drive
  • ASME certified tank with manual tank drain
  • One-year limited warranty without warranty kit purchase. Purchase an extended warranty kit same time (same receipt) as your Quincy air compressor and it will double the warranty to 2 years and triple the pump warranty to 3 years (parts and labor).

Key Specs

AttributeSpecification

item#

5778428

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

750.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

24.4

Motor Phase

1

Stage

2

Tank Orientation

Horizontal

Horsepower

7.5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

40
AttributeSpecification

Duty Cycle

100 %

Motor RPM

896

Working Pressure

135-175 PSI

Pump Life

60,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

23.6

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Drain Type

Manual

Product Weight

720.0000 lb

Dimensions L x W x H (in.)

67.0 x 30.0 x 49.0 in

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
