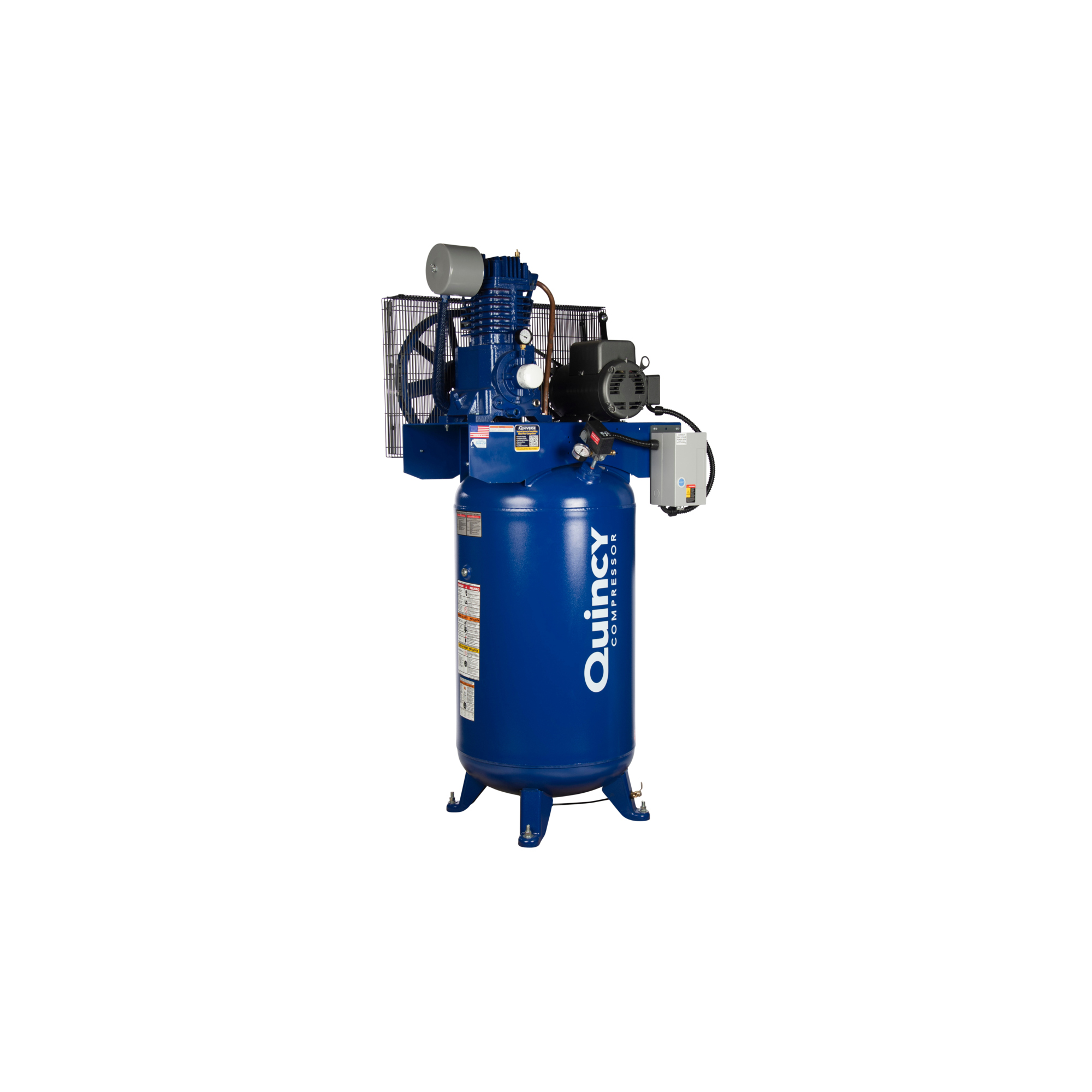

Quincy Compressor, QP 5H 80G 2Stg Air Compressor 460V 3ph Vert PRO, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 460 Model# 553DS80VCA46

Item# 5775569
Quincy Compressor, QP 5H 80G 2Stg Air Compressor 460V 3ph Vert PRO, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 460 Model# 553DS80VCA46

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor, QP 5H 80G 2Stg Air Compressor 460V 3ph Vert PRO, Horsepower 5 HP, Air Tank Size 80 Gal, Volts 460 Model# 553DS80VCA46

Click or Tap image to Zoom

$4538.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
  • High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Quincy QP heavy-duty pressure lubricated reciprocating air compressors are designed for tougher applications where traditional splash lubricated compressors just are not enough. They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower. They run at a slower RPM, run cooler and cost less to operate. QP pump delivers up to 15% longer life than splash lubricated pumps. Heavy-duty compressors are engineered for industrial applications and boast an industry-leading 60,000-hour pump life rating. Compressor comes standard with a 1-year warranty, but has an option of extending the warranty with purchase and use of Extended Warranty Kit. Double your Quincy QP 5 HP, 80-gallon pressure lubricated air compressor's one-year warranty to 2 years "bumper-to- bumper" and triple the pump warranty to 3 years (on-site parts and labor) by purchasing this Extended Support and Maintenance Kit at the same time (on the same receipt) as your Quincy QP 5 HP, 80-gallon air compressor. Register the purchase online within 10 days of receipt and follow the owners manual maintenance schedule to get the extended warranty coverage. Kit includes 6 quarts QuinCip D synthetic fluid, one polyester washable air filter element, three oil filters and 10 maintenance stickers. To extend your compressor warranty out to 5 years (on-site parts and labor), purchase the Extended Warranty Kit Plus (Item# 44810) during the first three years of ownership (must have also purchased the Extended Warranty Kit with compressor). Made in U.S.A.

What's Included

    (1) Quincy QP 5-HP 80 Gallon Two-Stage Air Compressor (460V-3-Phase) Vertical PRO

Features + Benefits

  • Built for efficiency and lower operating costs, producing more compressed air at a lower horsepower
  • QP heavy-duty cast iron fully pressure lubricated system provides positive lubrication to all critical surfaces: crankshaft, bearings and connecting rods up to wrist pins
  • High-quality Gerotor oil pump and oil filter ensures consistent lubrication, lower operating temperatures and better filtration for longer life and reliability
  • Provides up to 15% longer pump life than traditional splash lubricated compressors
  • Delivers 60,000+ hours of pump life
  • Continuous 100% duty cycle operation
  • Equipped with a powerful 5 HP electric motor with magnetic starter
  • Pressure-lubricated QP 2-stage cast iron pump
  • Belt drive
  • ASME certified 80-gallon tank with manual tank drain

Key Specs

AttributeSpecification

item#

5775569

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

730.0 LB

Air Tank Size

80 Gal

Volts

460

CFM at 90 PSI

18.1

Motor Phase

3

Stage

2

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

7.6
AttributeSpecification

Duty Cycle

100 %

Motor RPM

658

Working Pressure

135-175 PSI

Pump Life

60,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

17.4

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Drain Type

Manual

Product Weight

680.0000 lb

Dimensions L x W x H (in.)

35.0 x 28.0 x 77.0 in
