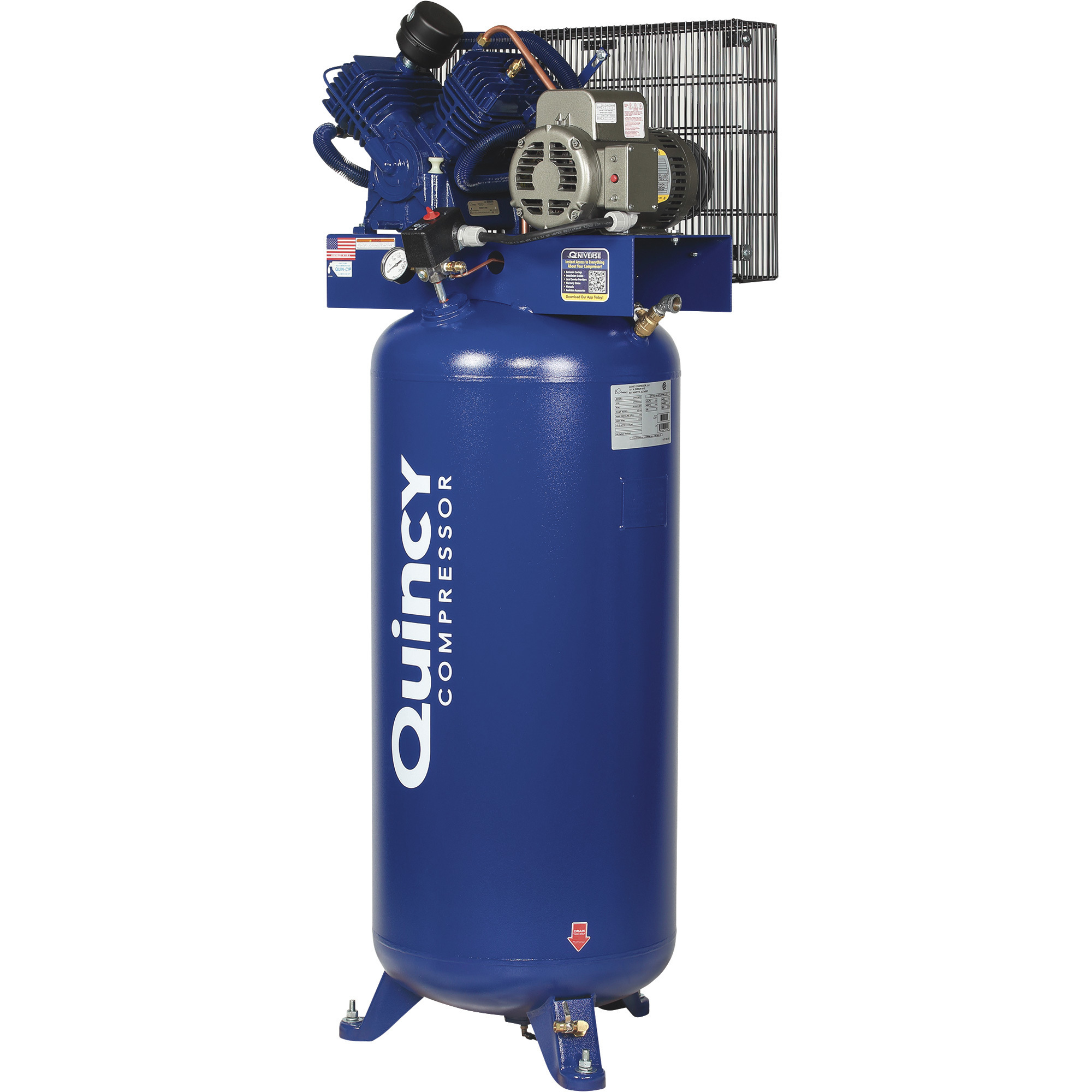

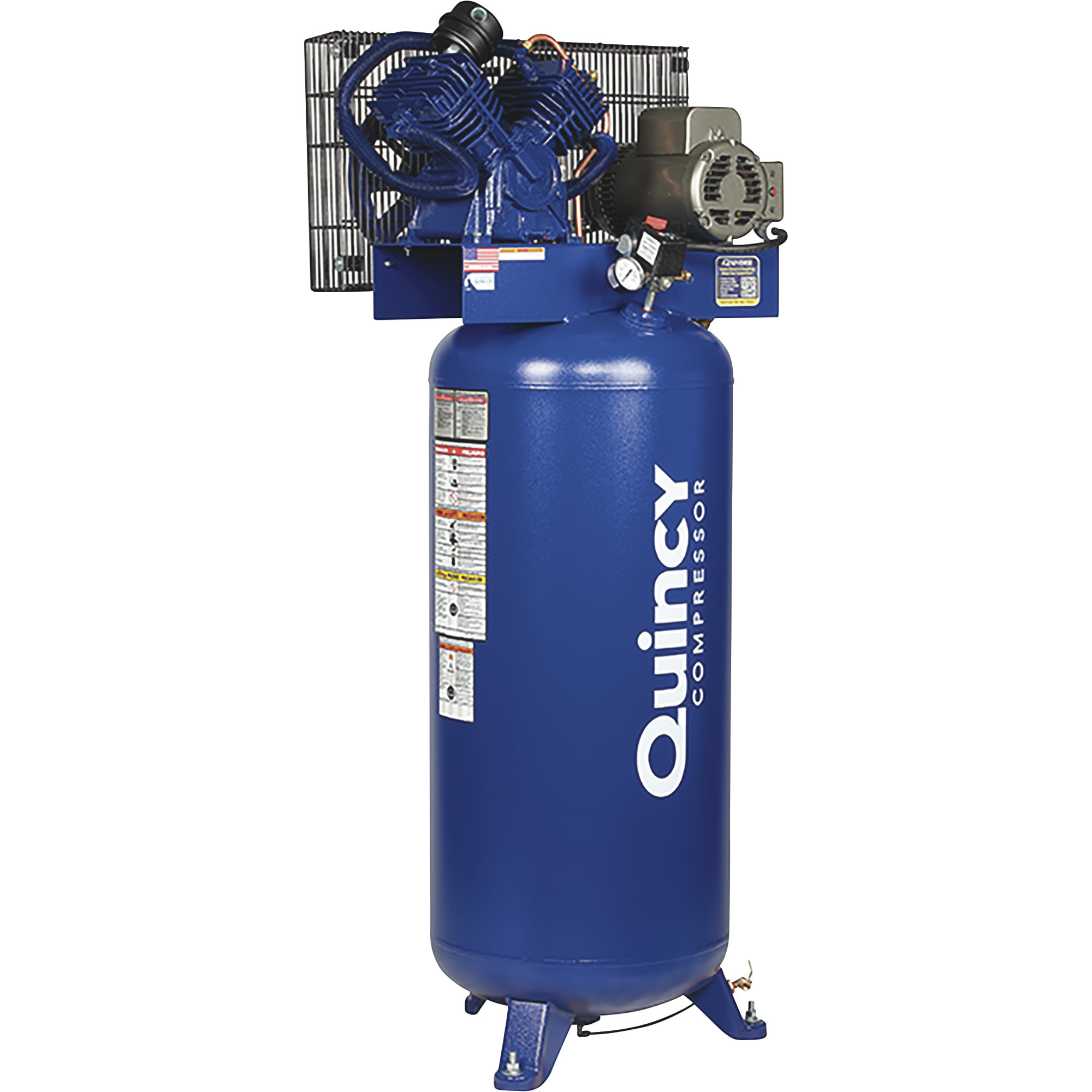

Quincy Compressor 5 HP, Air Tank Size 60 Gal, Volts 208 Recip Comp Model # 2V41C60VC20

Item# 7358005
Quincy Compressor 5 HP, Air Tank Size 60 Gal, Volts 208 Recip Comp Model # 2V41C60VC20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Quincy Compressor 5 HP, Air Tank Size 60 Gal, Volts 208 Recip Comp Model # 2V41C60VC20

Click or Tap image to Zoom

$2299.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy Duty Made in the USA Baldor Motor
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 Working PSI
  • 50,000+ Hours Pump LIfe
  • Heavy duty 4-cylinder cast iron two-stage pump

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This new line of Quincy air compressors using dedicated ‘MADE IN THE USA’ Baldor single phase 208 volt motors reduces failures due to undervoltage and reduces field failures where 230 volt machines are used in 208 volt power applications.  They eliminate the need for expensive buck boosters to address these low voltage environments.  These low voltage environments are common in such geographic markets as Texas, Illinois, New York, parts of Minnesota, California, Washington, Georgia, and many parts of the southeast.

What's Included

    (1) Quincy Compressor 5 HP, Air Tank Size 60 Gal, Volts 208 Recip Comp Model # 2V41C60VC20

Features + Benefits

  • Heavy Duty Made in the USA Baldor Motor
  • Less than 5 PPM oil carry-over (blow-by) rating
  • 135-175 Working PSI
  • 50,000+ Hours Pump LIfe

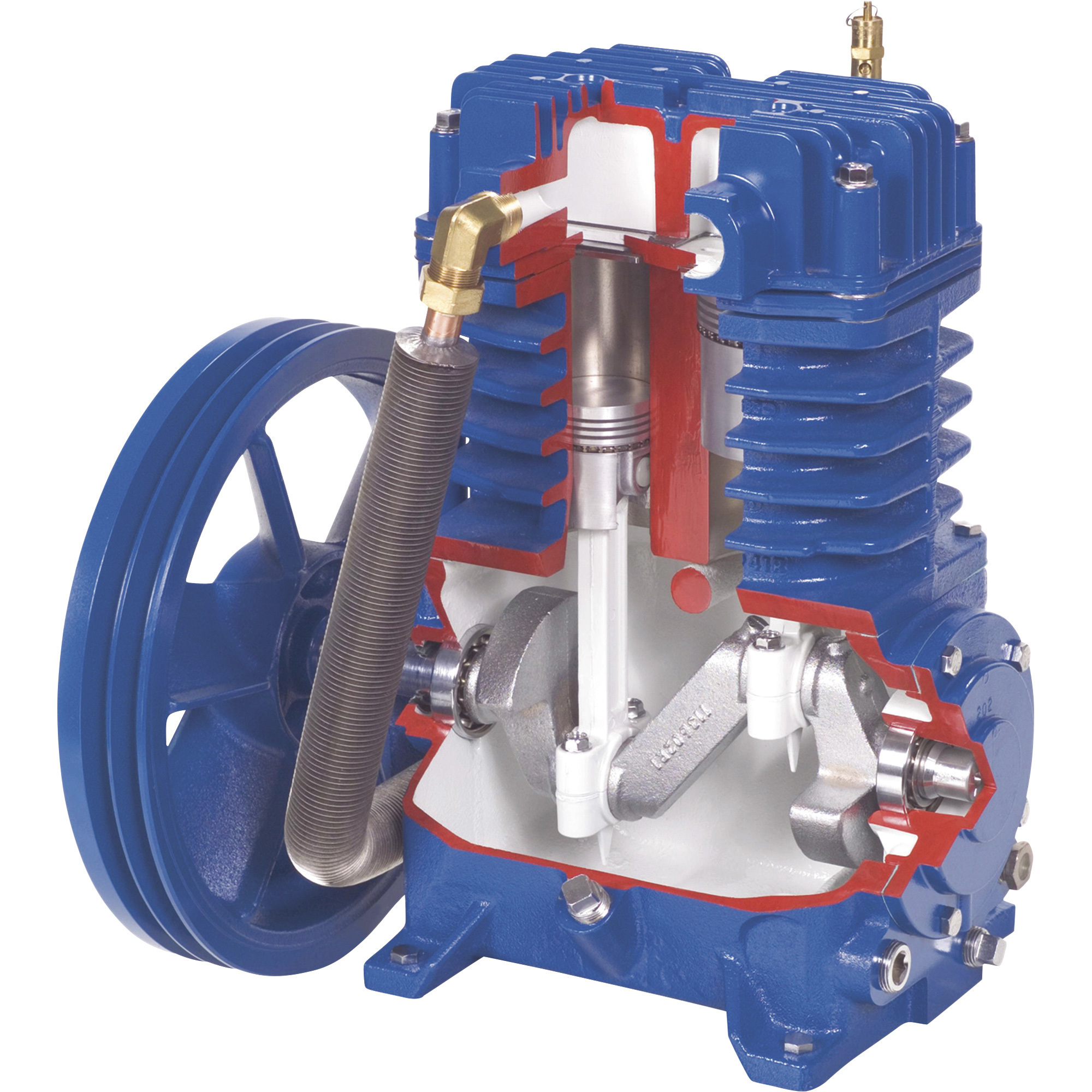

  • Heavy duty 4-cylinder cast iron two-stage pump
  • Heavy-duty, easy-to-reach, manual ball valve
  • 2-stage belt drive pump with solid cast iron cylinder
  • Motor RPM: 3450
  • Finned tube intercooler for maximum cooling and increased valve life
  • Aluminum head for heat dissipation
  • Extra-capacity oil reservoir for low oil temperatures
  • Cast iron fly wheel for energy efficiency and durability
  • 100% duty cycle
  • Splash lubricated
  • UL & CSA approval on all electrical components
  • ASME-coded pressure relief valves and steel tanks
  • Quincy recommends a 50 Amp circuit breaker along with properly sized wire. Installations may vary but all electrical work should be done through a licensed electrician.
  • Pump speed is 1310 RPM
  • Additional charge for liftgate shipping option
  • Ships in heavy-duty protective crate with oil in the pump

Key Specs

AttributeSpecification

item#

7358005

Brand

Quincy Compressor

Manufacturer's Warranty

1 year limited warranty

Ship Weight

350.0 LB

Horsepower

5 HP

Air Tank Size

60 Gal

Volts

208

CFM at 90 PSI

15.4

Max. PSI

175

Stage

2

Amps

24

Duty Cycle

100 %

Motor RPM

3,450

Working Pressure

135-175 PSI

Engine Start Type

Electric

Motor Phase

1
AttributeSpecification

Pump Life

50,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

15.6

CFM at Max. PSI

15.2

Noise Level

80 dB

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Tank Fill Time

6.5 min

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

330.0000 lb

Dimensions L x W x H (in.)

22.53 x 30.24 x 69.52 in

Reviews

Questions & Answers

Questions

  1. Can the item number 7358005 be wired on a standard 240v residential circuit?? If not what other hardware is required for this application?? Thanks

    1 answer

    1. The air compressor could not be wired to a standard residential 240 volt circuit without conversion equipment.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
