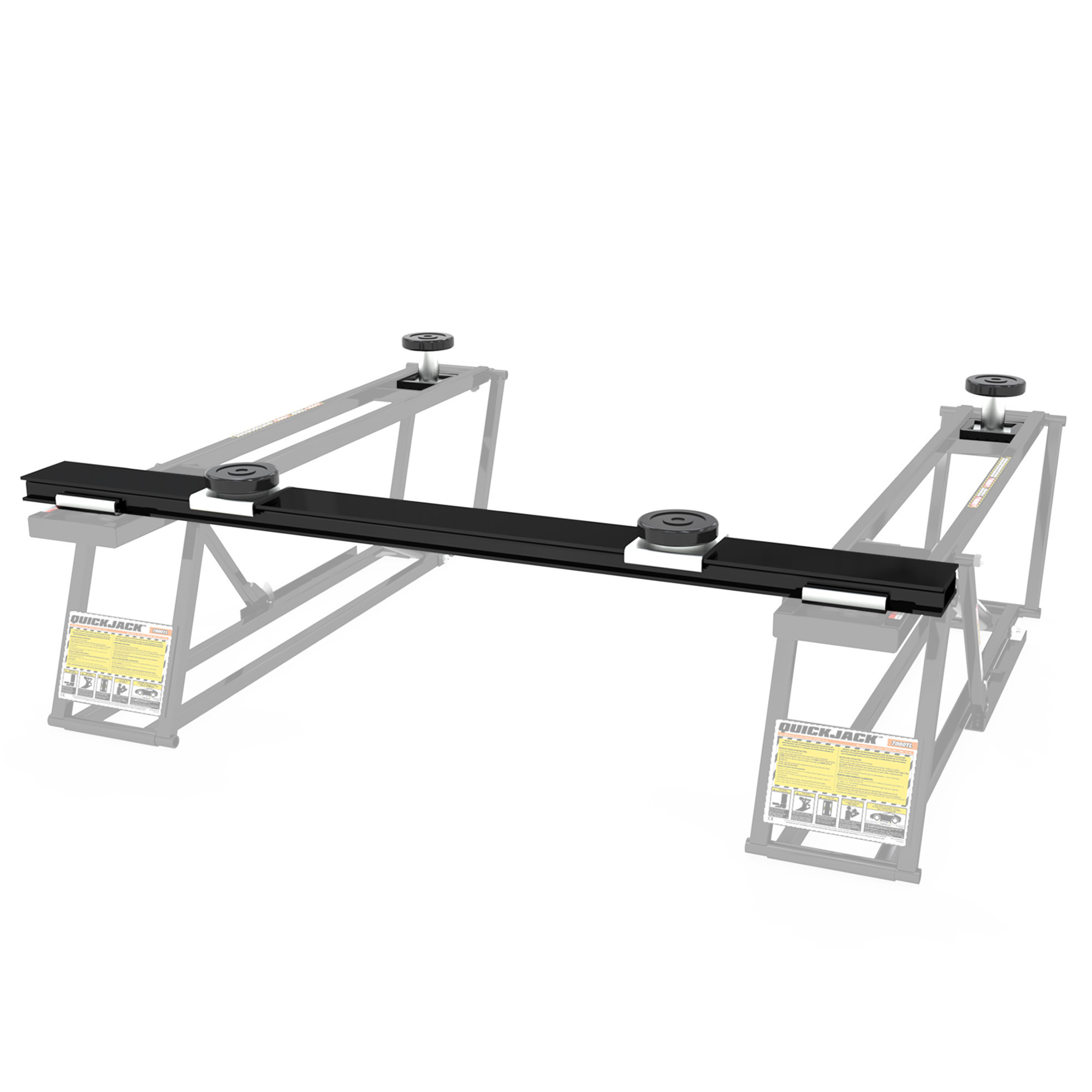

QuickJack, QuickJack Crossbeam Adapter Set For 7000 Series, Capacity 7000 lb, Included (qty.) 1 Model# 5215866

Item# 5896846
"QuickJack, QuickJack Crossbeam Adapter Set For 7000 Series, Capacity 7000 lb, Included (qty.) 1 Model# 5215866"
QuickJack, QuickJack Crossbeam Adapter Set For 7000 Series, Capacity 7000 lb, Included (qty.) 1 Model# 5215866

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

QuickJack, QuickJack Crossbeam Adapter Set For 7000 Series, Capacity 7000 lb, Included (qty.) 1 Model# 5215866

Click or Tap image to Zoom

$525.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The only difference between the two versions is the height of the lift adapter pads. Since the 7000 series lifting trays are slightly deeper than the 5000 series trays, we made the lift adapters slightly taller to accommodate. All other specifications are exactly the same.
  • Reaches difficult lifting points front to rear
  • Adjustable lifting pads
  • Comes with custom contact pads
  • Unobstructed undercarriage

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

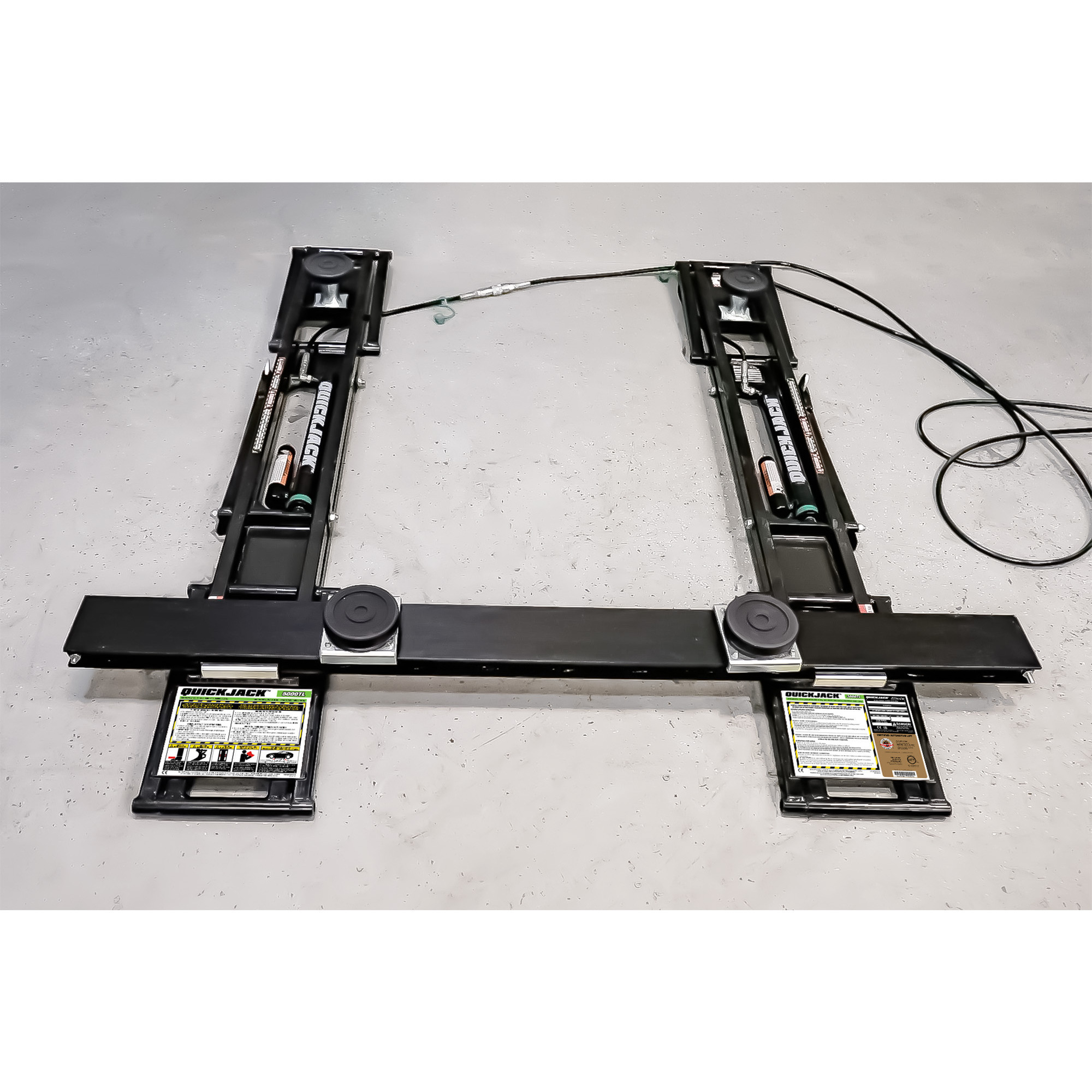

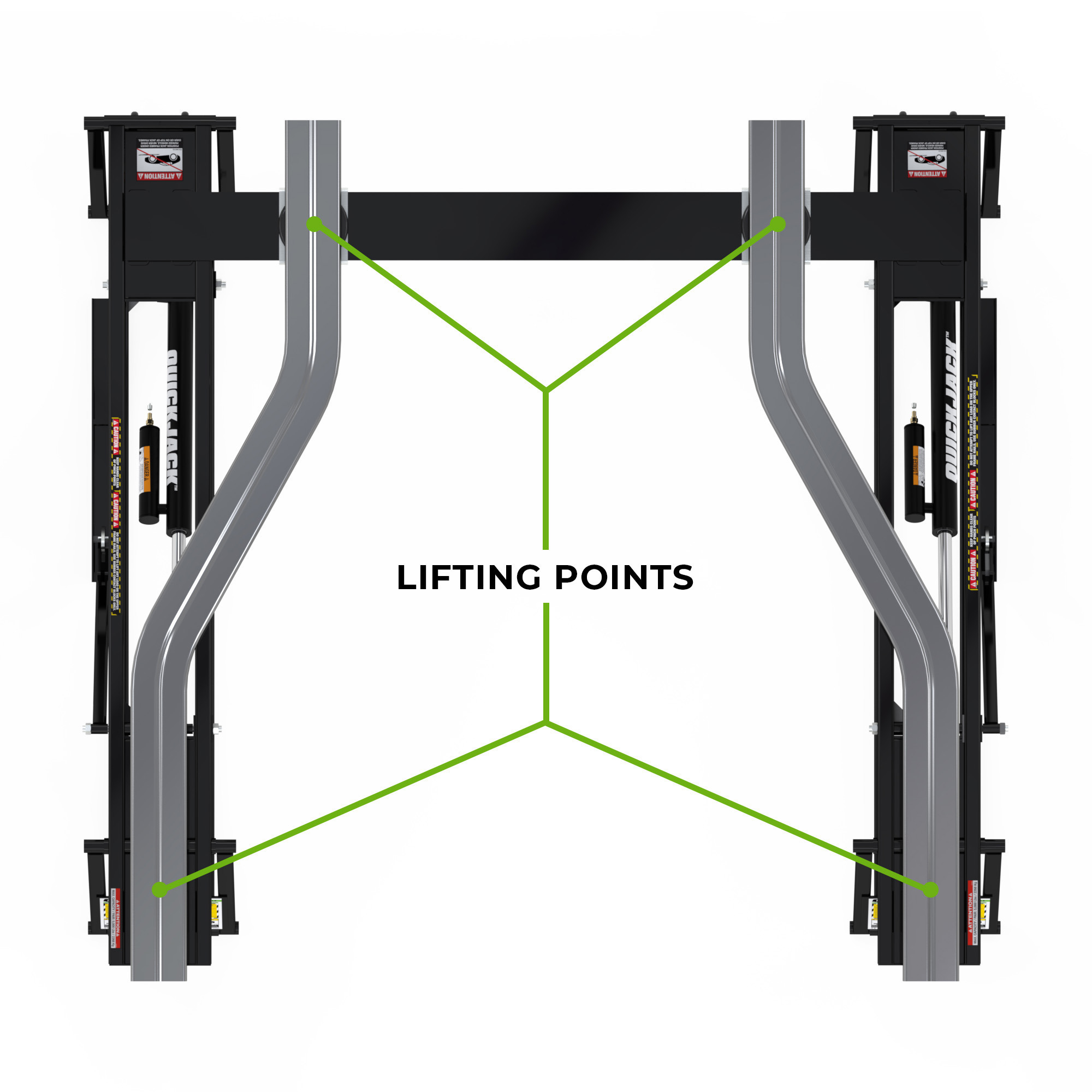

QuickJack System Sold Separately The Crossbeam Adapter Set fits securely in the lifting trays of each QuickJack frame and has a rail for special contact pads to slide along, making it simple to find the correct lifting points on any car or truck! The lower feet placed in the QuickJack trays can also slide easily along the crossbeam, which allows you to position your QuickJack frames as near or far as you want up to its 65” length. The Crossbeam Adapter Set even adds 4.75” clearance height, giving you a little extra room while you’re working underneath. Some cars may have staggered or uneven lifting points, and many trucks might have kicked frame rails, this can sometimes make lifting your vehicle with a QuickJack challenging. The Crossbeam Adapter Set can give your QuickJack some of the capabilities of a two-post lift by allowing you to position contact pads directly under even the most staggered lifting points around. Though you can easily and safely lift your car with your QuickJack placed sideways, it may obstruct your undercarriage, which can make some maintenance difficult or impossible to perform. The Crossbeam Adapter Set can reach all of your recommended lifting points while leaving your undercarriage completely free!

What's Included

    (1) Crossbeam weldment (2) Sliding base pad assemblies (2) Sliding lift pad assemblies (2) Base height adapter assemblies (2) Round lift pad adapter assemblies

Features + Benefits

  • The only difference between the two versions is the height of the lift adapter pads. Since the 7000 series lifting trays are slightly deeper than the 5000 series trays, we made the lift adapters slightly taller to accommodate. All other specifications are exactly the same.
  • Reaches difficult lifting points front to rear
  • Adjustable lifting pads
  • Comes with custom contact pads
  • Unobstructed undercarriage
  • QuickJack System Sold Separately

Key Specs

AttributeSpecification

item#

5896846

Brand

QuickJack

Manufacturer's Warranty

1 year limited warranty

Ship Weight

100.0 LB

Capacity

7,000 lb

Accessories Type

Other
AttributeSpecification

Material

Steel

Color

Black

Length

65 in

Product Weight

100.0000 lb

Dimensions L x W x H (in.)

6.5 x 6.0 x 3.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What raises the vehicle?

    1 answer

    1. This is just a crossbeam to add to the QuickJack, 7000 LB car lift, item #107858. The lift would be raised by hydraulic cylinders.

      Helpful?

  2. Is this compatible with the 5000 series lift?

    1 answer

    1. Yes, this can be used with the 5000 series lift. However, since the 7000 series lifting trays are slightly deeper than the 5000 series trays, the lift adapters are made slightly taller to accommodate the difference. All other specifications are exactly the same.

      Helpful?

  3. is this a complete system with motor, hydraulic lines, fittings etc?

    1 answer

    1. This is the cross beam adapter only. For the complete lift, please see item 107858.

      Helpful?

  4. Is this a fixed lift to that height or with ramp to the top

    1 answer

    1. This is not the quick jack. This is the cross beam adapter only. The crossbeam adapter set can give your quick Jack some of the capabilities of a two-post lift by allowing you to position contact pads directly under even the most staggered lifting points on the vehicle.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
