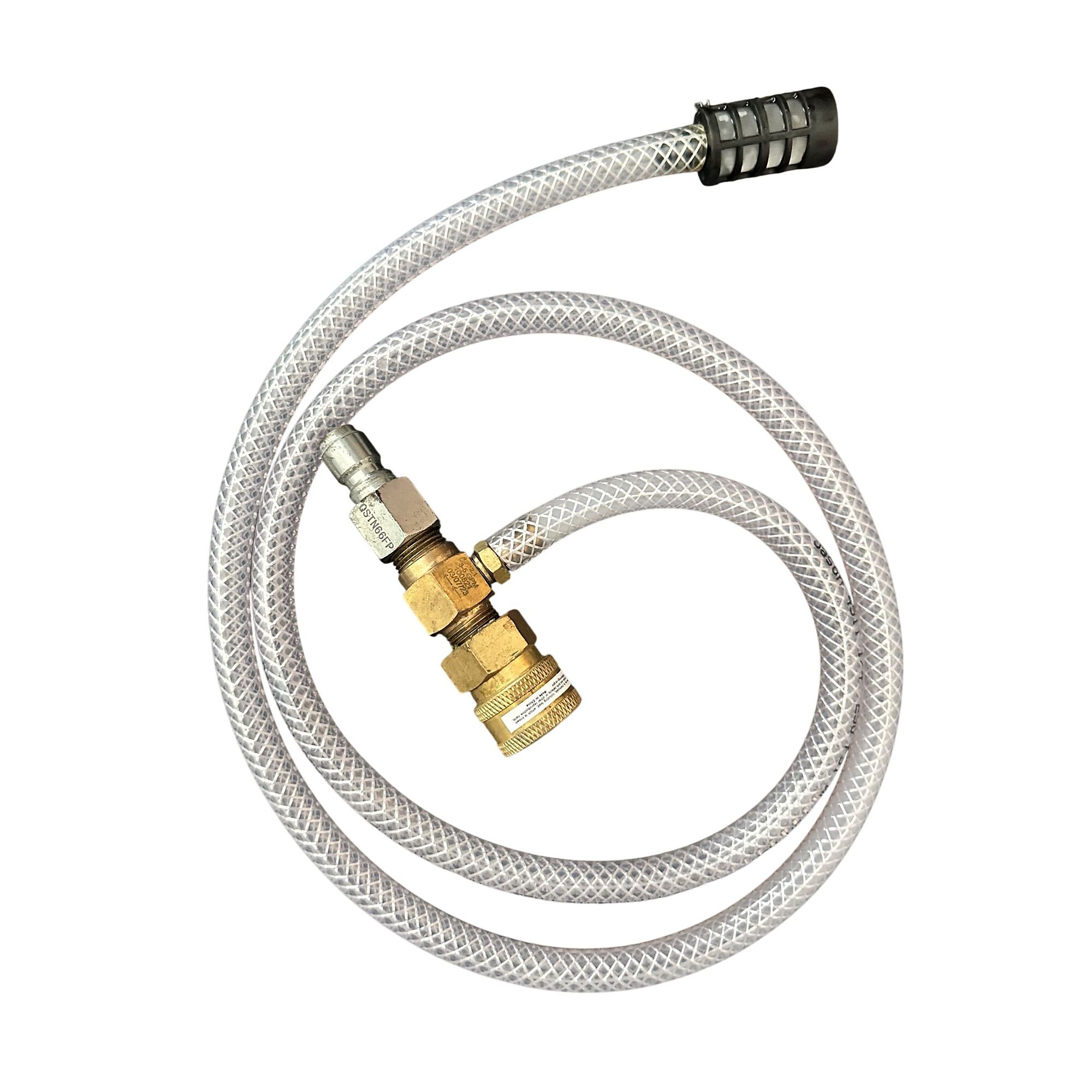

Pressure-Pro 3/8 in. Fixed Downstream Chemical Injector Assembly, 10% Chemical Draw, 3–5 GPM, 4,500 PSI

Item# 7713687
New1 Included
Pressure-Pro 3/8 in. Fixed Downstream Chemical Injector Assembly, 10% Chemical Draw, 3–5 GPM, 4,500 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Pressure-Pro 3/8 in. Fixed Downstream Chemical Injector Assembly, 10% Chemical Draw, 3–5 GPM, 4,500 PSI

Click or Tap image to Zoom

$17.78

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Fixed downstream chemical injector features a 10% nominal chemical draw ratio for convenient detergent application during pressure washing operations.
  • Designed for pressure washers operating between 3.0 and 5.0 GPM for efficient chemical injection performance.
  • Rated for operating pressures up to 4,500 PSI for demanding residential, commercial, and professional pressure washing applications.
  • Downstream injection design introduces cleaning detergents after the pressure washer pump, helping protect internal pump components from chemical exposure.

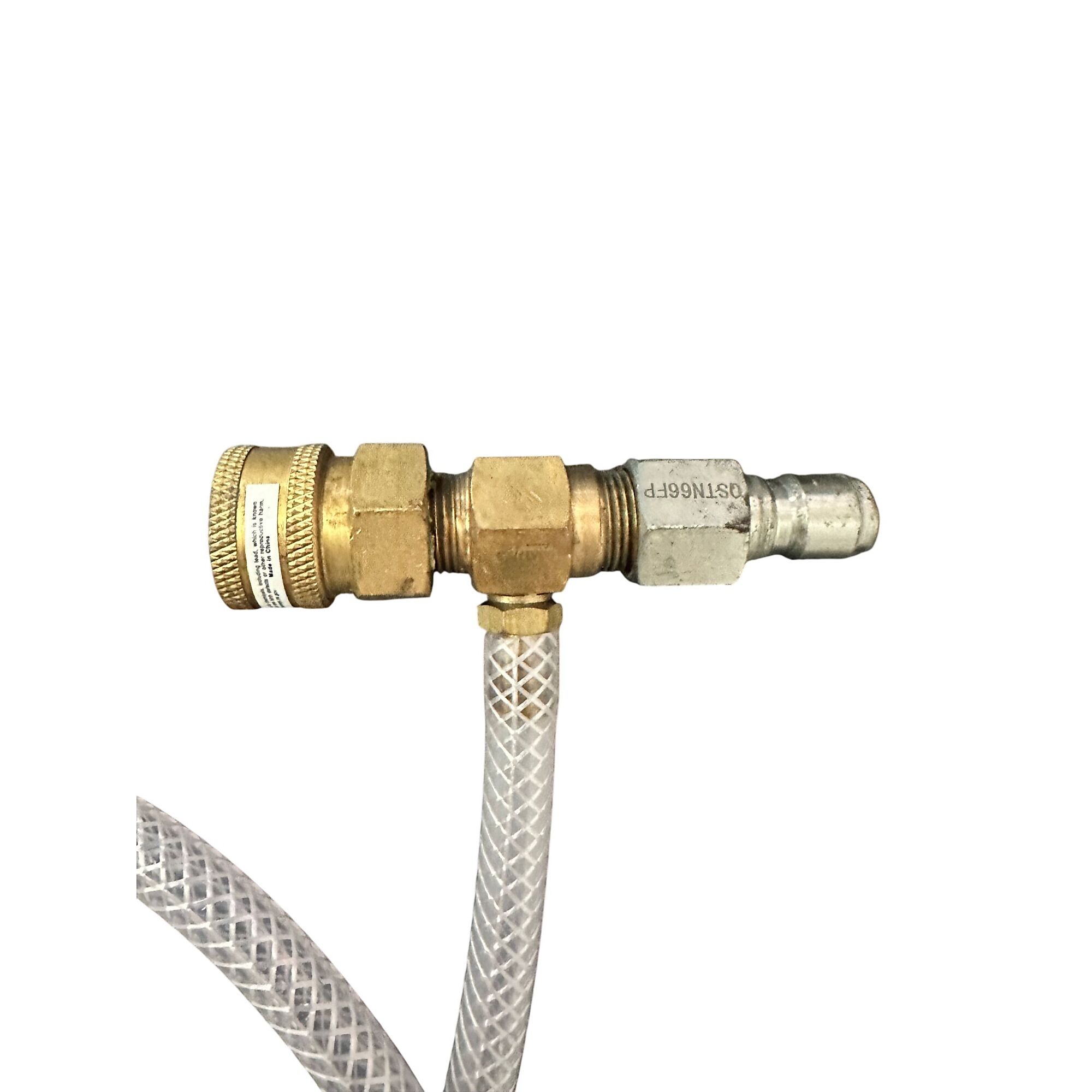

  • Includes 3/8 in. quick-connect socket and plug for fast, convenient installation with compatible pressure washing equipment.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Pressure-Pro ACI205 Fixed Downstream Chemical Injector Assembly provides a convenient solution for applying cleaning detergents with compatible pressure washing equipment. Designed for operating pressures up to 4,500 PSI and flow rates between 3.0 and 5.0 GPM, this injector features a fixed 10% nominal chemical draw ratio for efficient detergent application. The downstream injection design introduces cleaning solutions after the pressure washer pump, helping protect internal pump components from chemical exposure. The complete assembly includes 3/8in. quick-connect inlet and outlet fittings, a 4ft. reinforced chemical pickup hose, and a chemical strainer for convenient detergent delivery. Designed for use with compatible low-pressure spray nozzles, the ACI205 is ideal for residential, commercial, and professional cleaning applications, including siding, building exteriors, vehicles, and equipment.

What's Included

    (1) 3/8 in. Downstream Chemical Injector Assembly

Features + Benefits

  • Fixed downstream chemical injector features a 10% nominal chemical draw ratio for convenient detergent application during pressure washing operations.
  • Designed for pressure washers operating between 3.0 and 5.0 GPM for efficient chemical injection performance.
  • Rated for operating pressures up to 4,500 PSI for demanding residential, commercial, and professional pressure washing applications.
  • Downstream injection design introduces cleaning detergents after the pressure washer pump, helping protect internal pump components from chemical exposure.
  • Includes 3/8 in. quick-connect socket and plug for fast, convenient installation with compatible pressure washing equipment.

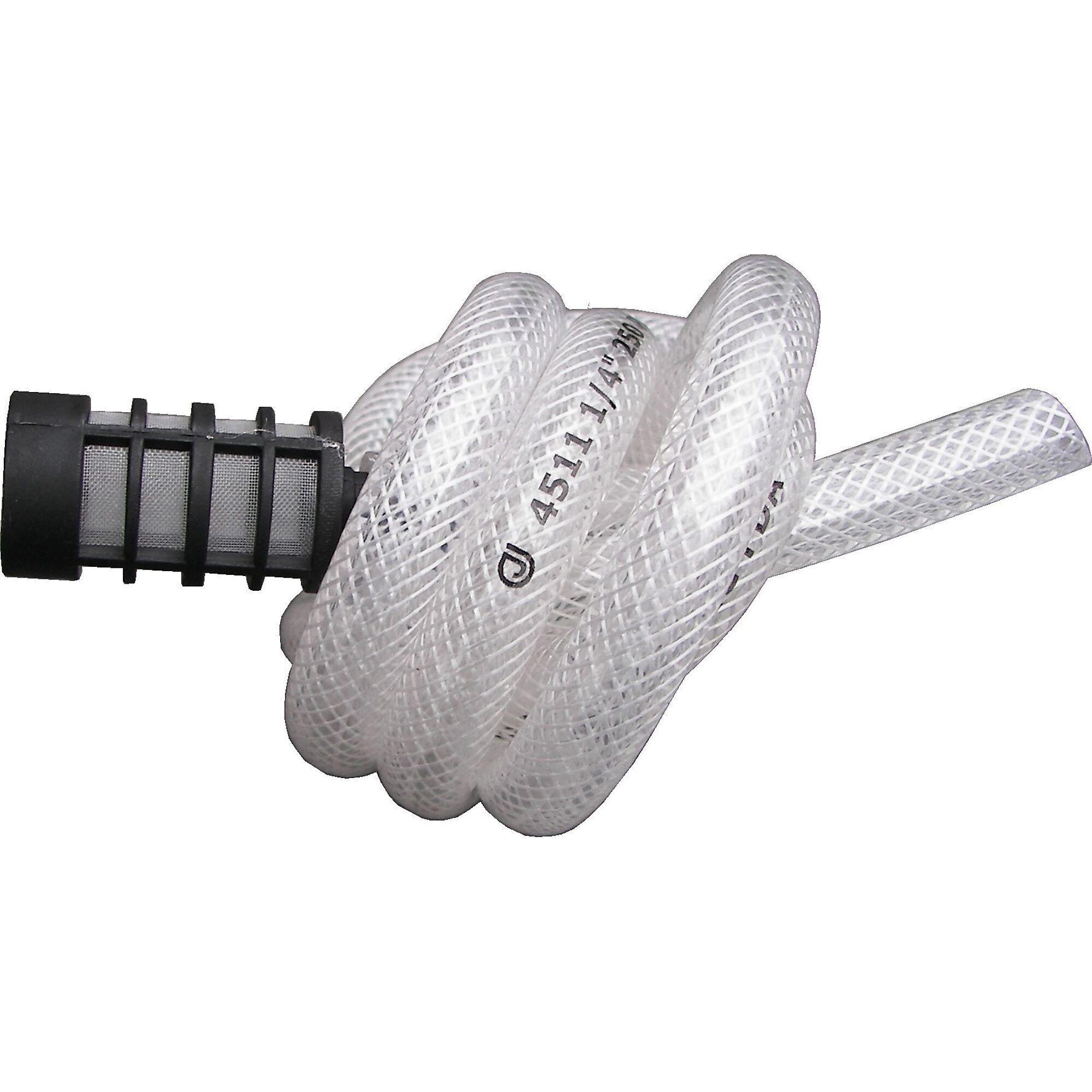

  • Complete assembly includes a 4 ft. reinforced chemical pickup hose and strainer for convenient detergent application.
  • Chemical strainer helps prevent debris from entering the injector system, while the fixed 10% nominal draw ratio supports consistent detergent application.
  • Ideal for cleaning building exteriors, siding, vehicles, equipment, and other outdoor surfaces requiring detergent application.

Key Specs

AttributeSpecification

item#

7713687

Brand

PSI Pro Group

Manufacturer's Warranty

3 month limited warranty

Ship Weight

2.0 LB

Fits Inlet

3/8 in

Max. PSI

4,500
AttributeSpecification

GPM

5

Included (qty.)

1

Female Inlet

0.38 in

Male Outlet

0.38 in

Product Weight

1.0000 lb

Dimensions L x W x H (in.)

7.0 x 3.0 x 3.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 month limited warranty
