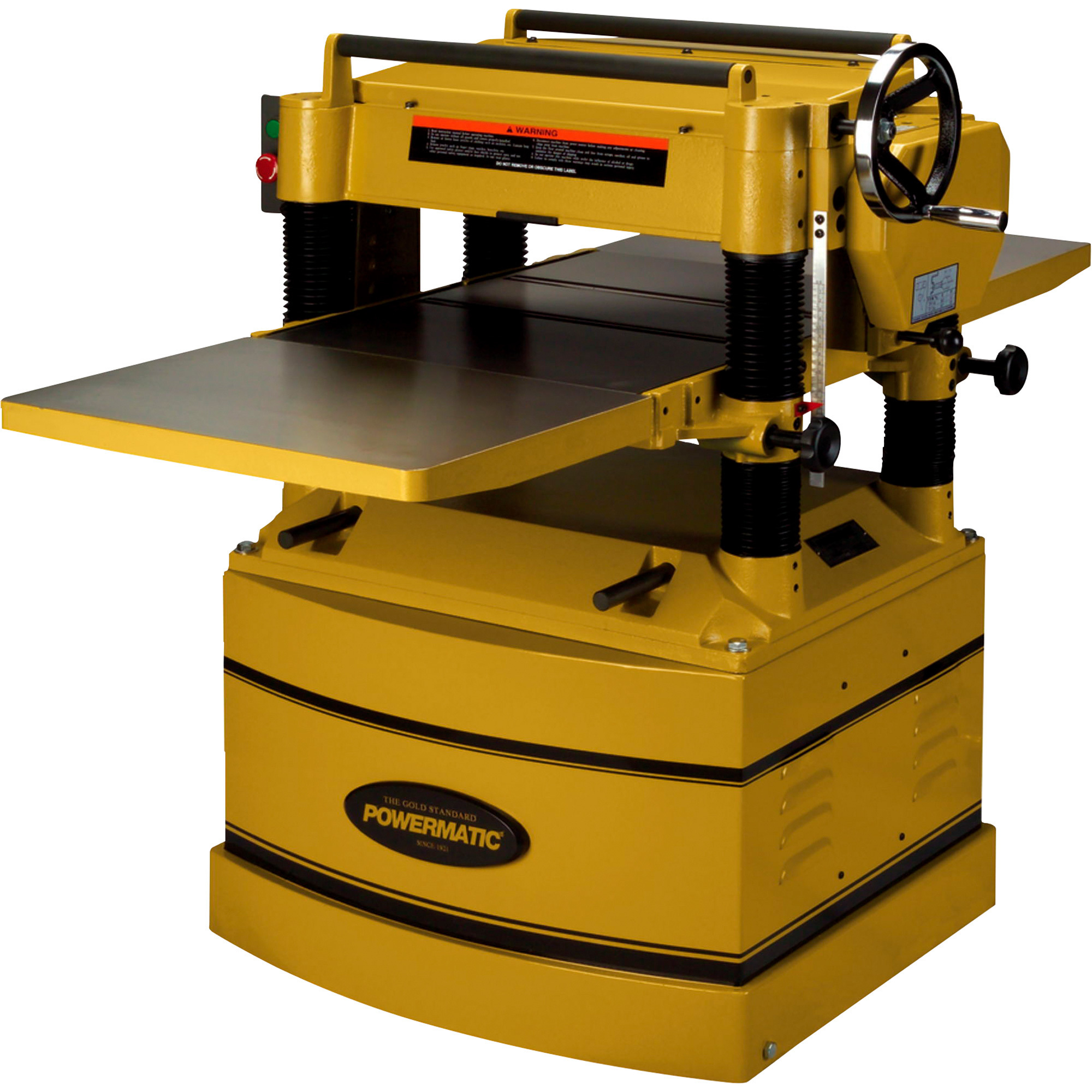

Powermatic Wood Planer 209, 4 Knives, 4-Speed, 5 HP, 3 PH, 230/460 Volts

Item# 84655
"Powermatic Wood Planer 209, 4 Knives, 4-Speed, 5 HP, 3 PH, 230/460 Volts"
Powermatic Wood Planer 209, 4 Knives, 4-Speed, 5 HP, 3 PH, 230/460 Volts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Wood Planer 209, 4 Knives, 4-Speed, 5 HP, 3 PH, 230/460 Volts

Click or Tap image to Zoom

$5168.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

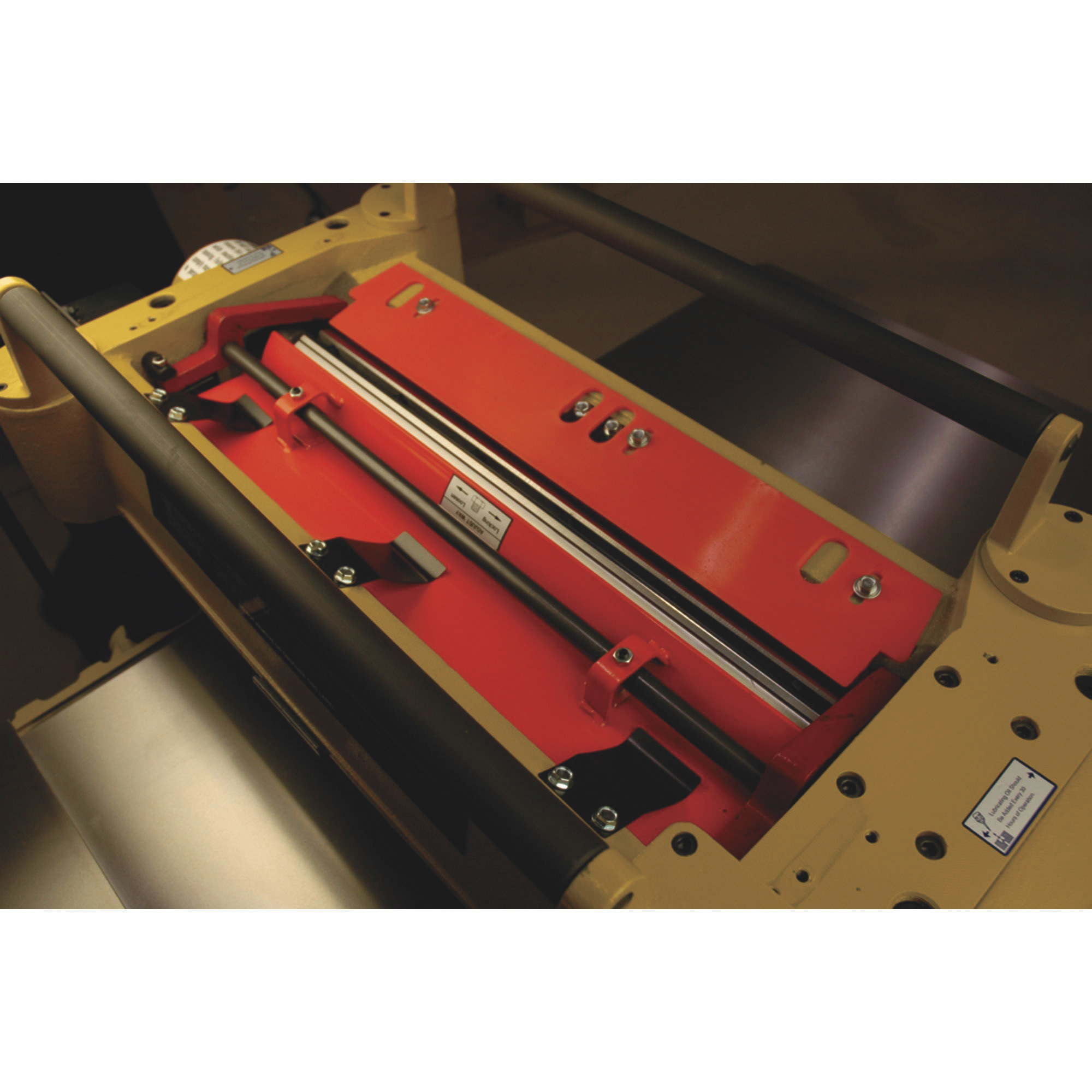

  • Knife setting gauge
  • 5 HP motor
  • 20in. planing capacity for heavy-duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55 1/2in. x 20in. working area

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powermatic Wood Planer 209, 4 Knives, 4-Speed, 5 HP, 3 PH, 230/460 Volts
  • Shop Fox Dust Collector - 1.5 HP, 1,280 CFM, 6in. Inlet, Dual 4in. Ports, Model# W1685
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all four:

$5787.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powermatic 209 Planer is a heavy-duty planer with standard features not found on other machines in its class. The powerful 5 HP motor and 20in. planing capacity will handle the most demanding work. The 5in. dust port connects easily to any dust collector. The cutterhead has 4 high-speed steel knives and turns at 5000 RPM, producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision-ground and polished cast iron table rides on 4 steel columns, giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

What's Included

    (1) Powermatic 209 Planer, 4 Knives, 4-Speed, 5 HP, 3 PH, 230/460 Volts

Features + Benefits

  • Knife setting gauge
  • 5 HP motor
  • 20in. planing capacity for heavy-duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55 1/2in. x 20in. working area
  • 4 feed speeds: 24 and 31 FPM, 16 and 20 FPM with gear change, for versatility

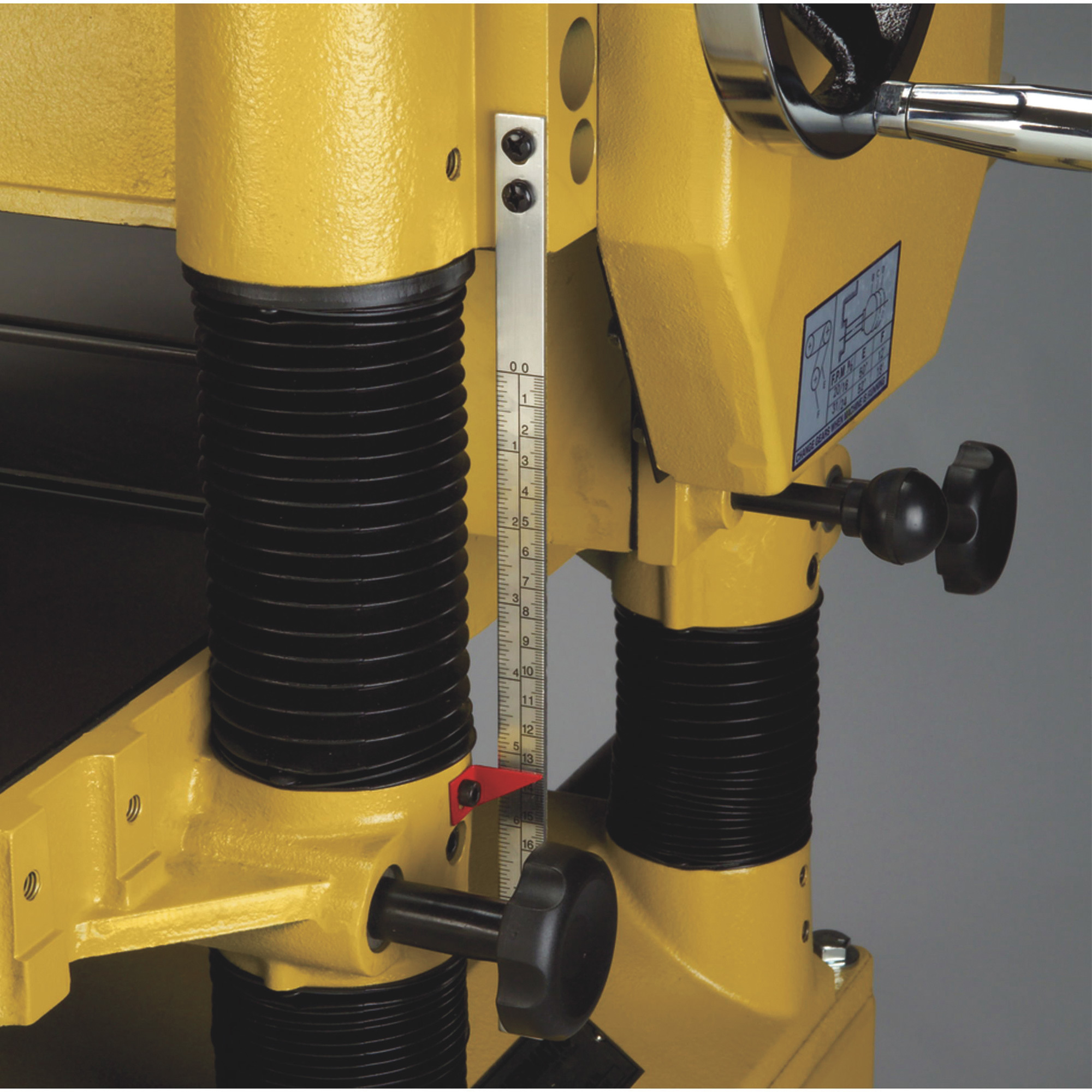

  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • 460V operation requires an additional 460V magnetic switch, part# 209-5016E
  • Standard Equipment: single-sided knives, 5in. diameter dust port

Key Specs

AttributeSpecification

item#

84655

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

770.0 LB

Product Type

Planers

Max. Cutting Depth

0.094 in
AttributeSpecification

Knives (qty.)

4

Cutterhead Speed

5,000 rpm

Amps

2

Helical Head

No

Product Weight

880.0000 lb

Dimensions L x W x H (in.)

26.0 x 36.63 x 41.4 in
