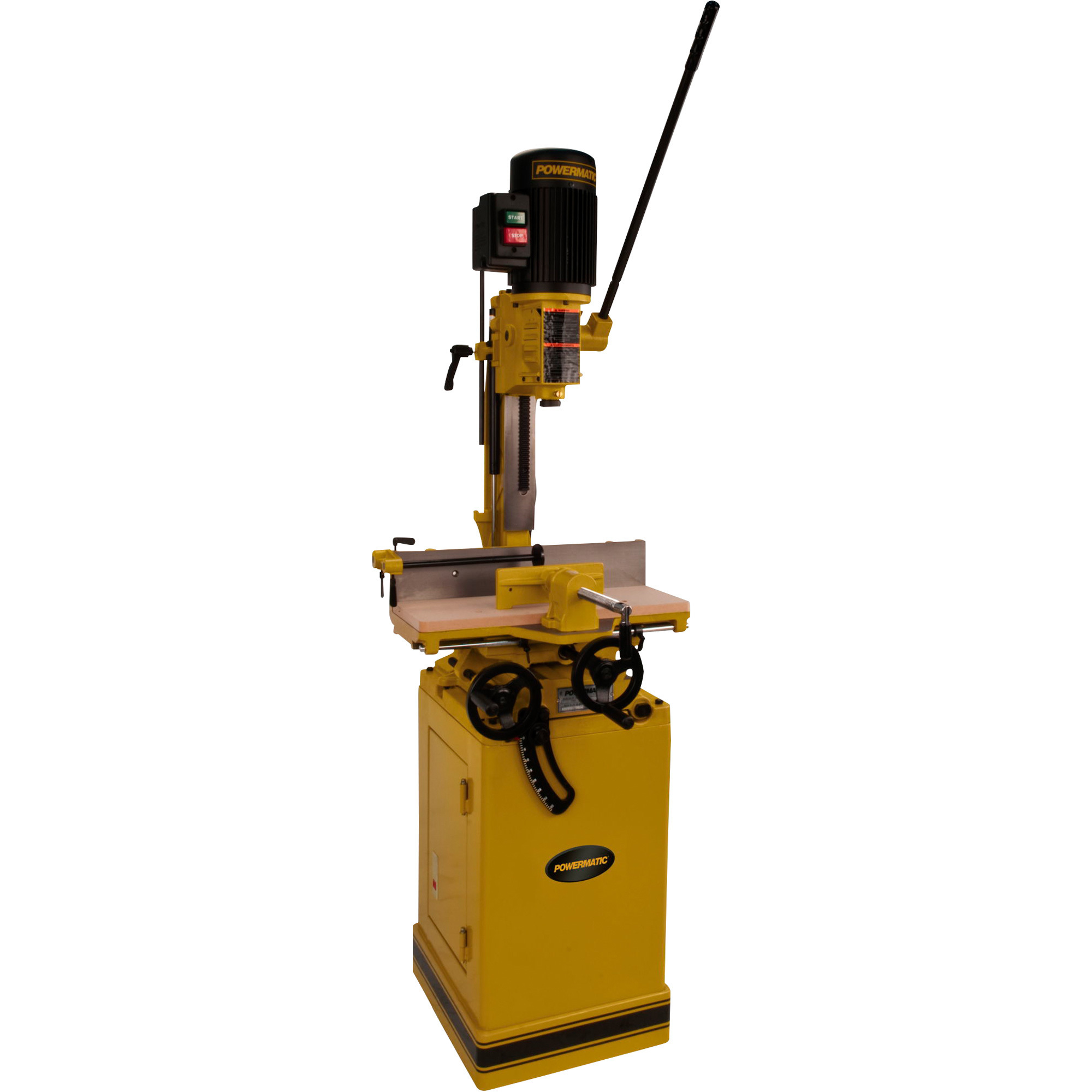

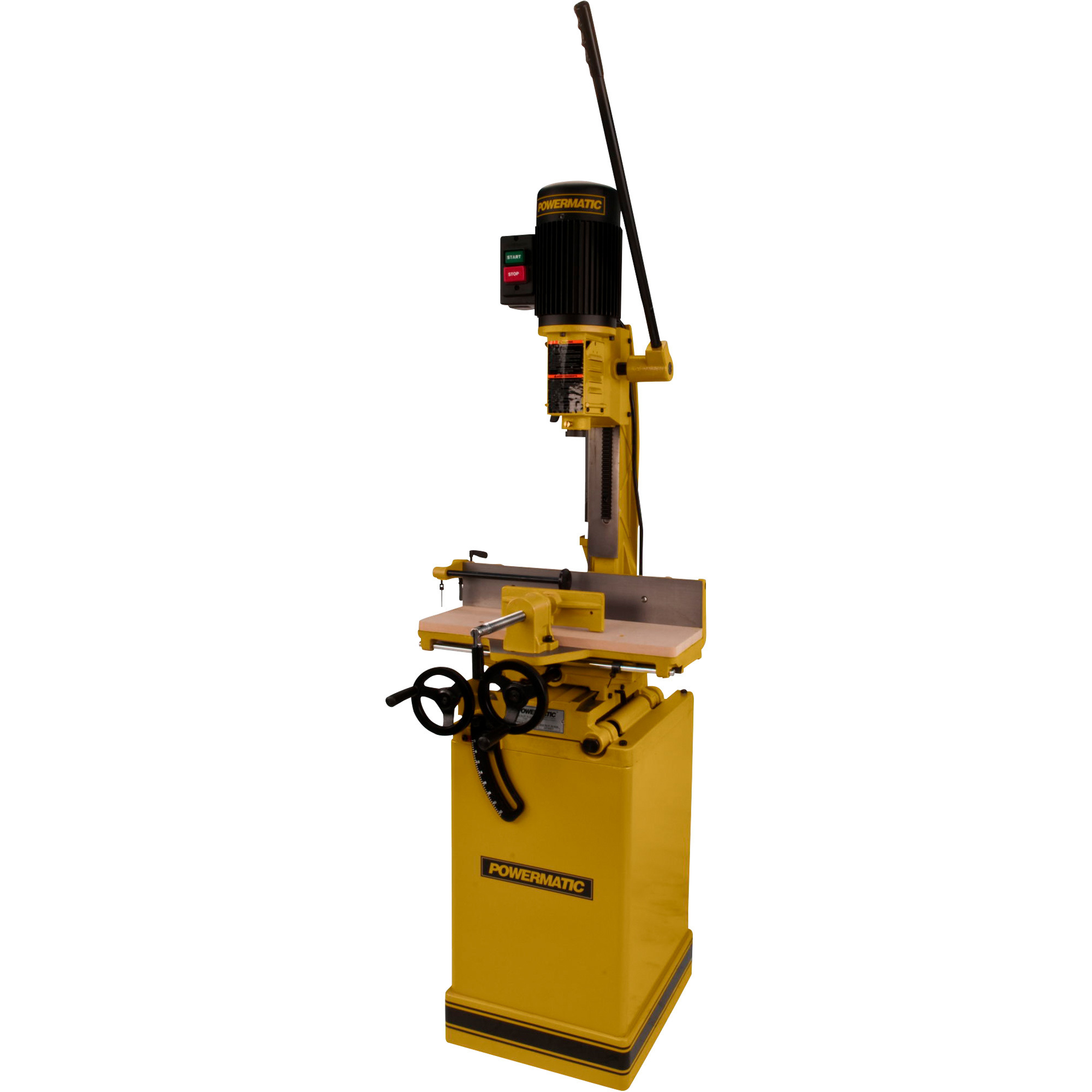

Powermatic Tilt Table Mortiser, 1 HP, 1 PH, 115/230 Volt, 1/2in., Model# 719T

Item# 84644
Top Seller
Powermatic Tilt Table Mortiser, 1 HP, 1 PH, 115/230 Volt, 1/2in., Model# 719T

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Tilt Table Mortiser, 1 HP, 1 PH, 115/230 Volt, 1/2in., Model# 719T

Click or Tap image to Zoom

$1979.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Hinged chuck door allows easy access for quick bit changes
  • Quick-adjust depth stop for uniform mortise depths
  • 5/8in., 3/4in. and 1 1/8in. included bushings allow multiple chisel shank sizes
  • Hand wheels to control smooth linear and cross table motions
  • Adjustable work stop for repeat cuts

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powermatic Tilt Table Mortiser, 1 HP, 1 PH, 115/230 Volt, 1/2in., Model# 719T
  • Powermatic Premium Mortise Chisel & Bit Set, 4-Pc., Model 17910960
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
Price for all four:

$2337.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powermatic Tilt Table Mortiser features heavy-duty cast iron construction and a powerful 1 HP motor for the most demanding jobs. The head is mounted using adjustable gibs to assure years of trouble-free service. The heavy rack and pinion gear system utilizes a spring-loaded 6-position adjustable handle for movement. A handy depth stop gives a uniform depth of mortise. A large 20 1/4in. x 7in. table offers plenty of work support and will adjust to any angle between 0° and 35°. The table can also move left to right and forward and back on dovetail ways with the large hand wheel controls. Adjustable linear stops and flip-down stop allow for precision repeatability. The quick-adjust clamp provides plenty of work-holding force and will swivel to accommodate angled workpieces. The heavy enclosed steel cabinet provides plenty of storage inside for chisels and accessories.

What's Included

    (1) Tilt table mortiser

Downloads

Product Manual

Features + Benefits

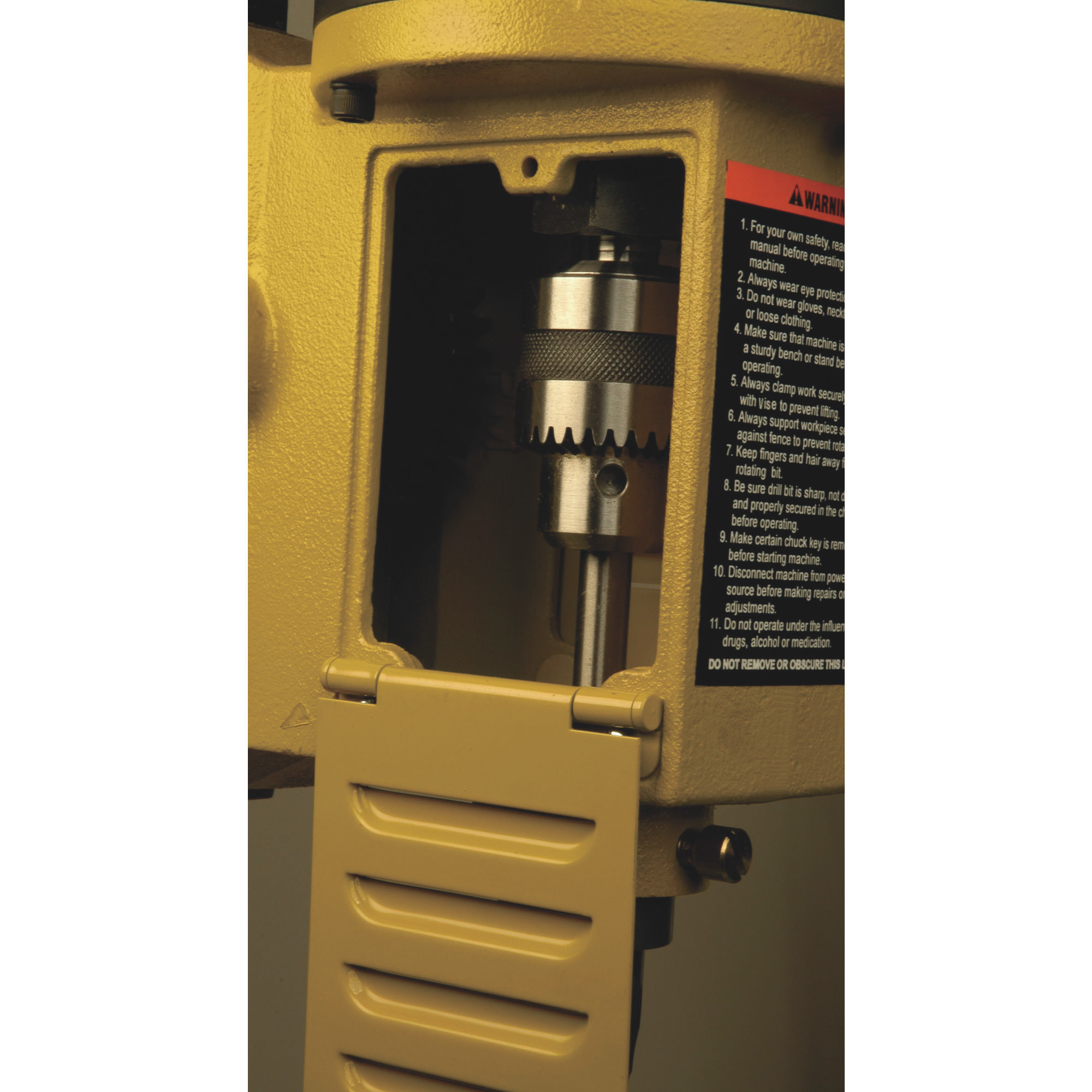

  • Hinged chuck door allows easy access for quick bit changes
  • Quick-adjust depth stop for uniform mortise depths
  • 5/8in., 3/4in. and 1 1/8in. included bushings allow multiple chisel shank sizes

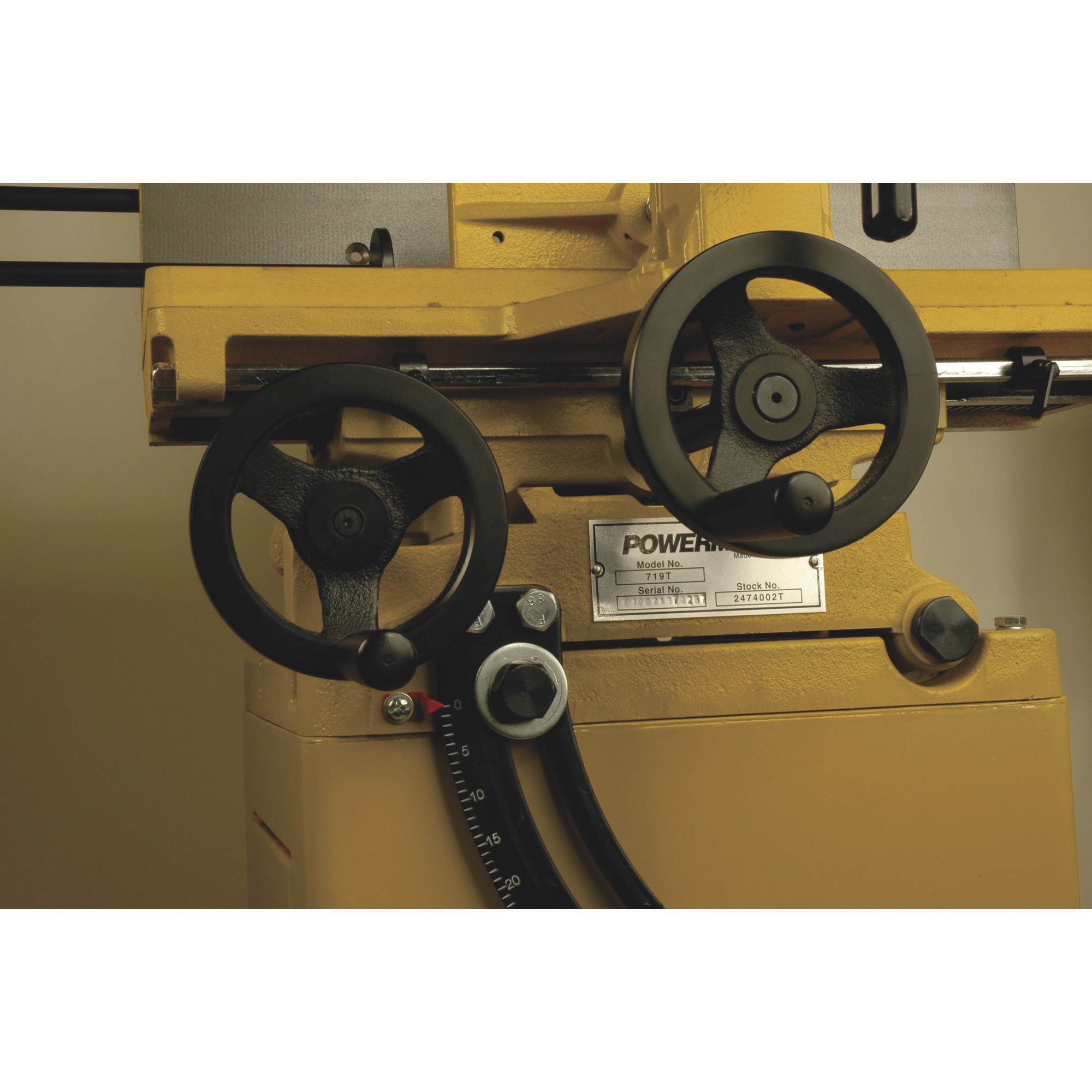

  • Hand wheels to control smooth linear and cross table motions
  • Adjustable work stop for repeat cuts
  • Sturdy cast iron construction with precision-machined column and table

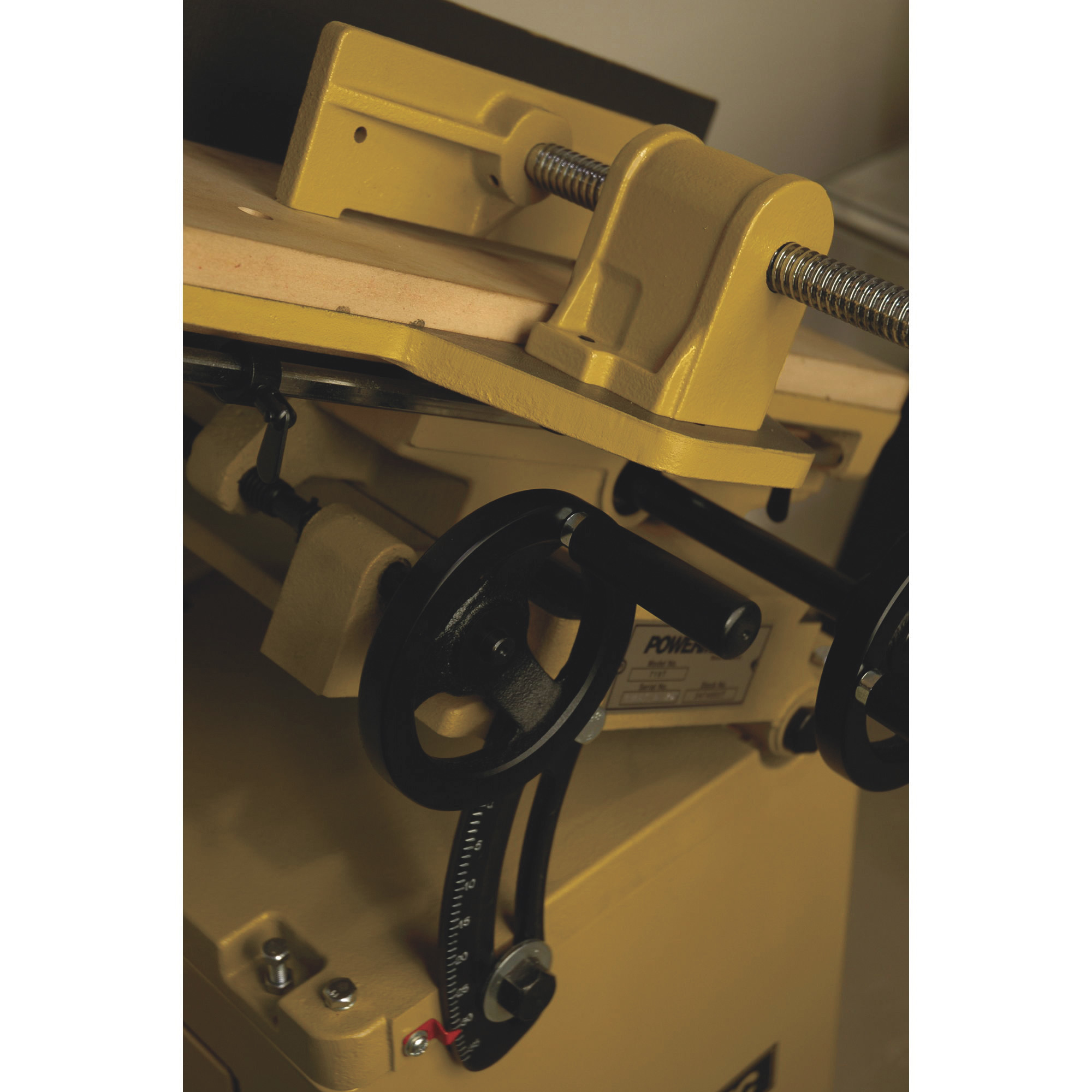

  • Quick-position table-mounted swiveling vise clamp accommodates angled work pieces
  • Feed lever features size positions allowing for quick adjustments
  • Table and fence tilt from 0-30° for angled mortises
  • Gas cylinder controlled rack and pinion system for smooth head raising and lowering

Key Specs

AttributeSpecification

item#

84644

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

292.0 LB

Chuck Size

0.5 in

Horsepower

1
AttributeSpecification

Max. RPM

2,000

Min. RPM

0

Volts

115/230

Amps

11

Product Weight

292.0000 lb

Dimensions L x W x H (in.)

7.0 x 20.25 x in
