Powermatic Tilt/Slide Shaper, 7.5 HP, 3 PH, 230/460V, Model# TS29

Item# 84793
Top Seller
Powermatic Tilt/Slide Shaper, 7.5 HP, 3 PH, 230/460V, Model# TS29

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Tilt/Slide Shaper, 7.5 HP, 3 PH, 230/460V, Model# TS29

Click or Tap image to Zoom

$15,396.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Sliding table with 4ft. stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons
  • Fully adjustable fence with dual digital readout for fast, accurate setup and repeatability
  • Large table has built-in slider with room for stock feeder
  • 7in. vertical spindle travel allows stacked tooling
  • Spindle tilts -5° to + 45° for increased versatility

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

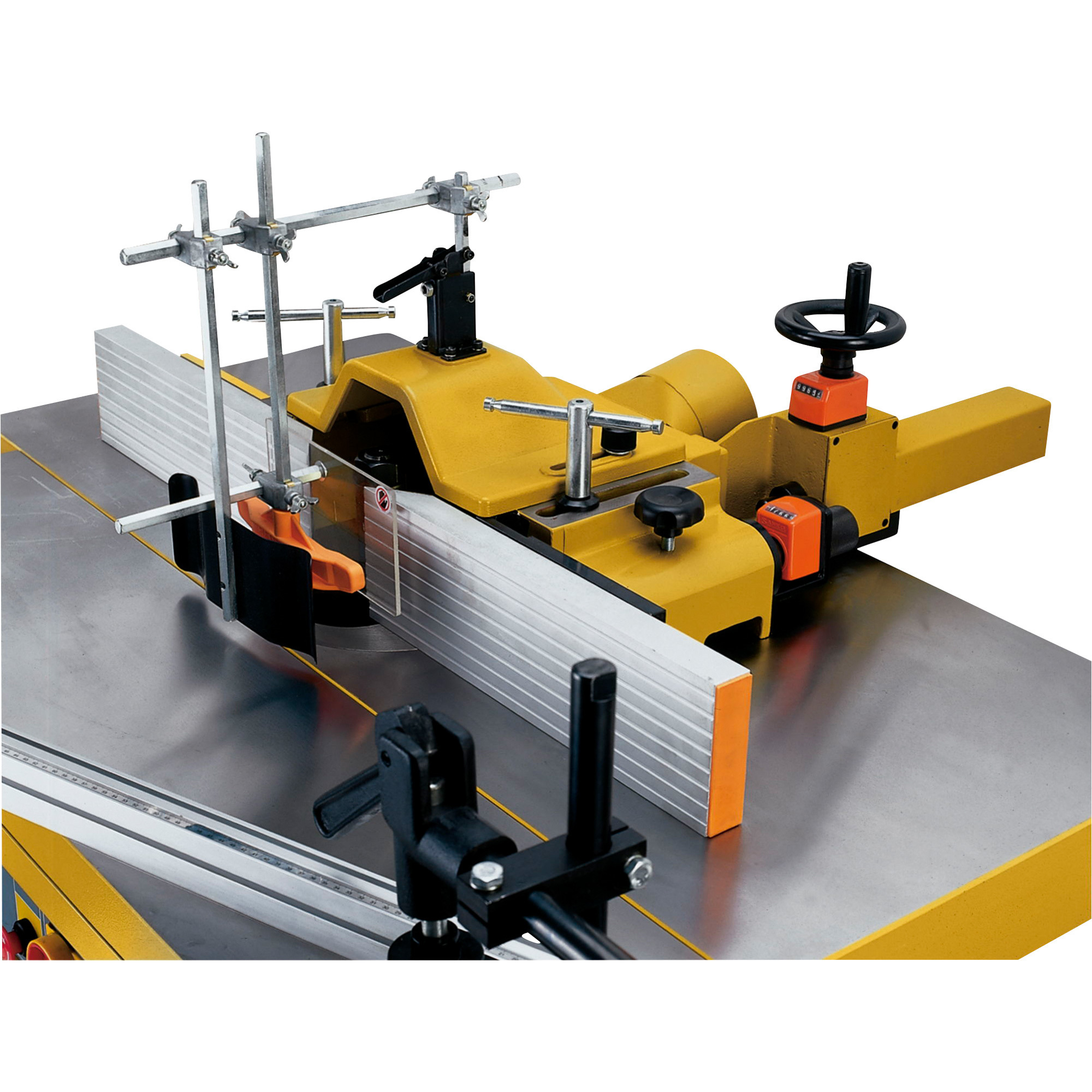

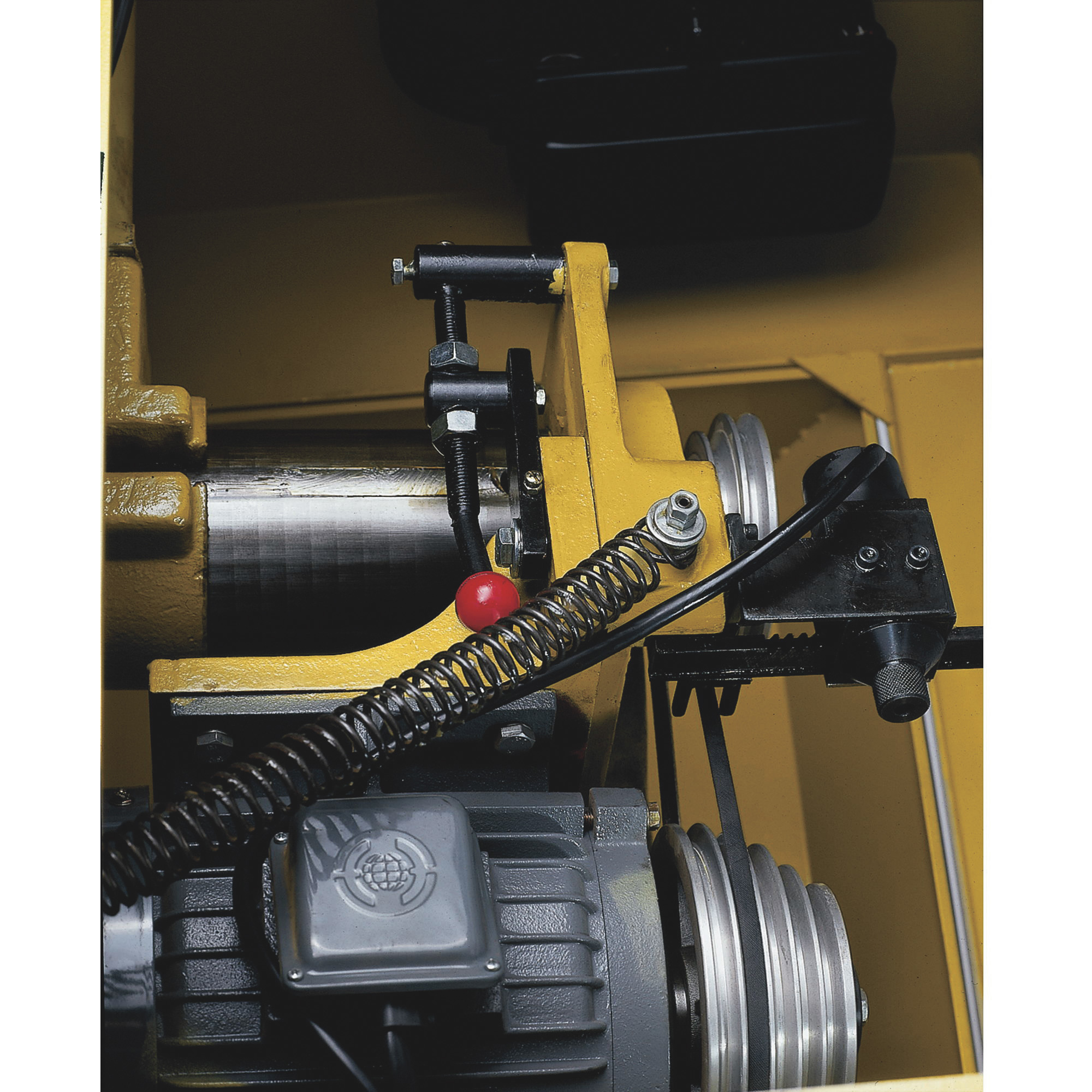

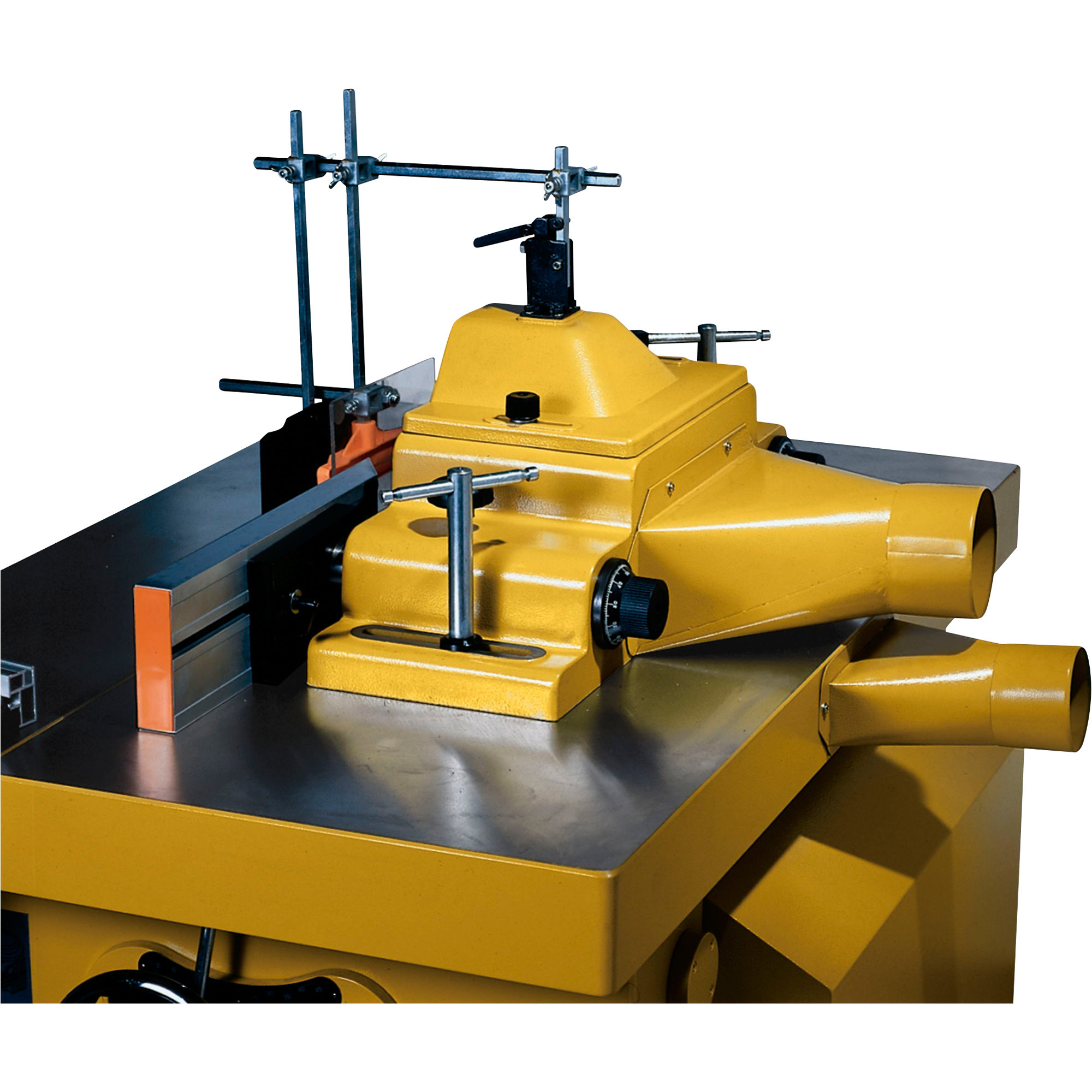

The Powermatic Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate setups. The full guard includes 2 stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table, ensure a clear work area and improved finish. An extra-large quill assembly with a full 7in. stroke has 3 oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. A big 71/2 HP motor drives the spindle forward and reverse with 5 speeds. The massive sliding table is fully supported by 6 tapered precision bearings through a full 4ft. stroke. On the table is a large miter head complete with a stock hold-down clamp and a 56in. miter fence with flip stop. The large table can easily accommodate a stock feeder for long production runs.

What's Included

    (1) Powermatic Tilt/Slide Shaper, 7.5 HP, 3 PH, 230/460V, Model# TS29

Downloads

Product Manual

Features + Benefits

  • Sliding table with 4ft. stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons
  • Fully adjustable fence with dual digital readout for fast, accurate setup and repeatability
  • Large table has built-in slider with room for stock feeder
  • 7in. vertical spindle travel allows stacked tooling
  • Spindle tilts -5° to + 45° for increased versatility
  • Multiple large diameter table inserts accommodate virtually any size cutter
  • 5 spindle speeds in forward and reverse with lighted indicator

Key Specs

AttributeSpecification

item#

84793

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1100.0 LB
AttributeSpecification

Spindle Size

7 in

Product Weight

lb

Dimensions L x W x H (in.)

51.0 x 44.0 x 53.0 in
