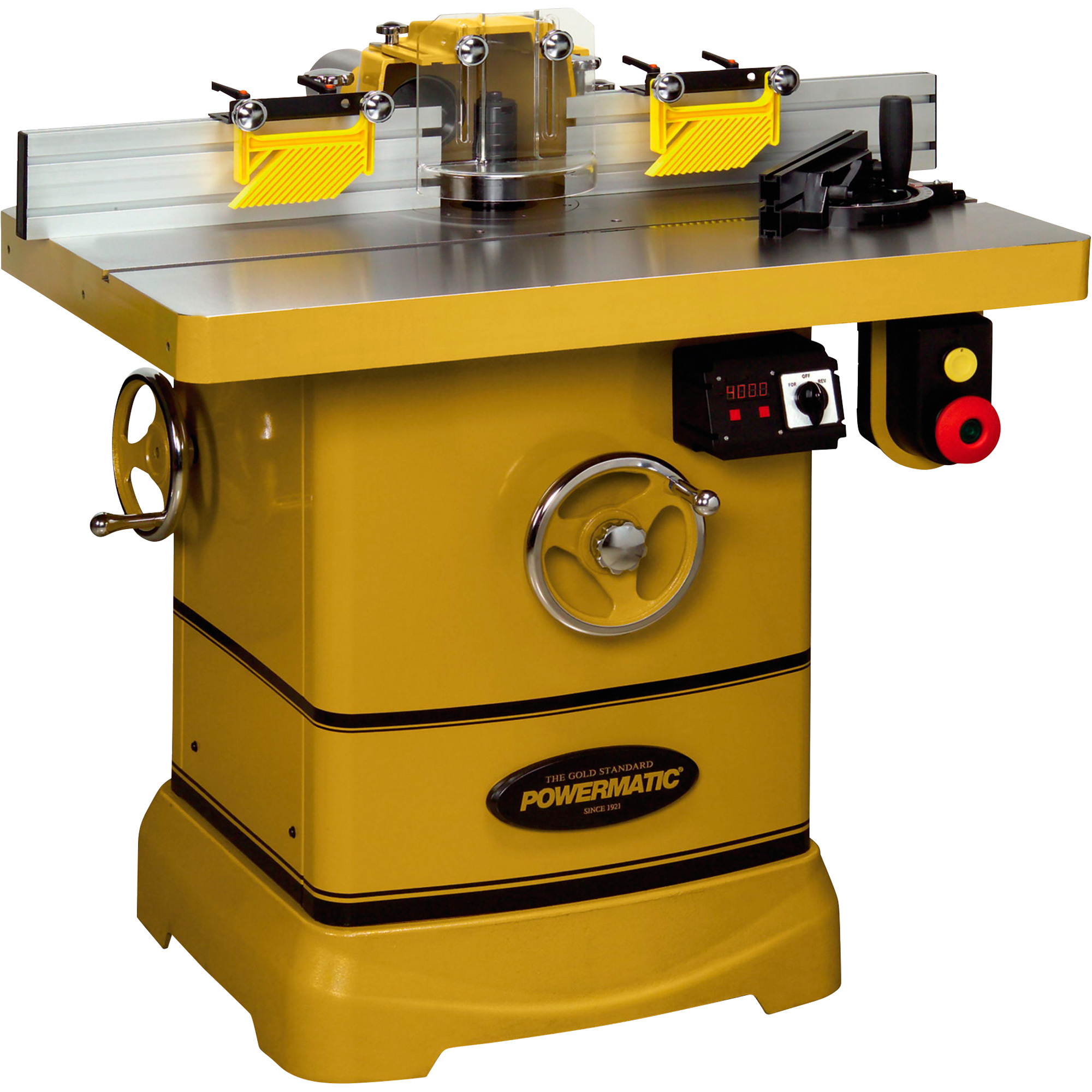

Powermatic Wood Shaper, 5 HP, 3 PH, 230/460V, Model# PM2700

Item# 84791
Top Seller
Powermatic Wood Shaper, 5 HP, 3 PH, 230/460V, Model# PM2700

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Wood Shaper, 5 HP, 3 PH, 230/460V, Model# PM2700

Click or Tap image to Zoom

$5718.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Integrated caster system built into the cast iron base for instant shop mobility

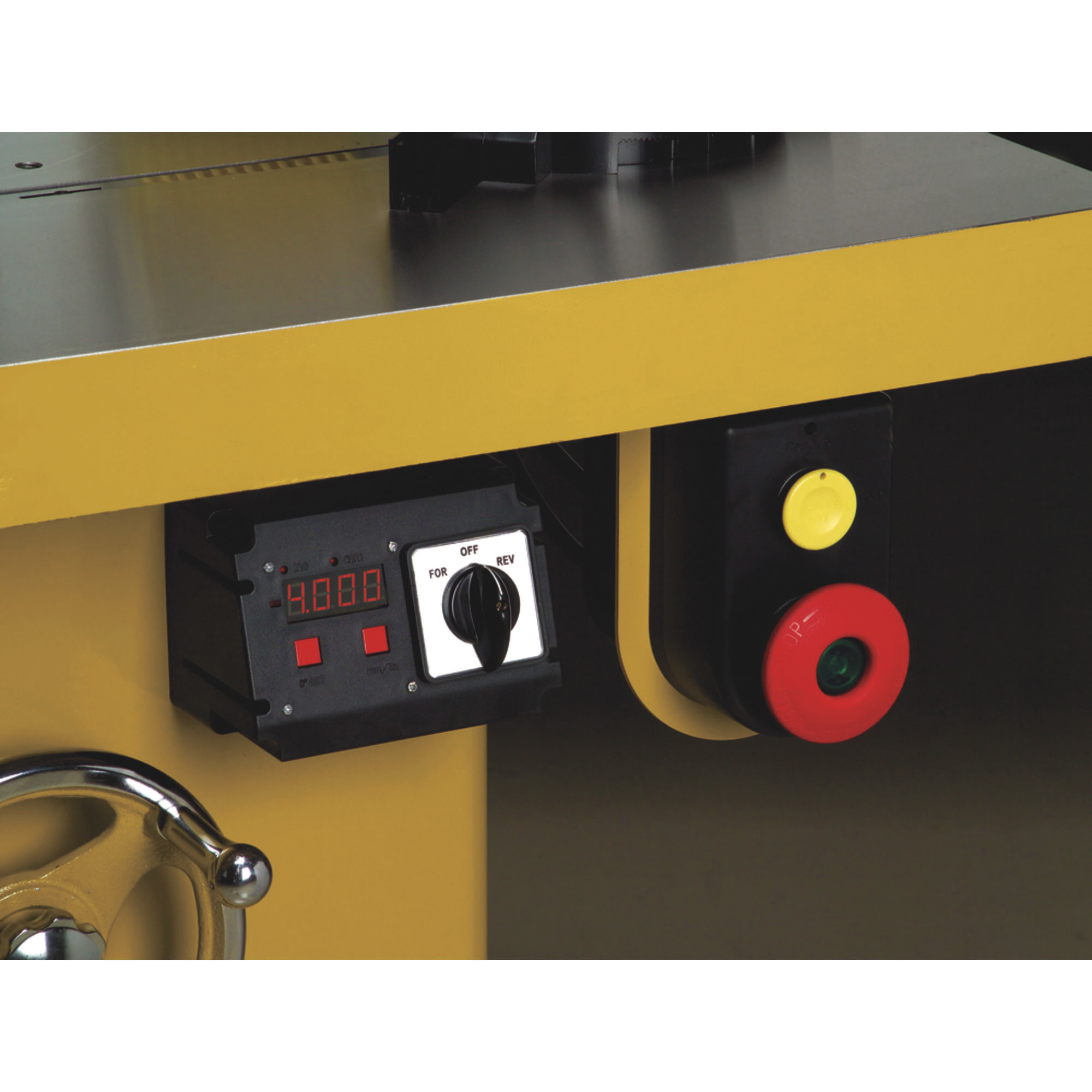

  • Spindle height digital readout for making fine incremental adjustments on multiple passes
  • Heavy-duty 30in. x 40in. precision-ground tabletop for smooth stock feeding
  • Convenient quick-lock belt tensioning for easy speed adjustment
  • Industrial fence system with fine adjust dials for more precise positioning

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The new Powermatic Wood Shaper offers an extra-large 30in. x 40in. precision-ground cast iron table and a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001in. in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors. 460V operation requires an additional 460V magnetic switch, part# PM2700-114C.

What's Included

    (1) Powermatic Wood Shaper, 5 HP, 3 PH, 230/460V, Model# PM2700

Downloads

Product Manual

Features + Benefits

  • Integrated caster system built into the cast iron base for instant shop mobility
  • Spindle height digital readout for making fine incremental adjustments on multiple passes
  • Heavy-duty 30in. x 40in. precision-ground tabletop for smooth stock feeding
  • Convenient quick-lock belt tensioning for easy speed adjustment
  • Industrial fence system with fine adjust dials for more precise positioning
  • 5 HP totally enclosed motor offers plenty of power
  • 2 spindle speeds (reversible) for a variety of work

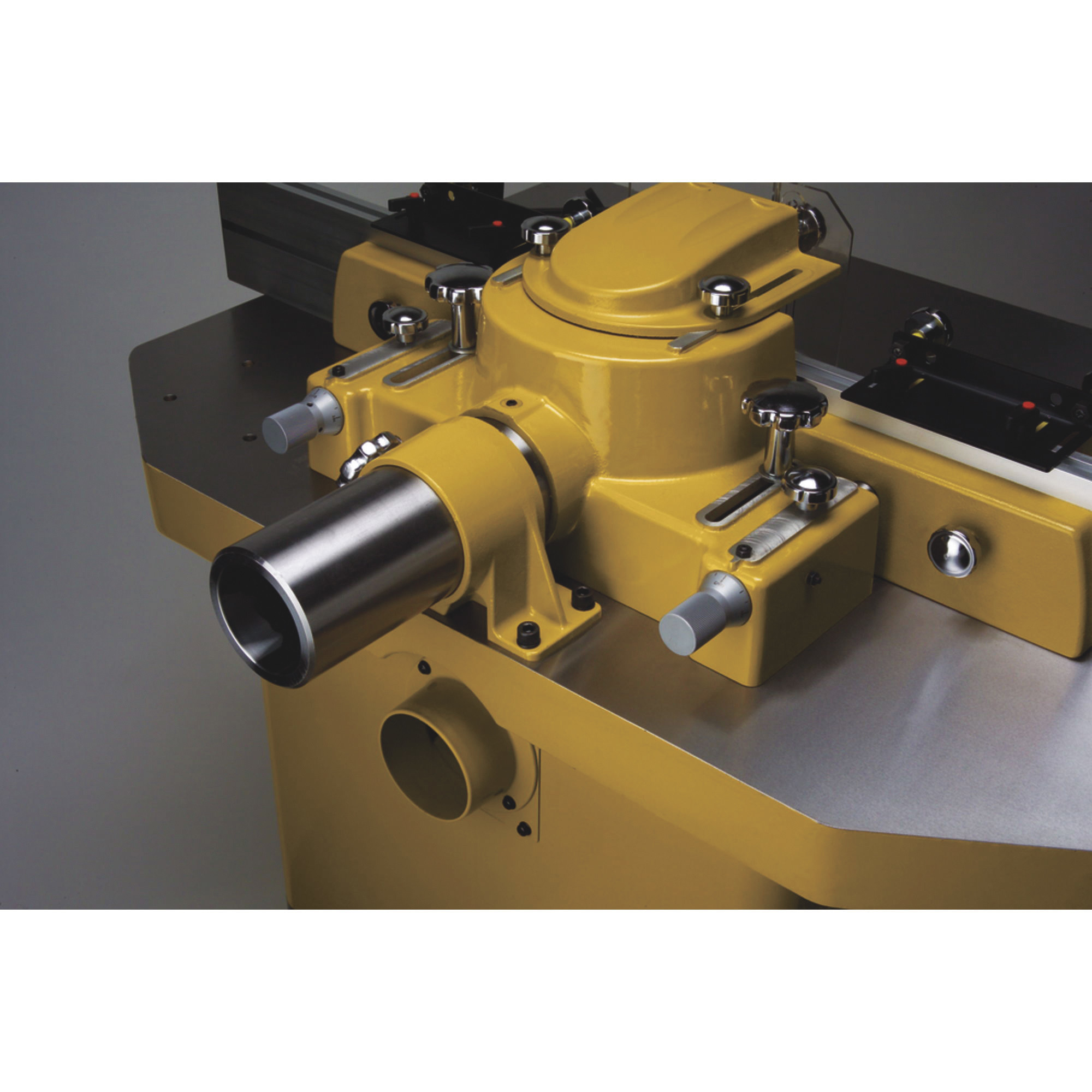

  • Superior clear cutter guard promotes safety, allows observation of the entire cut
  • Table predrilled and tapped for feeder mounting in two locations
  • Fence has dual featherboards for work holding
  • Dual 4in. ports for attachment to dust collection system
  • Standard Equipment: 3/4in. and 1 1/4in. interchangeable spindle collets
  • Deluxe miter gauge
  • Featherboard hold downs
  • 460V operation requires an additional 460V magnetic switch, part# PM2700-114C

Key Specs

AttributeSpecification

item#

84791

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty
AttributeSpecification

Ship Weight

664.0 LB

Product Weight

lb

Dimensions L x W x H (in.)

40.0 x 37.0 x 45.0 in

Reviews

Questions & Answers

Questions

  1. Can we put 1/2" or 1/4" router bit adapters on this machine to accept smaller router bits?

    1 answer

    1. Yes, aftermarket adapters can be used. Any aftermarket parts used would not be covered by the factory warranty.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
