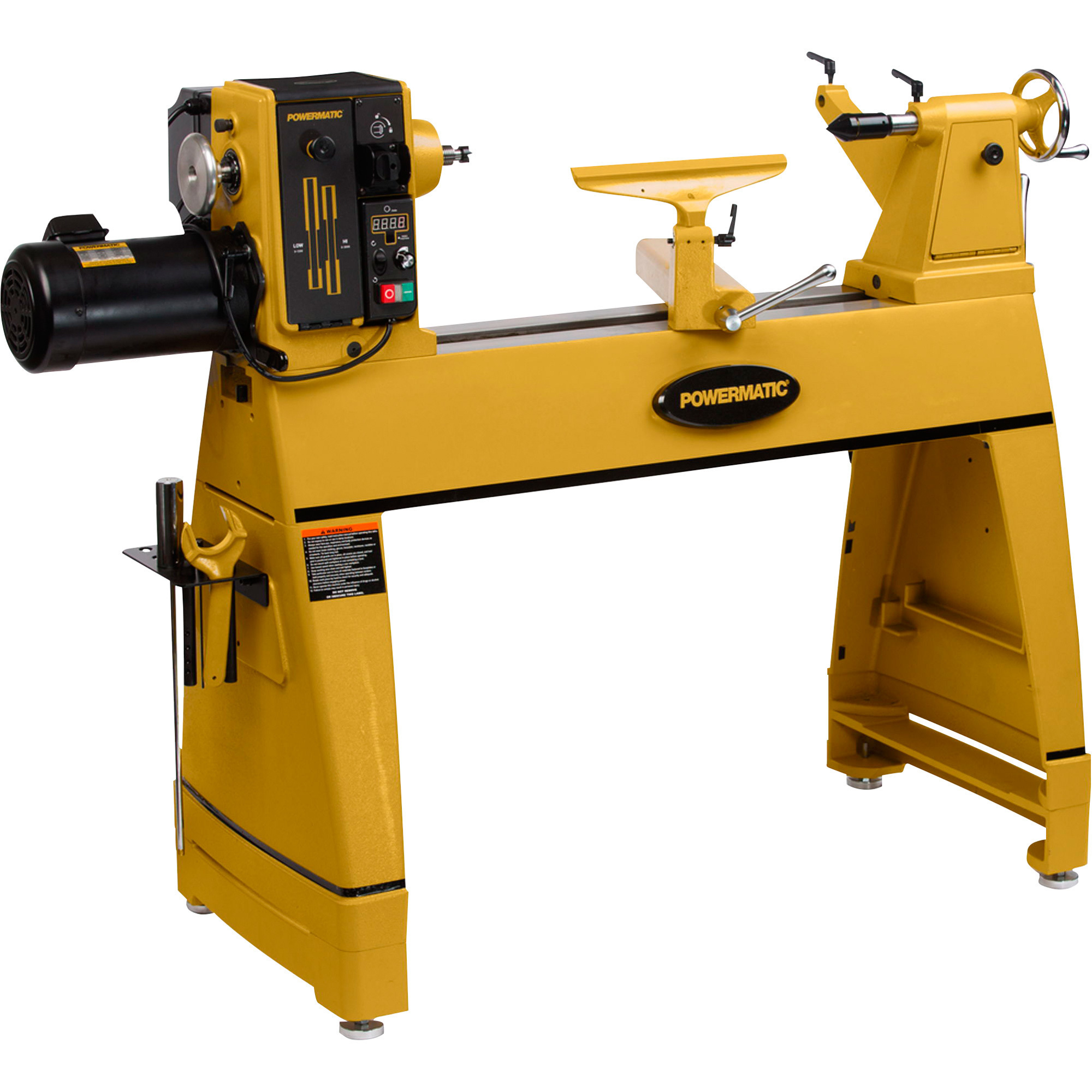

Powermatic Lathe, 2 HP, 1PH, 220V, Model# 3520C

Item# 84837
Powermatic Lathe, 2 HP, 1PH, 220V, Model# 3520C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Lathe, 2 HP, 1PH, 220V, Model# 3520C

Click or Tap image to Zoom

$5997.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Moveable control box for customizable versatility
  • Main power disconnect switch located on rear of headstock
  • Self-locating ergonomic spindle lock design for easy, one handed operation
  • Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement
  • Extended spindle nose increased access to the work piece

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powermatic Lathe, 2 HP, 1PH, 220V, Model# 3520C
  • Powermatic Outboard Turning Stand, Model# 6294732, For Powermatic Model#s 3520, 3520A, 3520B, 3520C, 4424 and 4224B
  • Powermatic Right-Handed Bowl Turning Tool Rest Model# 6294740, For Powermatic Lathes, Model#s 3520A, 3520B, 3520C, and 4224
  • Powermatic Bed Extension, For Powermatic 3520C Lathe, Model# 3520C
Price for all four:

$7856.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powermatic® 3520C is the fourth evolution of the time honored lathe with many new and improved features. The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout, and a laser etched quill that is self-ejecting. The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6in. or more of height adjustment, and an increased weight of 726 lbs. (814 lbs. with the optional bed extension). Additional features include a new ergonomic spindle lock design, a digital indexing readout, an anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.

What's Included

    (1) Powermatic Lathe, 2 HP, 1PH, 220V, Model# 3520C

Downloads

Product Manual

Features + Benefits

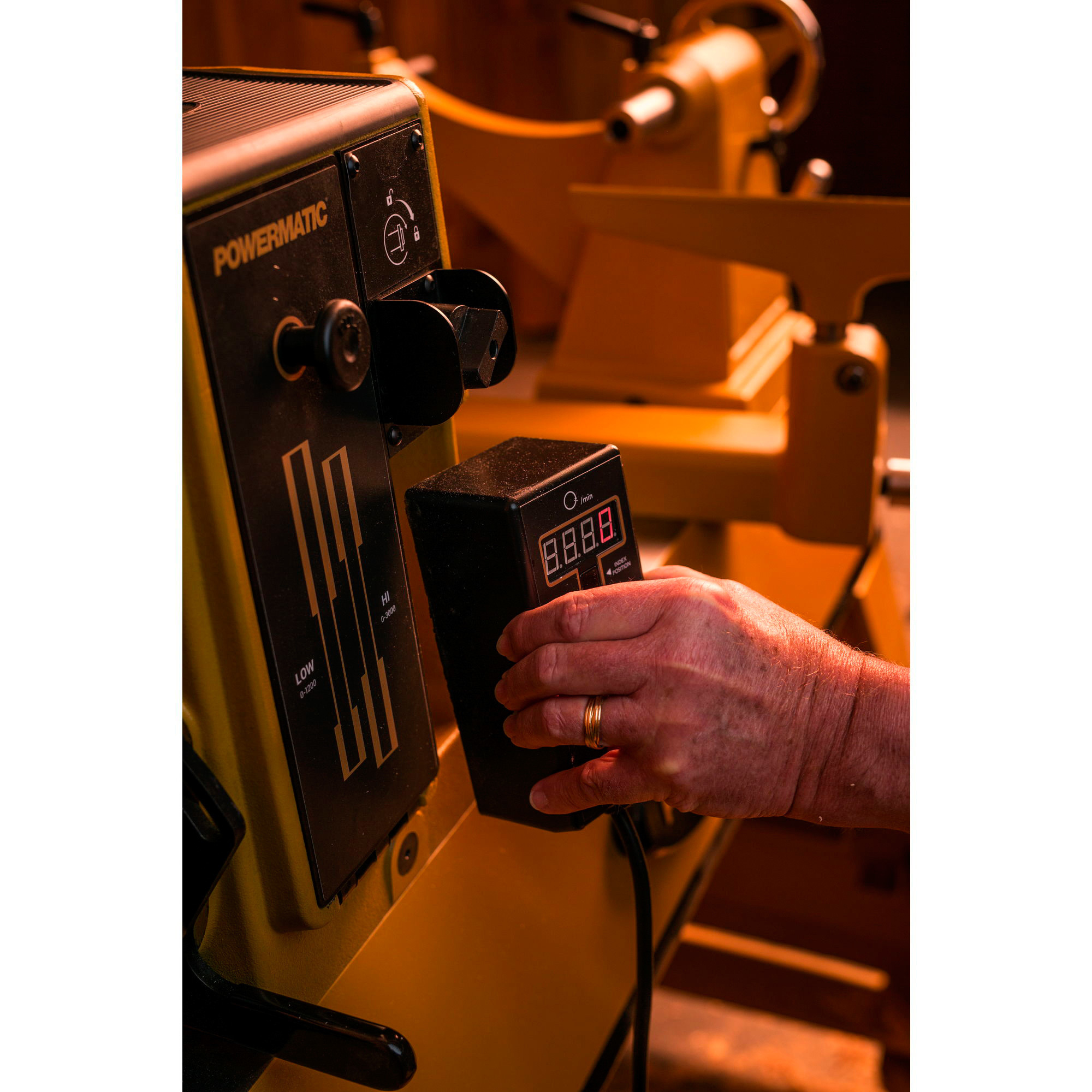

  • Moveable control box for customizable versatility
  • Main power disconnect switch located on rear of headstock
  • Self-locating ergonomic spindle lock design for easy, one handed operation
  • Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement
  • Extended spindle nose increased access to the work piece
  • Adjustable risers blocks for 6-inches of height adjustment allowing maximum comfort when turning
  • Tailstock incorporates anti-rotation key and Acme threads for smoother operation and increased longevity
  • Digital Indexing Readout simplifies the indexing process for added precision
  • Fully enclosed VFD for increased user protection
  • Able to maintain speeds as low as 15 RPM
  • Increased weight of 726 lbs. (814 lbs. with the optional bed extension) for the most stable turning experience possible
  • Increased working capacity to a full 35 inches between centers
  • Optional safety shield
  • CSA certified

Key Specs

AttributeSpecification

item#

84837

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

682.0 LB

Distance Between Centers

36 in

Horsepower

2
AttributeSpecification

Swing

20 in

Min. RPM

15

Product Type

Lathe

Product Weight

lb

Dimensions L x W x H (in.)

55.0 x 27.0 x 31.0 in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. This lathe is quite heavy and I need it to be mobile. Can wheels be attached and it still be safe to operate?

    1 answer

    1. At this time, a caster set or mobile base is not available for this lathe.

      Helpful?

  2. can you operate the 3520 lathe on 208 volts rather than 220

    1 answer

    1. This lathe is designed to operate at 220 volts only.

      Helpful?

  3. is the headstock threaded to accept a chuck? If so, what size?

    1 answer

    1. The headstock is threaded and can accept a chuck with a 1-1/4” x 8 TPI thread.

      Helpful?

  4. Where is this lathe manufactured?

    1 answer

    1. This Powermatic lathe is made in Taiwan.

      Helpful?

  5. can the 3520C be disassembled into components to lighten it up. I need to move it into a basement.

    1 answer

    1. This unit will ship disassembled. It should be broken down enough to move into a basement.
