Product Summary

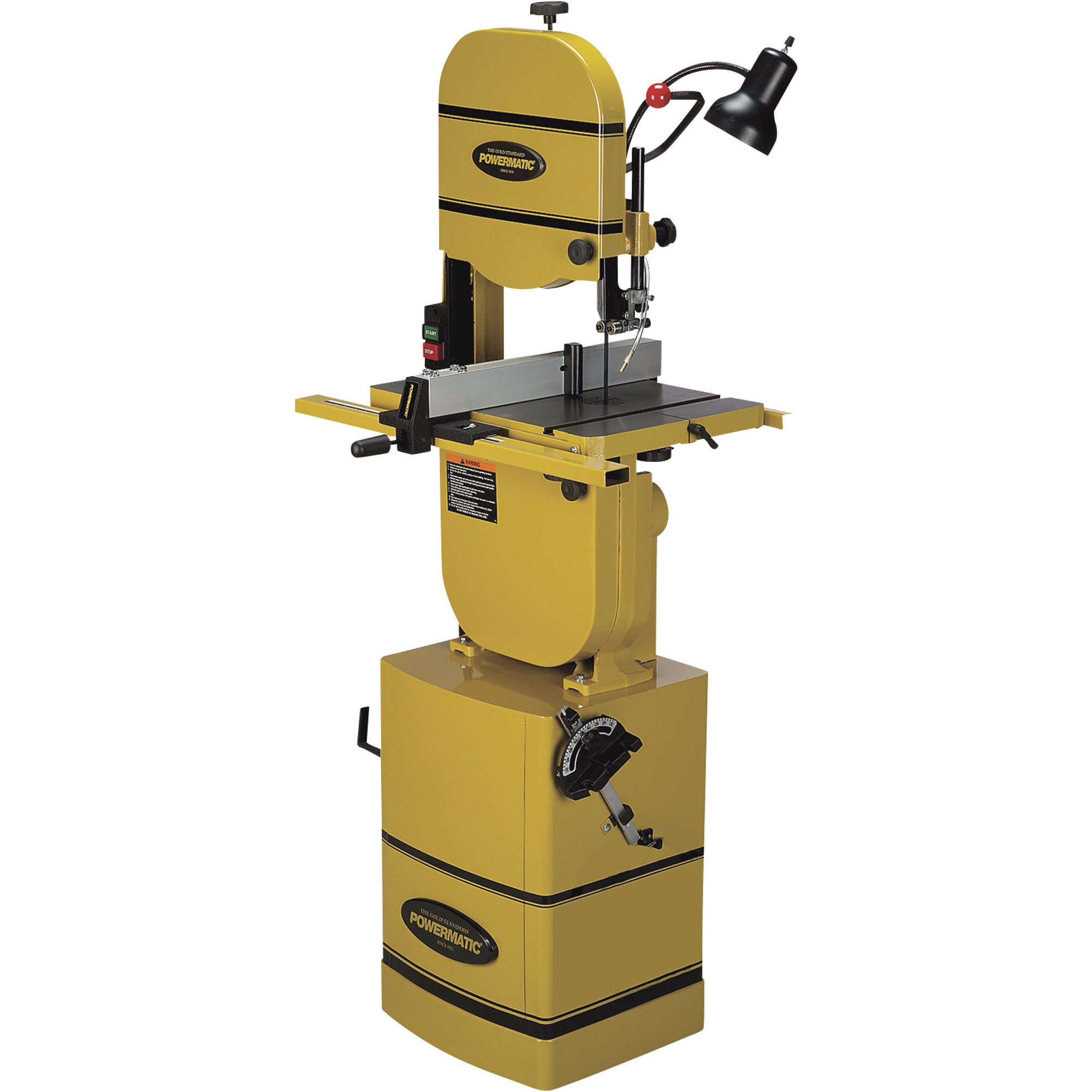

The Powermatic® 14in. Band Saw has an extra large, 2-pc. cast iron table. It consists of a 15in. x 15in. tilting section and a fixed 15in. x 5in. extension for a total working surface area of 15in. x 20in. A balanced, 9-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6in. under guide capacity with 13 1/2in. frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

What's Included

    (1) 14in. band saw

Features + Benefits

  • CARTER™ quick tension lever speeds blade changes and the de-tension setting extends blade life during non-use
  • Extra-large, 2-pc. cast iron table consists of a 15in. x 15in. tilting section and a fixed 15in. x 5in. extension for a total working surface area of 15in. x 20in.
  • Chip blower ensures a clean, visible cut line

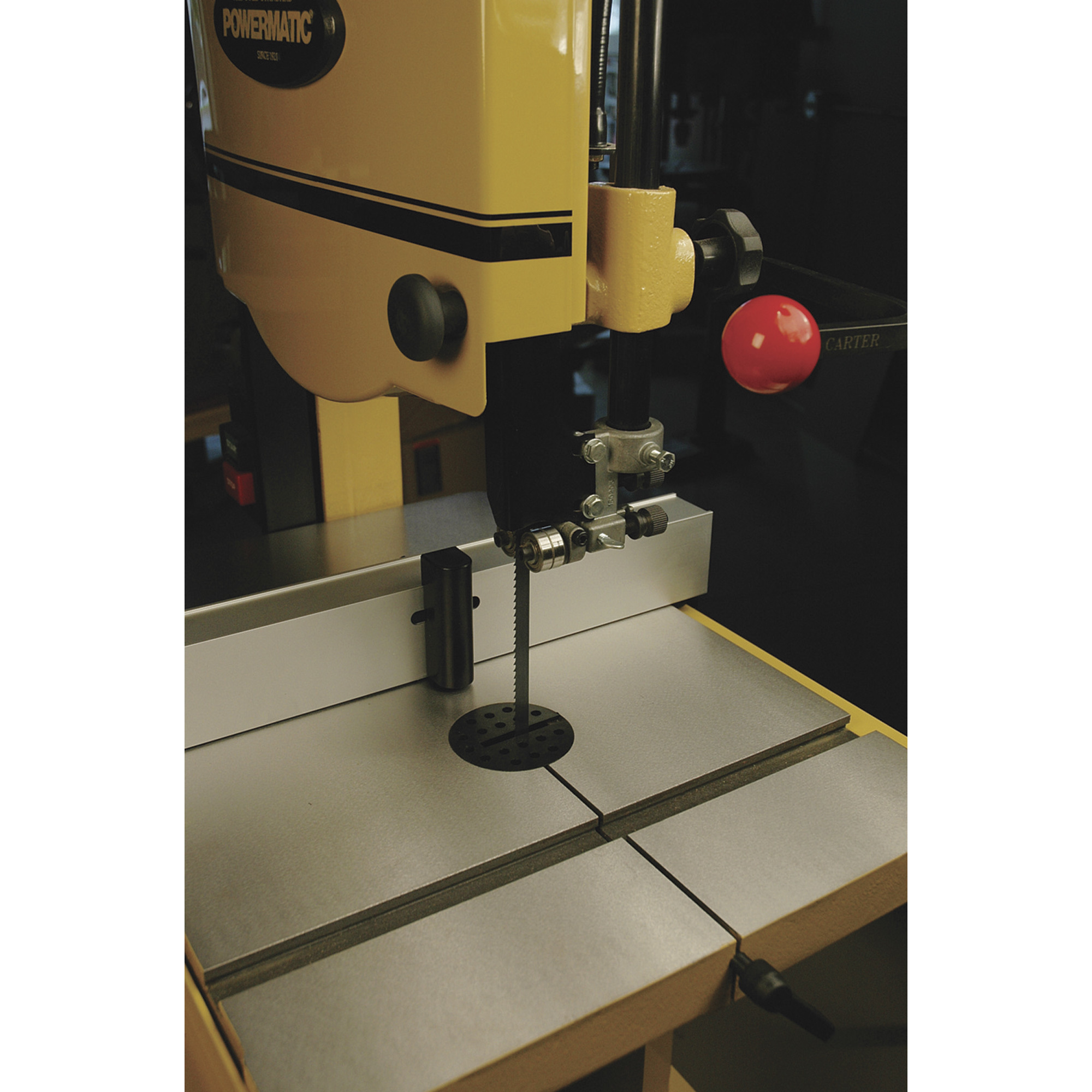

  • Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction

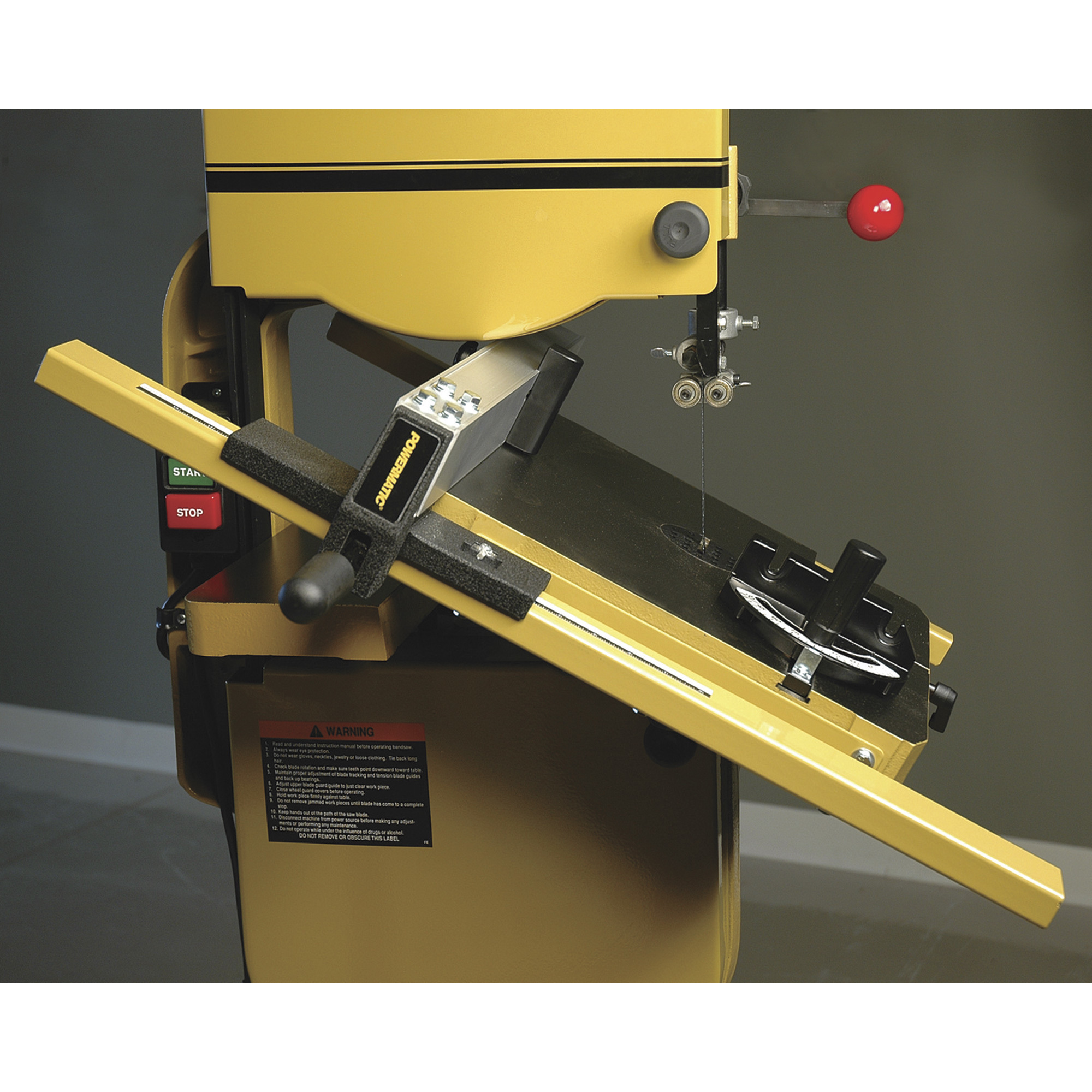

  • Exclusive design, quick-release precision T-square style rip fence with 4in. resaw attachment
  • Precision balanced, 9-spoke cast iron wheels reduce vibration
  • Easy to read tensioning gauge settings indicated in "blade width" increments
  • Full 6in. under guide capacity with 13 1/2in. width capacity
  • 60 Watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
  • Rigid one-pc. welded stand requires no assembly
  • Adjustable miter gauge T-style rip fence with resaw assembly
  • 3/8in. band saw blade
  • Gooseneck work lamp and chip blower
  • Cutting capacity: 13 1/2in.W x 6in.H
  • Minimum saw blade width: 1/8in.
  • Max. saw blade width: 3/4 in.
  • Blade speed: 3000 SFPM
  • Blade length: 93 1/2in.
  • 15in. x 15in. table
  • Table tilt: 10° left, 45° right

Key Specs

AttributeSpecification

item#

123545

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty
AttributeSpecification

Ship Weight

266.0 LB

Volts

115/230

Max. Cutting Capacity

3,000 SFPM

Warranty

Manufacturer's Warranty

5 year limited warranty
