Powermatic 4-Speed Planer, 5 HP, 1 PH, 230 Volts, Model# 209

Item# 84653
Powermatic 4-Speed Planer, 5 HP, 1 PH, 230 Volts, Model# 209

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic 4-Speed Planer, 5 HP, 1 PH, 230 Volts, Model# 209

Click or Tap image to Zoom

$5168.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Knife setting gauge, 5HP motor and 20in. planing capacity for heavy-duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55 1/2in. x 20in. working area
  • 4 feed speeds: 24 and 31 FPM and 16 and 20 FPM with gear change, provide versatility
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powermatic 4-Speed Planer, 5 HP, 1 PH, 230 Volts, Model# 209
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
Price for all four:

$5228.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

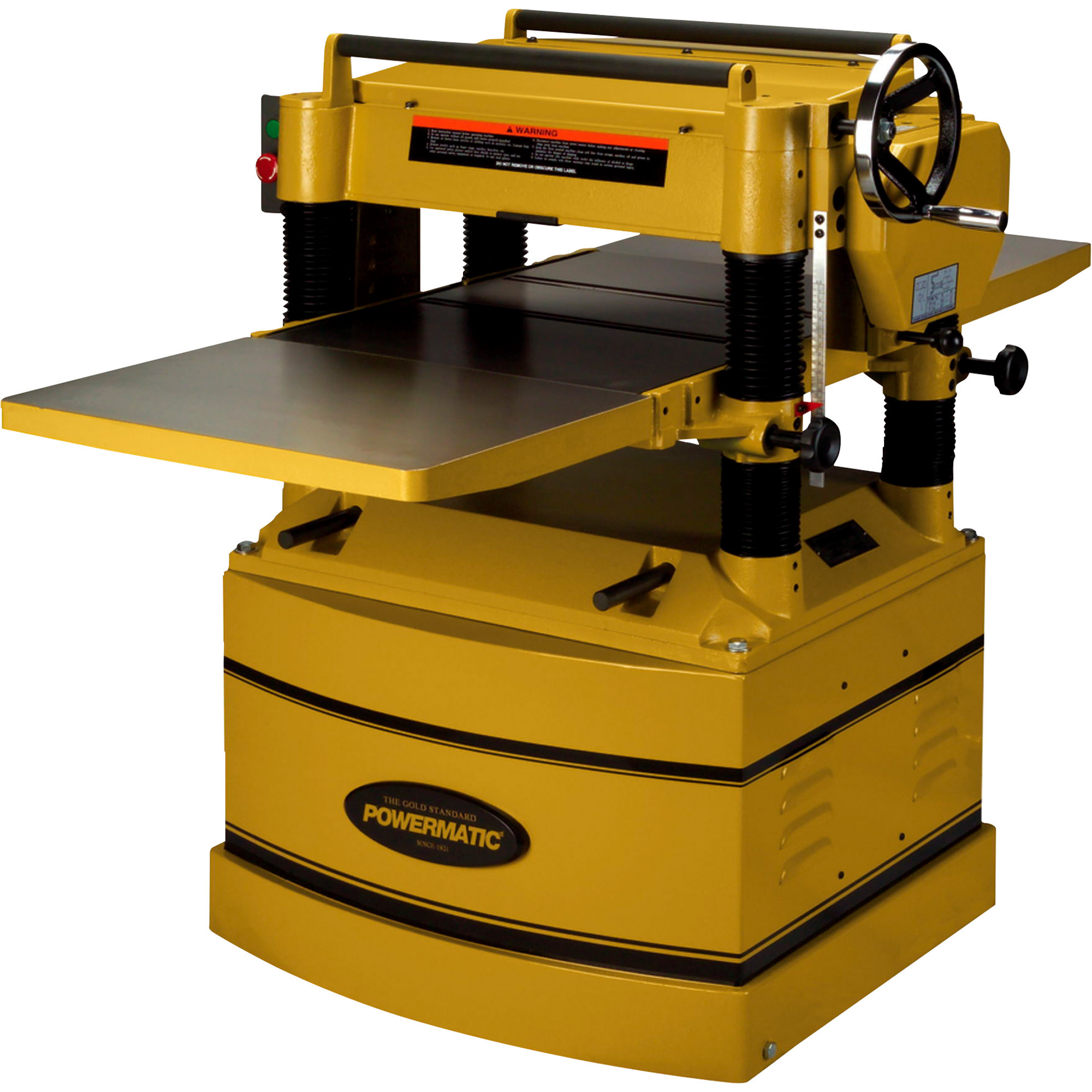

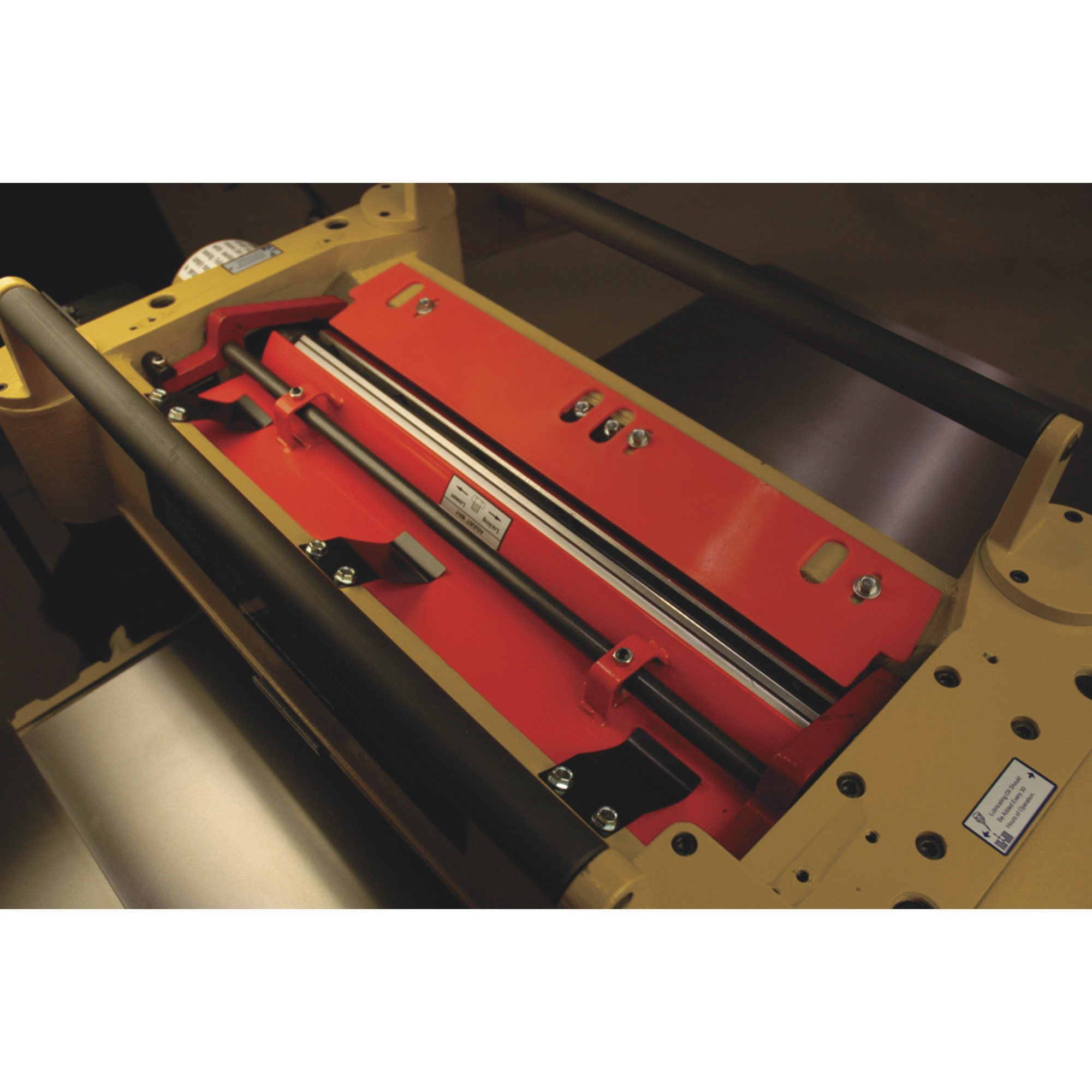

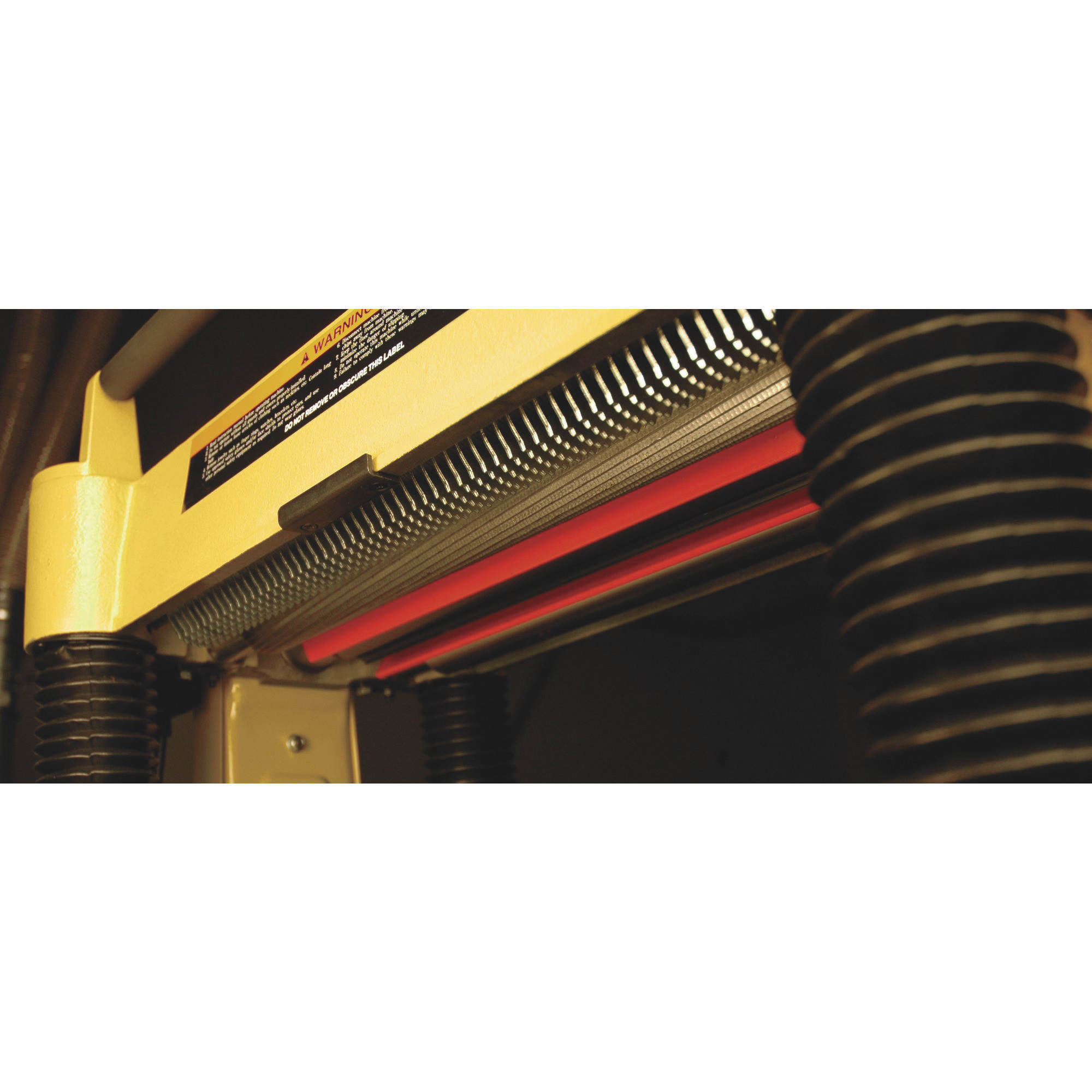

The Powermatic 4-Speed Planer is a heavy-duty unit that offers high-performance and value. This planer is loaded with features not found in other planers in its class. The powerful 5 HP motor and 20in. planing capacity will handle the most demanding work. The 5in. dust port connects easily to any dust collector. The cutterhead has 4 high speed steel knives and turns at 5000 RPM, producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision-ground and polished cast iron table rides on 4 steel columns, giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

What's Included

    (1) Powermatic 4-Speed Planer, 5 HP, 1 PH, 230 Volts, Model# 209

Downloads

Product Manual

Features + Benefits

  • Knife setting gauge, 5HP motor and 20in. planing capacity for heavy-duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55 1/2in. x 20in. working area
  • 4 feed speeds: 24 and 31 FPM and 16 and 20 FPM with gear change, provide versatility
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • Standard Equipment: single-sided knives, 5in. diameter dust port

Key Specs

AttributeSpecification

item#

84653

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

801.0 LB

Product Type

Planers

Max. Cutting Depth

0.094 in

Knives (qty.)

4
AttributeSpecification

Cutterhead Speed

5,000 rpm

Volts

230

Amps

40

Helical Head

No

Product Weight

880.0000 lb

Dimensions L x W x H (in.)

26.0 x 36.63 x 41.4 in

Reviews

Questions & Answers

Questions

  1. country of origin ?

    1 answer

    1. This Powermatic planer is made in Taiwan.
