Powerhorse Single-Direction Plate Compactor with 7 HP Powerhorse Engine

Item# 52313
Powerhorse Single-Direction Plate Compactor with 7 HP Powerhorse Engine
Top SellerOn Sale
Powerhorse Single-Direction Plate Compactor with 7 HP Powerhorse Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powerhorse Single-Direction Plate Compactor with 7 HP Powerhorse Engine

Click or Tap image to Zoom

$599.99
Reg $699.99Save $100.00

Order today to get this price.

  • Shipping:

    Available now
    $19.99 Same Day

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    3 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Compaction force of 3,950 lbs.
  • Delivers 5,500 VPM
  • 65ft. per minute travel speed
  • Float-type carburetor for uninterrupted operation
  • Centrifugal flyweight-type governor for consistent speed

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powerhorse Single-Direction Plate Compactor with 7 HP Powerhorse Engine
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • 3M Reusable Corded Earplugs, NRR 25dB, Model# 90586-80000
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all four:

$619.16

Frequently Bought Together

  • Description

  • Key Specs

  • Disclaimers

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powerhorse Single-Direction Plate Compactor is designed to compact granular soils and crushed aggregate. A Powerhorse 212cc OHV engine powers the 21-1/2in. x 17-7/10in. compacting plate.

What's Included

    (1) Single-direction plate compactor with 212cc Powerhorse engine

Downloads

Product Manual Product Manual2
Play Item Video

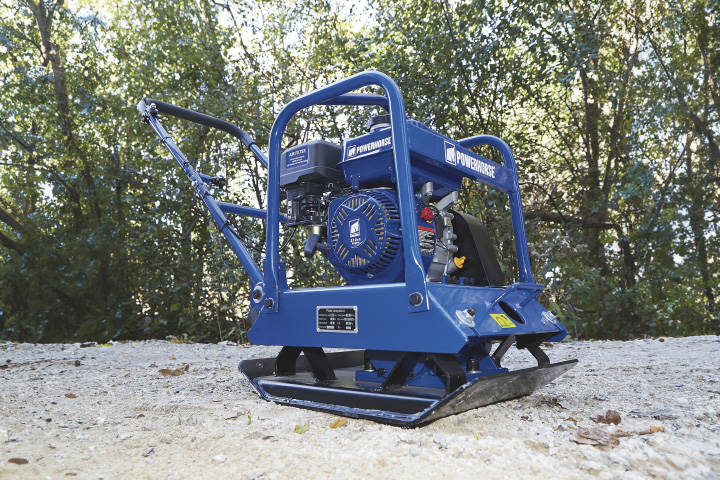

USER-CENTRIC DESIGN

The machine’s design focuses on operator ease and MACHINERY SAFETY with features like a lift and protect guard and a LOW OIL SHUTDOWN that enhances the equipment’s longevity and reliability

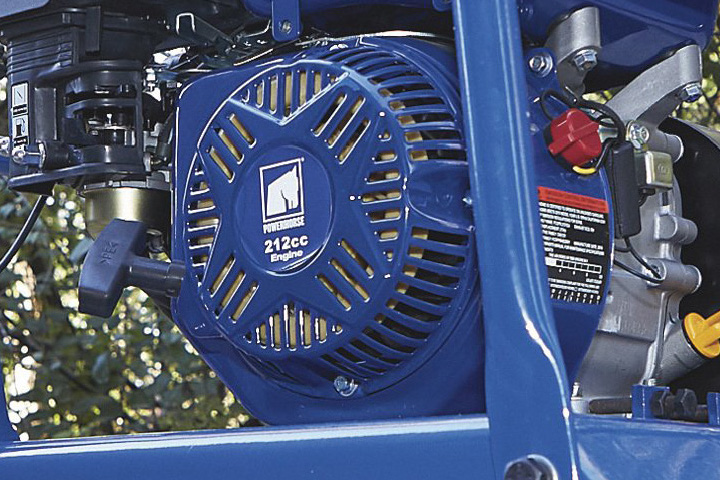

RELIABLE PERFORMANCE

The Powerhorse 212CC ENGINE ensures CONSISTENT PERFORMANCE and powerful output, making it easy to tackle large areas quickly and effectively

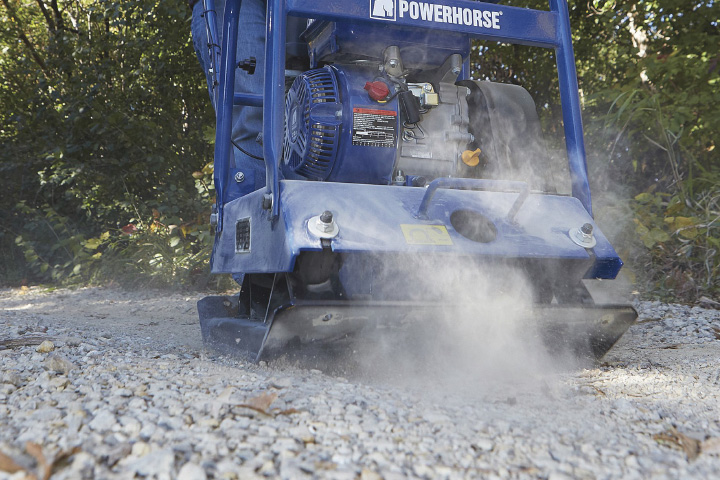

ENHANCED SPEED CONTROL

With a centrifugal flyweight-type governor, the compactor MAINTAINS A STEADY SPEED, providing uniform and thorough compaction throughout its use

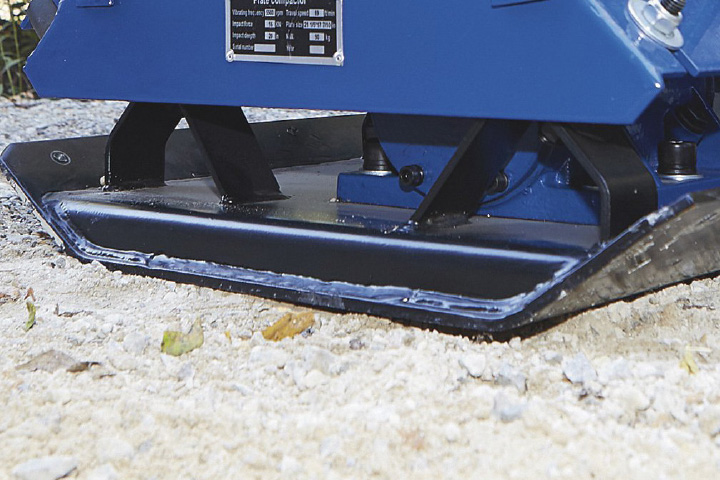

OPTIMAL SOIL COMPACTION

Ideal for compacting granular soils and crushed aggregate, this PLATE COMPACTOR is perfect for preparing foundations for paving, landscaping and other construction projects

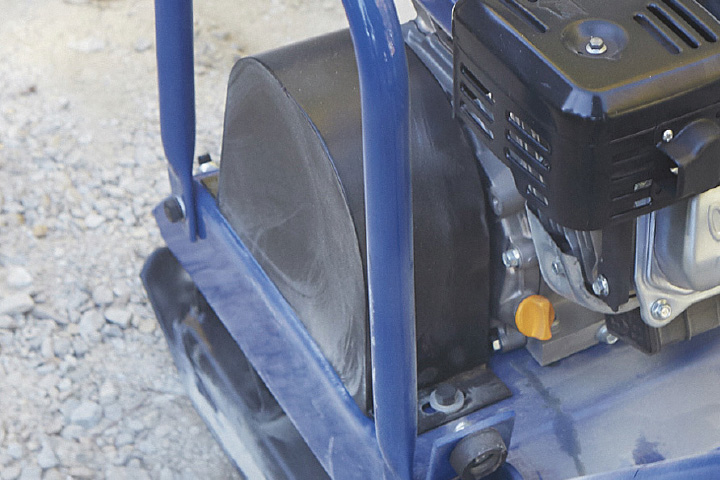

PROTECTION AGAINST ELEMENTS

Its SEALED BELT COVER not only protects internal components from dust and debris also prolongs the service life of the clutch and belt

Features + Benefits

  • Compaction force of 3,950 lbs.
  • Delivers 5,500 VPM
  • 65ft. per minute travel speed
  • Float-type carburetor for uninterrupted operation
  • Centrifugal flyweight-type governor for consistent speed
  • Low oil shutdown turns off engine if it runs low on oil, preventing serious damage or failure
  • Side air ports limit entry of debris
  • Lift and protect guard applied
  • Sealed belt cover for clutch and belt protection
  • Rated 4.1 kW at 3,600 RPM

Key Specs

AttributeSpecification

item#

52313

Brand

Powerhorse

Manufacturer's Warranty

1 year limited warranty

Ship Weight

209.0 LB

Horsepower

7 HP

Engine Brand

Powerhorse

Engine Model

212cc

Motor Type

Gas

Fuel Type

Gasoline

Product Type

Plate Compactor

Plate Length

21.5 in

Plate Length

21.5in.

Plate Width

17.7 in

Plate Width

17.7in.
AttributeSpecification

Compaction Force

3,950 lb

Compaction Force

3,950 lbs.

Compaction Depth

20 in

Compaction Depth

20in.

Vibrations Per Minute

5,500

Travel Speed

65 ft./min.

Reversible

No

Engine Cooling Method

Air

For Use With

Compacted Soil, Sand and Gravel

Product Weight

198.0000 lbs.

Product Weight

198.0000 lb

Dimensions L x W x H (in.)

37.875 x 17.875 x in

Dimensions L x W x H (in.)

37.875in. x 17.875in.

Warnings + Disclaimers

High Altitude Operation

CAUTION: Operating at an altitude of greater than 2000 feet (610 meters) may affect your engine's performance, fuel consumption, and emissions. To remain emissions compliant and improve engine performance at higher altitudes, a high-altitude kit is required. A high altitude kit includes a carburetor jet resized to help correct air / fuel mixture at altitude. To order a high altitude kit, or if you have additional questions, contact us at 1-866-442-2576. Please note, engines with the high-altitude kit installed operated at lower altitudes could cause severe engine damage and affect emissions compliance. When modified, a tag or decal should be added to the product stating that a high-altitude kit was installed and to remind you to re-service the carburetor (re-jet) when operating in lower altitude environments.
