When two generators are connected in parallel, each generator contributes to the total load, but the rating of a single outlet does not automatically double. The 30 A outlet on one generator is still limited to 30 A on that leg. Parallel connection allows you to draw more total current across the combined system, but each individual outlet or leg cannot exceed its rated 30 A.
Free Gift Card Details
- The promotion will be automatically applied on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $100 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax and shipping.
- Free gift cards will be issued in the form of e-gift cards only, not physical gift cards.
- E-gift cards will be sent to the email address used in your billing address when your order ships or is picked up.
- Free e-gift cards expire 10/01/26.
- Promo code not valid on prior purchases or on Honda and STIHL products and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited-time offer. Subject to change without notice.

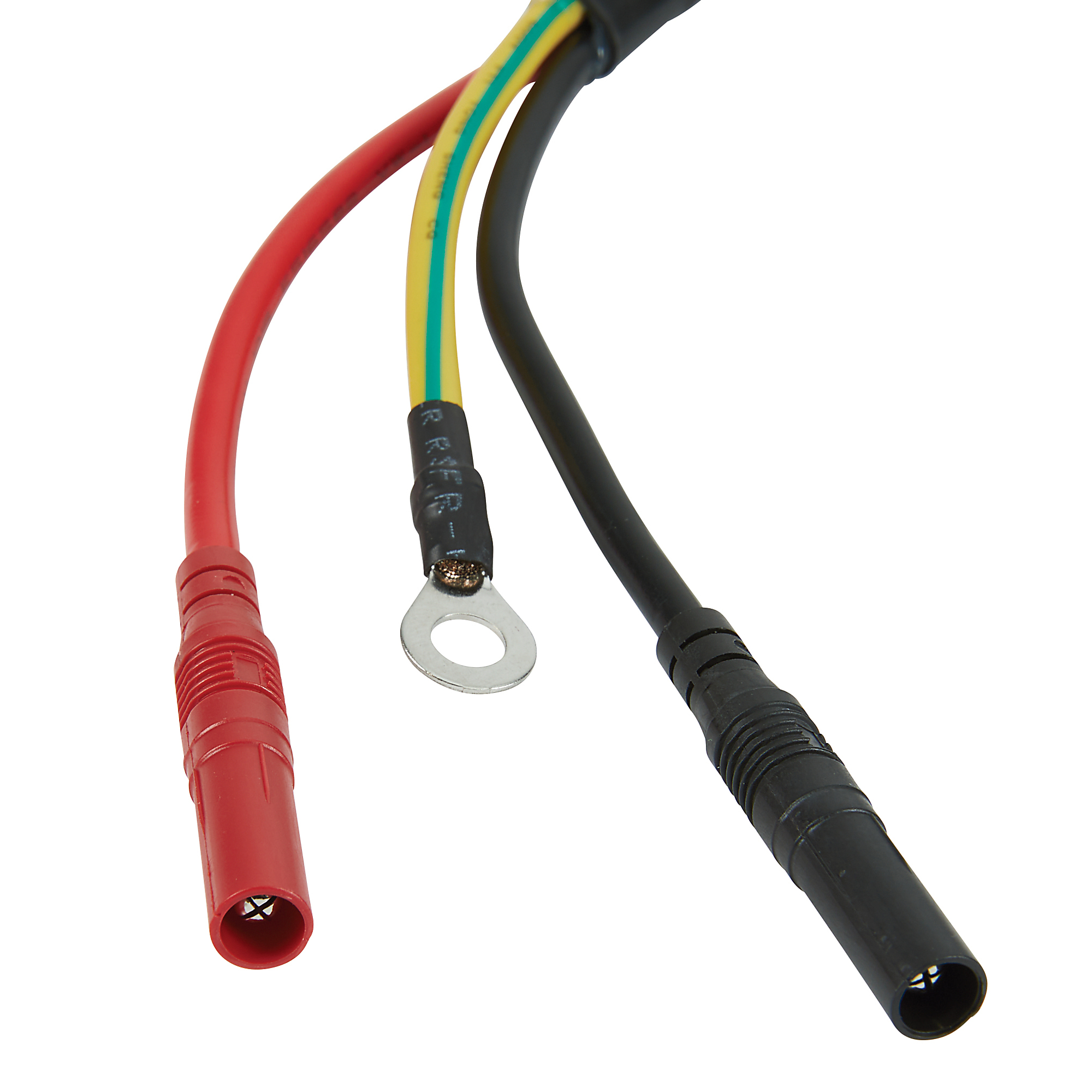

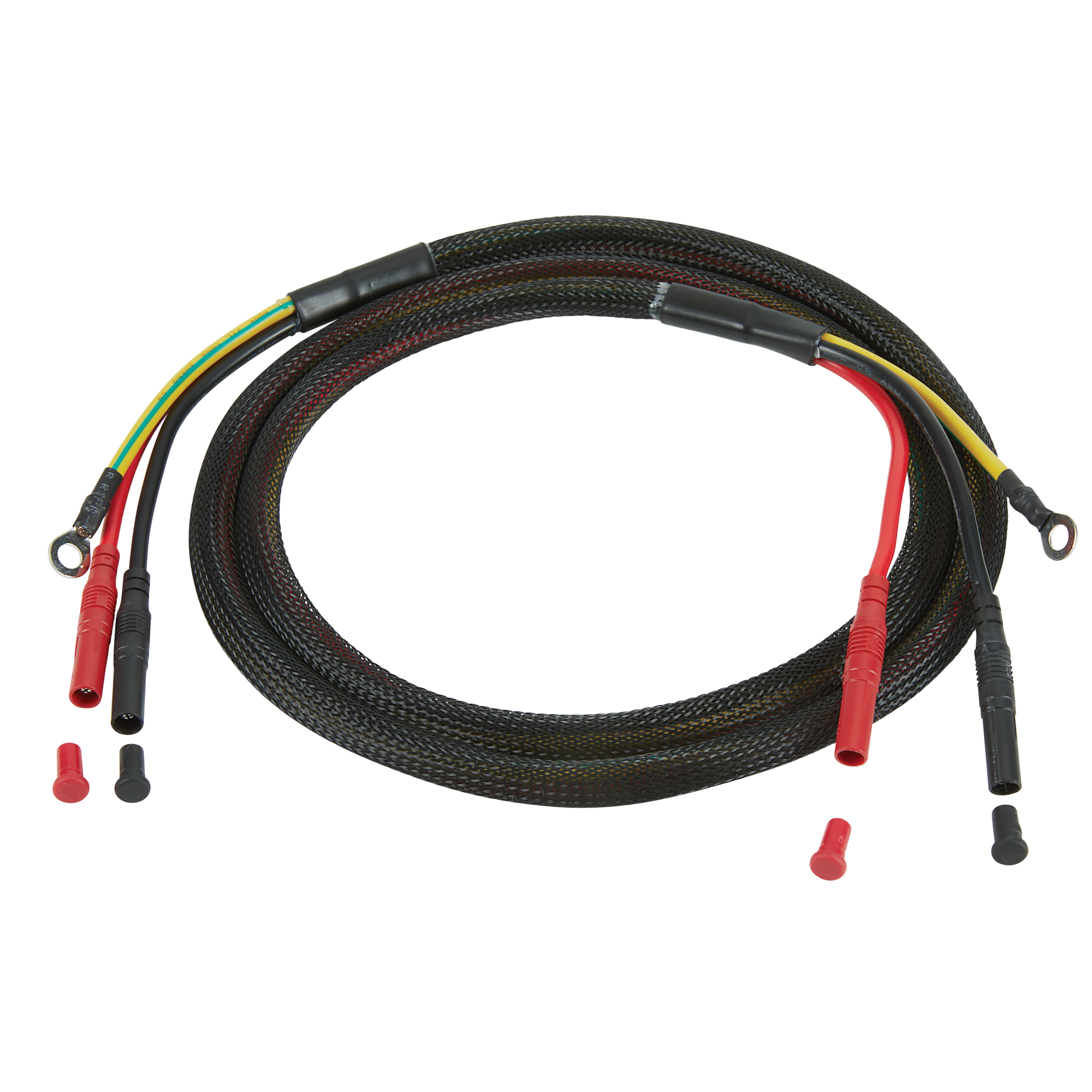

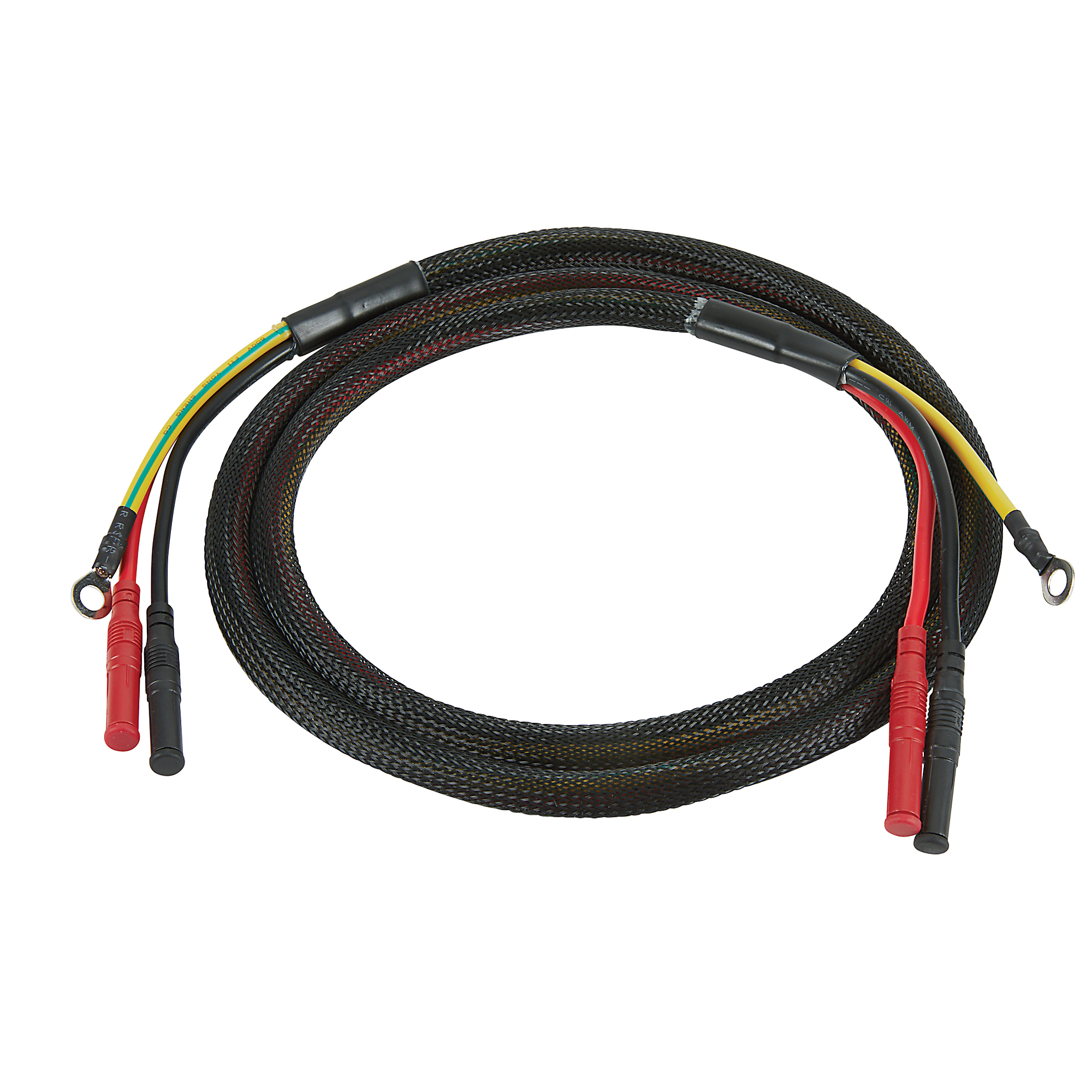

Powerhorse Inverter Generator Parallel Cable, 4000W–5000W, Compatible with Item# 6075679

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Free shipping (lower 48 states) - Available nowStore Pickup:
Call Store for Availability

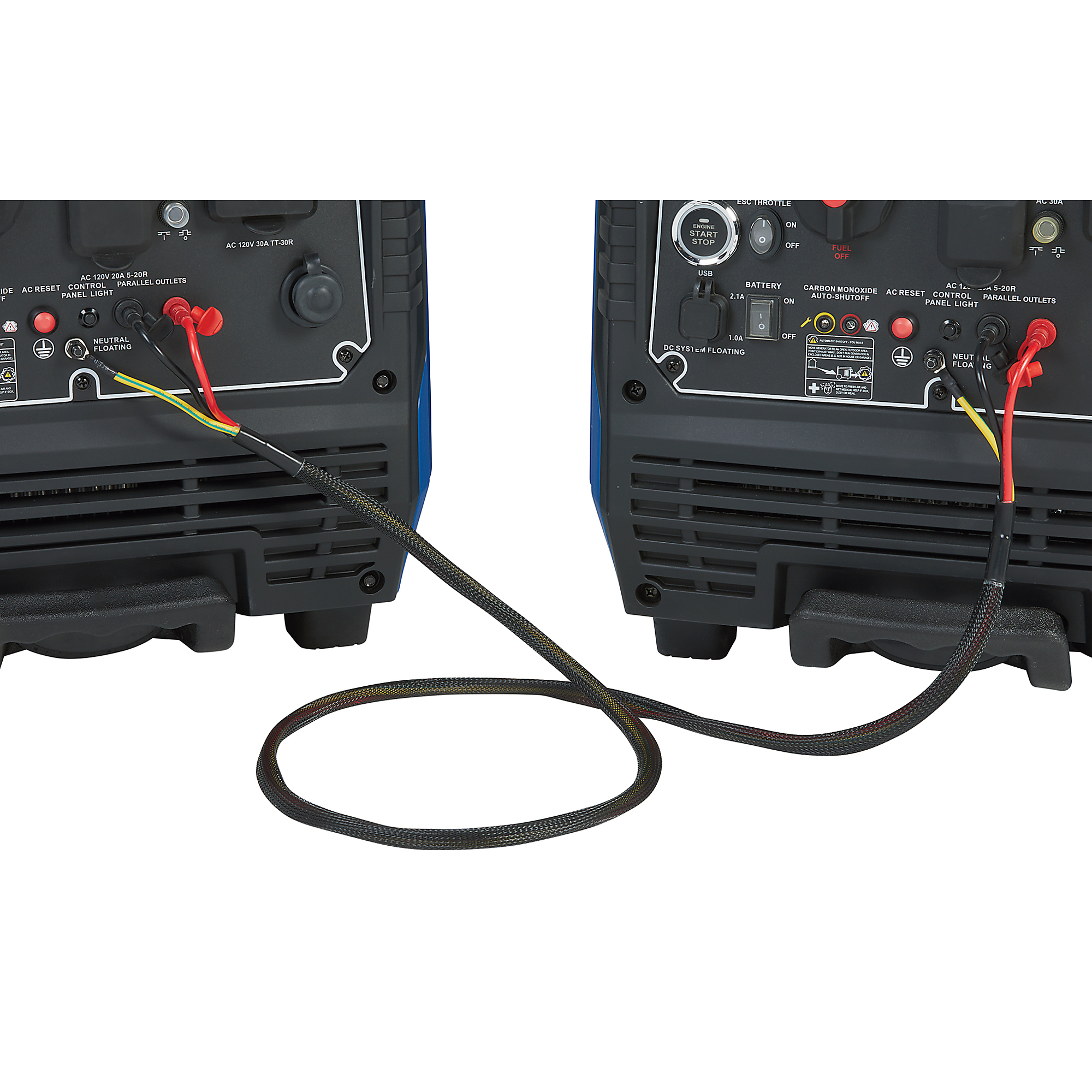

- Connects 2 Powerhorse 4,000W or 5,000W inverter generators (Item# 6075679)
- Provides up to 7,400 Watts of rated power for larger appliances and home standby use
See full description
Description
Key Specs
Reviews
Q & A
Compare
Product Summary
What's Included
- (1) Powerhorse generator parallel cable kit
Features + Benefits
- Connects 2 Powerhorse 4,000W or 5,000W inverter generators (Item# 6075679)
- Provides up to 7,400 Watts of rated power for larger appliances and home standby use
Key Specs
| Attribute | Specification |
|---|---|
item# | 6489476 |
Brand | Powerhorse |
Ship Weight | 0.4 LB |
Kit Includes | One parallel wire |
| Attribute | Specification |
|---|---|
Compatible With | 6075679 |
Pieces (qty.) | 1 |
Product Weight | 1.1000 lb |
Dimensions L x W x H (in.) | 59.0 x 1.0 x 1.0 in |
Reviews
Questions & Answers
Questions
-
· 3 months ago
When I connect this parallel between two of these generators will the 30 amp outlet become 30 amps per leg or is it still maximum 30 amps out of one leg. Question being I need 220 for my RV. With the parallel will I be able to get 30 amps per leg
1 answer-
PowerhorseExpert12· 2 months ago
Helpful?
-
-
· 3 months ago
Can I splice this to an older parallel unit using a higher amperage plug
1 answer-
PowerhorseExpert12· 3 months ago
We do not recommend modifying this parallel cable in any way.
Helpful?
-
-
· 4 months ago
When connecting the 2 Inverter generators together, where is the power outlet that provides the 7400 watts of rated power?
1 answer-
PowerhorseExpert12· 4 months ago
The parallel cable increases the total output of the generators, but does not provide an alternative plug option. The plugs on the generator are still the only ones available to be used, but with the parallel cable you can pull the maximum number of amps from those original plugs. The 7400 watts of power is available across all the outlets, not condensed into one outlet.
Helpful?
-
-
· 6 months ago
Will this work with the powerhorse 2000 inverters?
1 answer-
PowerhorseExpert12· 6 months ago
This parallel cable is designed for the 4000 watt - 5000 watt Powerhorse generators. Item 89778 is the parallel cable kit for the 2000 watt - 2300 watt Powerhorse generators.
Helpful?
-
