5 Gallon Bucket Fluxwrap Cooling Jacket, Model# FLUX05

Item# 5025848
5 Gallon Bucket Fluxwrap Cooling Jacket, Model# FLUX05

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

5 Gallon Bucket Fluxwrap Cooling Jacket, Model# FLUX05

Click or Tap image to Zoom

$339.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • The industrial chiller shown in the picture is not included and can be purchased from North Slope Chillers or Powerblanket separately
  • Construction Material: 210D Nylon
  • Maximum Pressure Rating: 20 PSI @ inlet
  • Flow Rate: 4 GPM @ 5 PSI
  • Connection: 5/8" ID Hose

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

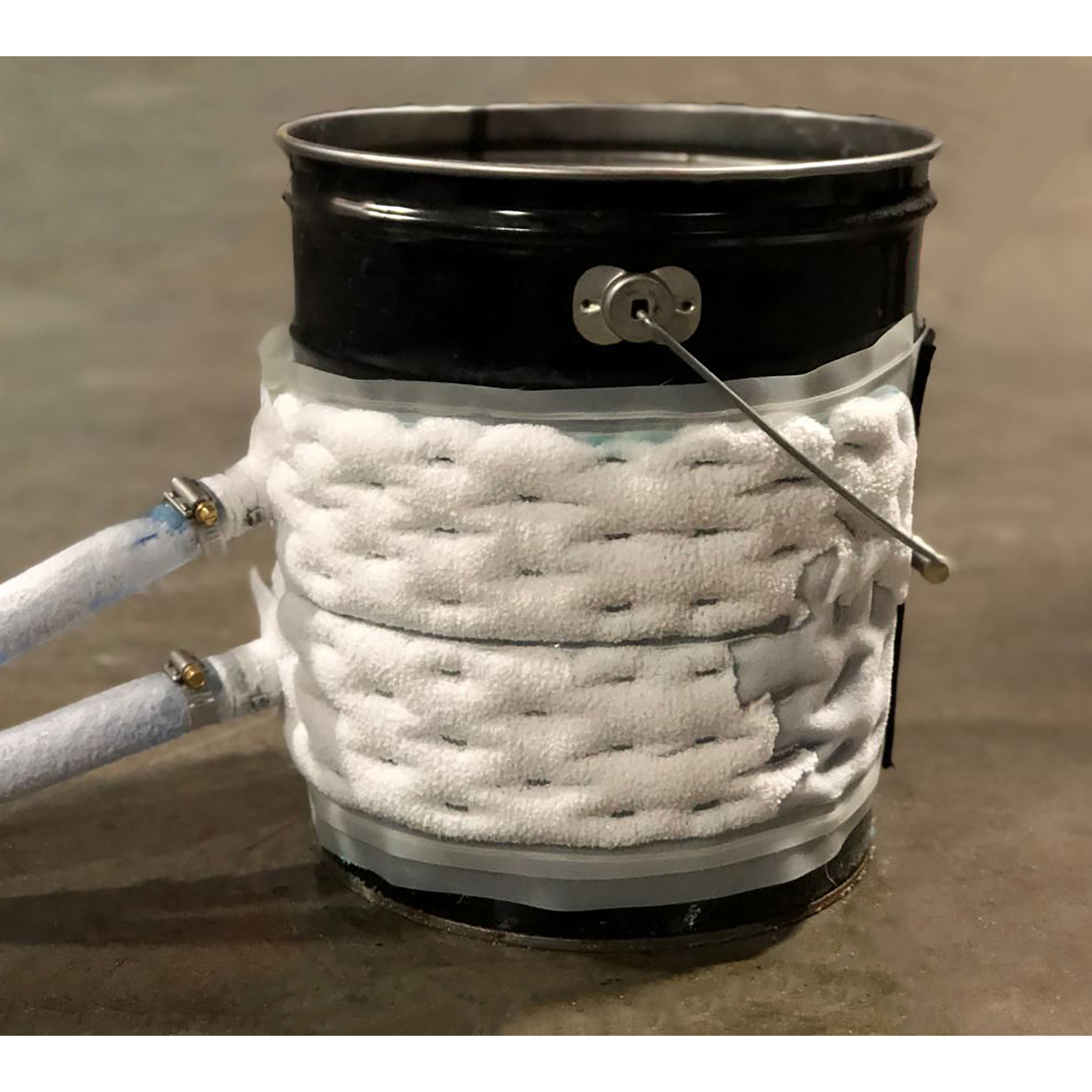

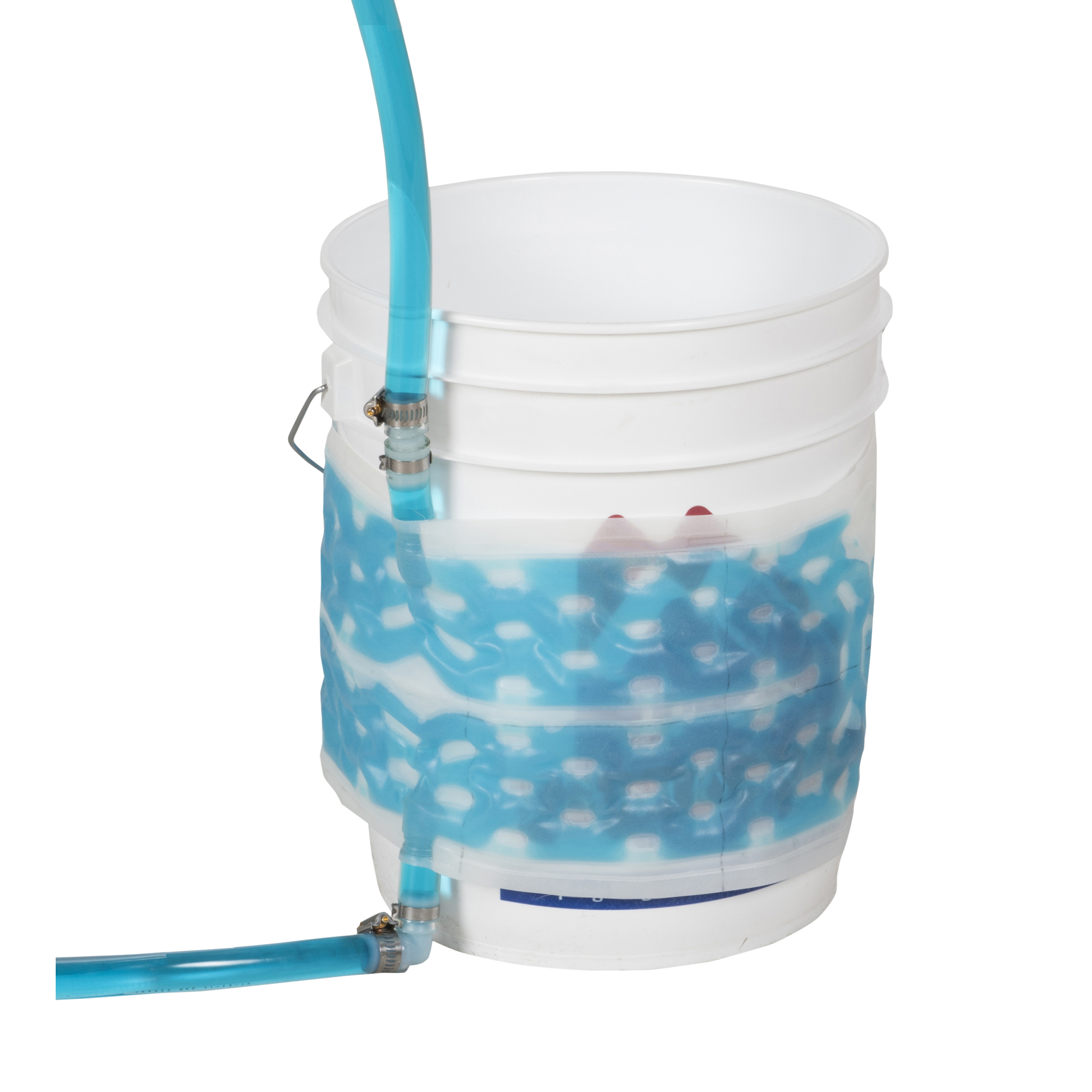

Fluxwrap by North Slope Chillers 5-Gallon Fluxwrap Bucket Cooling Jacket w/additional Insulation Wrap Flux Wrap products make it easy and cost-effective to cool various applications like spray foam, coatings, adhesives, fermentation systems, and electric motors. Flux Wrap can chill a wide range of materials in buckets, drums, IBC totes, tanks, and all manner of vessels even when a heat exchanger is not currently present. Flux Wraps allow chilling to be applied to many vessels that were previously not able to be chilled or in situations that previously were not financially feasible. Then simply change the temperature of the fluid, and you have an effective medium for heating. Flux Wrap is a versatile fluid temperature control solution. Wrap the cooling jacket around your 5-gallon bucket, and connect the hoses on the cooling jacket to the inlet valve on your industrial chiller. Wrap the white vinyl 1/2in. insulation blanket around the Flux Wrap when operating to help with performance. Plug your industrial chiller in and chill your application, that is all there is to it. The chiller circulates the hot or cold fluid through the Flux Wrap jacket and either warms or cools the contents of your 5-gallon bucket container. With a Flux Wrap jacket, you can efficiently regulate temperature-sensitive material under both regular and hot conditions. Features: Our proprietary multi-channel fluid path allows maximum flow with a minimal pressure drop Full coverage and elastic strap design ensure a snug fit and good thermal conductivity between the jacket and the bucket The lightweight, compact design saves space and makes moving easy Includes 1/2in. insulated wrap designed to control condensation and improve efficiency Full coverage cooling Control the temperature of your equipment or bulk materials When products materials are delivered too hot, waiting for the material to cool can mean hours or days of lost production costing you money All Flux Wrap jackets should be used with an industrial chilling unit to pump the fluid through the jacket. Call us today to speak with our North Slope Chiller experts to determine what North Slope Industrial Chiller is right for your application. The industrial chiller shown in the picture is not included and can be purchased from North Slope Chillers or Powerblanket separately

What's Included

    (1) Fluxwrap Cooling Jacket & Insulation Wrap

Features + Benefits

  • The industrial chiller shown in the picture is not included and can be purchased from North Slope Chillers or Powerblanket separately
  • Construction Material: 210D Nylon
  • Maximum Pressure Rating: 20 PSI @ inlet
  • Flow Rate: 4 GPM @ 5 PSI
  • Connection: 5/8" ID Hose
  • Min/Max Surface Temperature: -10 °F/150 °F (-23.3 °C/65.5 °C)
  • Upper-Temperature Limit: 120 °F (Water) 50 °F (Water/Glycol)
  • Cooling Fluid: Water (if the fluid temp is greater than 45 °F) -OR- Propylene Glycol/Water (1:1 max ratio) -OR- Ethylene Glycol/Water (1:1 max ratio)
  • Approximate Fluid Volume: 1/8 Gallons
  • Condensation Warning: When running cold fluid through the fluid channel jacket condensation can build up on the fluid paths. If condensation is a concern it is recommended that an insulated wrap is installed over the product. Powerblanket is not liable for damages due to condensation. The included Flux Wrap Insulated Wrap is designed to control condensation and improve efficiency.
  • Warning and Safety: Never exceed the maximum pressure rating
  • Warning and Safety: Do not puncture or cut the product
  • Warning and Safety: Always secure barbed fittings with a hose clamp to prevent the possibility of the hose coming off
  • Warning and Safety: Never have hoses or tubing cross a walkway or other places where they will become a tripping hazard
  • Warning and Safety: Only use acceptable fluids
  • Warning and Safety: Only install on clean surfaces free of any sharp objects that could puncture the blanket
  • Warning and Safety: Always have fluid flow from top to bottom
  • Warning and Safety: Never exceed the temperature rating of the Flux Wrap jacket
  • Warning and Safety: Never connect a smaller hose on the exit than what the Flux Wrap jacket is designed for

Key Specs

AttributeSpecification

item#

5025848

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.0 LB
AttributeSpecification

Product Weight

11.0000 lb

Dimensions L x W x H (in.)

38.0 x 11.0 x 1.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
