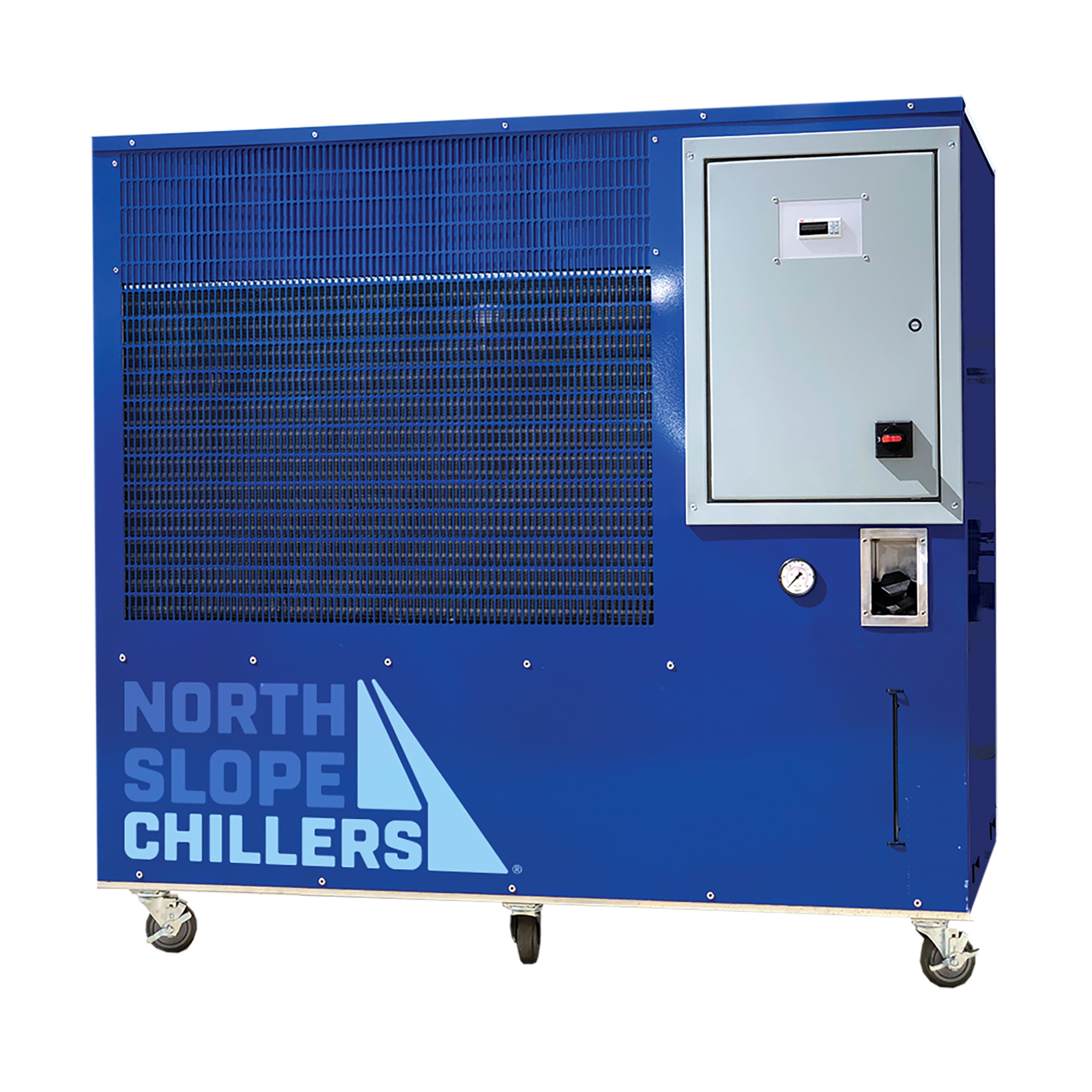

10 Ton Freeze Industrial Fluid Chiller (Indoor), BTU Cooling 90000 Volts 480 Model# NSC10000-LT

Item# 5025821
"10 Ton Freeze Industrial Fluid Chiller (Indoor), BTU Cooling 90000 Volts 480 Model# NSC10000-LT"
10 Ton Freeze Industrial Fluid Chiller (Indoor), BTU Cooling 90000 Volts 480 Model# NSC10000-LT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

10 Ton Freeze Industrial Fluid Chiller (Indoor), BTU Cooling 90000 Volts 480 Model# NSC10000-LT

Click or Tap image to Zoom

$30,279.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Rated 90,000 BTU's/hr @45°F and 53,000 BTU's/hr @15°F
  • Ambient Temperature Range: 35°F to 90°F
  • This premium industrial North Slope fluid chiller is rated for indoor use only
  • Non-Ferrous Piping System
  • Hermetically Sealed Scroll Compressor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

North Slope Chillers Deep Freeze 10 - Ton Industrial Chiller 90,000 BTUs per Hour Bring on Deep Freeze low-temperature chillers for ultimate industrial cooling. If your application requires temperature control below 55°F, then the Deep Freeze low temperature process chiller line is the solution to your problem. In addition to the same industrial-quality parts as our Freeze line of chillers, Deep Freeze's internal parts are fully insulated to ensure no internal temperature loss during heat transfer. Deep Freeze has a fluid temperature control range from 10°F to 60°F that will keep your critical materials and equipment cool even in hot conditions. Our North Slope Chiller Deep Freeze is a robust, air-cooled 10-ton (10 horsepower) standalone industrial chiller designed for indoor operation and low temps. Capacity is 90,000 BTU's/hr at rated conditions. Set up for ambient temperatures 35 °F to 90 °F (for higher or lower ambient conditions please consult the factory). FEATURES Ambient Temperature Range: 35°F to 90°F Rated for indoor operation Rated 90,000 BTU's/hr 45°F and 53,000 BTU's/hr 15°F Non-Ferrous Piping System Hermetically Sealed Scroll Compressor Non-ferrous piping system Continuous Duty, Stainless Steel Pump, 65 GPM Max 40 PSI Single Point Electrical Connection into Disconnect Stainless Steel Tank with Fully Welded Stainless Steel Couplers Available Voltages: 230/1 230/3 480/3 (standard) Heavy duty construction, built in the United States Fastest lead times in the process chiller manufacturing industry

What's Included

    (1) North Slope Deep Freeze Air-Cooled Industrial Fluid Chiller

Features + Benefits

  • Rated 90,000 BTU's/hr @45°F and 53,000 BTU's/hr @15°F
  • Ambient Temperature Range: 35°F to 90°F
  • This premium industrial North Slope fluid chiller is rated for indoor use only
  • Non-Ferrous Piping System
  • Hermetically Sealed Scroll Compressor
  • Non-ferrous piping system
  • Continuous Duty, Stainless Steel Pump, 65 GPM Max @ 40 PSI
  • Single Point Electrical Connection into Disconnect
  • Stainless Steel Tank with Fully Welded Stainless Steel Couplers
  • Available Voltages: 230/1, 230/3, 480/3 (standard)
  • Heavy duty construction, built in the United States
  • Fastest lead times in the process chiller manufacturing industry

Key Specs

AttributeSpecification

item#

5025821

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1443.0 LB

BTU Cooling

90,000

Volts

480

Amps

35

Product Type

Other
AttributeSpecification

Mini Split

No

Speeds (qty.)

1

Temperature Range

10F to 45F

Timer

No

For Use With

Process cooling removes unwanted or unnecessary heat from processes in order to keep operations running smoothly. For example, if equipment is overheating, this could damage the materials, the product being created, and even the equipment. In this case,

Product Weight

1150.0000 lb

Dimensions L x W x H (in.)

34.0 x 65.0 x 62.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
