Power Sentry Breakaway switch

Item# 7515251
New

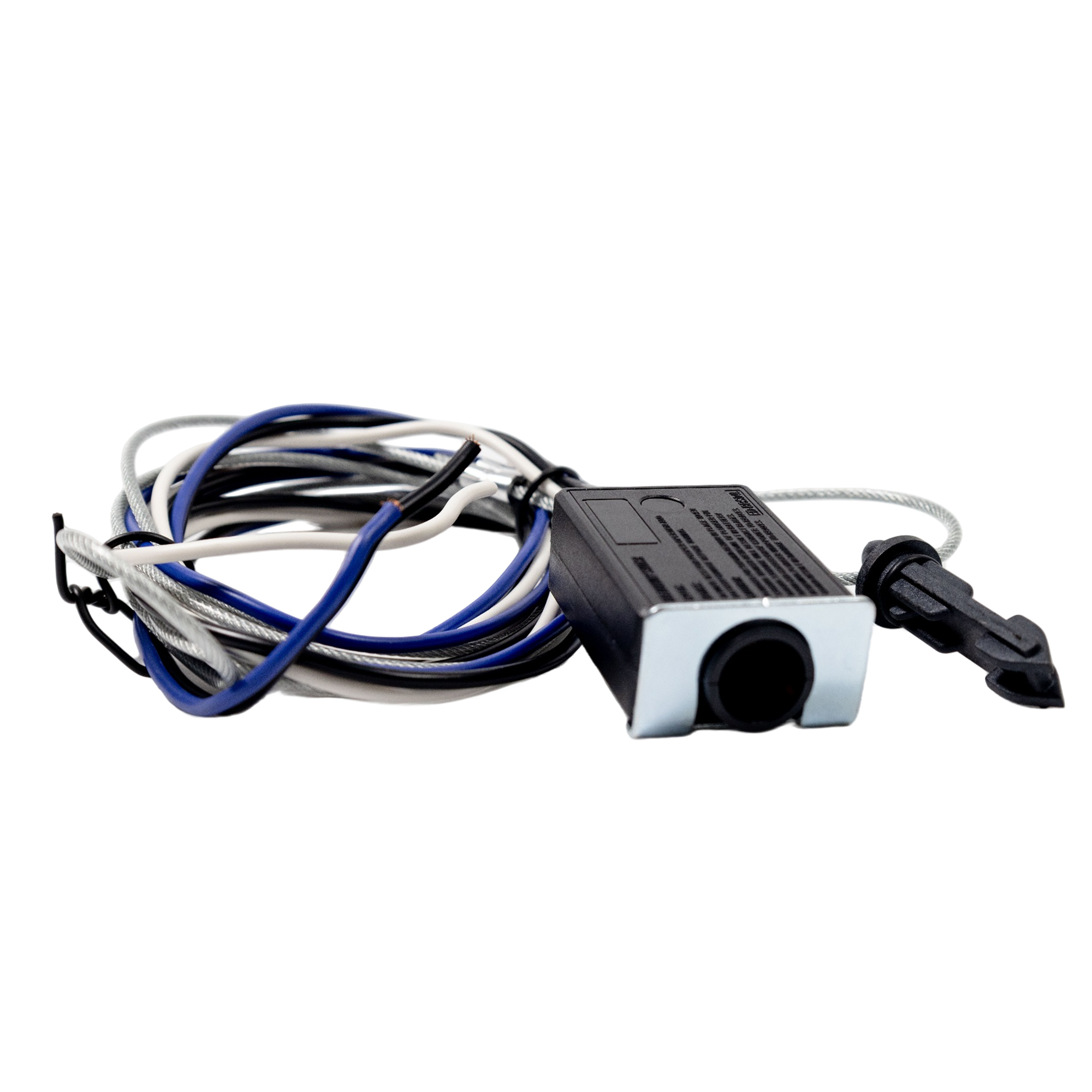

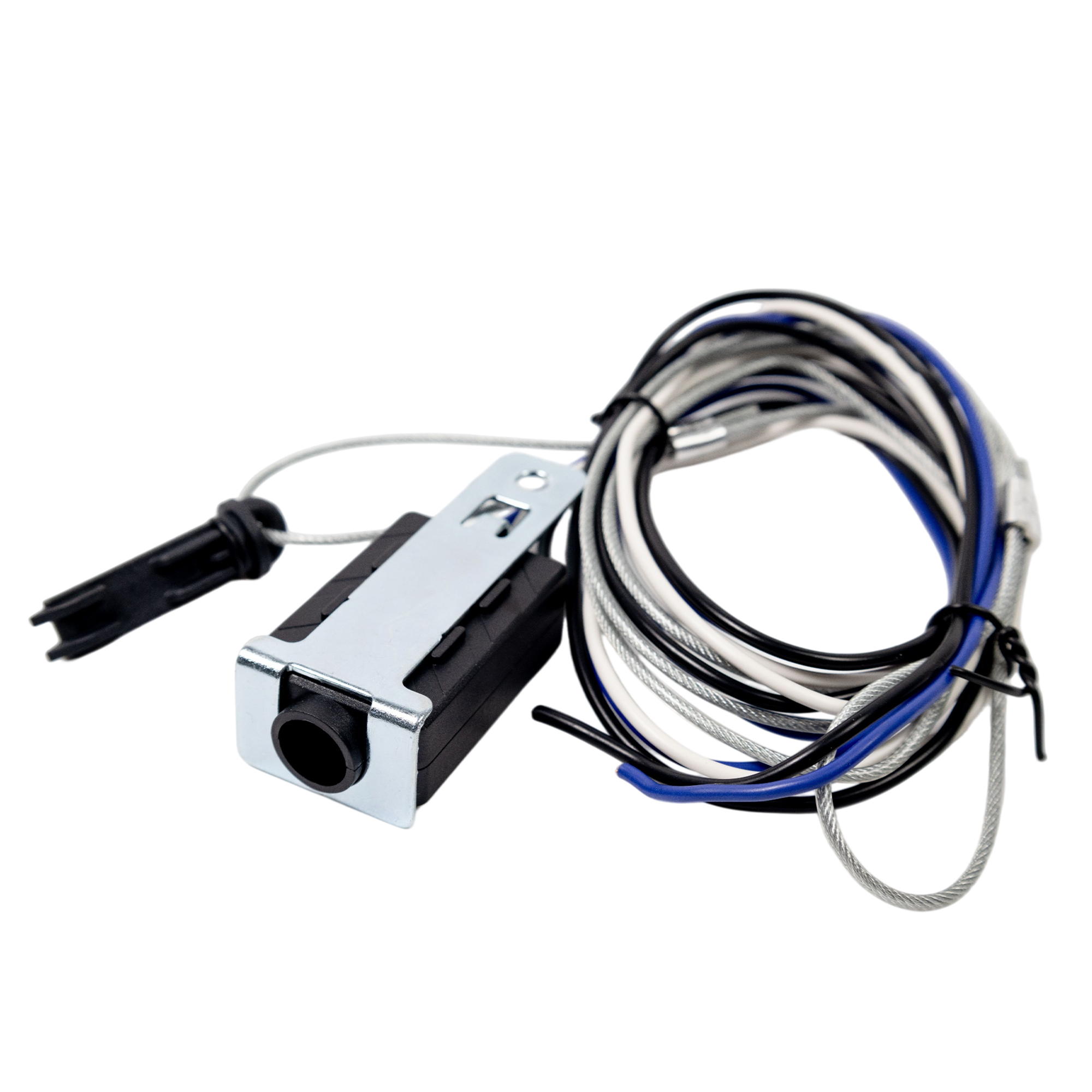

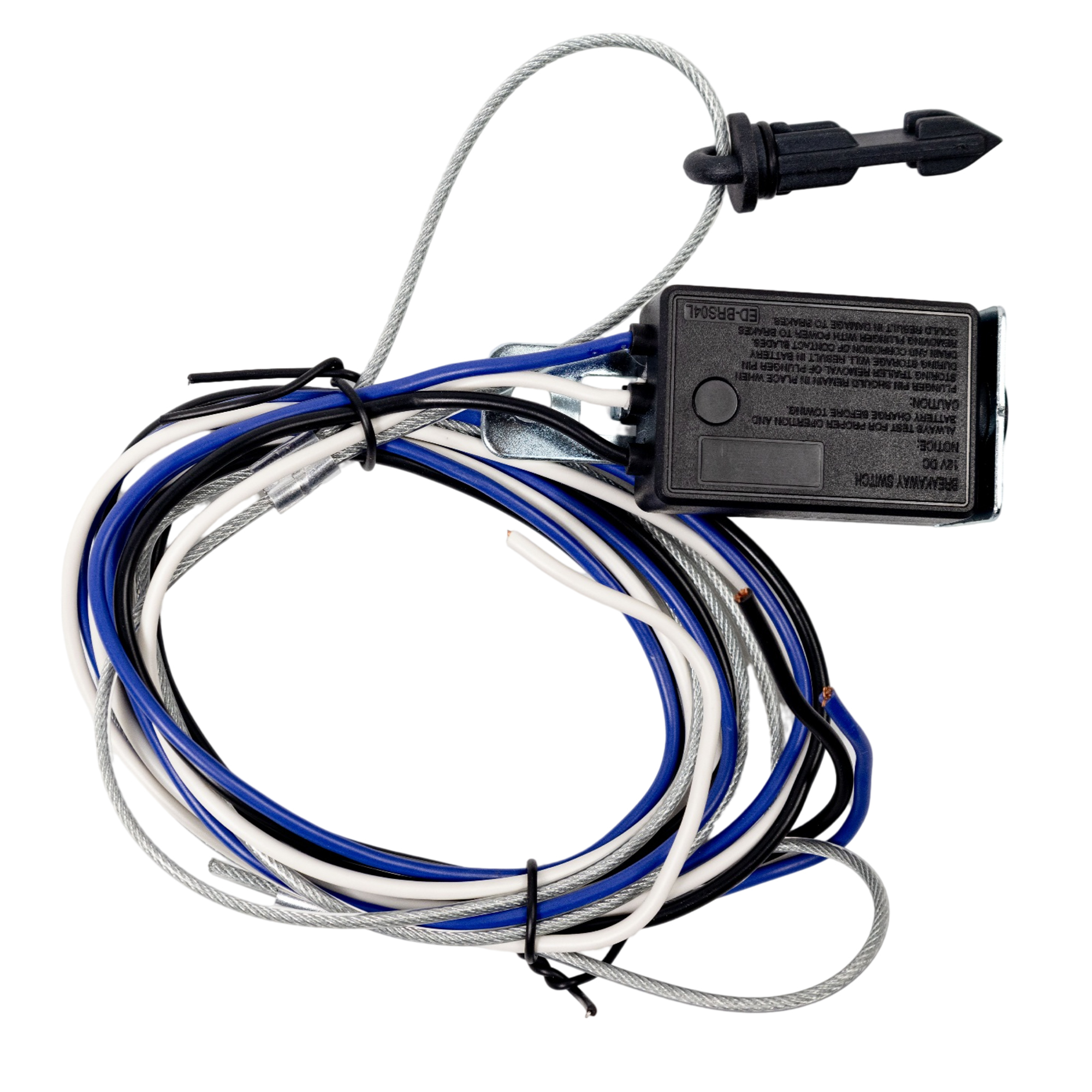

Power Sentry Breakaway switch

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Power Sentry Breakaway switch

Click or Tap image to Zoom

$14.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • LED CIRCUIT INDICATOR: LED illuminates to confirm battery voltage is present at the brake circuit.
  • BRAKE ACTIVATION: Pull-pin release completes the circuit to activate trailer brakes on accidental uncoupling.
  • SEALED HOUSING: Sealed enclosure protects internal contacts from moisture and dirt.
  • PULL-PIN AND CABLE: Includes a steel pull pin and cable for attachment to the tow vehicle.
  • 7-INCH LEAD WIRES: Supplied with 7-inch lead wires for splicing into the trailer's brake circuit.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Power Sentry LED Breakaway Switch is the trigger for your trailer's emergency brake system, and it lets you see at a glance that the system is ready. Designed for trailers equipped with electric brakes and a breakaway battery, this switch activates the trailer brakes in the event of an accidental uncoupling from the tow vehicle. Know Your System Is Ready. Most breakaway switches give you no indication of whether they'll actually work when needed. The Power Sentry switch features an LED circuit indicator that illuminates to confirm battery voltage is present at the brake circuit. A quick look tells you your breakaway system has power, adding confidence to your pre-trip safety check. Reliable Brake Activation, The pull-pin release completes the circuit to activate the trailer brakes on accidental uncoupling. If the trailer separates, the pin is pulled out of the switch, power flows to the brakes, and the trailer is brought to a stop. Sealed Housing Breakaway switches are mounted in exposed locations near the trailer tongue. The sealed enclosure protects internal contacts from moisture and dirt, helping ensure the switch is ready to perform when it counts.

What's Included

    (1) Switch (1) Switch

Features + Benefits

  • LED CIRCUIT INDICATOR: LED illuminates to confirm battery voltage is present at the brake circuit.
  • BRAKE ACTIVATION: Pull-pin release completes the circuit to activate trailer brakes on accidental uncoupling.
  • SEALED HOUSING: Sealed enclosure protects internal contacts from moisture and dirt.
  • PULL-PIN AND CABLE: Includes a steel pull pin and cable for attachment to the tow vehicle.
  • 7-INCH LEAD WIRES: Supplied with 7-inch lead wires for splicing into the trailer's brake circuit.

Key Specs

AttributeSpecification

item#

7515251

Brand

Power Sentry

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.31 LB

Connection Location

Trailer Side
AttributeSpecification

Plug Type

Other

Pin Type

Flat

Housing Material

Steel

Product Weight

3.3100 lb

Dimensions L x W x H (in.)

5.51 x 3.35 x 1.97 in
